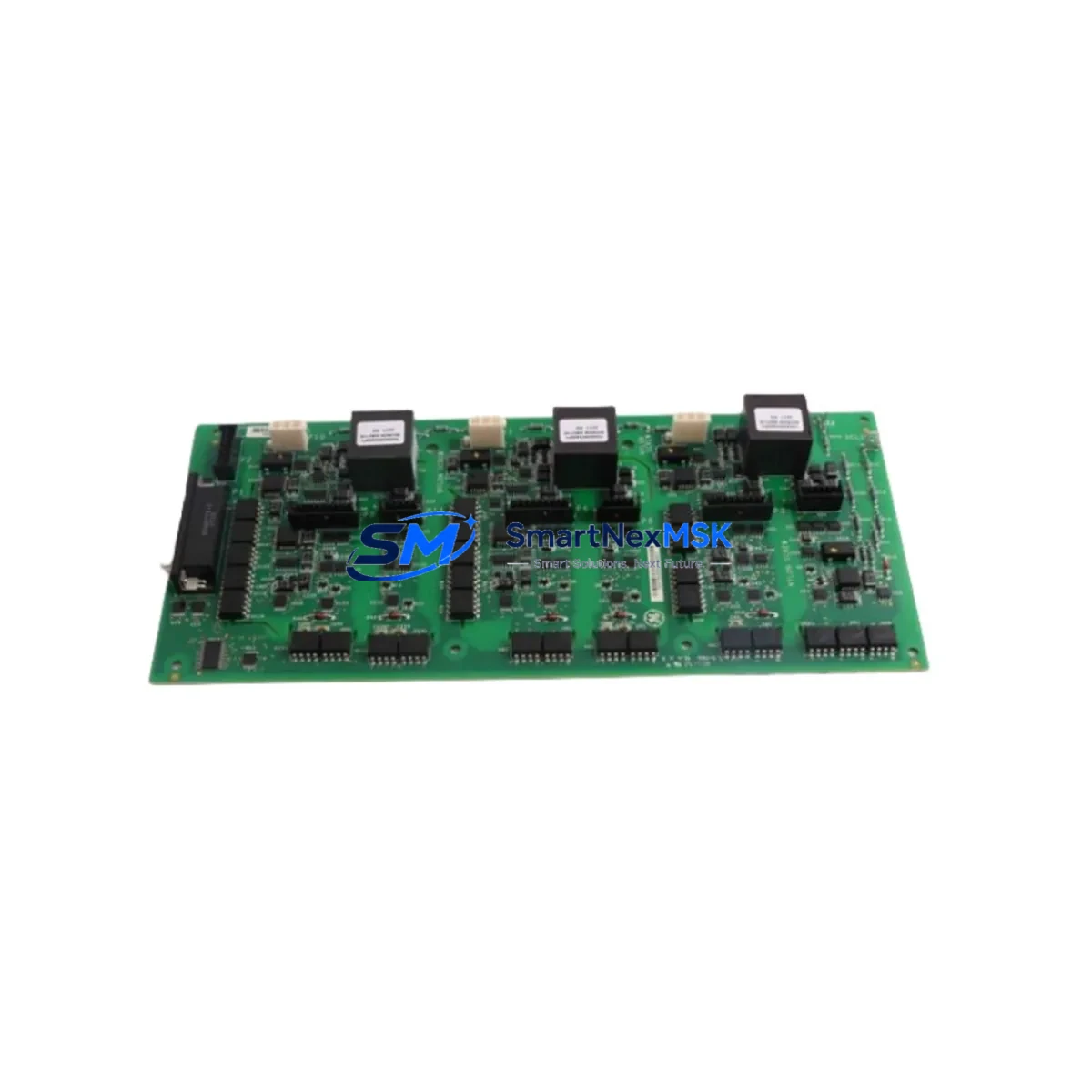

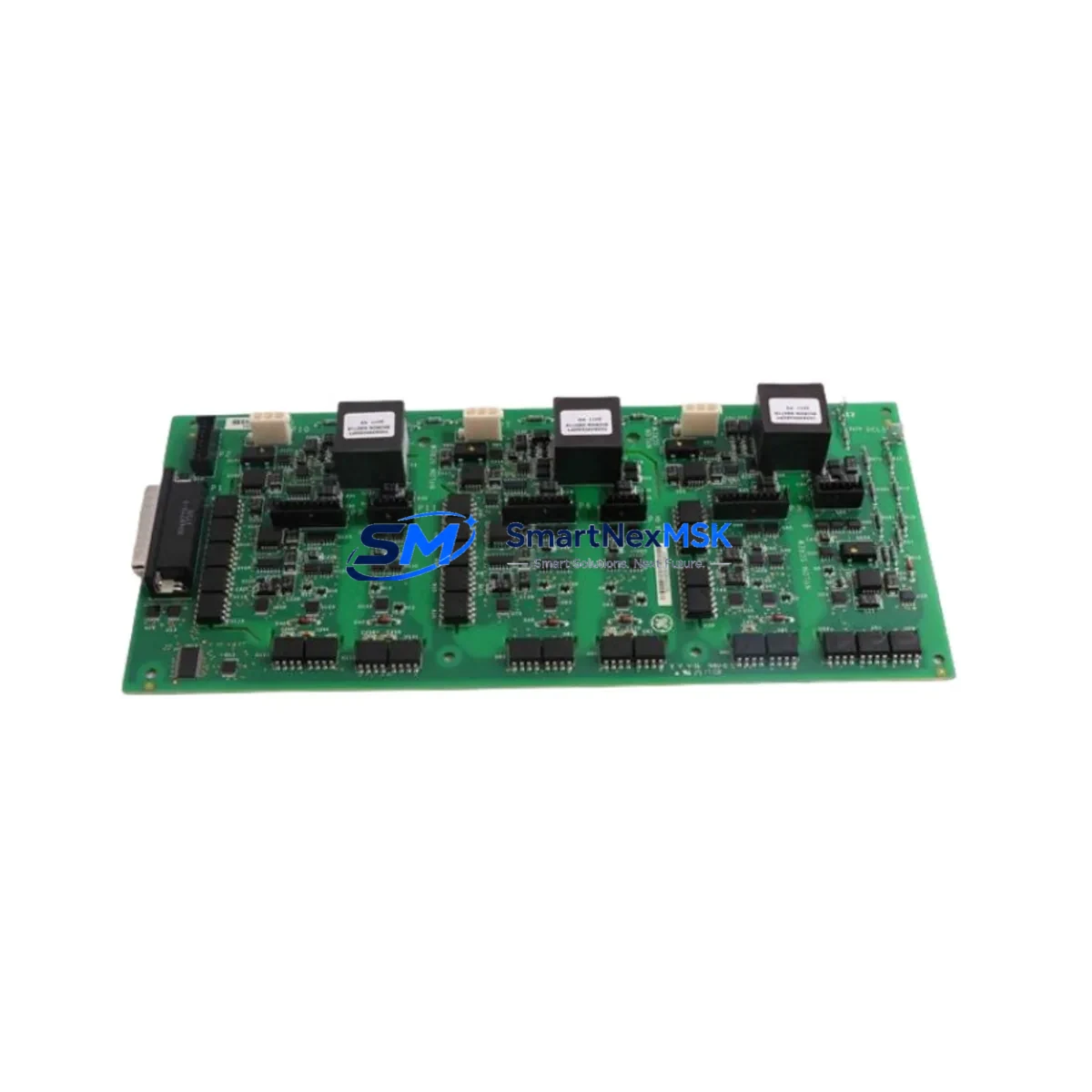

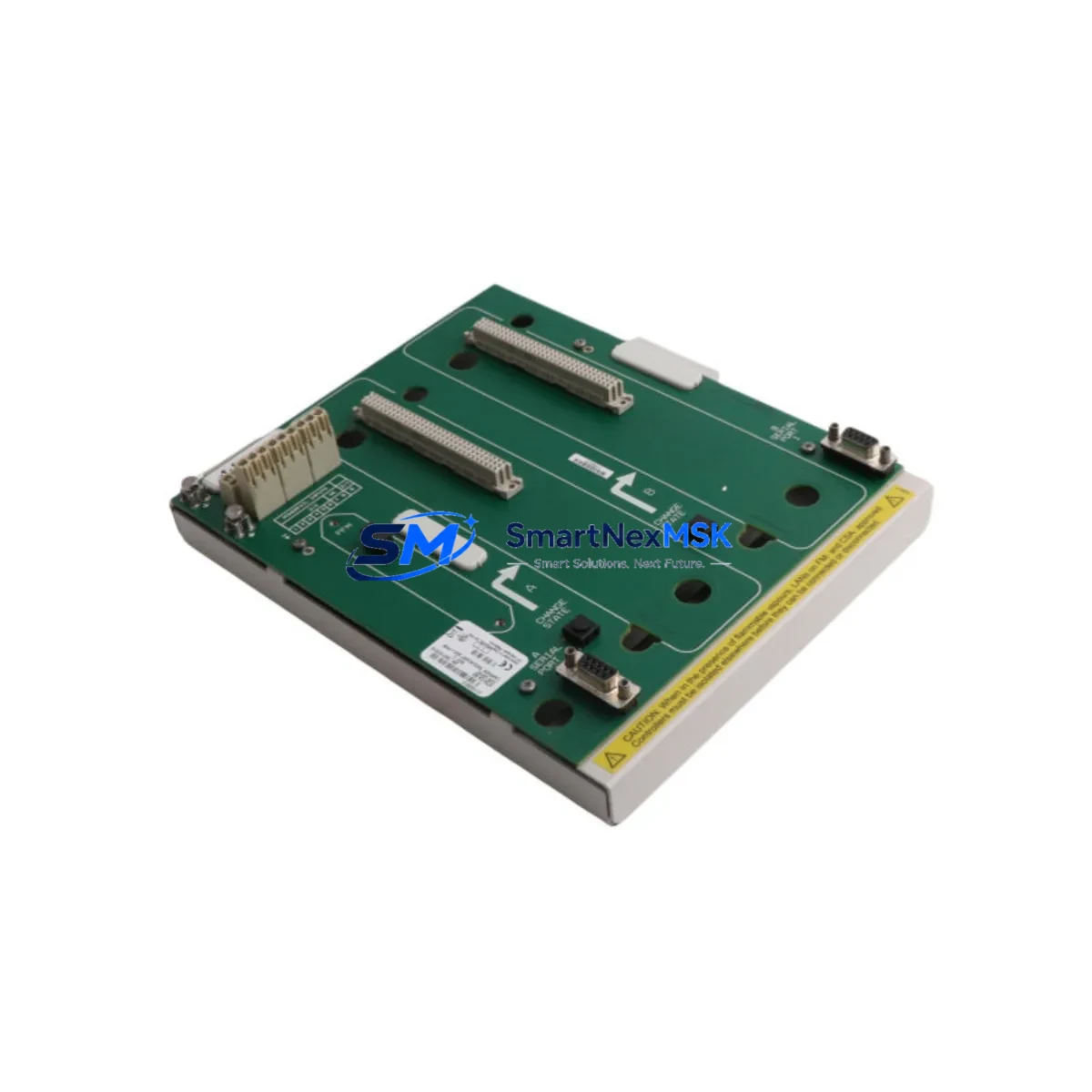

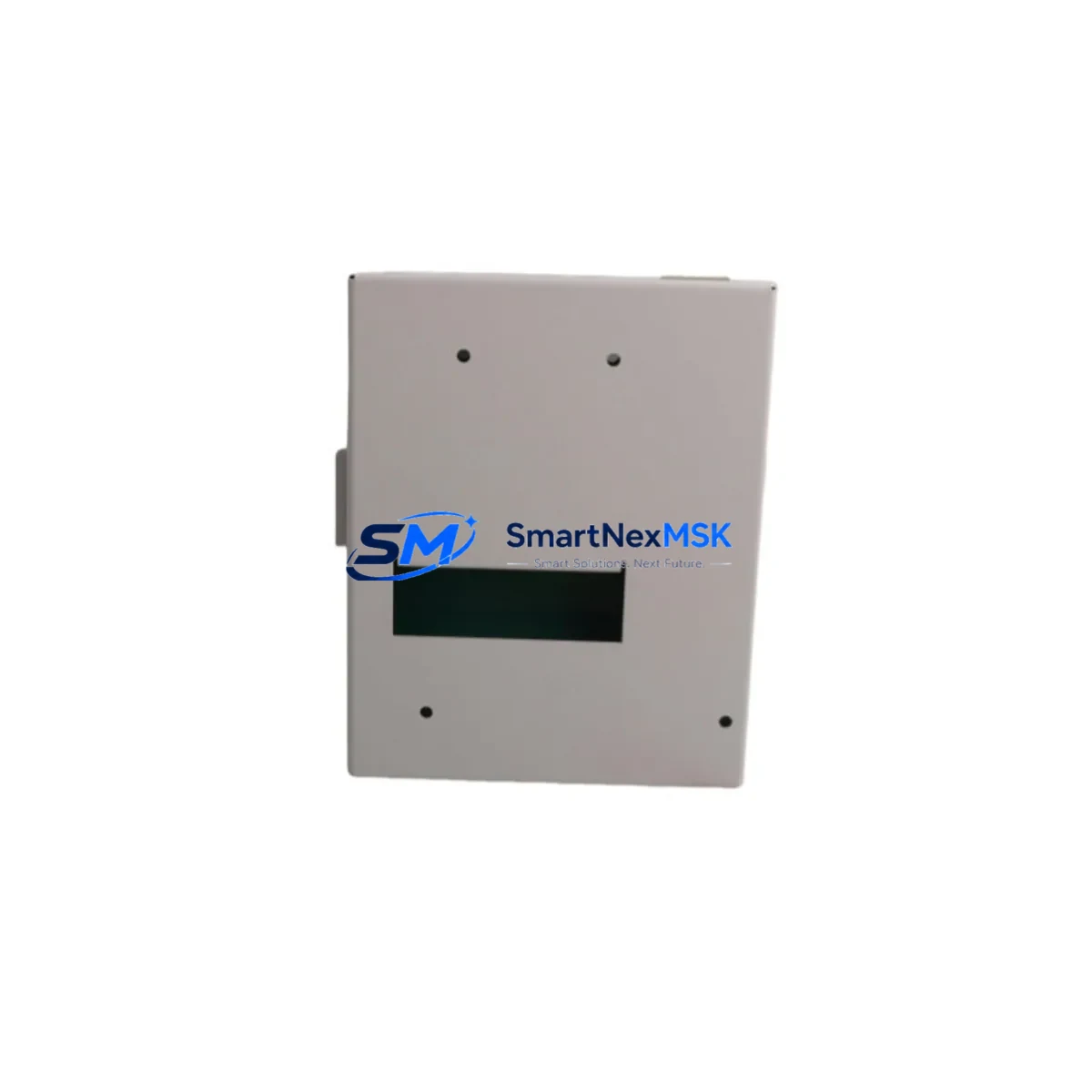

GE 8750-CA-NS Retrofit-Ready I/O Interface for Mark VI Control Systems

GE 8750-CA-NS Retrofit-Ready I/O Interface for Mark VI Control Systems

The GE 8750-CA-NS is a high-reliability I/O interface board engineered for the GE Mark VI Turbine Control System — one of the most widely deployed distributed control platforms in power generation, oil & gas, and heavy industrial environments. As legacy Mark VI installations approach end-of-life and OEM support windows close, the 8750-CA-NS has become a critical retrofit component for engineers tasked with extending system life, restoring failed I/O capacity, or executing a phased migration to modern control architectures.

Whether you are replacing a failed board in an operating turbine control cabinet, upgrading a brownfield plant’s I/O infrastructure, or consolidating spare parts inventory ahead of a scheduled outage, the 8750-CA-NS delivers the electrical compatibility, backplane interface integrity, and firmware alignment required for seamless integration into existing Mark VI racks. All units are sourced from verified supply chains, subjected to pre-shipment functional testing, and covered by a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful Mark VI retrofit begins well before the replacement board arrives on site. Engineers should start by auditing the existing I/O pack configuration using GE ToolboxST, the primary engineering workstation software for Mark VI systems. Document all active I/O assignments, module addresses, and network node IDs associated with the 8750-CA-NS slot before any hardware is disturbed.

In most Mark VI cabinets, the 8750-CA-NS interfaces with adjacent I/O packs such as the IS200IOCIH1A (I/O controller interface) and communicates upstream via the IONet Ethernet backbone to the main controller — typically a IS215UCVEH2A or equivalent Mark VI UCVE controller module. Verify that the IONet switch configuration and IP addressing scheme are documented, as these settings must be preserved or re-entered during commissioning of the replacement board.

Terminal wiring connected to the I/O terminal boards — such as the IS200TBCIH1C or IS200TBAIH1C — should be photographed and labeled before disconnection. Pay particular attention to shield grounding points and cable routing within the control cabinet, as improper re-termination is a leading cause of signal noise and commissioning delays. If the retrofit involves expanding I/O capacity, confirm that the Mark VI power supply module (typically a IS200EPCTG1A or equivalent) has sufficient headroom to support additional I/O packs without exceeding the rack’s power budget.

For plants running GE Cimplicity HMI or a third-party SCADA system connected via OPC-DA or OPC-UA, verify that all tag mappings referencing I/O points served by the 8750-CA-NS are intact after the replacement. In some configurations, the HMI screen associated with the affected I/O group may require a manual refresh or tag re-scan following module swap. If the control system communicates with a GE Mark VIe migration gateway or a Profibus DP adapter for legacy field device integration, confirm that the communication link is re-established and error-free before returning the unit to service.

Spare parts planning should also account for associated consumables: terminal block connectors, DIN rail mounting hardware, and fiber patch cables for IONet segments are frequently overlooked during retrofit procurement. Having a GE Mark VI programming cable (RS-232 or USB-to-serial adapter compatible with ToolboxST) on hand during commissioning is essential for real-time diagnostics and parameter verification.

Downtime Control During System Migration

Minimizing unplanned downtime during a Mark VI I/O board replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, export a full ToolboxST project backup from the active controller. This backup preserves all application logic, I/O assignments, alarm setpoints, and communication parameters — providing a verified restore point if commissioning of the 8750-CA-NS encounters unexpected issues.

Where the process permits, consider a staged replacement approach: install the new 8750-CA-NS in a parallel rack slot (if available) and verify communication and I/O pack recognition while the original module remains in service. This hot-standby validation method, supported in redundant Mark VI configurations, allows engineers to confirm firmware compatibility and network node assignment without interrupting live control loops.

For single-controller, non-redundant Mark VI installations — common in smaller turbine packages and auxiliary systems — the replacement window should be tightly scoped. Prepare a step-by-step commissioning checklist covering: power isolation sequence, module extraction and insertion procedure, ToolboxST download verification, IONet link confirmation, I/O pack status check, HMI tag validation, and final functional test of all I/O points served by the replaced board. A well-prepared team can complete a straightforward 8750-CA-NS swap in under two hours, keeping the impact on production schedules to a minimum.

All units supplied by SMARTNEXMSK are pre-tested prior to shipment, reducing the risk of DOA (dead-on-arrival) failures that extend outage windows. The included 12-month warranty provides additional assurance that any latent defects identified during the commissioning period or early operation will be addressed without additional cost.

Retrofit Support FAQ

Q1: Is the GE 8750-CA-NS a direct drop-in replacement for the original board in my Mark VI cabinet?
Yes. The 8750-CA-NS is designed as a direct slot replacement within the Mark VI rack. No mechanical modification to the cabinet or backplane is required. However, you should verify the ToolboxST firmware version on your controller is compatible with the replacement unit before installation, as firmware mismatches can prevent the module from being recognized on the IONet network.

Q2: What wiring checks should I perform before and after installing the replacement board?
Before removal, photograph all terminal connections on the associated I/O terminal boards (e.g., IS200TBCIH1C) and record shield grounding points. After installation, verify that all terminal screws are torqued to specification and that no wiring has been inadvertently displaced. Use ToolboxST’s I/O diagnostic view to confirm that all field signals are reading correctly before releasing the system to operations.

Q3: How do I confirm communication compatibility between the replacement 8750-CA-NS and my existing Mark VI controller?
After installing the module, open ToolboxST and navigate to the IONet network view. The replacement board should appear as a recognized node within 60–90 seconds of power-up. If the module does not appear, check the IONet switch port assignment, verify the module’s IP address configuration, and confirm that the ToolboxST project’s I/O pack definitions match the physical slot assignment of the new board.

Q4: What does the 12-month warranty cover, and what is the process for a warranty claim?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact SMARTNEXMSK at sales@smartnexmsk.com with your order number, a description of the failure mode, and any available ToolboxST diagnostic logs. Replacement or repair will be arranged promptly to minimize your system downtime.
