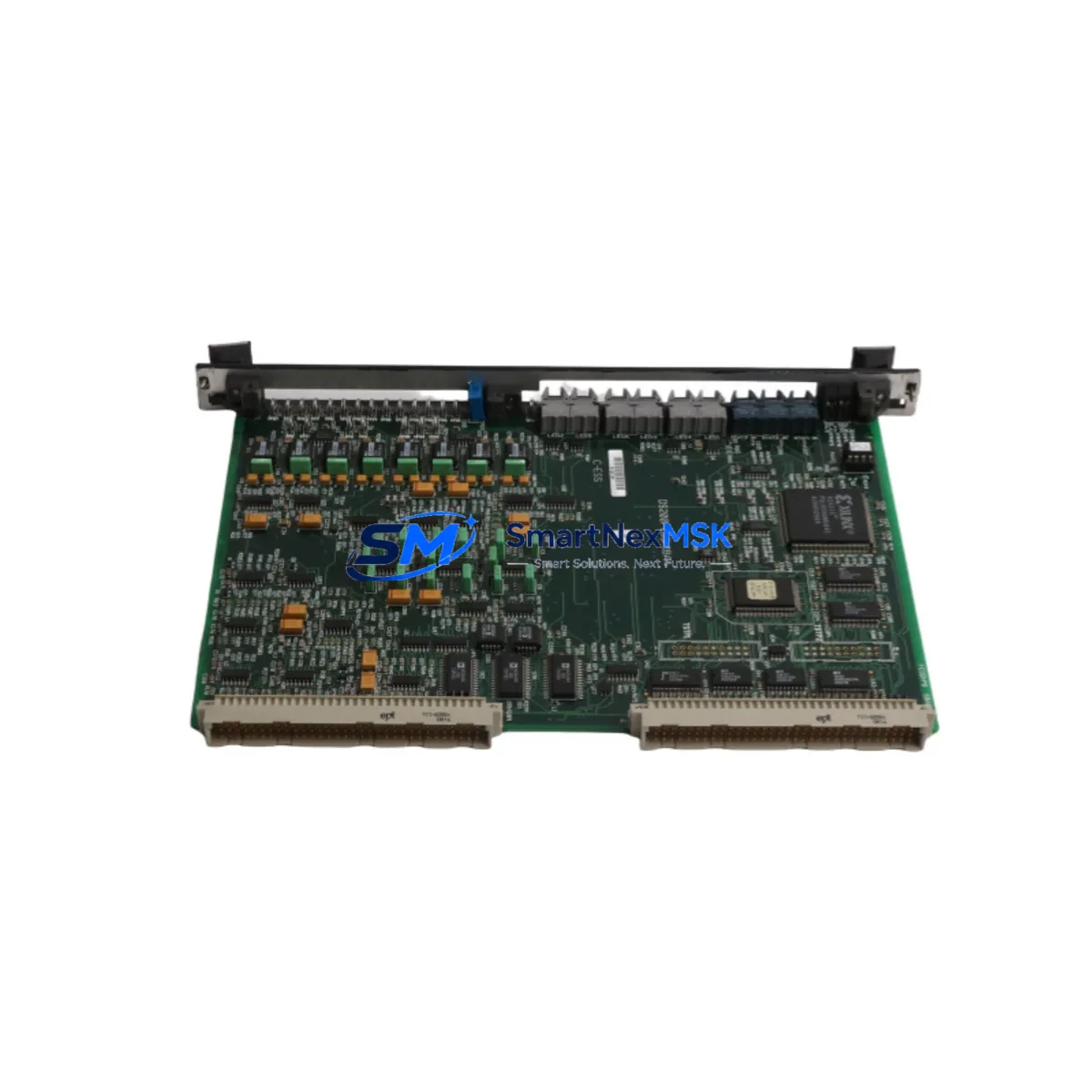

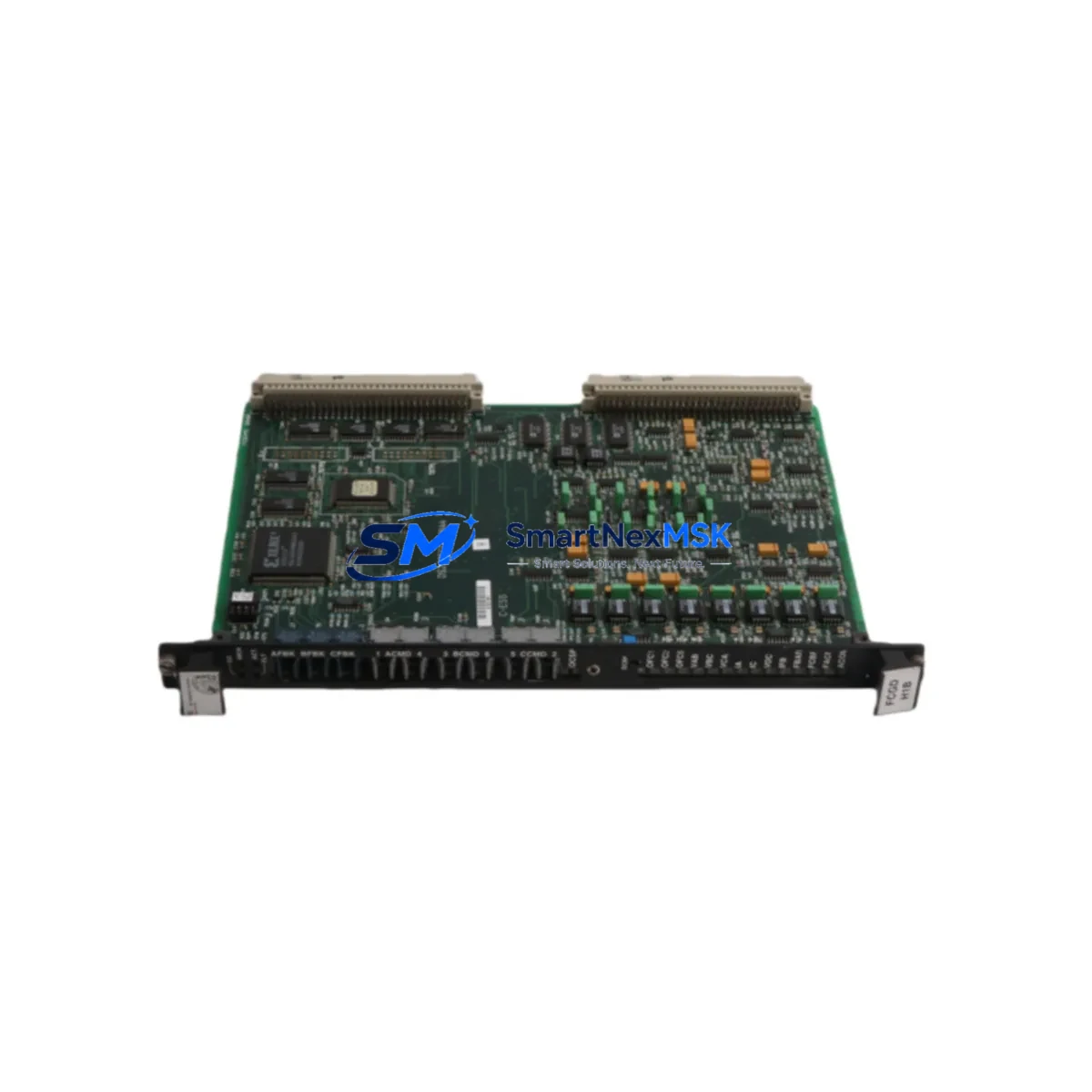

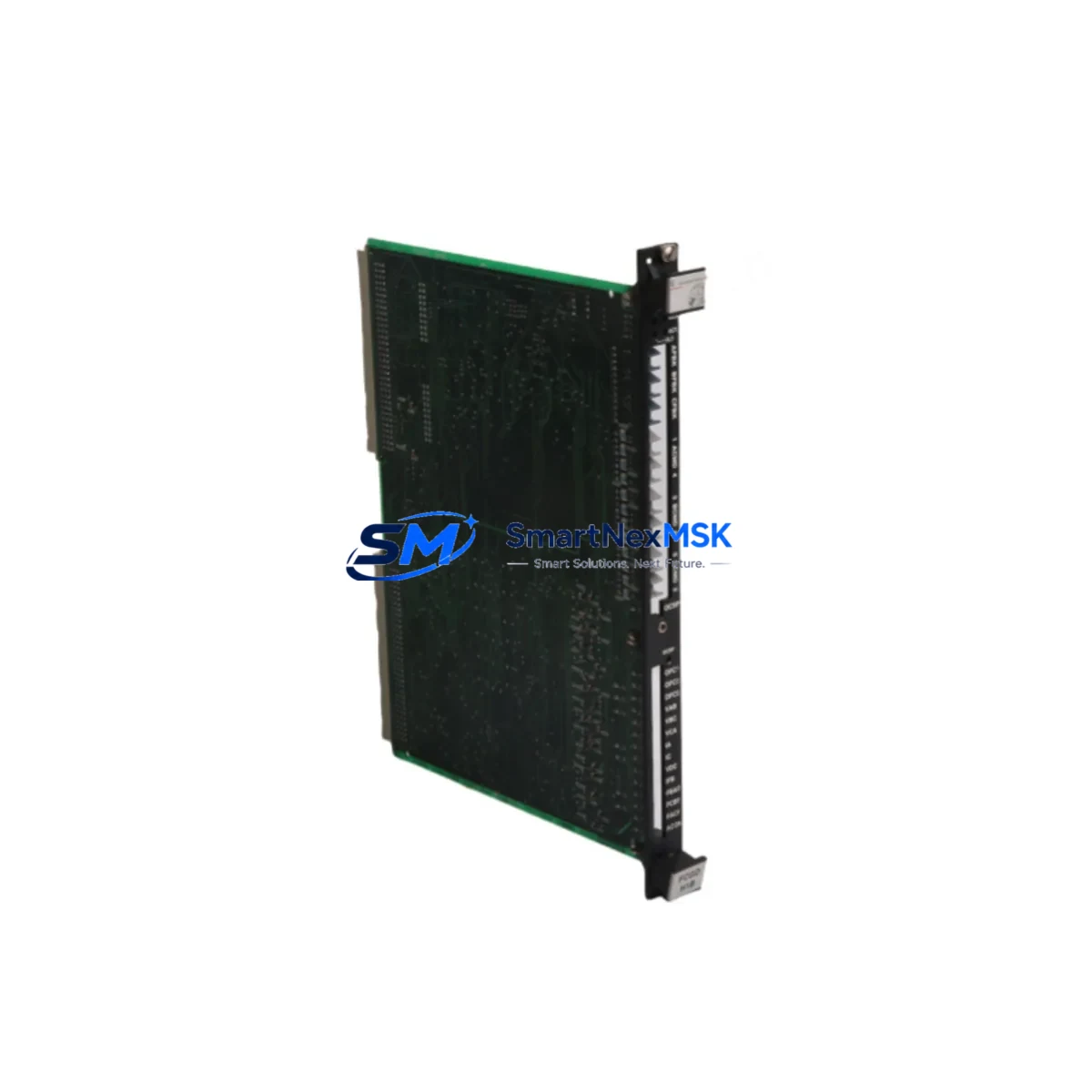

GE DS200FCGDH1BAA Safety-Enhanced Flame Scanner Control

GE DS200FCGDH1BAA Safety-Enhanced Flame Scanner Control for Harsh Industrial Sites

The GE DS200FCGDH1BAA is a ruggedized Flame Scanner Control Board engineered for the GE Mark V Speedtronic turbine control platform. Designed to operate reliably in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, and continuous-process manufacturing sites — this board serves as a critical safety node within the turbine’s flame detection and combustion monitoring circuit. Its robust design directly addresses the most common causes of unplanned shutdowns: control loop interruption, signal drift, power fluctuation, module misoperation, surge impact, communication anomalies, and field downtime.

In high-load, high-interference control cabinets where the DS200FCGDH1BAA is typically installed alongside boards such as the DS200TCQAG1BHF (Analog I/O board), DS200SDCCG1AFB (System Drive Control Card), and DS200TCDAG1AAA (Digital I/O board), maintaining signal integrity is paramount. The DS200FCGDH1BAA’s onboard EMI shielding and isolated signal conditioning circuitry prevent cross-talk and ground-loop interference that can cause false flame-loss trips — a critical safety risk in gas turbine and boiler applications. Its compatibility with the Mark V TCPS power supply module and the DS200TCPSG1A power conditioning board ensures stable 5 VDC and ±15 VDC rail delivery even during upstream grid disturbances or capacitor bank switching events.

Surge protection is built into the board’s input stage, guarding against transient voltages that commonly occur in proximity to large motor starters, variable frequency drives, and high-current bus bars found in metallurgical and port crane control systems. When paired with the DS200TBCBG1AAA terminal board and properly shielded thermocouple or UV/IR sensor cabling, the DS200FCGDH1BAA maintains flame signal accuracy within specification across the full operating temperature range, preventing nuisance trips that could interrupt continuous production cycles.

For facilities operating under IEC 61511 or NFPA 85 safety standards, the DS200FCGDH1BAA plays a direct role in the Safety Instrumented System (SIS) architecture. Its flame presence output feeds into the Mark V’s critical interlock logic — the same logic that governs fuel valve shutoff via the DS200TCQCG1B I/O card and coordinates with the IS200TREGH1B excitation regulator to execute a safe, controlled turbine trip when combustion anomalies are detected. Reliable operation of this board is therefore not merely a performance concern but a life-safety requirement.

Each DS200FCGDH1BAA unit supplied by SMARTNEXMSK undergoes pre-shipment functional testing covering power-on self-test (POST) verification, analog signal channel calibration checks, and communication bus integrity validation. Units are shipped in anti-static packaging with humidity indicator cards, ensuring the board arrives in field-ready condition. Our inventory is maintained to support both emergency replacement and planned maintenance schedules, with typical lead times of 1–3 business days for in-stock units.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust Mark V control cabinet protection strategy begins with ensuring every board in the rack operates within its rated electrical environment. The DS200FCGDH1BAA is typically installed in the or controller panel alongside the DS200TCQAG1BHF analog I/O board, which handles thermocouple and RTD inputs from the turbine hot section. Signal integrity between these two boards is maintained through the Mark V’s differential signal architecture, but physical board health — freedom from cold solder joints, capacitor degradation, and trace corrosion — is equally critical. SMARTNEXMSK’s pre-shipment inspection process addresses all three failure modes before the unit leaves our facility.

Power quality within the cabinet is managed by the DS200TCPSG1A power supply conditioning board and the TCPS module. Voltage sag events caused by large inductive loads starting on the same bus can propagate into the Mark V backplane if these upstream components are degraded. A healthy DS200FCGDH1BAA, combined with a verified DS200SDCCG1AFB system drive control card, ensures that flame scanner data continues to be processed and transmitted to the controller without interruption during such transient events.

Communication integrity between the DS200FCGDH1BAA and the Mark V’s , , and controllers is maintained over the Mark V IONet. Faults in the DS200TCQCG1B I/O card or degraded ribbon cable connections to the DS200TBCBG1AAA terminal board are common root causes of intermittent flame scanner communication alarms. Replacing a suspect DS200FCGDH1BAA with a tested spare from SMARTNEXMSK’s inventory is the fastest path to restoring normal operation and avoiding a forced outage.

Critical Industrial Safety Applications

Petrochemical & Refinery: In fired heater and process gas turbine applications, the DS200FCGDH1BAA provides the flame confirmation signal that prevents unburned fuel accumulation — a direct explosion risk. Continuous-process facilities cannot tolerate nuisance trips caused by a degraded flame scanner board; a verified replacement unit on the shelf is standard practice for any site operating under a Process Safety Management (PSM) program.

Power Generation: Combined-cycle and simple-cycle gas turbine plants rely on the Mark V Speedtronic system for start-up sequencing, load control, and protective shutdown. The DS200FCGDH1BAA’s role in confirming combustor flame status is integral to both the start permissive logic and the running flame-loss trip function. Utilities operating under NERC reliability standards require documented spare parts inventories for critical control system components.

Mining & Mineral Processing: Diesel-driven generator sets and gas turbine-driven compressors in remote mining operations face extreme ambient conditions — wide temperature swings, high dust loading, and vibration. The DS200FCGDH1BAA’s conformal coating and robust PCB construction make it suitable for these environments, and SMARTNEXMSK’s global shipping capability ensures replacement units reach remote sites within days rather than weeks.

Water & Wastewater Treatment: Biogas-fired turbine generators at large treatment facilities use Mark V-based control systems. Flame scanner reliability directly affects the facility’s ability to utilize biogas for power generation, impacting both operational economics and environmental compliance.

Metallurgy & Steel: Reheat furnace burner management systems and turbine-driven blower trains in integrated steel mills operate in high-temperature, high-vibration environments with significant electrical noise from arc furnaces and large drives. The DS200FCGDH1BAA’s EMI resistance is a key reliability attribute in these installations.

Safety and Quality FAQ

Q: What warranty coverage is provided with the DS200FCGDH1BAA?
A: Every DS200FCGDH1BAA supplied by SMARTNEXMSK carries a 12-month warranty from the date of shipment. This covers functional failure under normal operating conditions and includes technical support for installation and commissioning questions.

Q: What pre-shipment testing is performed on each unit?
A: Each board undergoes power-on self-test (POST) verification, analog signal channel calibration checks, and communication bus integrity validation prior to shipment. Units are inspected for physical defects including cold solder joints, component damage, and trace corrosion before packaging.

Q: Is the DS200FCGDH1BAA compatible with all Mark V panel configurations?
A: The DS200FCGDH1BAA is designed for the GE Mark V Speedtronic platform. Compatibility depends on your specific Mark V panel revision and software version. SMARTNEXMSK’s technical team can assist with cross-referencing your panel configuration to confirm fitment before purchase.

Q: Can SMARTNEXMSK support long-term and emergency supply requirements?
A: Yes. SMARTNEXMSK maintains standing inventory of DS200FCGDH1BAA and related Mark V boards to support both planned maintenance programs and emergency breakdown situations. We offer 1–3 business day shipping for in-stock units and can provide sourcing support for extended supply agreements.
