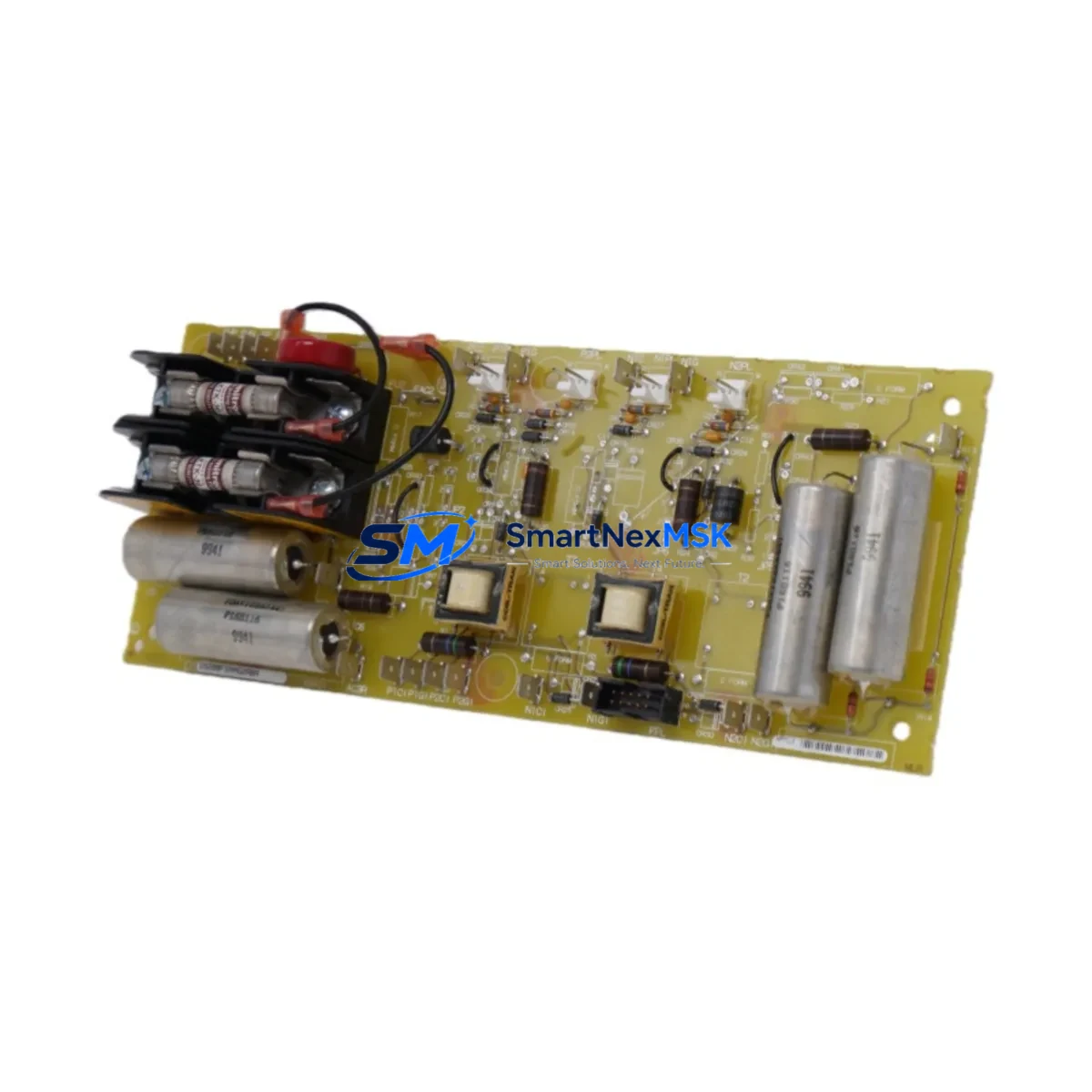

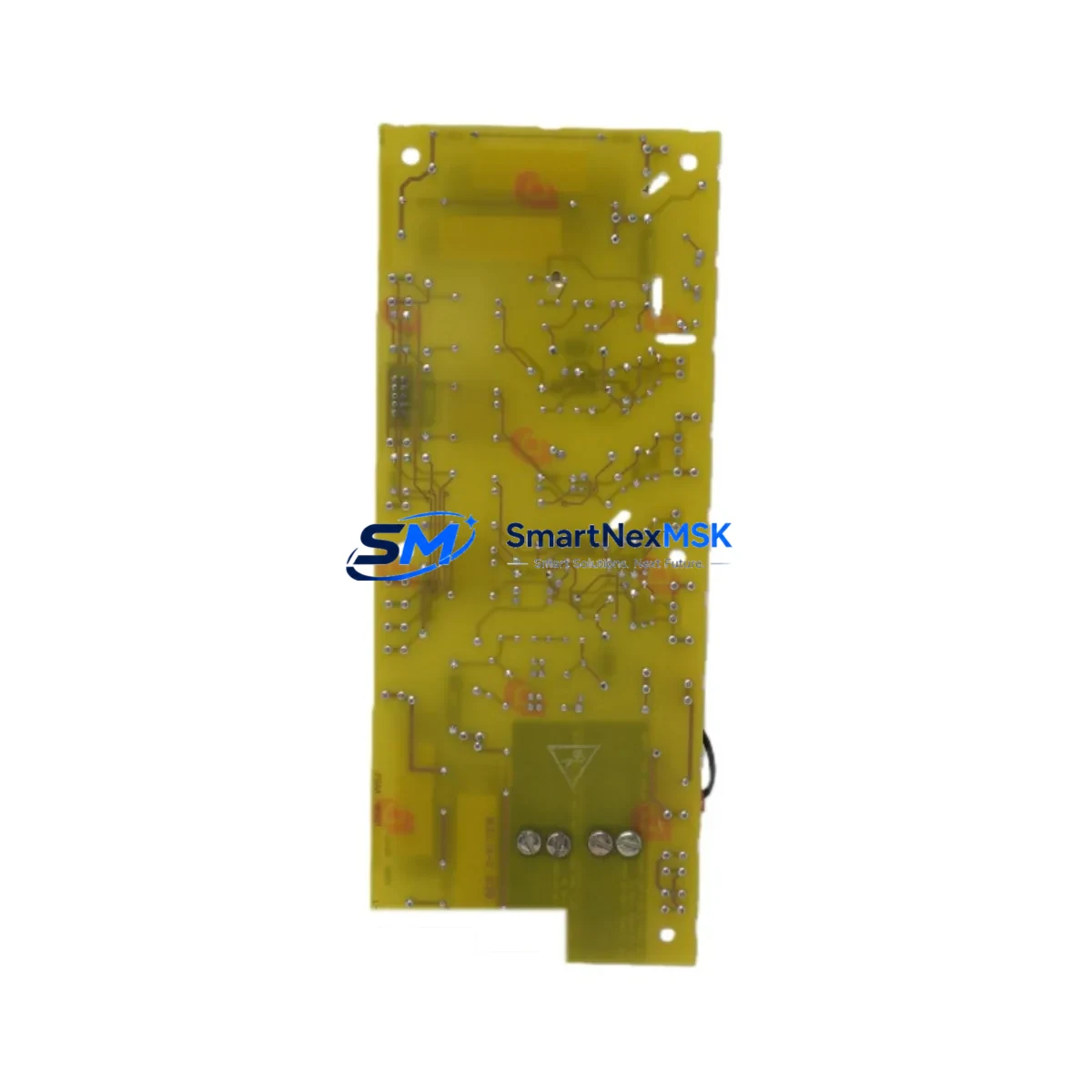

GE DS200FSAAG2A Safety-Enhanced Gate Amplifier Module

GE DS200FSAAG2A Safety-Enhanced Gate Amplifier Module: Reliable Control for Harsh Industrial Sites

The GE DS200FSAAG2A is a ruggedized gate amplifier module engineered for the GE Mark V DC drive control platform. Designed to operate continuously in high-load, high-interference industrial environments, this module plays a critical role in maintaining safe, uninterrupted thyristor firing sequences within DC motor drive cabinets. Its robust signal conditioning architecture directly reduces the risk of control interruption, gate misfiring, and drive-level faults that can trigger unplanned production shutdowns in continuous-process facilities.

In heavy industrial applications — including steel mills, mining hoists, chemical processing lines, and port crane drives — the DS200FSAAG2A provides the gate pulse amplification necessary to ensure precise, repeatable SCR triggering under fluctuating load conditions. Signal drift caused by thermal cycling, electromagnetic interference from adjacent variable frequency drives, or power supply transients can compromise gate timing accuracy. The DS200FSAAG2A’s isolated gate drive circuitry and onboard surge suppression components mitigate these risks, maintaining firing angle stability even when the control cabinet environment is electrically noisy.

Safety Reliability Table

Control Cabinet Protection Strategy

The DS200FSAAG2A does not operate in isolation — it is one node in a tightly integrated DC drive protection architecture. In a properly configured Mark V control cabinet, the gate amplifier works in coordination with the DS200SDCIG2A DC control interface board, which manages speed reference and current feedback loops. Upstream, the DS200PCCAG1A power supply board provides the regulated DC rail that the gate amplifier depends on for stable operation; any ripple or dropout on this rail can translate directly into erratic gate pulses and drive trips.

For cabinets operating in environments with significant line-side disturbances — such as those near large induction furnaces or arc welders — the addition of a dedicated line reactor or AC input filter upstream of the drive is strongly recommended to protect the DS200FSAAG2A and associated firing boards from voltage spikes. Similarly, the DS200TCQAG1A I/O terminal board and DS200DSPCH1A digital signal processor card should be inspected as part of any gate amplifier replacement procedure, as faults in these boards can produce symptoms that mimic gate amplifier failure.

On the communications side, the DS200SLCCG3A serial link control card handles inter-board data exchange within the Mark V rack. A degraded SLCC can cause the gate amplifier to receive corrupted firing angle commands, resulting in asymmetric SCR conduction and increased harmonic distortion on the DC bus. Replacing the DS200FSAAG2A without verifying the SLCC’s integrity may result in recurring faults. For complete drive protection, the DS200GDDAG1A gate driver diagnostic board can be used alongside the DS200FSAAG2A to monitor gate pulse integrity in real time, providing early warning of developing insulation or thyristor degradation before a full drive trip occurs.

In safety interlock circuits, the DS200FSAAG2A is often paired with external 24 VDC safety relays and emergency stop modules that cut gate enable signals during E-stop events. Ensuring that the gate amplifier’s enable input responds correctly to these interlock signals is a critical commissioning step in any hazardous-area drive installation.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous catalytic cracking and distillation processes, DC drives controlling compressor and pump motors must maintain precise speed regulation without interruption. The DS200FSAAG2A’s stable gate firing performance ensures that motor torque remains consistent, preventing process upsets that could trigger pressure relief events or emergency shutdowns.

Electric Power Generation: Coal-fired and hydroelectric generating stations use DC drives for excitation control and auxiliary equipment. Gate amplifier reliability is essential in these applications, where a drive trip can force a unit offline and impact grid stability. The DS200FSAAG2A’s surge-tolerant design helps sustain operation during grid disturbances.

Underground Mining Hoists: Hoist drives in underground mining operations are safety-critical systems subject to SIL (Safety Integrity Level) requirements. The gate amplifier must respond predictably to speed and torque commands under full-load conditions, including emergency braking sequences. The DS200FSAAG2A’s isolated gate outputs prevent ground fault currents from corrupting firing signals during these high-stress events.

Water and Wastewater Treatment: Large pump drives in municipal water treatment facilities operate continuously, often in humid, chemically aggressive environments. The DS200FSAAG2A’s conformal-coated PCB construction resists moisture ingress and corrosive atmospheres, supporting long mean-time-between-failure (MTBF) in these demanding conditions.

Metallurgical and Rolling Mill Drives: Hot and cold rolling mills place extreme demands on DC drive systems, with rapid load reversals and high peak currents. The gate amplifier must maintain firing angle accuracy across the full torque range to prevent cobble events and protect both the drive and the mechanical equipment. The DS200FSAAG2A is rated for these high-cycle, high-current applications.

Port and Bulk Material Handling: Ship-to-shore cranes and conveyor drives in port terminals require reliable DC drive operation in salt-air environments with wide ambient temperature swings. The DS200FSAAG2A’s robust construction supports reliable operation in these coastal industrial settings.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the DS200FSAAG2A?
The 12-month warranty covers all functional failures attributable to component or manufacturing defects under normal operating conditions consistent with GE Mark V drive specifications. It does not cover damage resulting from incorrect installation, overvoltage events beyond rated limits, or physical mishandling. Warranty claims are processed with a replacement-first policy to minimize your downtime.

Q2: What outgoing tests are performed before shipment?
Every DS200FSAAG2A undergoes a full functional test on a compatible Mark V drive test bench prior to shipment. This includes verification of gate pulse output timing, isolation resistance measurement, and visual inspection for solder joint integrity and component condition. A test report is available upon request for critical applications.

Q3: Is the DS200FSAAG2A compatible with all Mark V DC drive variants?
The DS200FSAAG2A is designed for GE Mark V and DC2000 series DC drive platforms. Compatibility with specific drive configurations depends on the firmware revision and hardware revision of the host system. We recommend providing your full drive nameplate data when ordering to confirm compatibility. Our technical team can cross-reference your existing board revision against available stock.

Q4: Can long-term supply be guaranteed for ongoing maintenance programs?
Yes. We maintain standing inventory of DS200FSAAG2A and related Mark V DS200 series boards to support planned maintenance, emergency replacement, and multi-site spare parts programs. For customers with ongoing maintenance contracts or large installed bases, we offer reserved stock arrangements and priority fulfillment to ensure parts availability when you need them most.
