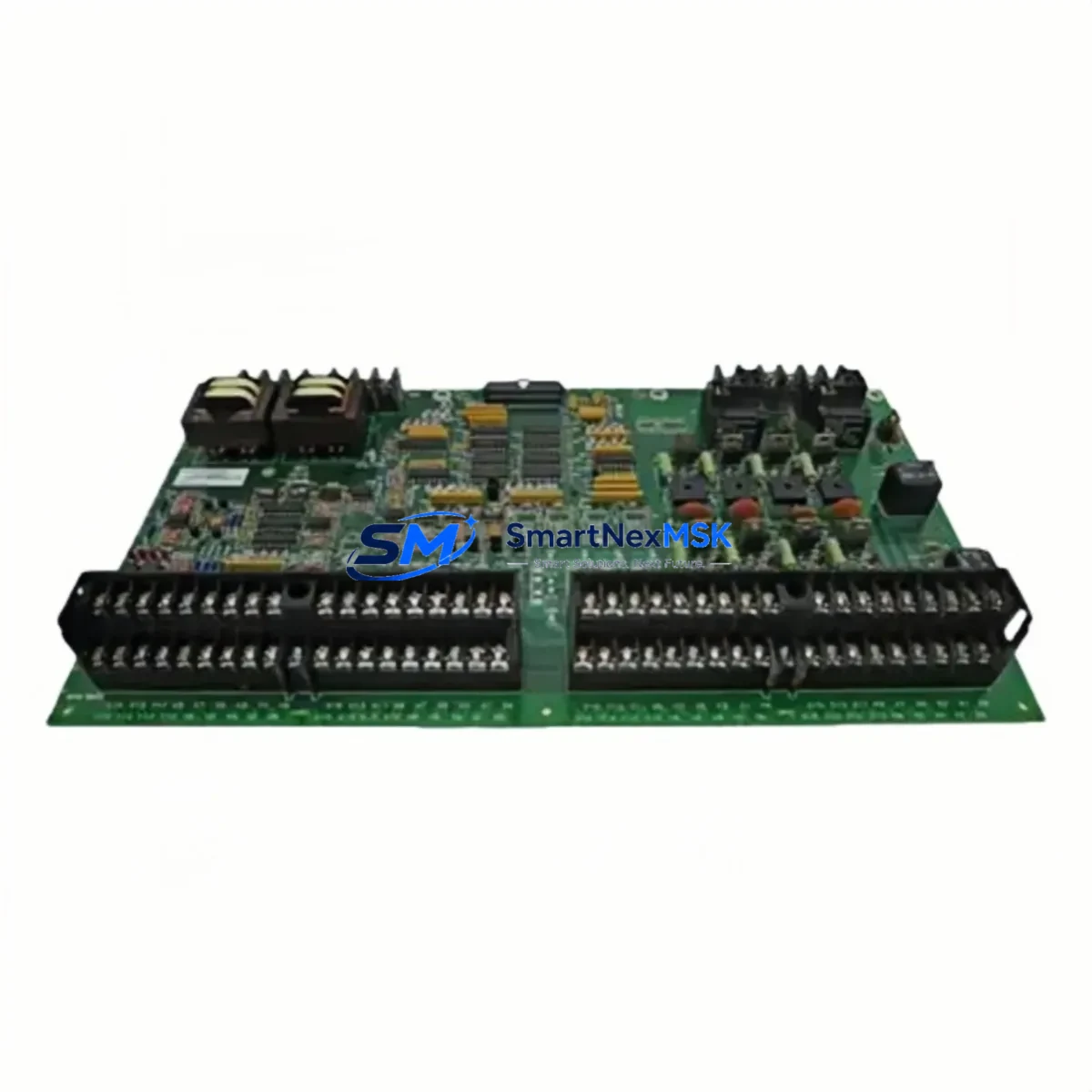

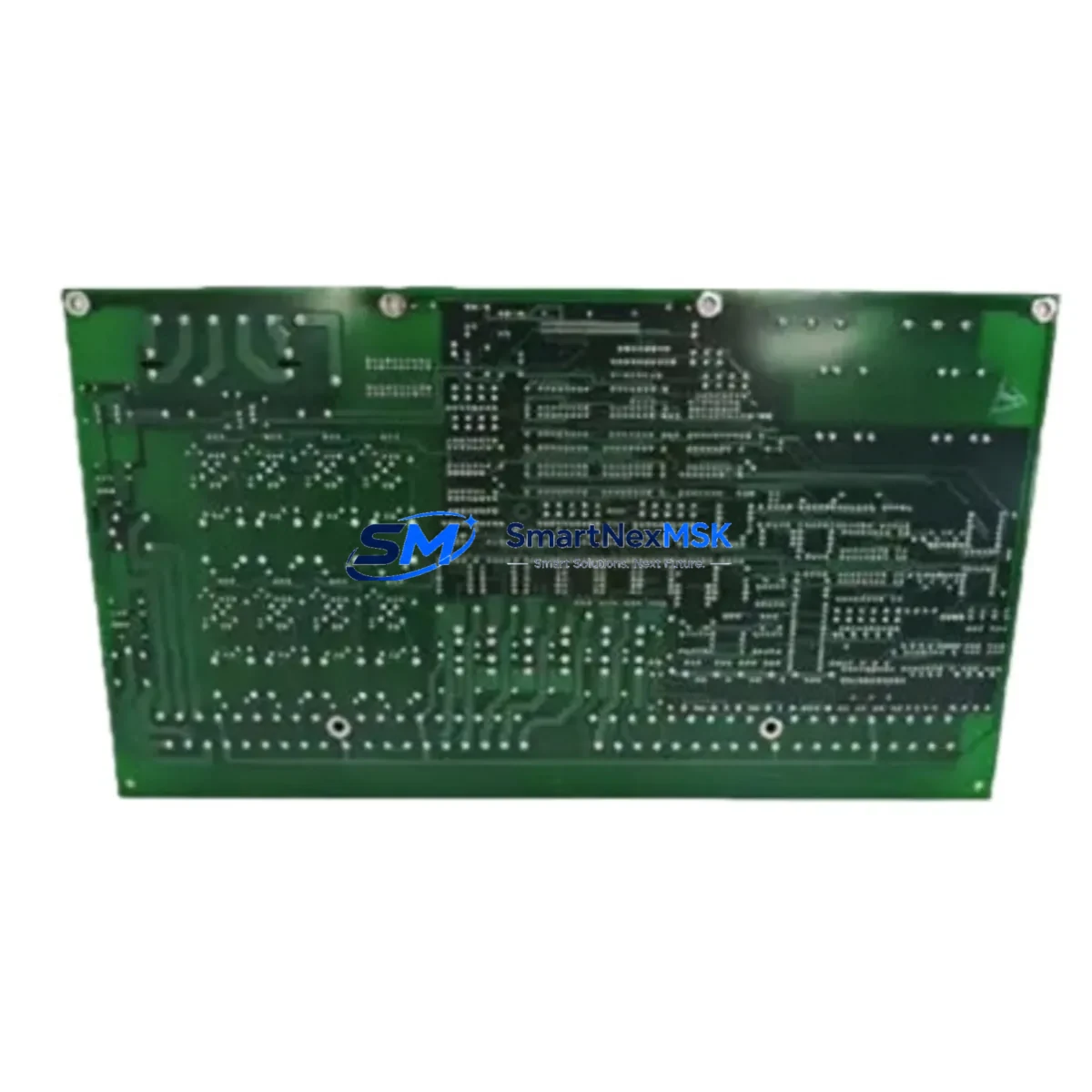

GE DS200RTBAG2AGL Safety Relay Terminal Board: Reliable Control for Harsh Industrial Sites
The GE DS200RTBAG2AGL is a ruggedized relay terminal board engineered for the GE Mark VI Turbine Control System, one of the most widely deployed distributed control architectures in power generation, petrochemical, and heavy industrial facilities worldwide. Designed to operate continuously in high-vibration, high-EMI, and thermally demanding environments, the DS200RTBAG2AGL serves as a critical interface between the Mark VI controller and field-level relay outputs — making it an indispensable component in safety-critical control loops, emergency shutdown (ESD) circuits, and protective interlock systems.
In continuous production environments where unplanned downtime carries severe operational and financial consequences, the integrity of every relay output channel matters. The DS200RTBAG2AGL provides robust, electrically isolated relay switching that resists contact bounce, coil voltage transients, and inductive load surges — all common failure modes in industrial relay terminal boards exposed to motor starters, solenoid valves, and high-inrush actuators. Its hardened PCB construction and conformal coating protect against moisture ingress, airborne particulates, and corrosive atmospheres found in offshore platforms, smelting facilities, and chemical processing plants.
Every DS200RTBAG2AGL unit shipped by SMARTNEXMSK undergoes pre-shipment functional testing, including relay coil continuity verification, contact resistance measurement, and insulation resistance checks, ensuring that the board performs to GE factory specifications from the moment it is installed in your control cabinet.
Safety Reliability Table
| Parameter | Specification / Rating |
|---|---|
| Part Number | DS200RTBAG2AGL |
| Compatible System | GE Mark VI Turbine Control System |
| Board Type | Ruggedized Relay Terminal Board |
| Relay Output Channels | Multiple isolated relay outputs (per Mark VI architecture) |
| Contact Rating | Rated for inductive and resistive industrial loads |
| EMI / RFI Protection | Conformal-coated PCB; shielded relay drivers |
| Operating Temperature | 0°C to +60°C (standard industrial range) |
| Humidity Tolerance | 5% to 95% RH, non-condensing |
| Vibration Resistance | Ruggedized mounting; suitable for turbine skid installation |
| Isolation | Electrically isolated relay contacts for safety loop integrity |
| Surge / Transient Protection | Inductive load suppression on relay coil drivers |
| Compatibility | GE Mark VI VCMI, VSVO, TTUR, TREG, and associated I/O boards |
| Pre-Shipment Testing | Full functional test: coil continuity, contact resistance, insulation check |
| Warranty | 12 Months — covers manufacturing defects and functional failure |
| Condition | New / Refurbished-to-OEM-spec (clearly stated per order) |
| Lead Time | In stock — same-day or next-business-day dispatch available |
Control Cabinet Protection Strategy
The DS200RTBAG2AGL does not operate in isolation — it functions as part of a tightly integrated Mark VI control cabinet ecosystem where every component must perform reliably under load. In a typical Mark VI turbine control enclosure, the relay terminal board works in concert with the GE DS200VCMIG2AEB VCMI communication board, which manages the high-speed serial data exchange between the controller core and I/O boards. Signal integrity on this communication backbone directly affects how quickly the DS200RTBAG2AGL responds to protective trip commands.
Power stability is equally critical. The GE DS200DPBDG1AGA power distribution board and associated DS200PCCAG1ABB power conditioning card regulate the 28 VDC and 5 VDC rails that energize relay coils on the terminal board. Any voltage sag or ripple on these rails can cause relay chatter or delayed dropout — a potentially dangerous condition in ESD and fire-and-gas interlock circuits. Pairing the DS200RTBAG2AGL with a properly maintained power supply chain is therefore a fundamental safety practice.
On the I/O side, the GE DS200IOCAG1ABA I/O controller board and DS200TCQAG1BHF turbine control board provide the digital output commands that drive the relay coils. Ensuring these upstream boards are free from firmware corruption or hardware degradation is essential to maintaining deterministic relay switching behavior. Similarly, the GE DS200TCCAG1BHF turbine control card handles speed and temperature protective logic whose outputs ultimately route through relay terminal boards like the DS200RTBAG2AGL to trip fuel valves, bypass dampers, and lube oil pumps.
For installations in hazardous classified areas or where surge exposure is elevated — such as substations adjacent to large transformer banks — supplementary GE Mark VI surge suppression modules and DS200EXPSG1ABA expansion I/O boards are recommended to protect the relay terminal board from transient overvoltages that can degrade contact surfaces and reduce relay service life. Maintaining a documented spare-parts inventory that includes the DS200RTBAG2AGL alongside companion boards ensures that your maintenance team can execute rapid board-swap recovery without extended production interruption.
Critical Industrial Safety Applications
The GE DS200RTBAG2AGL relay terminal board is deployed across a broad spectrum of safety-critical industrial applications where control system reliability is non-negotiable:
Power Generation: In gas turbine and steam turbine power plants, the DS200RTBAG2AGL drives protective relay outputs for overspeed trip, flame failure shutdown, lube oil low-pressure trip, and generator breaker control. A single relay contact failure in these circuits can result in uncontrolled turbine runaway or generator damage — making board integrity and pre-installation testing mandatory.
Petrochemical and Refinery Operations: Continuous process units such as catalytic crackers, hydrotreaters, and compressor trains rely on Mark VI-based safety instrumented systems (SIS) where relay terminal boards execute final element commands to close emergency isolation valves (EIVs) and de-energize rotating equipment. The DS200RTBAG2AGL’s isolated contact architecture supports SIL-rated interlock loop designs.
Mining and Mineral Processing: High-dust, high-vibration environments in underground mining and surface ore processing demand relay boards with robust mechanical construction. The ruggedized design of the DS200RTBAG2AGL makes it suitable for conveyor protection systems, crusher motor interlocks, and ventilation fan control circuits where relay boards are exposed to constant mechanical stress.
Water and Wastewater Treatment: Large pumping stations and treatment facilities using Mark VI or compatible control platforms deploy relay terminal boards to control high-voltage pump motor starters, chemical dosing systems, and UV disinfection equipment. Reliable relay switching prevents chemical overdose events and pump cavitation damage.
Metallurgy and Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines operate under extreme electrical noise conditions. The EMI-shielded design of the DS200RTBAG2AGL ensures that relay outputs remain stable even in the presence of high-frequency interference generated by large power converters and induction heating systems.
Port and Marine Infrastructure: Ship-to-shore cranes, bulk material handling systems, and marine propulsion control systems increasingly use GE Mark VI-compatible architectures. The DS200RTBAG2AGL supports reliable relay switching in salt-air environments where corrosion resistance and conformal coating are essential for long-term board survival.
Safety and Quality FAQ
Q1: What does the 12-month warranty cover for the DS200RTBAG2AGL?
The 12-month warranty covers all manufacturing defects, component failures, and functional non-conformance under normal operating conditions consistent with GE Mark VI system specifications. If the board fails to perform its relay switching functions within the warranty period due to a product defect, SMARTNEXMSK will provide a replacement or full refund. The warranty period begins from the date of confirmed delivery.
Q2: What pre-shipment testing is performed on each DS200RTBAG2AGL?
Every unit undergoes a structured pre-shipment inspection that includes relay coil continuity testing, contact resistance measurement across all relay channels, insulation resistance verification between isolated circuits, and visual inspection for PCB damage, cold solder joints, or component anomalies. Test records are available upon request for quality-critical procurement processes.
Q3: Is the DS200RTBAG2AGL compatible with all Mark VI system configurations?
The DS200RTBAG2AGL is designed for use within the GE Mark VI turbine control platform and is compatible with standard Mark VI cabinet configurations including VCMI-based architectures. Compatibility with specific Mark VIe or Mark VI-S variants should be confirmed against your system’s I/O board mapping and backplane connector specifications. SMARTNEXMSK technical support can assist with compatibility verification prior to purchase.
Q4: Can SMARTNEXMSK support long-term or repeat supply of the DS200RTBAG2AGL?
Yes. SMARTNEXMSK maintains ongoing inventory of GE Mark VI series boards including the DS200RTBAG2AGL to support planned maintenance programs, emergency sparing, and multi-unit plant standardization projects. We offer volume pricing for bulk orders and can coordinate scheduled delivery to align with planned outage windows. Contact our team to discuss long-term supply agreements.
