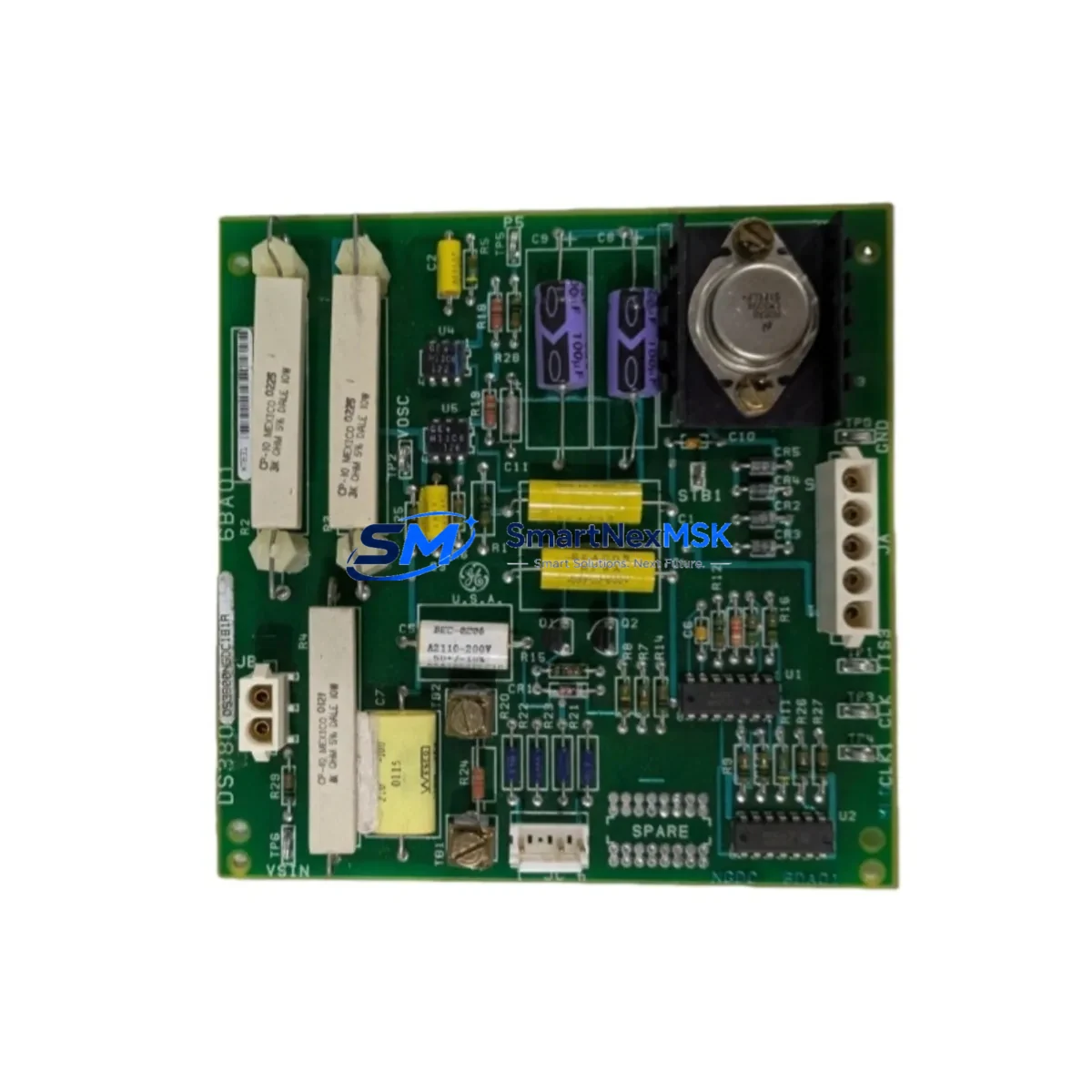

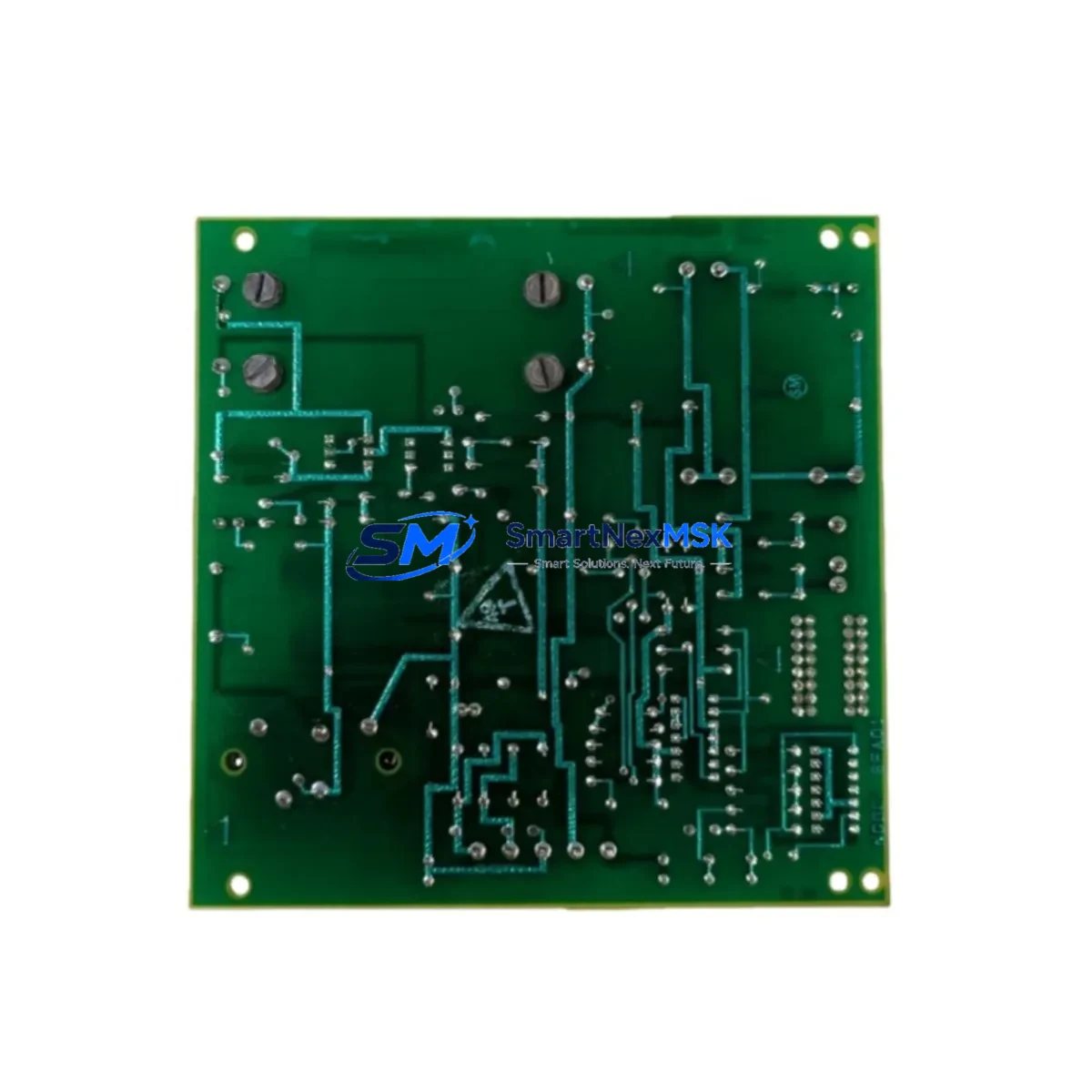

GE DS3800NGDC1B1A Safety-Enhanced Ground Detector Module

GE DS3800NGDC1B1A Safety-Enhanced Ground Detector Module: Reliable Ground Fault Protection for Harsh Industrial Control Systems

The GE DS3800NGDC1B1A is a ruggedized ground detector module engineered for continuous, safety-critical operation within the GE Mark V Speedtronic turbine control platform. Designed to detect ground faults in DC control circuits before they escalate into catastrophic equipment failures or personnel hazards, this module plays a foundational role in the protection architecture of gas turbines, steam turbines, and combined-cycle power generation systems operating in petrochemical plants, power utilities, offshore platforms, and heavy industrial facilities.

In high-stakes industrial environments — where control interruptions, signal drift, and electrical transients can trigger unplanned shutdowns or safety system failures — the DS3800NGDC1B1A provides continuous ground fault monitoring with high-impedance detection circuitry. Its EMI-hardened design ensures stable performance even in control cabinets subject to strong electromagnetic interference from variable frequency drives, high-current bus bars, and adjacent relay coils. The module is built to withstand the thermal cycling, vibration, and humidity extremes common to turbine enclosures and outdoor switchgear rooms.

Safety Reliability Table

Control Cabinet Protection Strategy

The DS3800NGDC1B1A does not operate in isolation — it is one critical node within a layered control cabinet protection strategy. In a properly configured Mark V turbine control panel, this ground detector module works in concert with the DS3800NPPC1B1A power supply board, which conditions and distributes DC voltage to the control rack. Any ground fault detected by the DS3800NGDC1B1A can be used to trigger protective relay logic through the DS3800NRSA1B1A relay output board, isolating the faulted circuit before it propagates to adjacent I/O modules.

In the signal conditioning layer, the DS3800NTBA1B1A terminal board assembly provides the physical interface between field wiring and the Mark V backplane, and its grounding integrity directly affects the accuracy of ground fault readings. Engineers commissioning or maintaining these systems should also verify the condition of the DS3800NDEA1B1A digital input board and the DS3800NANA1B1A analog input module, as degraded isolation on these boards can generate false ground fault alarms or mask genuine faults.

For turbine control systems with active communication links to DCS or SCADA platforms, the DS3800NCSA1B1A communication interface board must maintain proper shield grounding to prevent ground loops that corrupt serial data. Surge protection devices installed at the cabinet entry point — such as DIN-rail mounted DC surge suppressors rated for the Mark V bus voltage — provide the first line of defense against lightning-induced transients and switching surges from large motor starters. The DS3800NGDC1B1A then serves as the continuous monitoring layer, ensuring that any residual ground fault condition is detected and alarmed before it compromises the turbine’s safety interlock system or trips the unit unexpectedly.

Maintaining a stocked inventory of critical Mark V boards — including the DS3800NPSB1B1A power supply module and the DS3800NFCA1B1A flame detector interface card — alongside the DS3800NGDC1B1A ensures that maintenance teams can execute rapid board-swap replacements during planned outages or emergency corrective maintenance, minimizing mean time to repair (MTTR) and protecting production continuity.

Critical Industrial Safety Applications

Power Generation & Utilities: In gas turbine and steam turbine power plants, the DS3800NGDC1B1A is a standard component of the Mark V protection panel. Ground faults in the DC control circuit of a turbine can disable trip solenoids, overspeed protection relays, and flame monitoring circuits — all of which are safety-critical. Continuous ground fault monitoring ensures that these protective functions remain armed and reliable throughout the turbine’s operating cycle.

Petrochemical & Refinery Operations: In hazardous area control rooms and remote I/O panels serving process units, undetected ground faults can cause spurious valve actuations, incorrect sensor readings, or failure of emergency shutdown (ESD) systems. The DS3800NGDC1B1A provides the early warning needed to schedule corrective maintenance before a fault condition compromises process safety integrity.

Mining & Mineral Processing: High-vibration environments in mining operations accelerate insulation degradation on control wiring. Ground fault detection modules like the DS3800NGDC1B1A are essential for monitoring the health of DC control circuits in crusher drives, conveyor control panels, and ventilation safety systems, where an undetected fault could disable critical safety interlocks.

Water & Wastewater Treatment: In pump station control panels and SCADA-connected RTU cabinets, moisture ingress is a leading cause of ground faults. The DS3800NGDC1B1A’s high-impedance detection circuit can identify developing insulation faults at an early stage, allowing operators to address wiring issues during scheduled maintenance rather than during an emergency.

Metallurgy & Steel Production: Electric arc furnace control systems and rolling mill drive panels operate in environments with extreme electromagnetic noise. The EMI-hardened design of the DS3800NGDC1B1A ensures that ground fault detection remains accurate even in the presence of high-frequency interference from thyristor drives and induction heating equipment.

Safety and Quality FAQ

Q: What does the 12-month warranty cover for the DS3800NGDC1B1A?
A: The 12-month warranty covers all functional failures under normal operating conditions consistent with the GE Mark V Speedtronic platform specifications. If the module fails to perform its ground fault detection function within the warranty period due to a manufacturing or refurbishment defect, we will provide a replacement unit or full refund. The warranty period begins from the date of confirmed delivery.

Q: What pre-shipment testing is performed on each DS3800NGDC1B1A?
A: Every DS3800NGDC1B1A unit undergoes functional bench testing prior to dispatch. Testing includes power-on verification, ground fault detection circuit validation, output signal integrity checks, and visual inspection for component condition and connector integrity. Units that do not pass all test criteria are not shipped.

Q: Is the DS3800NGDC1B1A compatible with all Mark V Speedtronic panel variants?
A: The DS3800NGDC1B1A is designed for the GE Mark V Speedtronic turbine control platform and is a direct replacement for the original OEM board. Compatibility should be verified against your specific panel revision and wiring configuration. Our technical team can assist with cross-referencing your panel documentation to confirm fit before purchase.

Q: Can you support long-term or repeat supply of the DS3800NGDC1B1A for fleet maintenance programs?
A: Yes. We maintain standing inventory of DS3800NGDC1B1A and related Mark V boards to support fleet operators managing multiple turbine units. Volume pricing, reserved stock agreements, and scheduled delivery programs are available for customers with recurring spare parts requirements. Contact our sales team to discuss a supply arrangement tailored to your maintenance schedule.
