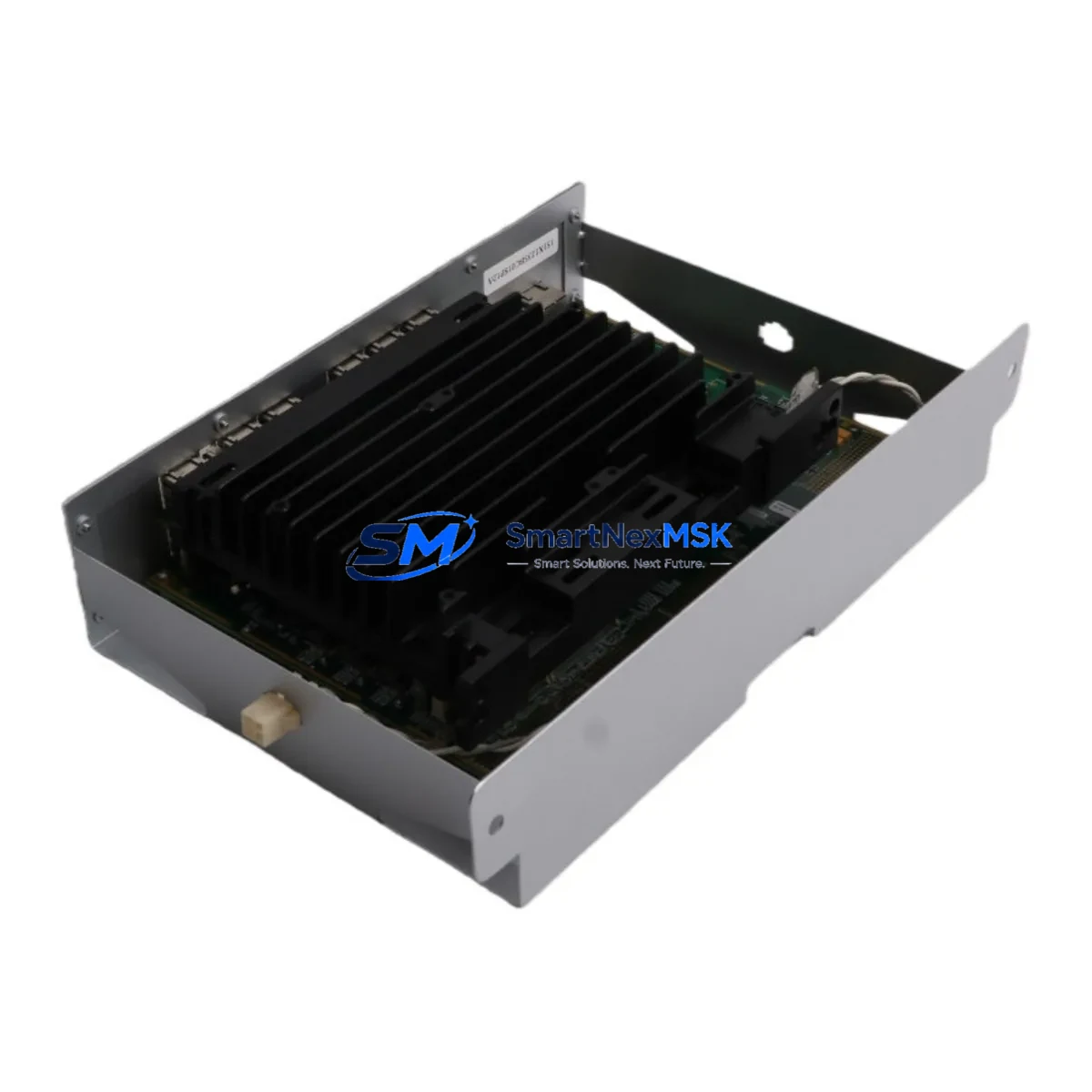

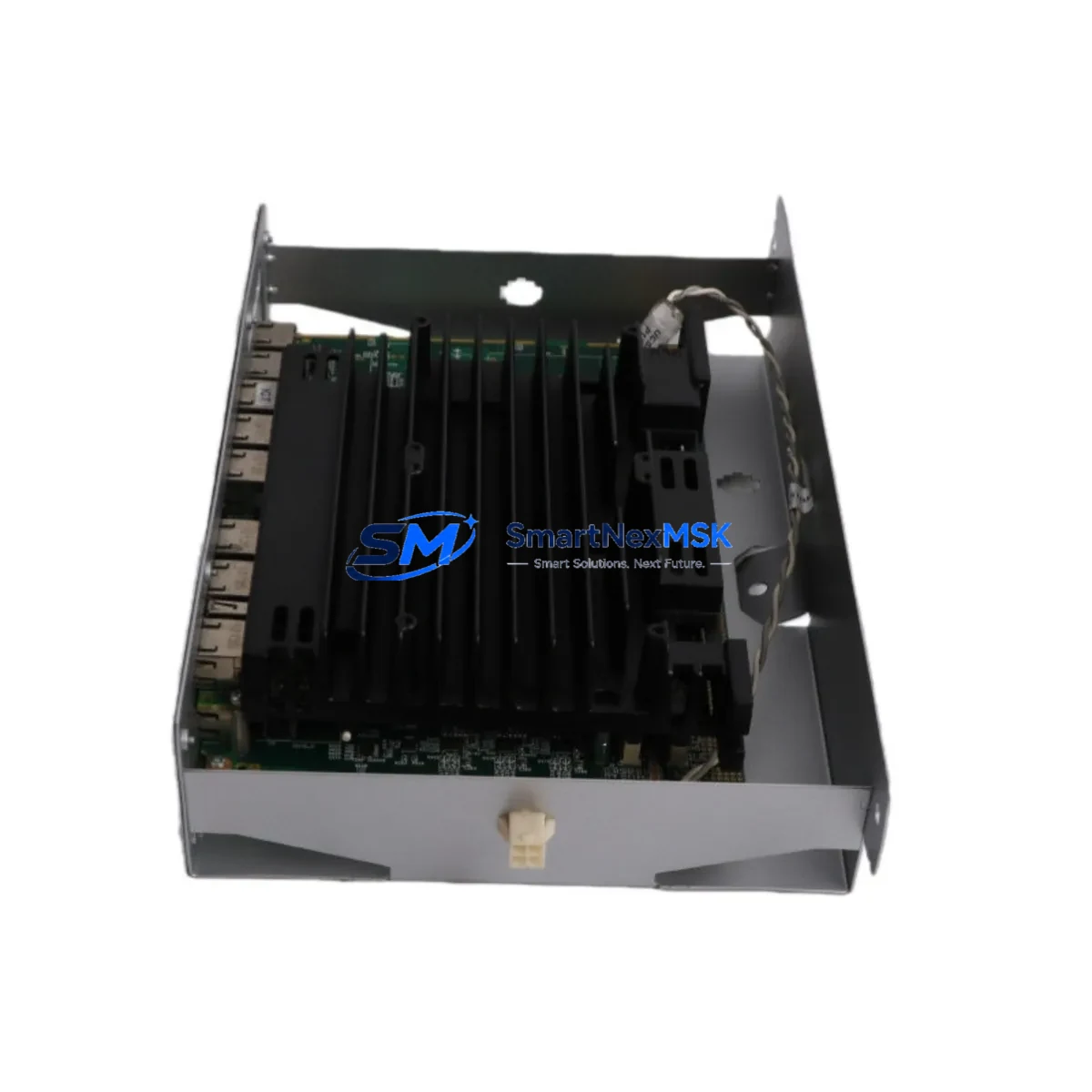

GE Fanuc 151X1249BR01SA01 Safety-Enhanced VME Control

GE Fanuc 151X1249BR01SA01 Safety-Enhanced VME Control for Harsh Industrial Sites

The GE Fanuc 151X1249BR01SA01 is a ruggedized VME-bus control interface module engineered for the Series 90-70 PLC platform — one of GE Fanuc’s most proven and widely deployed control architectures in heavy industry. Designed to operate reliably in high-load, high-interference, and continuous-production environments, this module serves as a critical backbone component in control cabinets where uptime, signal integrity, and safety interlock performance are non-negotiable.

In demanding industrial settings — from petrochemical processing units and power generation substations to mining extraction systems and metallurgical furnace controls — the 151X1249BR01SA01 delivers consistent VME backplane communication with robust noise immunity. Its hardened design addresses the core failure modes that plague standard control modules in harsh environments: signal drift under electromagnetic interference, module misoperation during power transients, communication anomalies on shared backplane buses, and thermal stress-induced degradation over extended duty cycles.

When integrated into a Series 90-70 rack alongside companion modules such as the IC697CPM925 CPU module or the IC697MEM719 memory expansion module, the 151X1249BR01SA01 ensures that the control loop remains stable even during surge events or partial rack faults. Its VME interface architecture supports deterministic scan-cycle timing, which is essential for safety-critical interlocks in applications like emergency shutdown systems (ESD), burner management systems (BMS), and high-integrity pressure protection systems (HIPPS).

Power quality is a persistent threat in industrial control cabinets. The 151X1249BR01SA01 is designed to tolerate the voltage fluctuations and transient spikes common in facilities where large motor drives, arc furnaces, or high-current switching equipment share the same power distribution network. When paired with a properly specified IC697PWR711 or IC697PWR724 Series 90-70 power supply module, the system achieves a layered defense against power-induced control disruptions. Additional surge protection at the cabinet level — using DIN-rail mounted surge protective devices on the 24VDC and 120VAC feeds — further reduces the risk of backplane damage from upstream transients.

Signal integrity across the VME backplane is maintained through the module’s controlled impedance design and onboard filtering. In environments with strong variable-frequency drive (VFD) emissions or high-voltage switching noise, this filtering prevents the kind of spurious interrupts and watchdog faults that can trigger unplanned shutdowns. For installations where the Series 90-70 rack communicates with field devices via IC697BEM731 or IC697BEM733 Genius Bus Controller modules, the 151X1249BR01SA01’s stable backplane interface ensures that bus arbitration and I/O scan cycles remain synchronized — a key factor in preventing false trips in safety-instrumented systems.

In water treatment and municipal utility control systems, where continuous operation is mandated and maintenance windows are narrow, the 151X1249BR01SA01 supports hot-standby redundancy configurations when used with appropriate Series 90-70 redundancy controllers. This allows operators to replace or inspect modules without interrupting the control process — a critical capability in facilities operating under regulatory compliance requirements for continuous monitoring and control.

For port logistics automation and bulk material handling systems, where conveyor interlocks, weighbridge controls, and crane positioning systems demand precise and reliable PLC response, this module’s deterministic VME communication eliminates the latency variability that can cause positioning errors or interlock failures. When combined with IC697MDL340 discrete input modules and IC697MDL740 discrete output modules in the same rack, the complete I/O subsystem achieves the response time and reliability required for safety-rated machine control.

Every GE Fanuc 151X1249BR01SA01 unit supplied by SMARTNEXMSK undergoes pre-shipment functional testing to verify backplane communication integrity, power rail stability, and module identification handshake with the Series 90-70 CPU. Units are inspected for connector pin condition, PCB integrity, and firmware version compatibility before dispatch. Stock is maintained to support both planned maintenance schedules and emergency replacement scenarios, minimizing the mean time to repair (MTTR) for critical control systems.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust Series 90-70 control cabinet built around the 151X1249BR01SA01 requires a layered protection strategy that addresses power quality, signal integrity, thermal management, and communication reliability simultaneously. At the power layer, the IC697PWR724 high-capacity power supply module provides the stable +5VDC and ±12VDC rails that the VME backplane demands, while external DIN-rail surge protective devices on the incoming AC feed prevent upstream transients from reaching the rack. For installations with redundant power requirements, dual power supply configurations using a second IC697PWR711 unit provide automatic failover without control interruption.

At the I/O layer, IC697MDL653 analog input modules and IC697MDL752 analog output modules connected to the same backplane benefit directly from the stable bus arbitration that the 151X1249BR01SA01 provides. Discrete safety interlocks routed through IC697MDL340 24VDC input modules are scanned deterministically, ensuring that emergency stop signals and safety relay feedback reach the CPU within the required response window. For high-density installations, IC697MDL940 output modules handling motor starter and valve actuator commands rely on the backplane’s communication stability to prevent spurious output activations — a critical safety requirement in process plants.

At the network layer, IC697BEM731 Genius Bus Controller modules managing field device networks depend on consistent backplane timing to maintain bus master arbitration. Any instability in the VME control interface can cascade into Genius bus timeouts, causing field device faults that may trigger safety system responses. The 151X1249BR01SA01’s stable control interface prevents this failure mode. For Ethernet-connected systems, IC697CMM742 communications modules handling SRTP or Modbus TCP traffic also benefit from the deterministic backplane environment, ensuring that supervisory SCADA systems receive timely and accurate process data.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the GE Fanuc 151X1249BR01SA01 is deployed in emergency shutdown system (ESD) panels and burner management system (BMS) controllers where the Series 90-70 platform manages critical process interlocks. The module’s resistance to the high electromagnetic interference generated by large pump motors, compressor drives, and heat exchanger control systems ensures that safety interlock logic executes without spurious faults or missed triggers.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the 151X1249BR01SA01 supports turbine control, generator protection relay interfacing, and auxiliary system automation. The harsh electrical environment of a power plant switchyard, with its high-voltage switching transients and ground potential rise events, demands the kind of hardened VME interface that this module provides.

In mining and mineral processing operations, where crusher controls, conveyor interlocks, and flotation cell automation run continuously in dusty, vibration-intensive environments, the Series 90-70 platform with the 151X1249BR01SA01 at its core delivers the uptime reliability that production targets demand. Unplanned control system downtime in a mining operation can cost tens of thousands of dollars per hour — making the availability of tested, warranted spare modules a direct operational risk management tool.

In water and wastewater treatment plants, where regulatory compliance requires continuous monitoring and control of chemical dosing, filtration, and disinfection processes, the 151X1249BR01SA01 supports the long-lifecycle PLC installations that utilities depend on. Many water treatment facilities operate Series 90-70 systems installed in the 1990s and early 2000s, making reliable access to tested spare modules essential for sustaining these systems through their extended service lives.

In metallurgical and steel production facilities, where electric arc furnaces, rolling mills, and continuous casting lines generate extreme electromagnetic interference and power quality disturbances, the ruggedized VME control interface of the 151X1249BR01SA01 maintains control system integrity in conditions that would compromise standard commercial-grade modules.

Safety and Quality FAQ

Q: What warranty coverage is provided with the GE Fanuc 151X1249BR01SA01?
A: Every unit is covered by a 12-month warranty from the date of shipment. This covers functional failures under normal operating conditions. SMARTNEXMSK will replace or repair any unit that fails within the warranty period at no additional cost, ensuring your control system remains protected throughout the coverage window.

Q: What pre-shipment testing is performed on each module?
A: Each 151X1249BR01SA01 undergoes functional verification testing prior to dispatch, including backplane communication handshake testing, power rail integrity checks, and physical inspection of connectors, PCB, and housing. Units that do not pass all test criteria are not shipped. A test report is available upon request for quality-critical procurement processes.

Q: Is the 151X1249BR01SA01 compatible with my existing Series 90-70 rack and CPU?
A: The 151X1249BR01SA01 is designed for the GE Fanuc Series 90-70 VME rack platform and is compatible with standard 5-slot, 9-slot, and 12-slot Series 90-70 racks. It is compatible with Series 90-70 CPUs including the IC697CPM925, IC697CPU772, and IC697CPU781. If you have a specific rack or CPU configuration, contact our technical team at [email protected] to confirm compatibility before ordering.

Q: Can SMARTNEXMSK support long-term and emergency supply requirements for this module?
A: Yes. SMARTNEXMSK maintains stock of the 151X1249BR01SA01 and related Series 90-70 components to support both planned maintenance procurement and emergency replacement scenarios. For facilities managing aging Series 90-70 installations, we recommend establishing a spare parts agreement to ensure module availability when needed. Contact us to discuss volume pricing, reserved stock arrangements, and expedited shipping options for critical applications.
