GE Fanuc HE693THM884 Retrofit-Ready Thermocouple Input Module

GE Fanuc HE693THM884 Retrofit-Ready Thermocouple Input Module: Compatible Modernization & Smooth Legacy System Upgrade

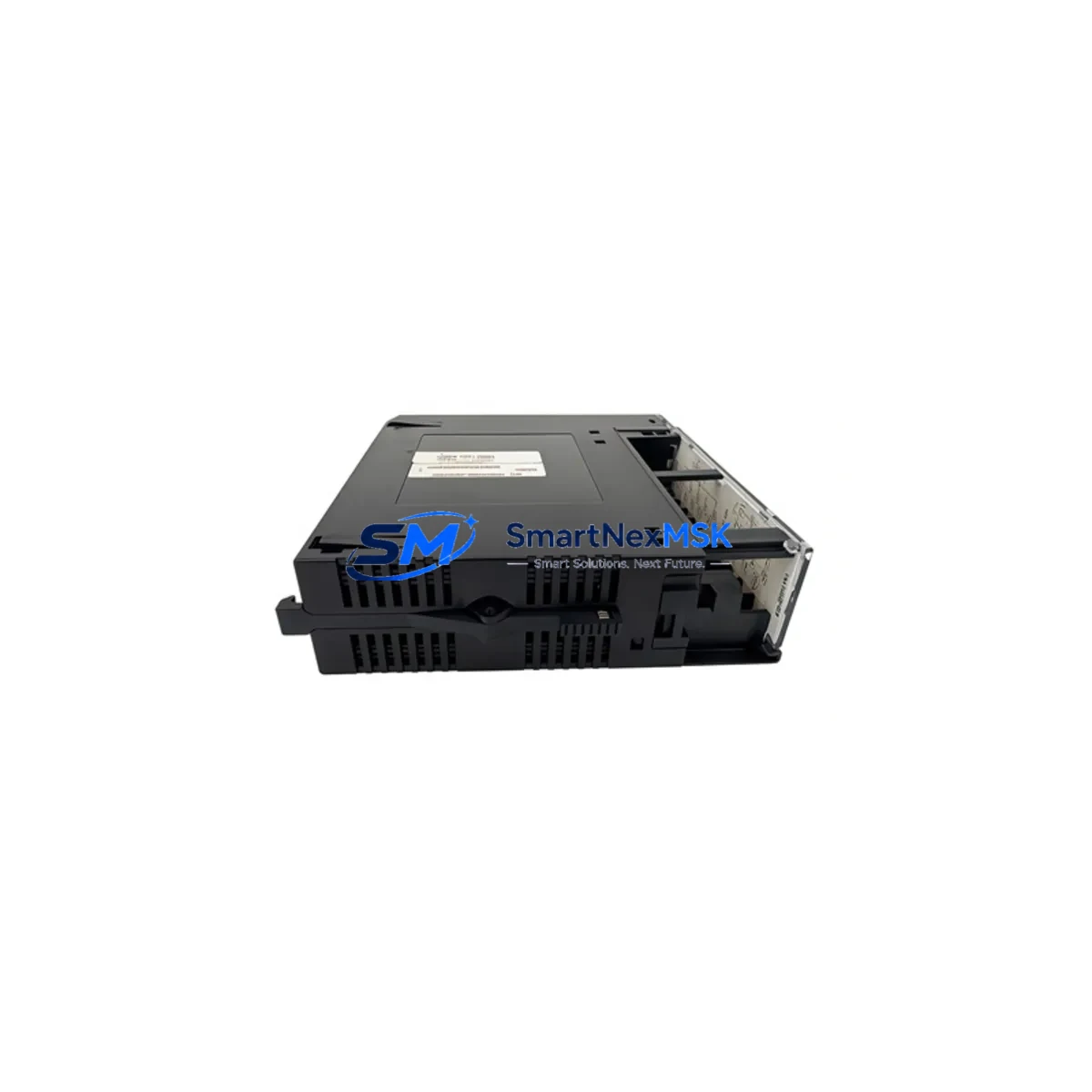

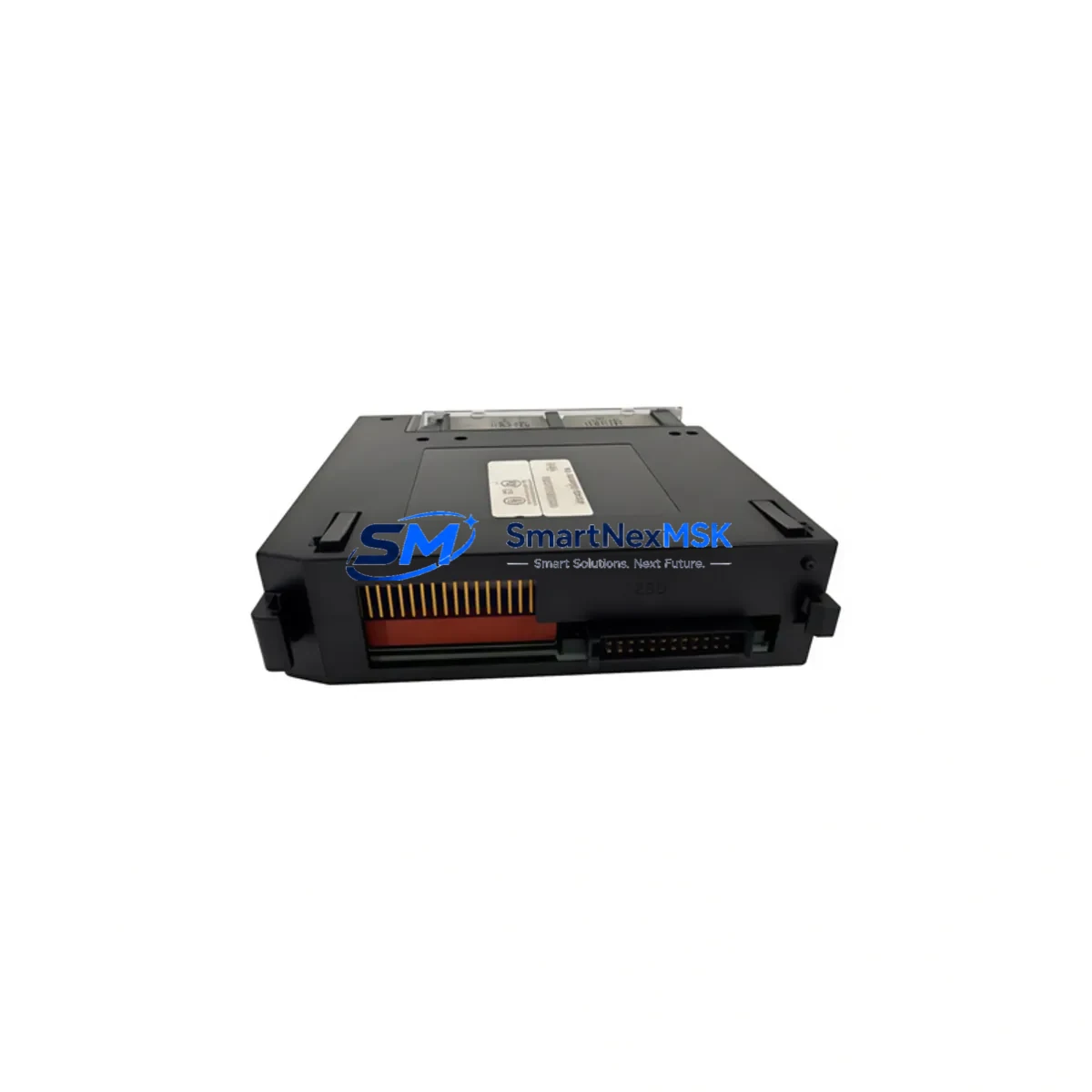

The GE Fanuc HE693THM884 is an 8-channel thermocouple input module engineered for the GE Series 90-30 PLC platform. As industrial facilities face the reality of discontinued spare parts and aging control architectures, the HE693THM884 has become a critical retrofit component for engineers tasked with keeping legacy thermal monitoring loops operational without triggering full system overhauls. Whether you are replacing a failed module in a running production line, upgrading a control cabinet to extend its service life, or migrating from an older Series 90-30 rack to a more maintainable configuration, this module provides a verified drop-in solution that preserves existing wiring, program logic, and HMI screen layouts.

The HE693THM884 accepts J, K, T, E, R, S, and B type thermocouples across its eight differential input channels, delivering high-resolution temperature data directly to the Series 90-30 CPU over the standard backplane bus. Its compact single-slot form factor fits any IC693 series rack, including the IC693CHS391 5-slot rack and the IC693CHS397 10-slot rack, making it straightforward to slot into an existing cabinet without mechanical modification. The module communicates natively with Series 90-30 CPUs such as the IC693CPU374 and IC693CPU364, and its register map is fully compatible with legacy ladder logic programs developed in Proficy Machine Edition or the older Logicmaster 90 environment.

For facilities running GE Series 90-30 systems with Ethernet or serial communications, the HE693THM884 integrates without disruption alongside communication modules such as the IC693CMM321 Ethernet Interface Module or the IC693CMM311 Serial Communications Module. No protocol migration is required; the module’s I/O data is mapped through the standard %AI reference table, which means existing SCADA tags, historian configurations, and HMI screen bindings on platforms such as iFIX or Cimplicity remain valid after module swap.

Before installation, retrofit engineers should verify the rack’s available backplane power budget. The HE693THM884 draws from the 5 VDC backplane supply, and the total current draw across all installed modules must remain within the capacity of the installed power supply unit — typically the IC693PWR321 or IC693PWR330. If the existing PSU is already near its rated output, adding or replacing modules may require upgrading to a higher-capacity supply or redistributing modules across a second rack. Terminal block wiring should be inspected for correct thermocouple polarity and shielding continuity; improper shielding on long thermocouple runs is a common source of noise-induced measurement error that becomes apparent only after the new module is energized.

Module slot addressing is configured via the Series 90-30 hardware configuration tool in Proficy Machine Edition. The replacement HE693THM884 must be assigned to the same rack and slot position as the original module to preserve the %AI address assignments used in the existing control program. If the slot position changes for any reason — for example, due to rack consolidation during a cabinet upgrade — all affected %AI references in the ladder program must be updated and the program must be re-downloaded to the CPU. This step is frequently overlooked during rushed maintenance windows and is a leading cause of post-replacement faults.

For sites performing a broader migration from Series 90-30 to a newer GE platform such as the PACSystems RX3i, the HE693THM884 can serve as a transitional module during a phased cutover. The RX3i platform supports Series 90-30 I/O modules through the IC695LRE001 remote I/O expansion adapter, allowing existing 90-30 I/O racks — including those populated with HE693THM884 modules — to remain in service while the CPU and communications infrastructure is upgraded. This approach minimizes rewiring costs and allows the control program to be converted and validated in stages rather than requiring a single high-risk cutover event.

All HE693THM884 units supplied by SMARTNEXMSK are functionally tested prior to shipment. Each module undergoes power-on verification, channel-level input simulation across the supported thermocouple types, and backplane communication checks. Units are shipped with original or equivalent connector hardware and are packaged in anti-static enclosures suitable for long-term storage. Standard lead time is 1–3 business days from confirmed order, with expedited options available for critical downtime situations. A 12-month warranty covers all supplied modules against defects in materials and workmanship under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful HE693THM884 retrofit begins with a thorough audit of the existing control cabinet. Engineers should document the current rack layout, recording which slots are occupied by analog input modules, discrete I/O modules, and communication modules. In a typical Series 90-30 cabinet, the HE693THM884 shares rack space with modules such as the IC693ALG221 analog voltage/current input module and the IC693MDL645 discrete DC input module. Understanding the full I/O map before beginning work prevents address conflicts and reduces the risk of unintended program behavior after the replacement module is installed.

Power supply capacity is the most frequently underestimated constraint in retrofit projects. The IC693PWR321 supplies 30 W at 5 VDC, while the IC693PWR330 provides 40 W. Adding a new thermocouple module to a rack that is already heavily loaded may push the supply beyond its rated output, causing intermittent faults or unexpected module resets. Always calculate the total backplane current draw before finalizing the retrofit design.

Terminal block compatibility should be confirmed before ordering. The HE693THM884 uses a standard Series 90-30 field wiring connector. If the existing terminal blocks are worn or corroded — common in installations that have been in service for more than ten years — replacement with new connector hardware during the module swap is strongly recommended. Thermocouple extension wire must match the thermocouple type in both alloy composition and polarity; substituting standard copper wire on thermocouple circuits introduces reference junction errors that are difficult to diagnose after the fact.

For sites that also need to expand their I/O capacity during the retrofit, the Series 90-30 platform supports expansion racks connected via the IC693CBL300 or IC693CBL301 expansion cables. Adding an expansion rack allows additional HE693THM884 modules or other I/O modules to be installed without replacing the main rack or CPU, preserving the existing program structure while increasing system capacity. If the retrofit scope includes upgrading the HMI, the existing Cimplicity or iFIX screens can typically be retained with minor tag remapping, provided the %AI addresses assigned to the HE693THM884 remain unchanged.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any maintenance team performing a module replacement on a live production system. The recommended approach for HE693THM884 replacement is to prepare the new module and verify its configuration offline before the maintenance window begins. Using Proficy Machine Edition, engineers can configure the replacement module’s hardware parameters — thermocouple type assignments, scaling, and alarm setpoints — in an offline project file and validate the configuration against the existing program before the system is taken offline.

During the cutover window, the sequence should follow a defined procedure: place the CPU in Stop mode, remove the failed module, insert the replacement HE693THM884, confirm the hardware configuration matches the slot assignment, and return the CPU to Run mode. If the slot address is unchanged and the hardware configuration file has been pre-loaded, the entire swap can typically be completed in under 15 minutes. The control program does not need to be re-downloaded unless the slot address or I/O configuration has changed, which further reduces the time the system is offline.

For critical processes where even brief interruptions are unacceptable, a hot-standby architecture using a redundant Series 90-30 CPU — such as the IC693CPU374 in a redundancy configuration with the IC693RCM300 Redundancy Communications Module — allows the standby CPU to assume control while the primary rack is serviced. This approach requires advance planning and appropriate hardware, but it eliminates process interruption entirely during module replacement. After the replacement module is installed and verified, control can be transferred back to the primary CPU without disrupting the process.

Post-replacement commissioning should include a channel-by-channel verification of thermocouple readings against a calibrated reference source. Any channel showing an open-circuit fault or out-of-range reading should be investigated before returning the system to automatic control. SMARTNEXMSK recommends retaining the original failed module for failure analysis, as the fault mode can provide useful information about the root cause — whether electrical overstress, connector corrosion, or component aging — that may indicate a need for broader preventive maintenance across the control system.

Retrofit Support FAQ

Q: Is the HE693THM884 a direct replacement for the original GE Fanuc module of the same part number?
A: Yes. The HE693THM884 units supplied by SMARTNEXMSK are functionally equivalent to the original GE Fanuc production modules. They install in the same rack slot, use the same backplane connector, and are recognized by the Series 90-30 CPU without any hardware configuration changes, provided the slot address remains the same. All units are tested prior to shipment to confirm correct operation across all eight input channels.

Q: Do I need to modify my ladder logic program after replacing the module?
A: In most cases, no. If the replacement HE693THM884 is installed in the same rack and slot position as the original module, the %AI address assignments in the existing program remain valid and no program changes are required. A program re-download is only necessary if the slot position changes or if the hardware configuration file is modified. Engineers should always verify the hardware configuration in Proficy Machine Edition before returning the system to Run mode.

Q: What thermocouple types does the HE693THM884 support, and can different types be mixed on the same module?
A: The HE693THM884 supports J, K, T, E, R, S, and B type thermocouples. Each channel can be configured independently for a different thermocouple type, allowing mixed thermocouple installations on a single module. Configuration is performed through the hardware configuration tool in Proficy Machine Edition and is stored in the CPU’s configuration memory.

Q: What warranty coverage is provided, and what does it include?
A: All HE693THM884 modules supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. The warranty covers defects in materials and workmanship under normal operating conditions and includes replacement or repair of the defective module at no charge. Warranty claims should be initiated by contacting [email protected] with the order reference and a description of the fault. Modules that have been physically damaged, modified, or operated outside their rated specifications are not covered under the standard warranty terms.
