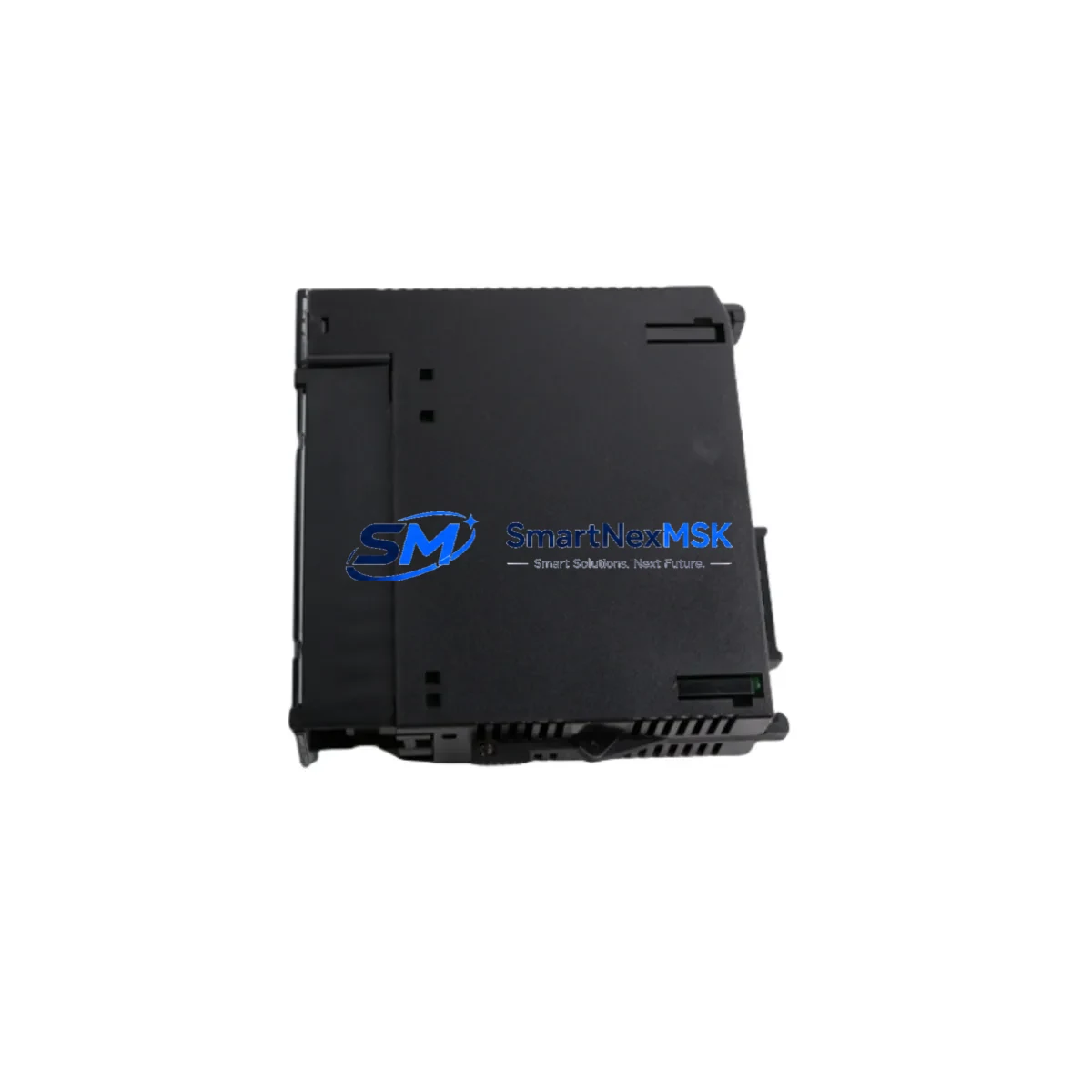

GE Fanuc IC693MDL940H Safety-Enhanced Relay Output Module

GE Fanuc IC693MDL940H Safety-Enhanced Relay Output Module: Reliable Control for Harsh Industrial Sites

The GE Fanuc IC693MDL940H is a 16-point relay output module engineered for the GE Series 90-30 PLC platform, purpose-built to deliver uninterrupted discrete control in high-demand industrial environments. Whether deployed in petrochemical processing units, power generation switchgear panels, mining extraction control systems, water treatment SCADA cabinets, metallurgical furnace control loops, or continuous manufacturing lines, this module provides the switching reliability and electrical isolation that safety-critical applications demand.

In environments where control interruption carries real operational and safety consequences — including unplanned shutdowns, process excursions, or equipment damage — the IC693MDL940H’s relay-based output architecture provides a critical layer of protection. Unlike solid-state output modules that can be vulnerable to leakage current and thermal runaway under sustained load, relay contacts offer true galvanic isolation between the PLC backplane and field devices, significantly reducing the risk of signal cross-contamination, ground loop interference, and false actuation in electrically noisy environments.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the IC693MDL940H within a well-engineered control cabinet architecture is essential to maximizing its safety contribution. In a typical Series 90-30 control system, the module operates alongside the IC693CPU374 central processing unit, which manages scan cycle execution and I/O arbitration. Power integrity is maintained by the IC693PWR321 or IC693PWR322 power supply modules, which provide regulated 5 VDC backplane power with built-in overcurrent protection — a prerequisite for stable relay switching under variable load conditions.

For applications requiring analog process feedback alongside discrete relay outputs, the IC693ALG221 analog input module and IC693ALG390 analog output module are commonly co-located in the same chassis, enabling closed-loop control strategies that depend on the IC693MDL940H for final element actuation. In safety interlock architectures, the module is frequently paired with discrete input modules such as the IC693MDL634 or IC693MDL654 to form complete hardwired interlock loops — ensuring that field sensor signals are correctly read and that protective relay outputs are triggered within the required response time.

Communication integrity across the control network is supported by modules such as the IC693CMM321 communications coprocessor, which handles Ethernet or serial data exchange without burdening the CPU scan cycle. In distributed control architectures, the IC693BEM331 bus expansion module allows the IC693MDL940H to be installed in remote expansion racks, extending the safety relay output capability to field junction boxes and remote I/O panels without signal degradation. For installations requiring additional surge protection at the terminal block level, external DIN-rail mounted surge arrestors and terminal block isolators are recommended to complement the module’s built-in transient suppression.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hydrocarbon processing facilities, the IC693MDL940H is used to actuate emergency shutdown (ESD) valves, control motor-operated isolation valves, and drive alarm annunciator panels. Its relay contact isolation ensures that high-voltage field circuits cannot back-feed into the PLC backplane during fault conditions, protecting both personnel and equipment.

Power Generation & Substation Control: In thermal and hydroelectric power plants, relay output modules must reliably switch breaker trip coils, excitation control relays, and cooling system contactors. The IC693MDL940H’s 2A-per-point rating and transient suppression capability make it suitable for these demanding switching duties, where a missed or false output can result in generation loss or grid instability.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The IC693MDL940H’s robust relay construction and compliance with IEC vibration standards make it a dependable choice for conveyor control, crusher interlock systems, and ventilation fan control in these harsh environments.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous, unattended operation of pumps, dosing systems, and UV disinfection units. The module’s galvanic isolation prevents ground potential differences between field devices from corrupting PLC logic, a common failure mode in facilities with extensive buried metalwork and variable soil conductivity.

Metallurgy & Steel Production: In electric arc furnace (EAF) and rolling mill control systems, the electromagnetic environment is among the most severe encountered in industry. The IC693MDL940H’s relay architecture provides inherent immunity to the high-frequency interference generated by thyristor drives and arc furnace power electronics, maintaining reliable output switching where solid-state modules may experience spurious operation.

Port & Material Handling Automation: Crane control systems, automated stacking equipment, and conveyor networks in port logistics require relay outputs capable of handling inductive loads from large contactors and solenoid valves. The IC693MDL940H’s per-common current rating and contact suppression features support these load types without premature contact wear.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the IC693MDL940H?
All IC693MDL940H units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. This covers functional failure under normal operating conditions and includes technical support for installation and commissioning. Warranty claims are processed promptly, with replacement or repair options available to minimize your downtime.

Q2: What pre-shipment testing is performed on each module?
Every IC693MDL940H undergoes a comprehensive functional test prior to dispatch. This includes backplane communication verification, relay contact continuity and isolation testing, output switching under rated load, and visual inspection for physical integrity. Test records are available upon request for quality documentation purposes.

Q3: Is the IC693MDL940H compatible with all Series 90-30 chassis and CPUs?
The IC693MDL940H is compatible with all standard GE Series 90-30 5-slot, 10-slot, and expansion chassis, including the IC693CHS391, IC693CHS392, and IC693CHS393. It operates with all Series 90-30 CPUs including the IC693CPU364 and IC693CPU374. No firmware modification is required for standard installations.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance and spare parts programs?
SMARTNEXMSK maintains dedicated inventory of the IC693MDL940H and related Series 90-30 components to support long-term spare parts programs for industrial facilities. We understand that production-critical systems cannot tolerate supply gaps, and our procurement network is structured to provide consistent availability even for discontinued or legacy GE Fanuc modules. Contact our team to discuss scheduled supply agreements tailored to your maintenance cycle.
