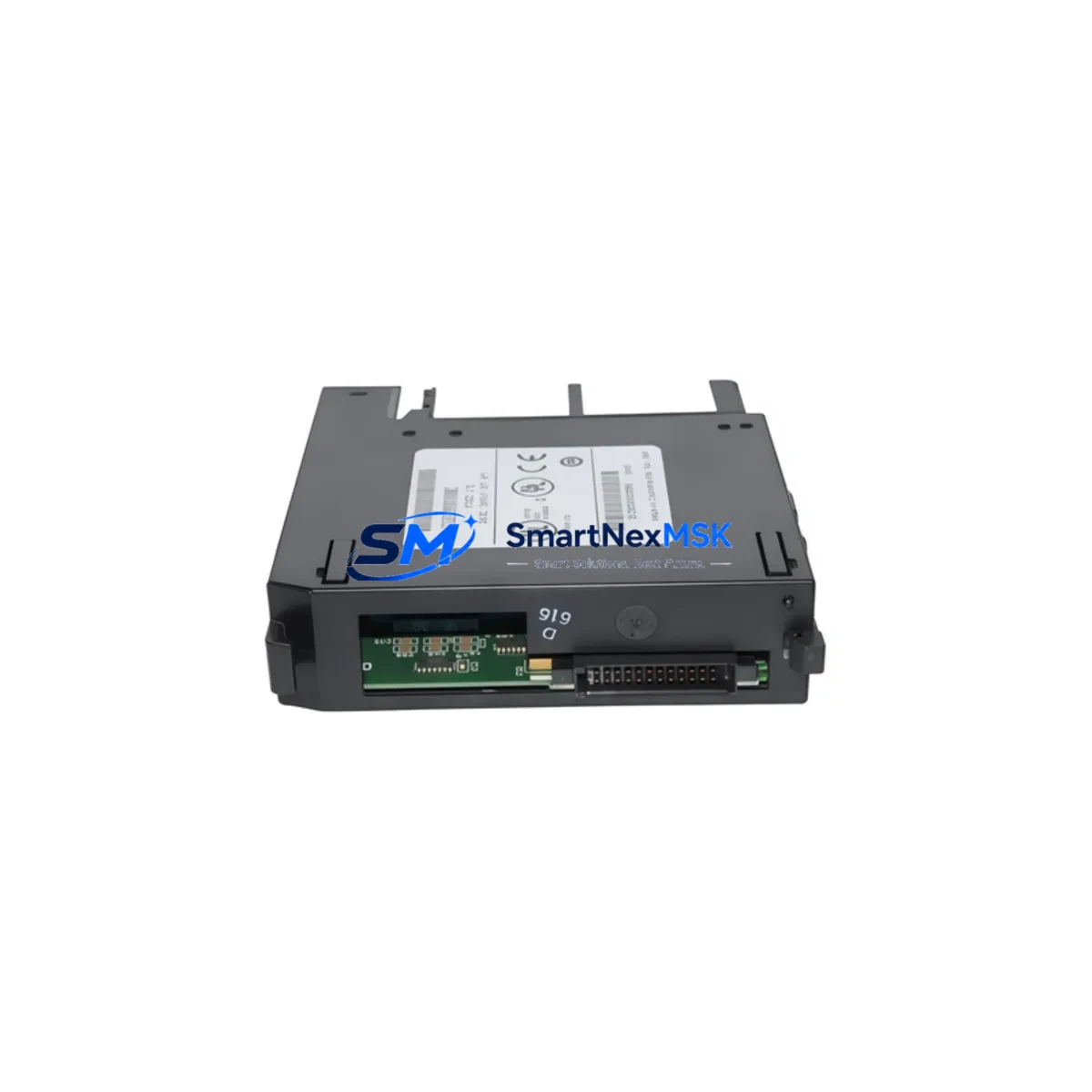

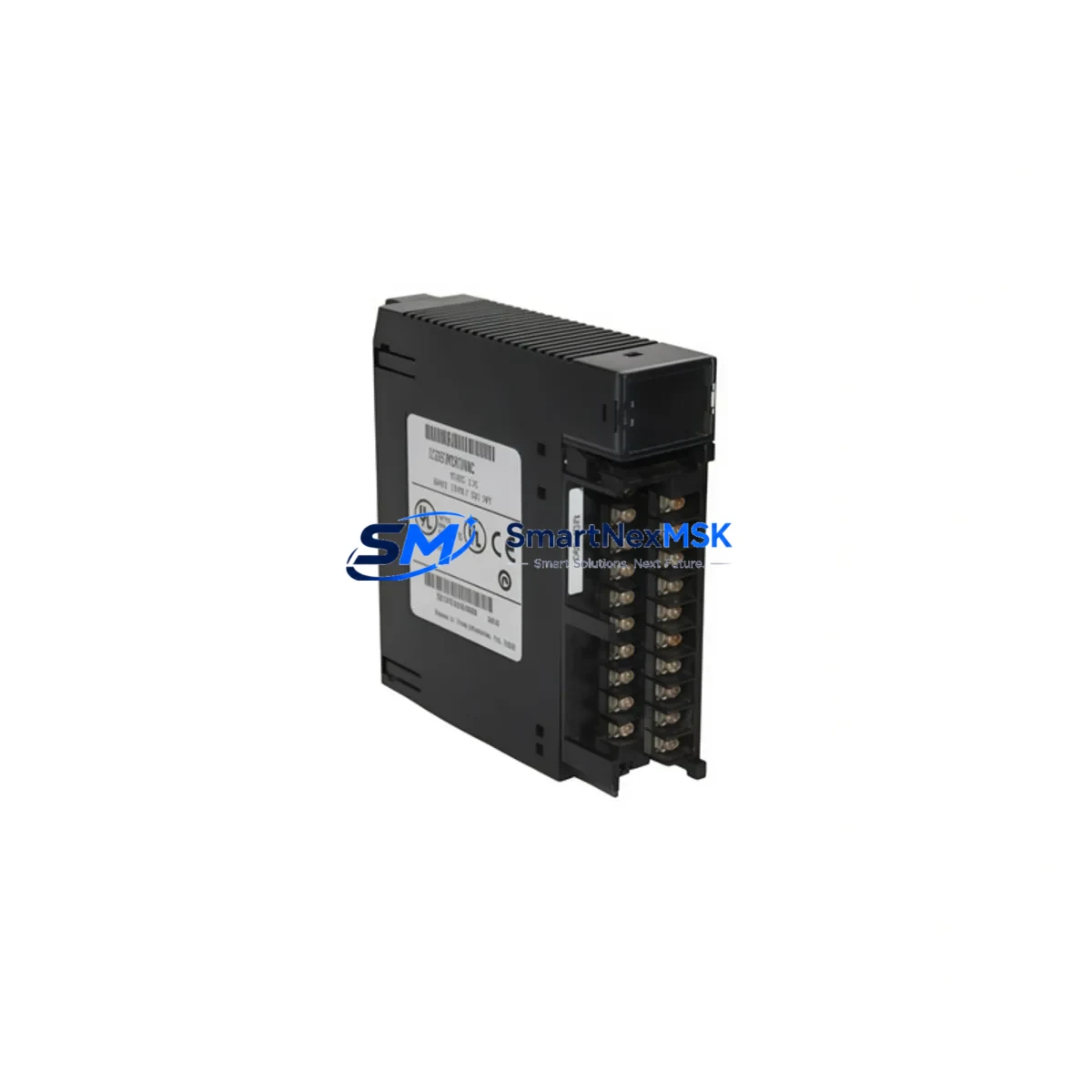

GE Fanuc IC693MDR390 Safety-Enhanced Relay Output Module

GE Fanuc IC693MDR390 Safety-Enhanced Relay Output Module: Reliable Control for Harsh Industrial Sites

The GE Fanuc IC693MDR390 is a ruggedized relay output module engineered for the GE Series 90-30 PLC platform, purpose-built to deliver uninterrupted discrete output control in high-load, high-interference, and safety-critical industrial environments. With 16 relay output points rated for both AC and DC loads, this module is a cornerstone component in control cabinets where output signal integrity, contact reliability, and electrical isolation are non-negotiable. Whether deployed in continuous process lines, hazardous-area control panels, or critical interlock circuits, the IC693MDR390 is engineered to keep your automation running safely and predictably.

In demanding industrial sites — petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical furnaces, port logistics systems, and continuous manufacturing lines — control interruptions carry serious safety and financial consequences. The IC693MDR390 addresses this directly through its relay contact architecture, which provides inherent galvanic isolation between the PLC backplane and field devices. This isolation is essential for protecting the CPU and communications bus from voltage transients, inductive kickback from motor starters and solenoid valves, and ground loop interference that commonly causes signal drift or module misoperation in heavy industrial environments.

When integrated into a GE Series 90-30 rack alongside the IC693CPU374 or IC693CPU364 central processing units, the IC693MDR390 benefits from the platform’s deterministic scan cycle, ensuring that output state changes are executed with precise timing even under high-CPU-load conditions. The module slots directly into standard 5-slot or 10-slot Series 90-30 baseplate assemblies such as the IC693CHS391 or IC693CHS397, maintaining full compatibility with the system’s distributed I/O architecture. Power integrity for the rack is typically maintained through the IC693PWR321 or IC693PWR330 power supply modules, which provide regulated 5 VDC and 24 VDC rails with built-in surge suppression — a critical layer of protection against power-line disturbances in grid-connected industrial facilities.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet strategy for safety-critical applications using the IC693MDR390 begins with proper I/O segregation and signal conditioning. In high-interference environments such as arc furnace control rooms or variable-frequency drive (VFD) panels, it is standard practice to pair relay output modules with dedicated analog input modules like the IC693ALG221 or IC693ALG222 for process variable monitoring, ensuring that analog signal integrity is maintained independently of the relay switching noise generated on the output side.

For applications requiring discrete input monitoring alongside relay output control — such as emergency stop interlock circuits or safety gate monitoring — the IC693MDL654 24 VDC discrete input module is commonly deployed in the same rack, providing a complete hardwired interlock loop within a single Series 90-30 chassis. Communication continuity is maintained through the IC693CMM321 or IC693CMM311 communications modules, which support Genius Bus or serial communications to SCADA systems and remote I/O drops, ensuring that control room operators maintain real-time visibility of output states even during high-load production cycles.

In facilities where network-level redundancy is required, the Series 90-30 platform supports integration with IC693BEM331 Bus Expansion Modules, allowing the IC693MDR390 to be deployed in remote expansion racks up to 7 meters from the main CPU rack — a critical capability for distributed control cabinets in large-footprint plants such as port terminals or steel mills. Surge and transient protection at the field wiring level is further enhanced by installing DIN-rail-mounted surge protection devices (SPDs) on each relay output circuit, particularly for long cable runs to solenoid valves, motor contactors, or alarm annunciators in outdoor or exposed installations.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The IC693MDR390 is widely deployed in emergency shutdown (ESD) panel auxiliary circuits, where relay output isolation prevents cross-contamination of safety signals between the process control network and the safety instrumented system (SIS). Its contact-based output architecture ensures that output state is physically verifiable — a key requirement in IEC 61511 functional safety assessments.

Power Generation & Substation Control: In coal-fired, gas turbine, and hydroelectric generation facilities, the module controls auxiliary relay panels for breaker trip circuits, cooling fan sequencing, and transformer protection interlocks. The relay contact isolation is essential for preventing ground faults on high-voltage secondary circuits from propagating into the PLC backplane.

Mining & Mineral Processing: Underground and surface mining operations rely on the IC693MDR390 for conveyor belt control, crusher sequencing, and ventilation fan interlock circuits. The module’s wide operating temperature range and vibration resistance make it suitable for installation in mobile equipment control panels and surface-mounted junction boxes subject to mechanical shock.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the module to control pump motor starters, valve actuators, and chemical dosing systems. The galvanic isolation between relay contacts and the PLC bus prevents electrochemical corrosion-induced ground faults — common in wet process environments — from disrupting the control system.

Metallurgy & Steel Production: In continuous casting lines and rolling mill control systems, the IC693MDR390 manages cooling water valve sequencing, roll gap actuator control, and furnace burner management relay circuits. Its ability to switch both AC and DC loads makes it versatile across the mixed-voltage architectures typical of legacy steel plant control systems.

Port & Logistics Automation: Container crane PLC systems and automated guided vehicle (AGV) control panels use the module for hoist brake control, travel limit interlock circuits, and anti-collision relay logic. The module’s proven reliability in high-cycle-rate applications — where relay contacts may switch thousands of times per shift — is a key factor in minimizing unplanned downtime in 24/7 port operations.

Safety and Quality FAQ

Q1: What warranty does the IC693MDR390 come with, and what does it cover?
Every IC693MDR390 unit supplied by SMARTNEXMSK is backed by a 12-month warranty covering manufacturing defects, functional failures, and premature component degradation under normal operating conditions. Warranty claims are processed with priority turnaround to minimize your site downtime. Replacement or repair is provided at no additional cost within the warranty period.

Q2: How is each unit tested before shipment?
All IC693MDR390 modules undergo a multi-stage pre-shipment inspection protocol including visual inspection for physical damage, backplane connector integrity verification, relay contact continuity testing on all 16 output channels, and functional power-on testing in a Series 90-30 test rack. Only units that pass all inspection stages are released for shipment, ensuring that you receive a field-ready module.

Q3: Is the IC693MDR390 compatible with all Series 90-30 CPU and baseplate configurations?
Yes. The IC693MDR390 is fully compatible with all standard GE Series 90-30 baseplates (5-slot and 10-slot configurations) and all Series 90-30 CPU modules, including the IC693CPU331, IC693CPU341, IC693CPU351, IC693CPU364, and IC693CPU374. It is also compatible with Series 90-30 expansion racks connected via Bus Expansion Modules. No firmware or configuration changes are required beyond standard I/O configuration in the GE Proficy Machine Edition programming environment.

Q4: Can SMARTNEXMSK support long-term and emergency spare parts supply for the IC693MDR390?
Yes. SMARTNEXMSK maintains dedicated inventory of the IC693MDR390 and related Series 90-30 components to support both planned maintenance schedules and emergency breakdown situations. We offer same-day quotation, rapid order processing, and express international shipping to minimize your mean time to repair (MTTR). For facilities managing end-of-life GE Series 90-30 systems, we also provide cross-reference support to identify compatible replacement modules and migration pathways.
