GE HE693PBS106 Safety-Enhanced PROFIBUS DP Module for Harsh Industrial Sites

GE HE693PBS106 Safety-Enhanced PROFIBUS DP Module for Harsh Industrial Sites

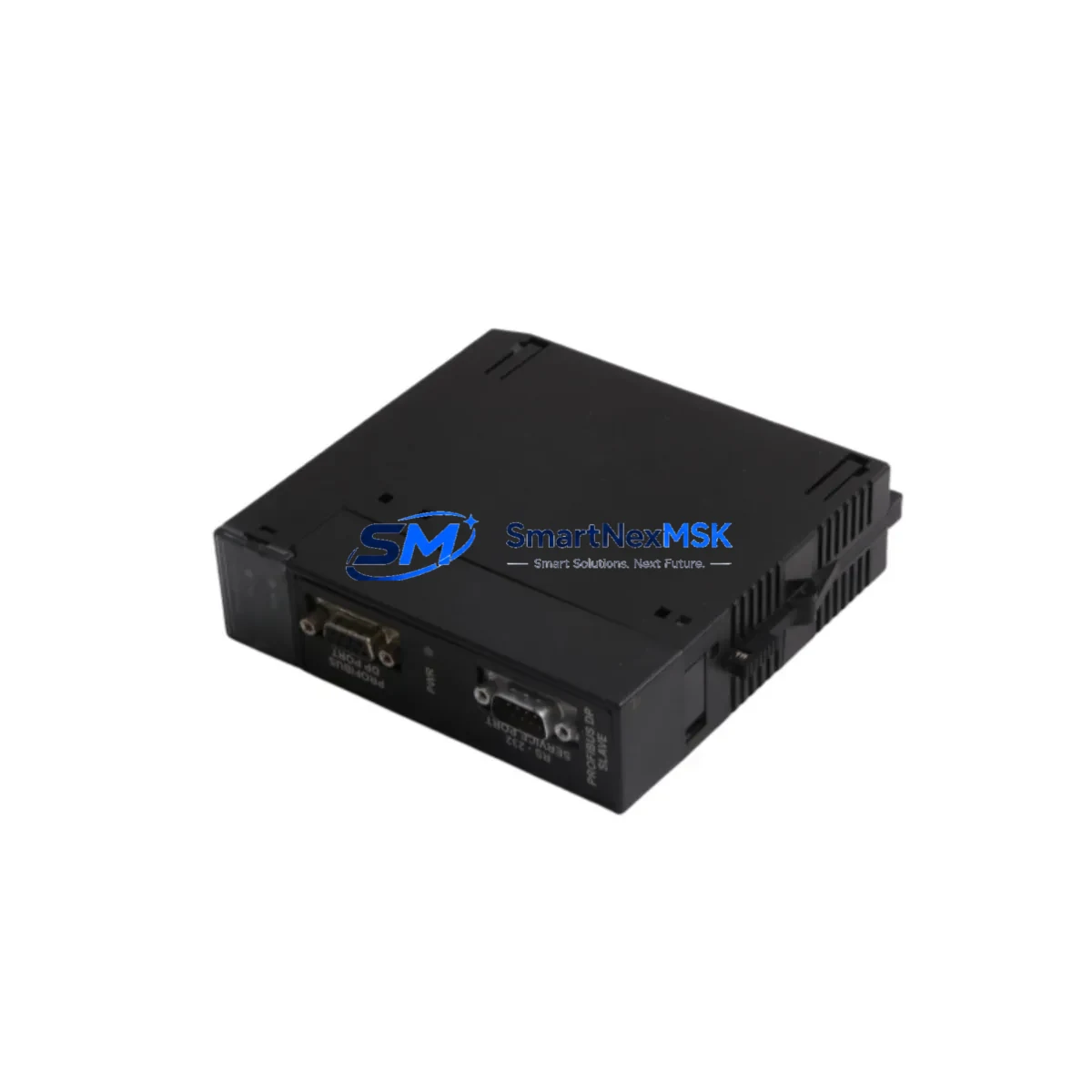

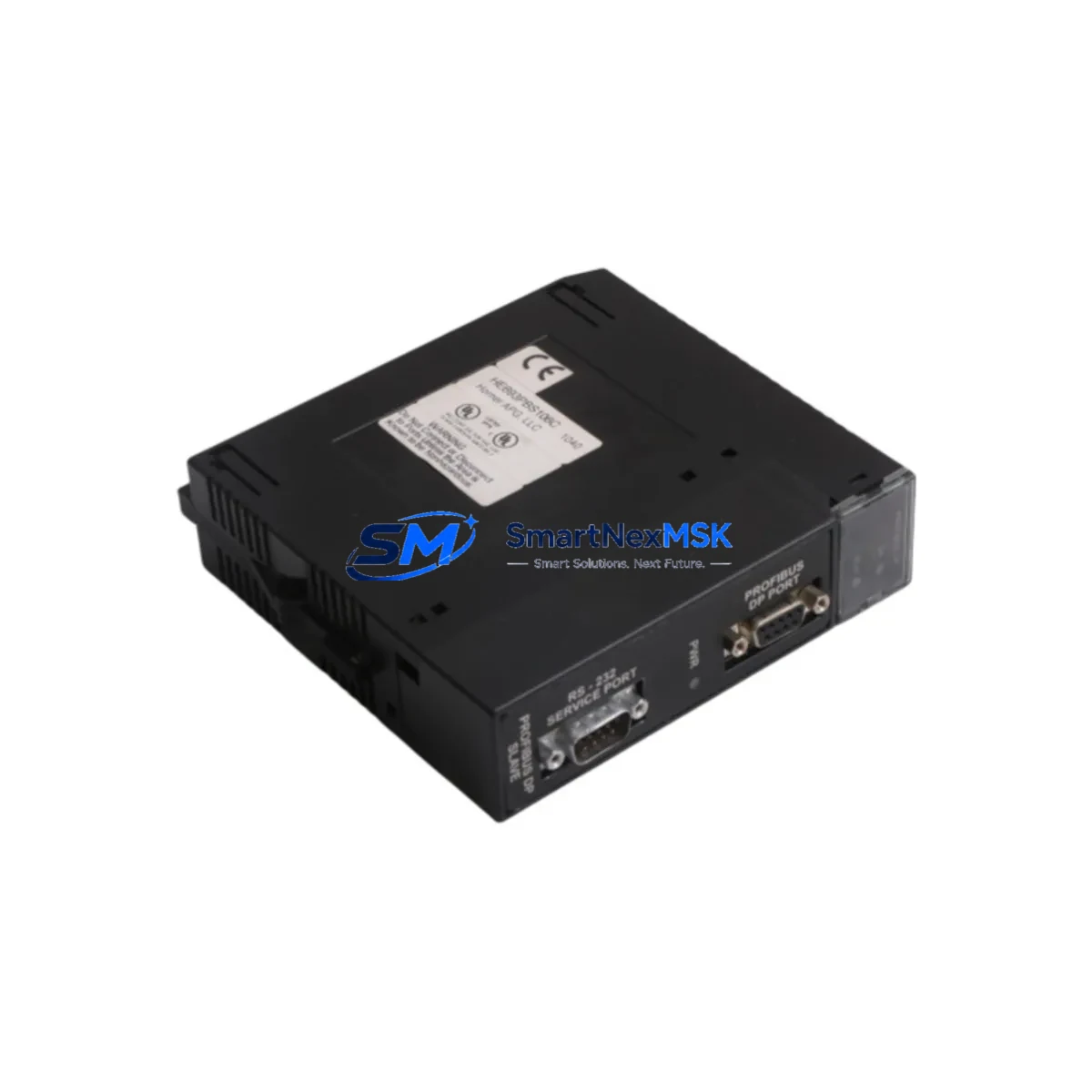

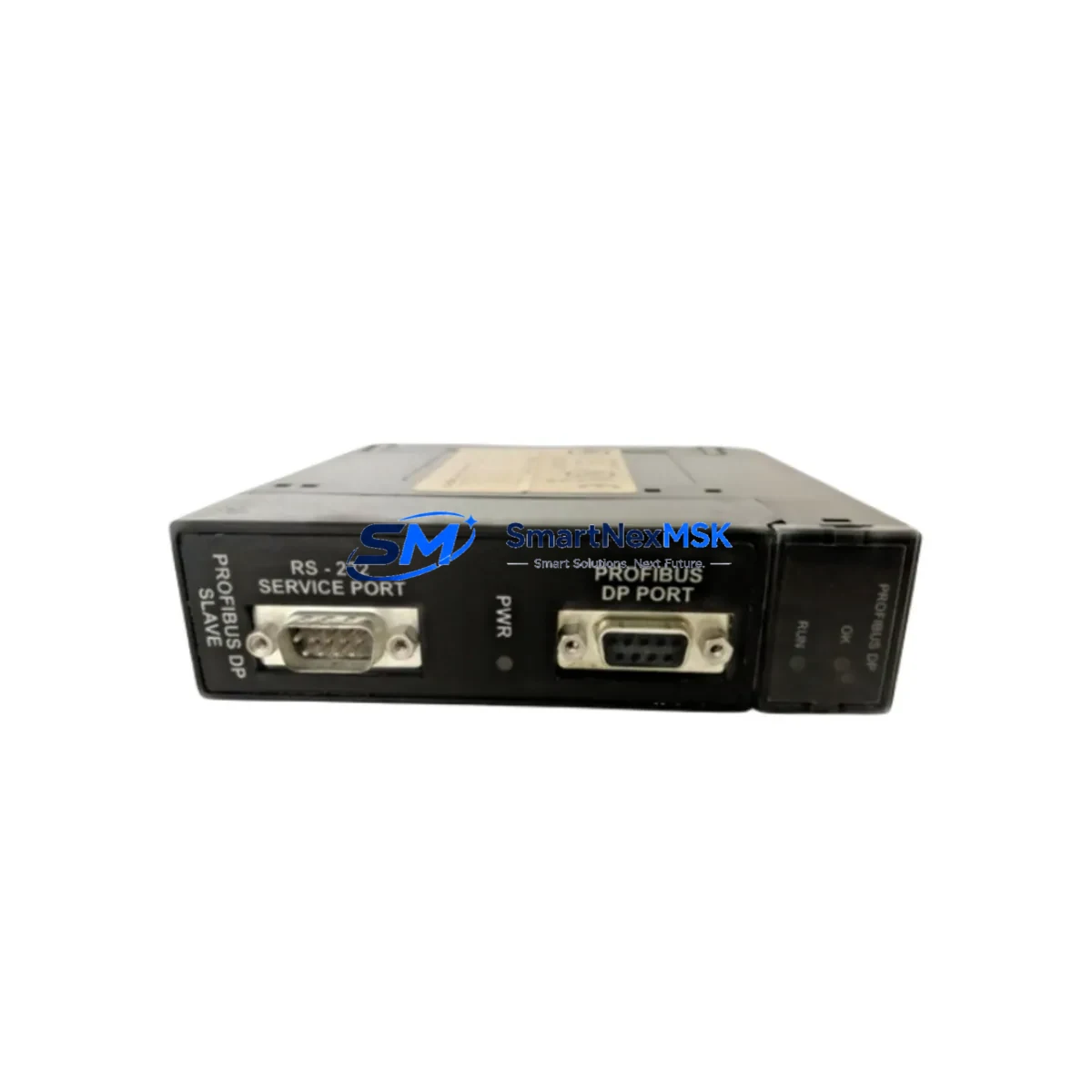

The GE HE693PBS106 is a ruggedized PROFIBUS DP communication module engineered for the GE Series 90-30 PLC platform, purpose-built to maintain deterministic fieldbus communication in high-noise, high-load, and safety-critical industrial environments. In continuous production facilities — including petrochemical plants, power generation stations, metallurgical smelters, water treatment infrastructure, and heavy-port logistics systems — uninterrupted PROFIBUS DP communication is not a convenience; it is a safety prerequisite. The HE693PBS106 addresses this requirement with robust hardware design, proven EMI shielding, and a communication architecture that resists signal drift, bus collision, and protocol timeout under sustained electrical stress.

Deployed within a Series 90-30 control cabinet, the HE693PBS106 occupies a standard I/O rack slot and interfaces directly with the CPU backplane, enabling the PLC to act as a PROFIBUS DP master or slave across multi-drop fieldbus segments. Its onboard isolation circuitry protects the backplane from surge events originating on the field cable — a critical safeguard in environments where variable-frequency drives, high-current motor starters, and arc-flash-prone switchgear operate in close proximity to control wiring. When paired with GE IC693CPU374 or IC693CPU375 CPU modules, the HE693PBS106 delivers scan-cycle-synchronized data exchange that eliminates the latency spikes that can trigger nuisance trips in safety interlock systems.

In mining and mineral processing applications, where conveyor control, crusher interlocks, and slurry pump sequencing depend on reliable fieldbus polling, a single PROFIBUS DP communication failure can cascade into a full-line shutdown. The HE693PBS106 mitigates this risk through its hardware watchdog architecture, which forces a controlled fault state rather than allowing indeterminate output behavior during bus loss events. This behavior is essential for compliance with functional safety strategies that require defined safe states for all communication-dependent outputs.

Safety Reliability Table

Control Cabinet Protection Strategy

A reliable Series 90-30 control cabinet built around the HE693PBS106 requires a layered protection strategy that addresses power quality, signal integrity, and communication redundancy simultaneously. At the power layer, the GE IC693PWR321 or IC693PWR330 power supply module provides regulated 5 VDC and 24 VDC backplane power with built-in overvoltage and short-circuit protection, ensuring the HE693PBS106 and co-resident I/O modules receive stable operating voltage even during upstream grid disturbances. For applications where power continuity is non-negotiable, an external 24 VDC UPS buffer upstream of the IC693PWR330 eliminates the risk of brownout-induced module resets during momentary supply dips.

At the I/O layer, discrete safety signals feeding into the PROFIBUS DP network are typically conditioned through GE IC693MDL940 or IC693MDL741 digital output modules, which provide solid-state switching with diagnostic feedback. Analog process variables — pressure, temperature, flow — are acquired via GE IC693ALG221 or IC693ALG392 analog input modules, whose 12-bit resolution and hardware filtering suppress the signal noise that can cause false alarm conditions in safety interlock logic. The HE693PBS106 aggregates these I/O values across the PROFIBUS DP segment and delivers them to the CPU with deterministic timing, preventing the scan-time jitter that can destabilize PID control loops in critical process applications.

For communication architecture integrity, the PROFIBUS DP cable segment connected to the HE693PBS106 should be terminated with matched 150-ohm bus termination resistors at both physical ends of the segment, and the cable shield should be grounded at a single point to prevent ground loop currents from inducing common-mode noise on the data lines. In high-interference environments such as arc furnace control rooms or variable-speed drive panels, the use of PROFIBUS-certified shielded twisted-pair cable (Type A, per EN 50170) is mandatory to maintain signal integrity at baud rates above 1.5 Mbps. Surge protection devices installed at the field cable entry point of the control cabinet provide an additional barrier against lightning-induced transients and capacitive discharge events from long cable runs.

When the HE693PBS106 is deployed as a PROFIBUS DP master, it can manage up to 125 slave devices on a single segment (with repeaters), enabling centralized supervision of distributed field instruments, valve positioners, motor protection relays, and remote I/O stations from a single Series 90-30 CPU. This architecture reduces the number of point-to-point wiring runs in the cabinet, lowering the probability of wiring-induced faults and simplifying the cabinet layout for maintenance personnel working under time pressure during unplanned outages.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hydrocarbon processing facilities, the HE693PBS106 supports PROFIBUS DP communication between the Series 90-30 PLC and field instruments in classified hazardous areas. The module’s deterministic communication ensures that emergency shutdown (ESD) logic receives real-time process data from pressure transmitters, flame detectors, and gas analyzers without the polling delays that could mask a developing overpressure or leak event. Its controlled fault-state behavior on bus loss prevents undefined output states that could inadvertently open or close safety-critical valves during a communication interruption.

Power Generation and Substation Automation: In coal-fired, gas turbine, and hydroelectric generation facilities, the HE693PBS106 enables PROFIBUS DP integration between the Series 90-30 control system and protection relays, excitation controllers, and turbine governor systems. The module’s EMI resistance is particularly valuable in high-voltage switchyards where electromagnetic interference from bus bars, disconnect switches, and current transformers can corrupt fieldbus signals on less robust communication hardware.

Mining and Mineral Processing: Underground and surface mining operations rely on the HE693PBS106 for conveyor belt control, crusher sequencing, and ventilation fan interlocking via PROFIBUS DP. In these environments, cable runs between the surface control room and underground field devices can exceed several hundred meters, making the module’s support for PROFIBUS DP repeaters and its robust bus termination behavior essential for maintaining communication integrity across the full segment length.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the HE693PBS106 to integrate PROFIBUS DP-enabled pump drives, chlorination dosing systems, and SCADA remote terminal units with the Series 90-30 PLC. The module’s ability to operate continuously in high-humidity environments (up to 95% RH non-condensing) makes it suitable for pump station control panels exposed to condensation and water vapor ingress.

Metallurgy and Steel Production: In electric arc furnace (EAF) and continuous casting operations, the HE693PBS106 withstands the extreme electromagnetic interference generated by high-current furnace electrodes and induction heating systems. Its optical isolation on the fieldbus interface prevents furnace-induced ground potential differences from damaging the Series 90-30 backplane, protecting the entire control system from a single-point failure that could halt production.

Safety and Quality FAQ

Q1: What warranty coverage does the HE693PBS106 carry?
Every HE693PBS106 unit supplied by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions consistent with GE Series 90-30 system specifications. Replacement or repair is provided at no additional cost within the warranty period, with priority processing for customers in critical production environments.

Q2: How is each unit tested before shipment?
All HE693PBS106 modules undergo pre-shipment functional verification, including backplane communication handshake testing, PROFIBUS DP bus initialization checks, and visual inspection for physical damage, corrosion, or component anomalies. Units that do not pass functional verification are quarantined and not shipped. Test records are retained and available upon request for customers with quality management system (QMS) documentation requirements.

Q3: Is the HE693PBS106 compatible with all Series 90-30 CPU and rack configurations?
The HE693PBS106 is compatible with the full range of GE Series 90-30 CPU modules, including IC693CPU363, IC693CPU364, IC693CPU374, and IC693CPU375, as well as standard 5-slot, 10-slot, and expansion rack configurations. It is configured using GE Proficy Machine Edition (formerly Logicmaster 90-30) software. Customers integrating the module into an existing Series 90-30 system should verify rack slot availability and CPU firmware version compatibility prior to installation.

Q4: Can SMARTNEXMSK support long-term supply and emergency replacement needs?
Yes. SMARTNEXMSK maintains standing inventory of the HE693PBS106 and related Series 90-30 components to support both planned maintenance programs and emergency breakdown replacement scenarios. For customers managing aging GE Series 90-30 installations where original manufacturer support has been discontinued, we provide a reliable alternative supply channel with consistent stock availability, technical documentation support, and expedited shipping options for time-critical plant recovery situations.
