GE IC200DBI001 Safety-Enhanced DeviceNet NIU for Harsh Industrial Sites

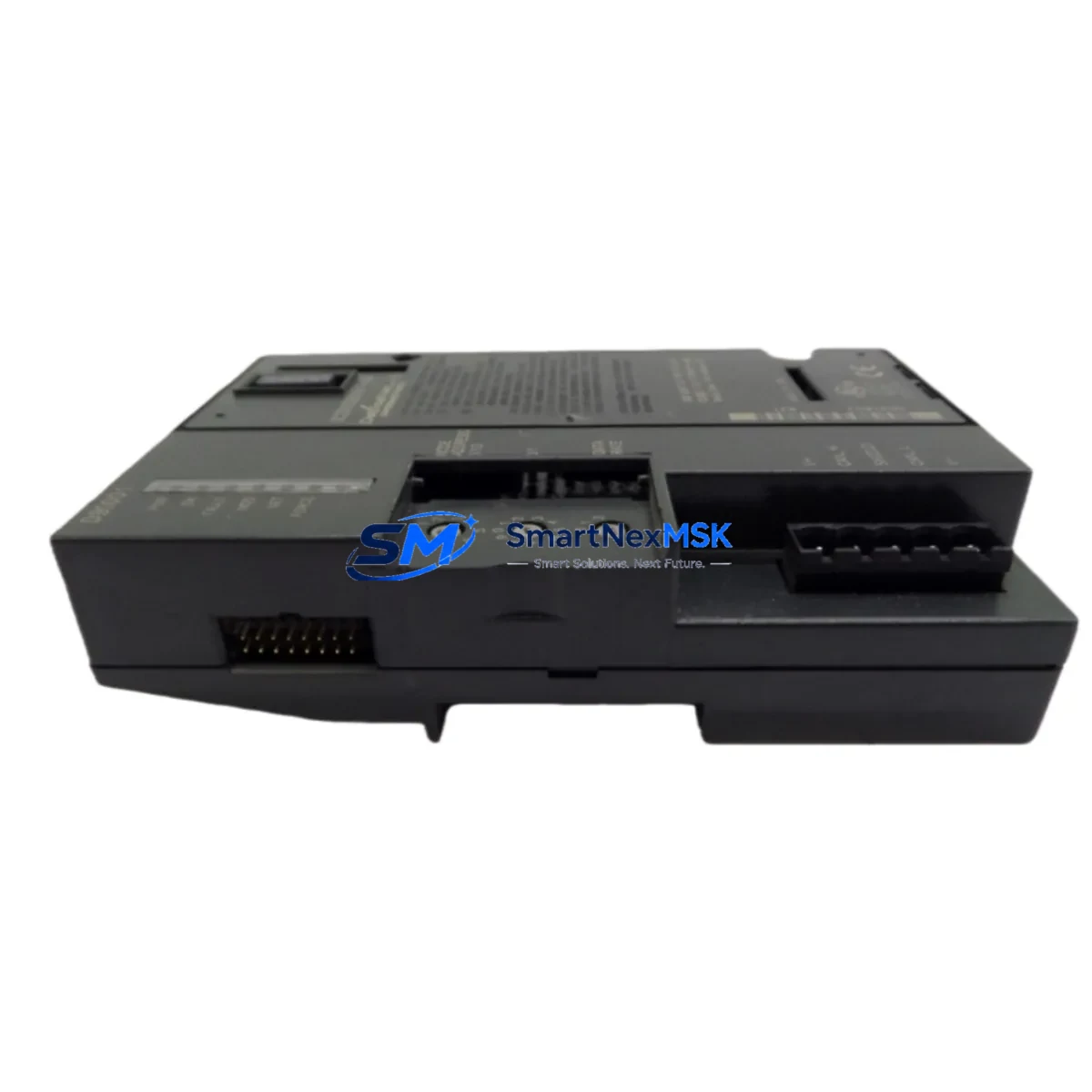

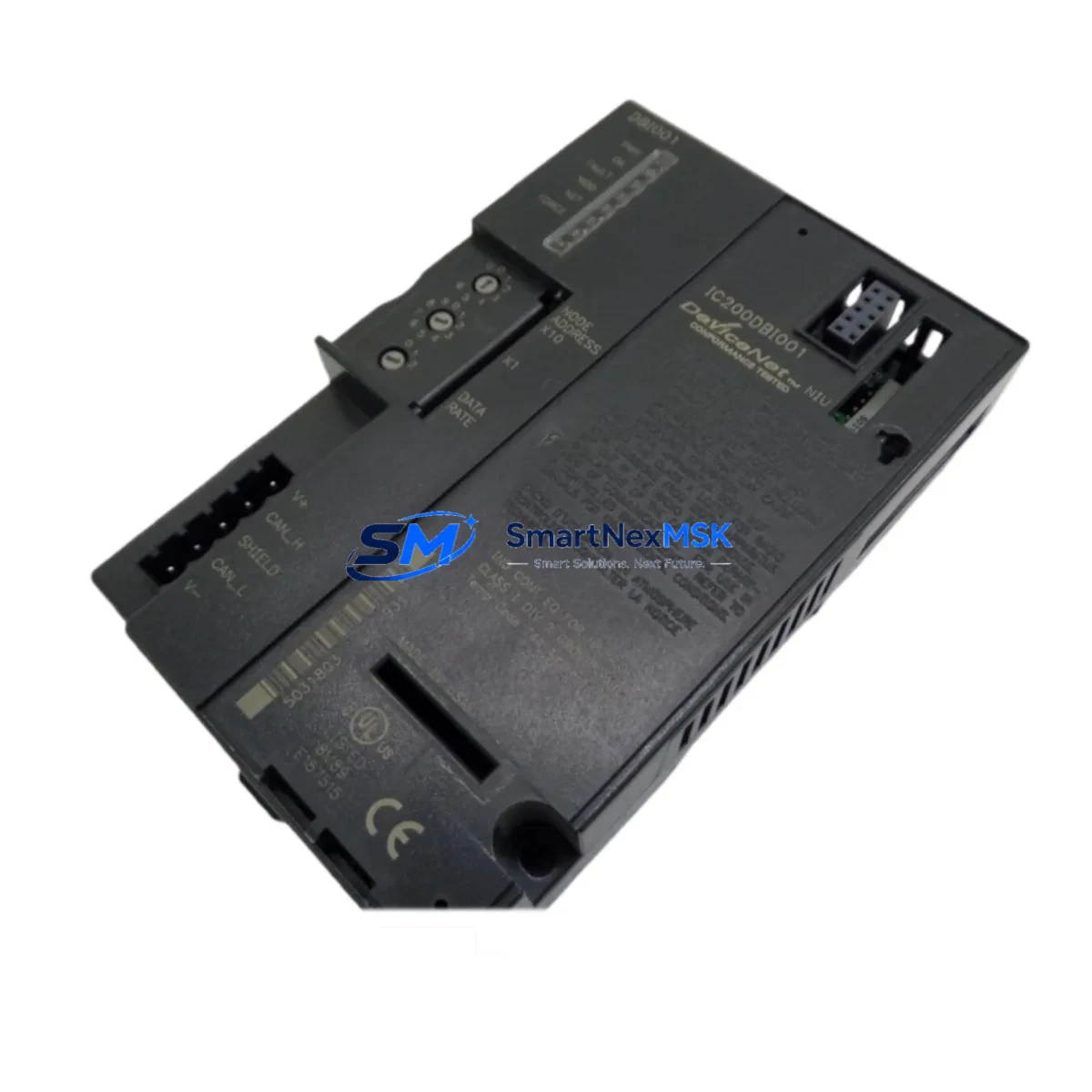

The GE IC200DBI001 is a ruggedized DeviceNet Network Interface Unit (NIU) engineered for the GE VersaMax Remote I/O platform. Designed to operate reliably in high-noise, high-vibration, and thermally demanding industrial environments, this module serves as a critical communication bridge between DeviceNet master controllers and distributed I/O assemblies across the plant floor. Whether deployed in continuous process manufacturing, heavy-duty control cabinets, or safety-critical interlock circuits, the IC200DBI001 delivers the signal integrity and communication stability that industrial operations demand.

In harsh industrial sites — including petrochemical refineries, power generation facilities, mining operations, water treatment plants, metallurgical processing lines, and port automation systems — control communication failures carry serious safety and operational consequences. The IC200DBI001 is built to minimize these risks. Its robust DeviceNet interface maintains reliable master-slave communication even under conditions of electromagnetic interference (EMI), ground potential fluctuations, and power supply transients that are common in heavy industrial environments. By maintaining stable network connectivity, it directly reduces the risk of control loop interruption, signal drift, module mis-operation, and unplanned process shutdowns.

Within a properly configured VersaMax Remote I/O cabinet, the IC200DBI001 works in close coordination with companion modules such as the GE IC200PWR002 power supply module, which provides regulated 24 VDC bus power to the I/O backplane. Surge and transient events on the field power rail — a frequent occurrence in arc furnace environments, large motor start-up sequences, and switchgear-adjacent panels — are absorbed upstream, protecting the NIU’s internal logic from voltage spikes that could cause communication resets or data corruption. Pairing the IC200DBI001 with a properly rated GE IC200CHS022 or IC200CHS014 carrier assembly ensures mechanical stability and correct backplane signal routing across the full I/O node.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the IC200DBI001 as the DeviceNet node controller within a VersaMax Remote I/O cabinet requires a layered protection strategy to ensure continuous, safe operation. The NIU itself handles network-layer communication, but its reliability depends on the integrity of the surrounding cabinet architecture. A well-designed protection strategy begins with the power supply: the GE IC200PWR002 or IC200PWR001 backplane power supply must be correctly sized to handle the aggregate current draw of all installed I/O modules, with adequate derating for elevated ambient temperatures. Undersized or degraded power supplies are a leading cause of intermittent NIU communication faults in field installations.

On the DeviceNet network side, proper termination resistors (121 Ω, 1%) must be installed at both ends of the trunk cable to prevent signal reflections that can cause CRC errors and node dropouts — a particularly critical concern in long cable runs through electrically noisy environments such as motor control centers (MCCs) or variable frequency drive (VFD) panels. The IC200DBI001’s optically isolated DeviceNet port provides a first line of defense against ground loop currents, but this isolation is most effective when combined with a properly grounded cable shield and a dedicated DeviceNet power tap using a DeviceNet sealed connector assembly rated for the installation environment.

For installations in hazardous or high-vibration areas — such as offshore platforms, mining headframes, or steel mill rolling lines — the carrier assembly should be inspected for secure module seating. The GE IC200CHS022 10-slot carrier and IC200CHS014 4-slot carrier both provide positive module retention, but periodic re-seating checks are recommended as part of a preventive maintenance schedule. Alongside the NIU, discrete I/O modules such as the GE IC200MDL640 (16-point 24 VDC input) and IC200MDL740 (16-point 24 VDC output) are commonly co-located in the same VersaMax node, and their health directly affects the overall node’s communication status reported back through the IC200DBI001 to the DeviceNet master — typically a GE PACSystems RX3i or Series 90-30 PLC acting as the network scanner.

For safety interlock circuits, it is strongly recommended to configure the IC200DBI001’s I/O connection parameters with an appropriate Expected Packet Interval (EPI) and to enable the DeviceNet master’s node fault detection. This ensures that any communication loss between the NIU and the master triggers a defined safe-state output condition rather than leaving field devices in an indeterminate state — a critical requirement in emergency shutdown (ESD) and safety instrumented system (SIS) applications where the GE IC200MDL330 relay output module or equivalent safety-rated output devices are used to drive final control elements.

Critical Industrial Safety Applications

The GE IC200DBI001 is deployed across a wide range of critical industrial sectors where communication reliability is directly linked to operational safety and production continuity.

In petrochemical and refinery operations, the IC200DBI001 serves as the DeviceNet node interface for distributed I/O assemblies monitoring tank farm level sensors, valve position feedback, and pump motor status. In these environments, the module must maintain continuous communication through periods of high EMI generated by large induction motors, heat tracing systems, and cathodic protection equipment. A communication dropout in a refinery control loop can trigger unplanned process upsets, making the NIU’s surge-protected network port and optically isolated interface essential safety features.

In power generation and substation automation, VersaMax Remote I/O nodes equipped with the IC200DBI001 are used to interface with generator protection relay status, breaker position contacts, and auxiliary control circuits. The module’s wide operating temperature range and vibration resistance make it suitable for installation in outdoor switchgear enclosures and turbine hall control panels where thermal cycling and mechanical vibration are constant stressors.

In mining and mineral processing, the IC200DBI001 is deployed in conveyor control systems, crusher automation panels, and ventilation control cabinets. These environments are characterized by heavy dust loading, high vibration, and frequent power quality disturbances from large crusher motors and dragline equipment. The module’s robust construction and DeviceNet optical isolation help maintain reliable I/O communication even when the local power quality is poor.

In water and wastewater treatment, the IC200DBI001 provides the DeviceNet interface for pump station remote I/O, chemical dosing control panels, and SCADA-connected field I/O nodes. Reliable communication in these applications is essential for maintaining regulatory compliance and preventing overflow or treatment failure events.

In port and material handling automation, the IC200DBI001 is used in crane control systems, conveyor routing panels, and automated stacking equipment where high cycle rates and continuous operation demand a network interface module with proven long-term reliability and readily available spare parts support.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the IC200DBI001?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform its specified DeviceNet communication and I/O interface functions within the warranty period due to a manufacturing or component defect, we will provide a replacement or repair at no additional cost. The warranty does not cover damage resulting from incorrect installation, overvoltage events beyond rated limits, or physical mishandling.

Q2: What pre-shipment testing is performed on the IC200DBI001?
Each IC200DBI001 unit undergoes functional verification testing prior to shipment. This includes power-on self-test (POST) verification, DeviceNet communication port continuity and isolation checks, and backplane connector inspection. Units sourced from original GE / Emerson manufacturing channels are tested against GE’s published acceptance criteria. Refurbished or surplus units are additionally subjected to full functional burn-in testing to confirm stable operation before dispatch.

Q3: Is the IC200DBI001 compatible with both GE Series 90-30 and PACSystems DeviceNet scanner configurations?
The IC200DBI001 is a VersaMax Remote I/O NIU and is compatible with any DeviceNet master scanner that supports standard DeviceNet Group 2 slave device profiles, including GE Series 90-30 DeviceNet scanner modules and PACSystems RX3i DeviceNet interface modules. It is not dependent on a specific GE PLC platform and can also be integrated with third-party DeviceNet masters from Allen-Bradley, Siemens, or Omron, provided the master is configured with the correct EDS file and I/O connection parameters for the VersaMax node.

Q4: Can long-term supply and replacement support be guaranteed for the IC200DBI001?
Yes. We maintain dedicated inventory of the IC200DBI001 and key VersaMax companion modules to support ongoing spare parts programs for installed base customers. Given that GE VersaMax systems remain widely deployed across global industrial facilities, we prioritize stock availability for this product line. Customers with critical installed base requirements are encouraged to contact our sales team to discuss consignment stock arrangements, scheduled delivery programs, or multi-unit procurement to ensure uninterrupted spare parts availability for their maintenance operations.
