GE IC200UEO116-A Safety-Enhanced Transistor Output Module

GE IC200UEO116-A Safety-Enhanced Transistor Output Module: Reliable Control for Harsh Industrial Sites

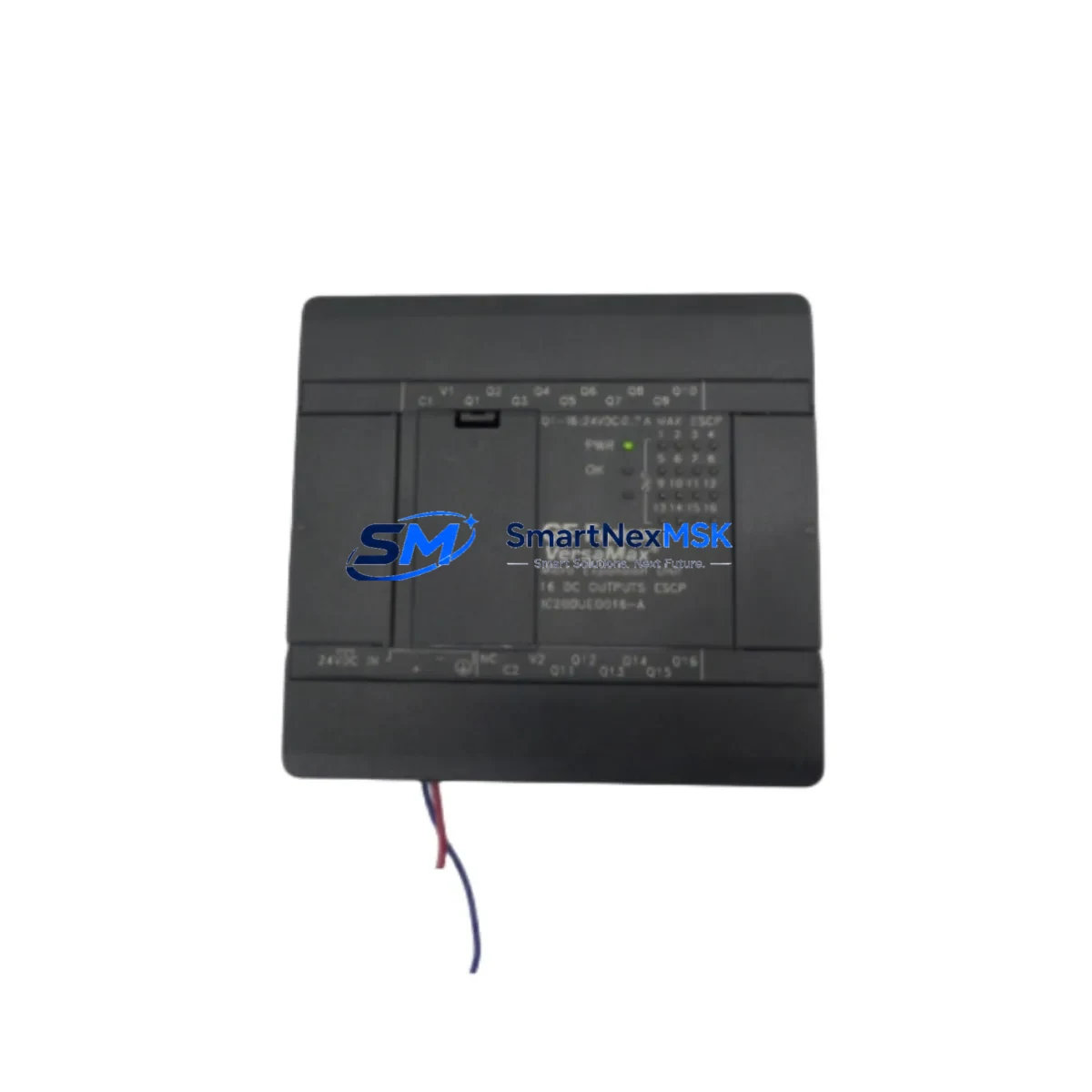

The GE IC200UEO116-A is a 16-point, 24VDC transistor output module from the GE Fanuc VersaMax Micro series, engineered for continuous, safety-critical operation in demanding industrial environments. Designed to integrate seamlessly into compact PLC control cabinets, this module delivers deterministic digital output switching with robust protection against the electrical and mechanical stresses common in heavy industry — including signal drift, power surges, electromagnetic interference, and thermal cycling.

In high-load production facilities such as petrochemical plants, power generation stations, mining operations, water treatment systems, metallurgical processing lines, and port logistics automation, output module reliability is not optional — it is a fundamental safety requirement. The IC200UEO116-A addresses this need with solid-state transistor outputs that eliminate mechanical wear, reduce contact bounce risk, and maintain switching accuracy across thousands of operating hours without degradation.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the IC200UEO116-A as part of a well-engineered control cabinet architecture significantly reduces the risk of unplanned shutdowns and safety interlock failures. In a typical VersaMax Micro control system, this output module works in close coordination with the IC200UAA028R CPU module, which handles program execution and I/O scanning, and the IC200UDD020 combined DC input/output module used for mixed signal environments. For applications requiring analog feedback loops — such as valve positioning or variable-speed drive control — the IC200UAL005 analog input module provides the measurement data that the IC200UEO116-A’s outputs act upon.

Power integrity is critical in any safety-rated control system. The VersaMax Micro platform is typically powered through a dedicated 24VDC regulated power supply with surge suppression, and it is strongly recommended to install a Phoenix Contact QUINT-PS or equivalent DIN-rail power supply with SFB (Selective Fuse Breaking) technology upstream of the PLC rack. This prevents voltage transients and brownout conditions from propagating into the IC200UEO116-A’s output circuits, which could otherwise cause spurious output activation — a critical concern in safety interlock and emergency shutdown (ESD) applications.

For communication-intensive installations where the VersaMax Micro system exchanges data with a supervisory SCADA or DCS layer, the IC200SET001 serial communications module or an Ethernet adapter such as the IC200CPUE05 CPU with embedded Ethernet provides reliable upstream connectivity. Ensuring communication redundancy and watchdog timeout configuration on these interfaces prevents the IC200UEO116-A from holding outputs in an unsafe state during a network fault.

Surge and transient protection at the field wiring terminals is equally important. Installing Phoenix Contact PT 2-24DC-ST or equivalent DIN-rail surge protection devices on the 24VDC output field wiring prevents inductive load kickback — from solenoid valves, contactors, and motor starters — from damaging the transistor output circuits of the IC200UEO116-A. Pairing the module with Weidmüller W-Series terminal blocks and proper cable shielding grounding further reduces common-mode noise injection into the output switching circuits.

For installations requiring safety-rated interlock logic, the IC200UEO116-A is often deployed alongside a dedicated safety relay module (such as a Pilz PNOZ or Schneider Preventa series) that monitors the PLC output state and provides a hardware-enforced de-energize-to-trip (DTT) path independent of the PLC program. This dual-channel architecture ensures that even a PLC firmware fault or watchdog reset cannot leave a hazardous output energized.

Critical Industrial Safety Applications

The GE IC200UEO116-A is deployed across a wide range of safety-critical and continuous-process industrial environments:

Petrochemical & Refinery Plants: Controls solenoid valves, motor starters, and alarm annunciators in classified hazardous areas (Zone 2 / Division 2) when installed in purged and pressurized enclosures. Its optical isolation and solid-state design eliminate spark risk associated with mechanical relay outputs, making it suitable for integration into process safety management (PSM) control loops.

Power Generation & Substation Automation: Used in auxiliary control panels for turbine governor systems, cooling water pump sequencing, and breaker control logic. The module’s EMI immunity is essential in high-voltage switchgear environments where radiated interference from bus bars and transformers can corrupt relay-based output signals.

Mining & Mineral Processing: Deployed in conveyor belt control, crusher sequencing, and ventilation fan management systems where continuous 24/7 operation is required. The module’s wide operating temperature range and vibration resistance make it suitable for underground and surface mining control rooms subject to mechanical shock and dust ingress.

Water & Wastewater Treatment: Controls pump stations, chemical dosing systems, and UV disinfection equipment. In these applications, the IC200UEO116-A’s reliable output switching prevents over-dosing or under-dosing events that could compromise water safety compliance.

Metallurgical & Steel Processing: Manages furnace zone control, cooling water valve sequencing, and rolling mill auxiliary drives. High ambient temperatures and strong electromagnetic fields from induction heating equipment make the module’s thermal tolerance and EMC compliance particularly valuable.

Port & Logistics Automation: Integrated into crane PLC systems, automated guided vehicle (AGV) charging stations, and conveyor sortation control panels where high output point density and compact module footprint reduce cabinet space requirements.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the IC200UEO116-A?
The 12-month warranty covers all manufacturing defects, component failures, and functional performance issues under normal operating conditions. If the module fails to perform to GE Fanuc VersaMax Micro specifications within the warranty period, we provide a replacement or full refund. Warranty claims are processed with priority to minimize your production downtime.

Q2: What pre-shipment testing is performed on each IC200UEO116-A unit?
Every IC200UEO116-A unit undergoes a full functional verification test prior to dispatch, including output switching continuity checks on all 16 points, optical isolation integrity verification, backplane connector inspection, and power consumption measurement. Units that do not meet GE Fanuc factory specifications are quarantined and not shipped.

Q3: Is the IC200UEO116-A compatible with existing VersaMax Micro systems and third-party field devices?
Yes. The IC200UEO116-A is fully compatible with all GE Fanuc VersaMax Micro CPU bases and expansion racks. Its 24VDC sourcing transistor outputs are compatible with the vast majority of industrial field devices including solenoid valves, pilot lights, motor starter coils, and digital input modules from other manufacturers operating at 24VDC. Always verify load current requirements against the 0.5A per-point rating.

Q4: Can long-term supply continuity be guaranteed for spare parts and replacement units?
We maintain dedicated stock of the IC200UEO116-A and related VersaMax Micro components to support long-term spare parts programs for industrial facilities with extended maintenance cycles. For critical infrastructure operators requiring guaranteed availability, we offer reserved stock arrangements. Contact our sales team to discuss multi-unit procurement and long-term supply agreements.
