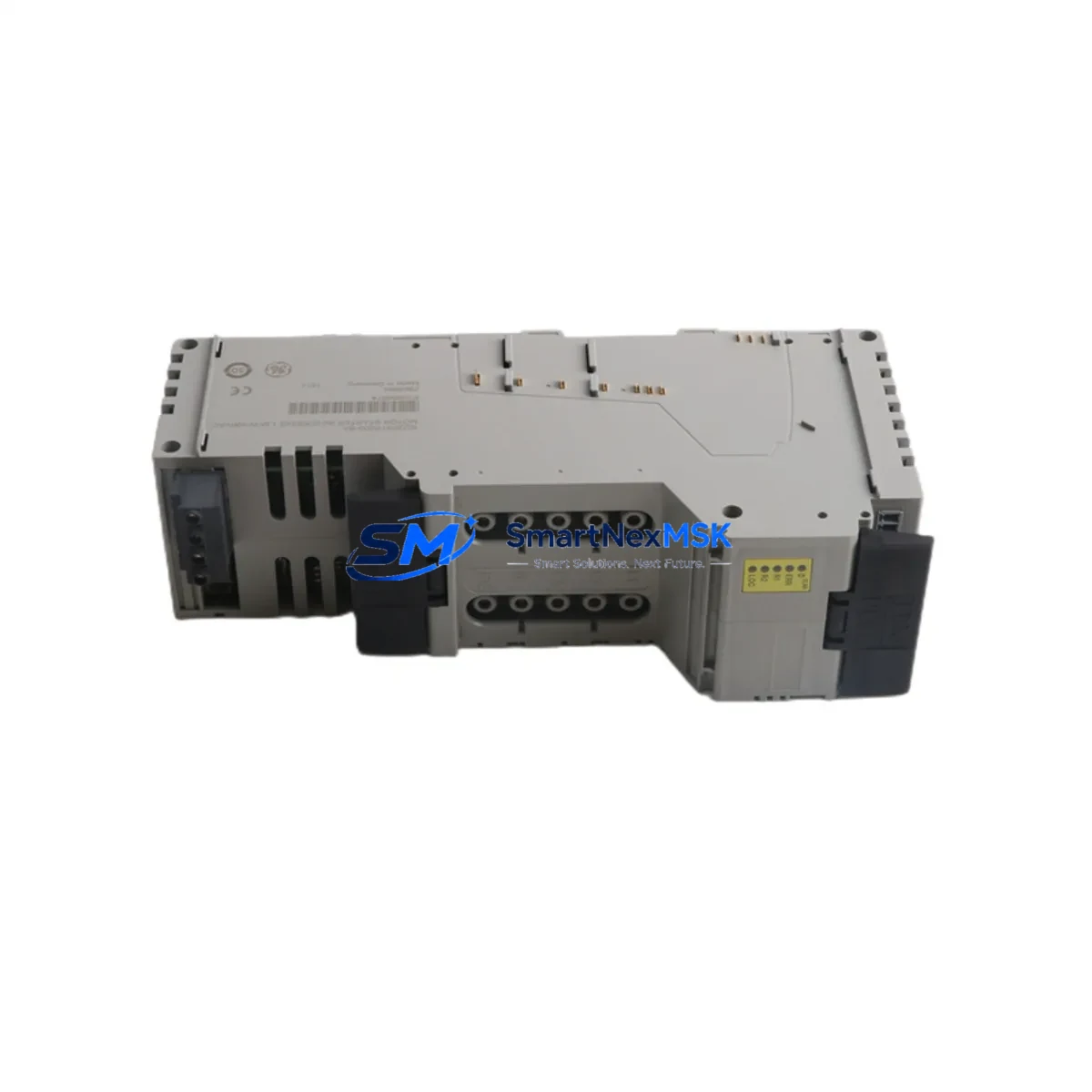

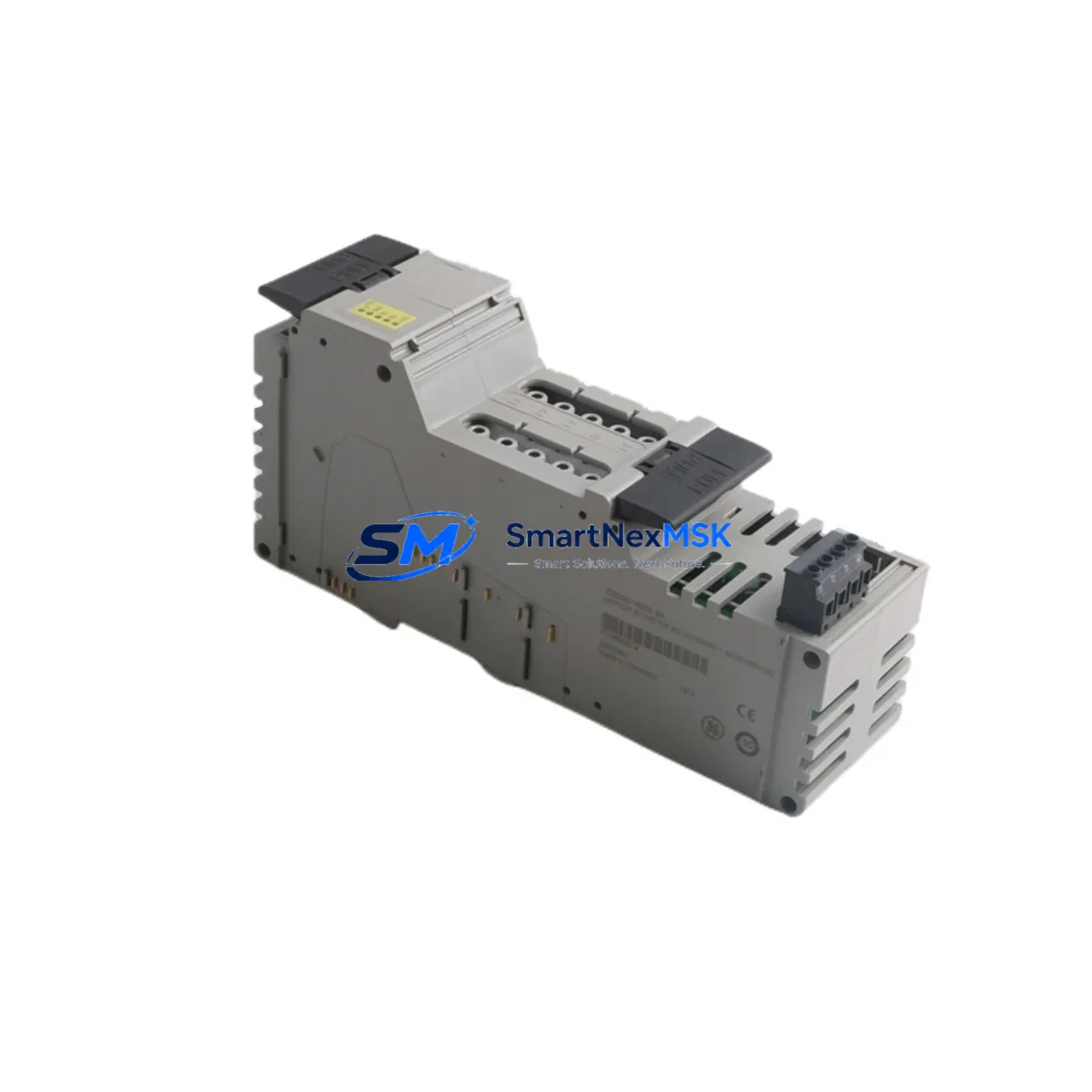

GE IC220STR003 Retrofit-Ready Reversing Motor Starter for VersaMax Micro Control Systems
The GE IC220STR003 is a Reversing Motor Starter module designed for integration within the GE VersaMax Micro programmable controller platform. As legacy automation systems approach end-of-life and OEM support windows close, the IC220STR003 remains a critical retrofit component for engineers tasked with maintaining, upgrading, or migrating motor control circuits in existing control panels. Whether you are replacing a failed unit on a running production line or executing a planned system modernization, this module provides a verified drop-in solution that preserves your existing wiring topology, terminal assignments, and ladder logic without requiring a full control system redesign.
Sourced from authorized distribution channels and subject to incoming inspection prior to dispatch, each IC220STR003 unit shipped by SMARTNEXMSK is tested for functional integrity and accompanied by a 12-month warranty covering manufacturing defects and operational failures under normal service conditions. Global shipping is available with lead times confirmed at order placement.
Upgrade Compatibility Table
| Parameter | IC220STR003 Specification | Retrofit Notes |
|---|---|---|
| Platform Compatibility | GE VersaMax Micro Series | Direct replacement for same-series motor starter slots |
| Module Function | Reversing Motor Starter | Maintains forward/reverse control logic without reprogramming |
| Terminal Wiring | Compatible with existing VersaMax Micro terminal block layout | Verify terminal torque specs before reconnection; no rewiring required for like-for-like swap |
| Backplane Interface | VersaMax Micro local I/O bus | Confirm backplane connector seating; inspect for corrosion on aged installations |
| Module Address | Slot-based addressing per VersaMax Micro configuration | Address is inherited from slot position; no manual address setting required |
| Communication Protocol | Local I/O (no independent fieldbus) | Upstream communication handled by CPU module (e.g., IC200CPUE05 or IC200CPUE05-AA) |
| Program Compatibility | Fully compatible with existing Machine Edition ladder logic | No PLC program modification required for direct replacement |
| HMI Screen Impact | None — tag addresses unchanged | Verify HMI tag bindings post-swap if custom symbol tables were used |
| Installation Format | DIN rail / panel mount per VersaMax Micro mechanical spec | Confirm panel cutout dimensions match; use original mounting hardware |
| Warranty | 12-Month Warranty — covers manufacturing defects and operational failure under normal use conditions | |
Retrofit Planning for Existing Automation Systems
Successful integration of the IC220STR003 into an aging control system begins well before the module arrives on site. Engineers should start by auditing the existing VersaMax Micro rack configuration, confirming the power budget available from the IC200PWR002 or IC200PWR101 power supply module currently installed. Reversing motor starter modules draw local bus current, and in densely populated racks — particularly those also hosting IC220MDL750 discrete output modules or IC220MDL660 analog input modules — available headroom must be verified against the rack’s rated capacity before adding or swapping modules.
Terminal block wiring should be documented photographically before disconnection. The IC220STR003 uses a fixed terminal layout consistent with the VersaMax Micro mechanical standard, but field wiring on older installations may include non-standard conductor gauges or ferrule types that require attention during reassembly. Where the original installation used an IC200CHS022 or IC200CHS014 carrier, confirm that the carrier itself shows no signs of cracking, deformation, or contact wear that could compromise the new module’s backplane connection.
For systems that also incorporate IC220MDL940 relay output modules or IC220MDL330 DC input modules in the same panel, the replacement sequence should be planned to minimize the number of I/O points taken offline simultaneously. Where a GE Proficy Machine Edition programming cable (IC690USB901 or equivalent) is available on site, a full program backup should be performed and verified before any hardware is disturbed. This backup serves as the recovery baseline if unexpected faults arise during commissioning of the replacement module.
In installations where the VersaMax Micro CPU communicates upstream via an IC200BEM003 Ethernet interface module or an IC200PBS001 PROFIBUS slave module, the communication link should be monitored during the swap window. A brief loss of I/O scan is expected during module removal and reinsertion; confirm with the control room that the SCADA or DCS system is configured to hold last-known values during this interval rather than triggering a process fault or emergency shutdown sequence.
Downtime Control During System Migration
Minimizing unplanned downtime during a motor starter replacement requires a structured pre-outage checklist and a clearly defined restoration sequence. Before the maintenance window opens, confirm that the replacement IC220STR003 has been bench-tested or at minimum visually inspected and that all required tools — including a calibrated torque screwdriver, terminal labeling materials, and the Machine Edition programming laptop — are staged at the panel.
The recommended sequence is: (1) place the CPU in Stop mode via the programming software or front-panel keyswitch; (2) de-energize the motor circuit at the upstream contactor or circuit breaker, not at the PLC terminal; (3) photograph and label all field wiring before removal; (4) extract the failed IC220STR003 and insert the replacement, ensuring the backplane connector is fully seated; (5) reconnect field wiring in reverse order of removal; (6) perform a continuity check on all motor phase and control terminals; (7) return the CPU to Run mode and observe the first forward and reverse command cycles under no-load conditions before restoring full production load.
Where the system includes an operator panel running a GE Proficy HMI/SCADA iFIX or Cimplicity project, the HMI should display the motor starter status tag returning to its normal idle state within one scan cycle of the CPU entering Run mode. If the tag remains in fault state, verify that the module slot address in the hardware configuration matches the physical slot occupied by the replacement unit. No program download is required for a like-for-like swap, but a forced I/O scan or hardware re-initialization command from Machine Edition may be used to clear residual fault flags without interrupting other running I/O points.
Retrofit Support FAQ
Q1: Is the IC220STR003 a direct drop-in replacement for a failed unit in the same slot?
Yes. The IC220STR003 is slot-compatible within the VersaMax Micro platform. Provided the carrier and backplane are undamaged, the replacement module will be recognized by the CPU at power-up without any hardware configuration change or program download. Terminal wiring reconnects to the same positions as the original unit.
Q2: What commissioning steps are required after installation?
After physical installation and wiring reconnection, place the CPU in Run mode and issue a forward command followed by a reverse command to verify both directions of motor rotation. Confirm that the motor starter status bits are updating correctly in the PLC data table. Check for any I/O fault LEDs on the module face. If the system uses a GE Proficy HMI, verify that the associated motor control faceplate reflects the correct run/stop/fault states before returning the line to production.
Q3: Can this module be used in a system that is migrating from VersaMax Micro to a newer GE PACSystems RX3i platform?
The IC220STR003 is a VersaMax Micro-native module and is not directly compatible with the PACSystems RX3i backplane. For migration projects, the motor control function would need to be re-implemented using an equivalent RX3i-compatible output module paired with an external motor starter or drive. SMARTNEXMSK can supply both the IC220STR003 for interim operation and advise on RX3i I/O equivalents for the final migration phase.
Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact SMARTNEXMSK with the order reference number and a description of the fault symptom. A replacement unit or repair will be arranged based on fault diagnosis. All units undergo outgoing functional testing prior to shipment to minimize field failure rates.
