GE IC660BBA020 Maintenance-Ready Spare for Genius Automation

GE IC660BBA020 Maintenance-Ready Spare for Genius Automation

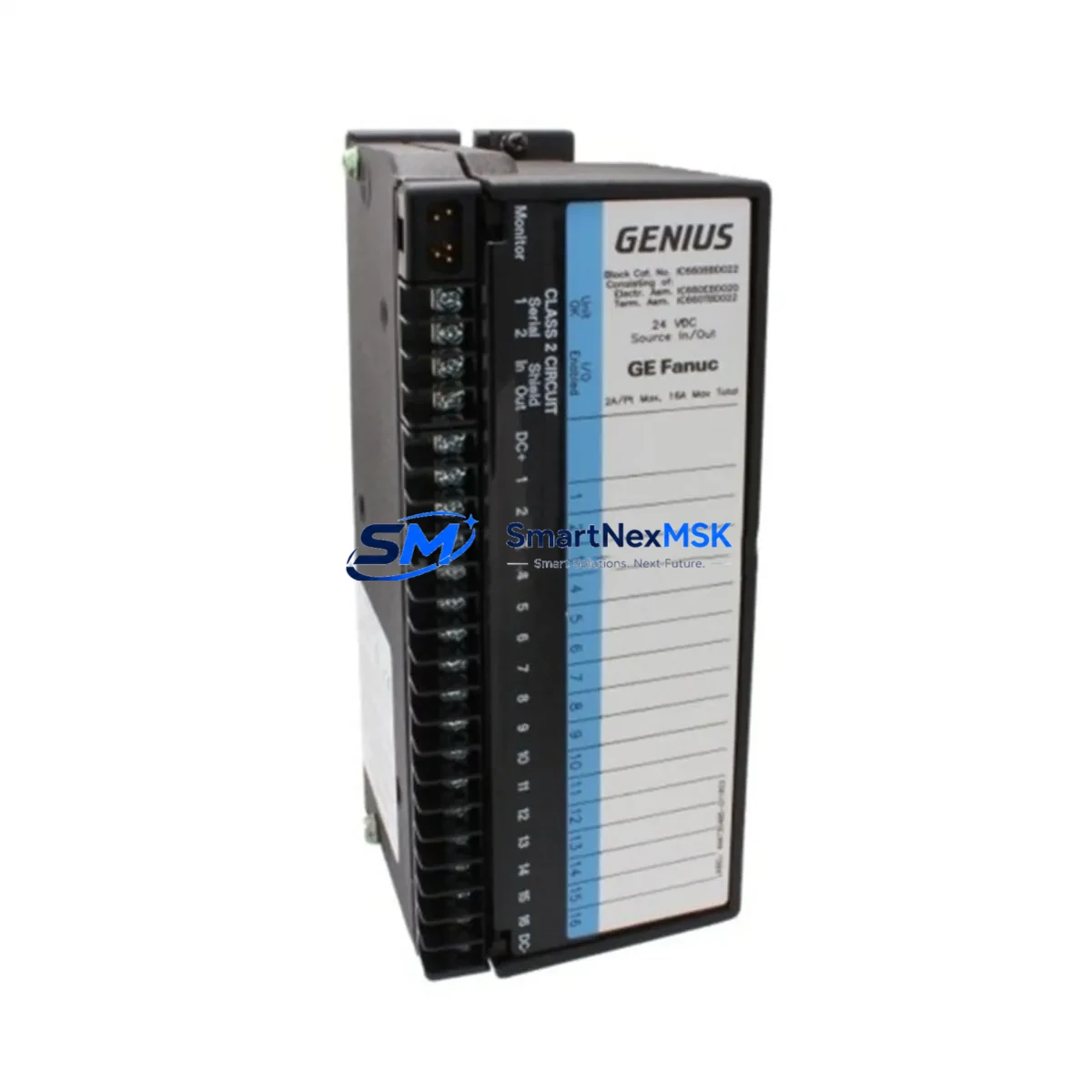

The GE IC660BBA020 is a Genius Block Discrete I/O Module rated at 24VDC, designed for use in GE Series 90-30 and Series 90-70 distributed control architectures. As a field-proven component in continuous process and discrete manufacturing environments, this module serves as a critical node on the Genius Bus — handling real-time I/O communication between field devices and the PLC host controller. When this module fails or degrades, the result is immediate: loss of I/O visibility, unplanned downtime, and potential safety interlock compromise. Stocking a verified replacement is not optional — it is a core element of any responsible maintenance strategy.

At SMARTNEXMSK, every IC660BBA020 unit is sourced as an original GE spare, subjected to pre-shipment functional testing, and backed by a 12-month warranty. We support maintenance engineers and procurement teams who need fast, reliable access to legacy GE Genius I/O components — including discontinued and long-lead-time parts that are no longer available through standard distribution channels.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a GE IC660BBA020 Genius Block I/O module is flagged for replacement — whether during a planned outage, a fault-code investigation, or an emergency shutdown — experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A thorough site inspection should accompany every I/O block swap.

Begin with the Genius Bus Controller (IC660CBB900 or IC660CBB902): verify that the bus controller is reporting all nodes correctly and that the IC660BBA020’s bus address is not duplicated on the segment. A duplicate address will cause the replacement module to fail immediately upon power-up. Next, inspect the Genius Bus cable and termination resistors — degraded shielding or missing 75-ohm termination at the bus endpoints is a common root cause of intermittent I/O faults that are incorrectly attributed to the block module itself.

At the power distribution level, confirm that the 24VDC field power supply — typically a dedicated rail separate from the logic supply — is within tolerance (21.6–26.4VDC). Voltage sag under load is a frequent cause of output dropout on Genius discrete blocks. If the cabinet houses a GE Series 90-30 power supply module (IC693PWR321 or IC693PWR330), verify its output voltage and check for capacitor aging if the unit has been in service for more than five years.

For the host PLC side, review the IC693CPU374 or IC693CPU364 CPU module fault table for any persistent Genius Bus communication errors logged prior to the I/O block failure. These logs often reveal whether the fault originated at the block, the bus, or the host scanner. If the system uses a Genius Bus Scanner module (IC693BEM331), confirm that the scanner’s configuration table matches the physical bus layout after the replacement module is installed.

Field wiring connected to the IC660BBA020 should be inspected at the terminal block level: check for loose connections, corroded terminals, and correct wire gauge. In high-vibration environments, terminal screws can back off over time, causing intermittent input signals that mimic module failure. If the circuit includes signal isolators or loop-powered transmitters, verify that the isolator output is within the module’s input voltage threshold.

For output circuits driving contactors, solenoids, or motor starters, inspect the associated relay or contactor coils for signs of coil degradation, and verify that any surge suppression diodes or RC snubbers across inductive loads are intact. Failed suppression components cause voltage spikes that can damage output transistors in the I/O block over time. Finally, if the system includes an HMI panel (such as a GE QuickPanel or third-party operator terminal) communicating over the Genius network, confirm that the HMI’s I/O mapping is updated to reflect the replacement module’s address and point configuration before returning the system to service.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Document the existing IC660BBA020’s bus address (rotary switch setting), field wiring terminal assignments, and any module-specific configuration stored in the PLC program. Cross-reference with the as-built wiring diagram before disconnecting any field wiring.

Step 2 — Safe isolation: De-energize the field power rail feeding the module. Do not rely solely on the PLC program to disable outputs — physically isolate the 24VDC field supply. Verify zero voltage at the module terminals with a calibrated meter before proceeding.

Step 3 — Module removal and inspection: Remove the IC660BBA020 from its mounting position. Inspect the bus connector pins and field terminal block for physical damage. If the bus connector shows arc damage or pin deformation, inspect the adjacent bus cable connectors as well.

Step 4 — Replacement module preparation: Set the bus address rotary switch on the replacement IC660BBA020 to match the original module’s address. Confirm the address is unique on the bus segment. If the replacement unit is a refurbished spare, verify that no residual configuration from a previous installation is retained.

Step 5 — Installation and wiring: Mount the replacement module, reconnect field wiring per the documented terminal assignments, and restore the field power supply. Observe the module’s status LEDs during power-up: the Bus Active LED should illuminate within 5–10 seconds as the Genius Bus Controller re-establishes communication with the node.

Step 6 — Functional verification: From the PLC programming terminal or HMI, force each input and output point through its full range and confirm correct response. Clear any latched fault codes in the CPU fault table. Log the replacement in the site maintenance record with the date, technician name, and replacement module serial number.

This workflow minimizes downtime, ensures system compatibility, and provides a documented audit trail — critical for ISO-certified facilities and sites operating under functional safety requirements.

Spare Parts Support FAQ

Q1: Is the IC660BBA020 still in production, and how long can I expect supply availability?
The IC660BBA020 has been discontinued by GE as part of the broader Genius I/O product line sunset. However, SMARTNEXMSK maintains stock of original and refurbished-to-spec units sourced from verified industrial channels. We support long-term supply agreements for facilities committed to extending the operational life of their Series 90-30 and Series 90-70 systems — contact our team to discuss a multi-year spare parts framework.

Q2: What pre-shipment testing is performed on each IC660BBA020 unit?
Every unit undergoes functional I/O point testing, bus communication verification, and visual inspection for physical damage before shipment. Units that do not pass all test criteria are not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: Can the IC660BBA020 replace older Genius Block variants with different I/O counts or voltage ratings?
Direct substitution requires matching the bus address, I/O point count, voltage rating, and output type (relay vs. transistor) of the original module. The IC660BBA020 is a 24VDC, 32-point discrete block. Substituting a different voltage rating or I/O count requires a PLC program configuration change and field wiring modification — consult your system integrator before proceeding with a cross-variant replacement.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers functional failure of the module under normal operating conditions — correct voltage, correct installation, and absence of physical damage caused by misuse or electrical overstress. To initiate a warranty claim, contact [email protected] with the order number, a description of the failure mode, and any available fault logs. Replacement units are dispatched upon claim verification, with return shipping of the failed unit required for refurbished-stock claims.
