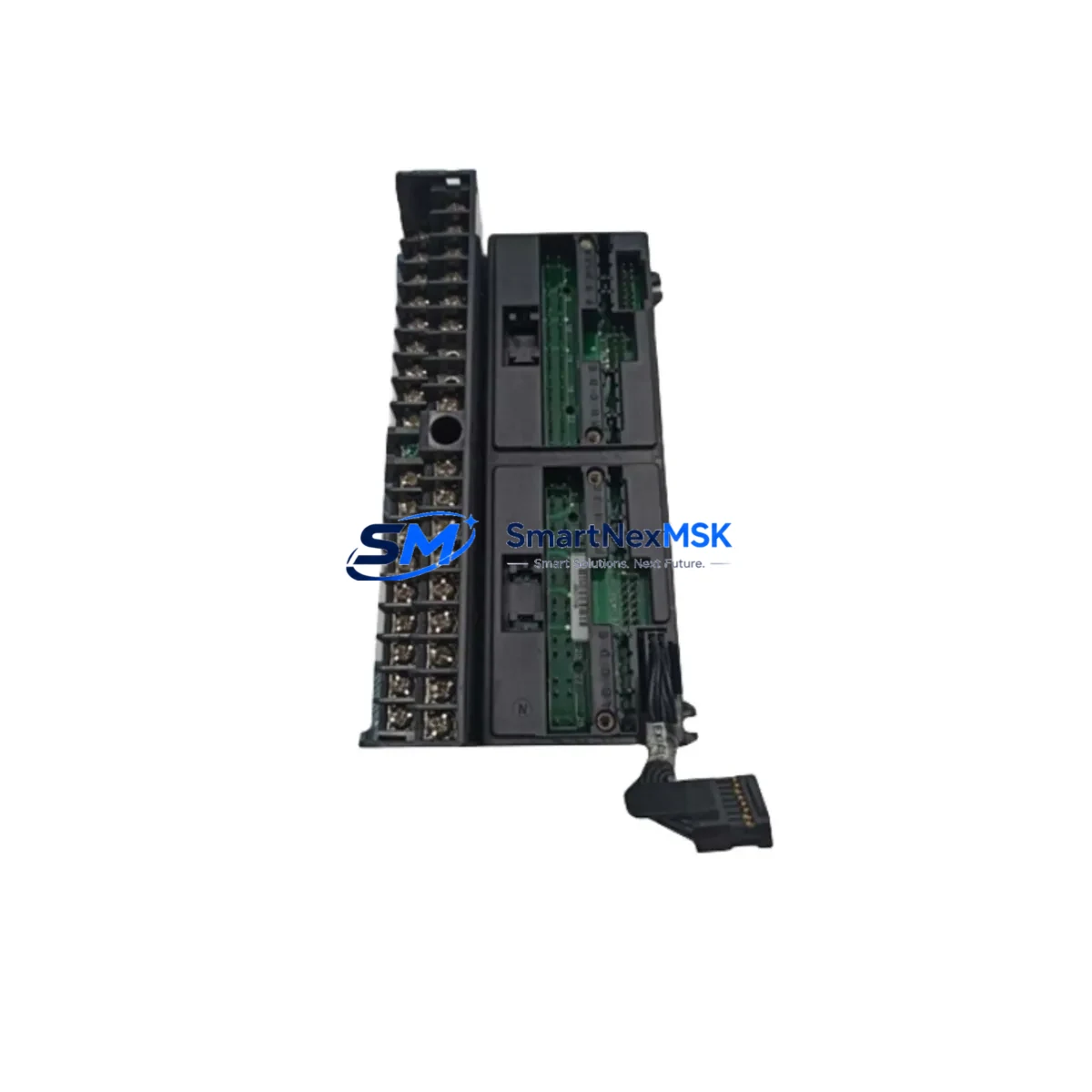

The GE IC670CHS001E is an original terminal block assembly designed for the GE Genius I/O distributed I/O system — one of the most widely deployed field-bus architectures in process and discrete manufacturing environments. As a maintenance-ready spare, the IC670CHS001E provides a direct drop-in replacement for aging or failed terminal blocks in Genius Bus Controller networks, eliminating the need for field wiring reconfiguration and dramatically reducing unplanned downtime. Whether you are managing a scheduled turnaround, responding to an emergency fault, or building out a strategic spare parts inventory, this component delivers the original GE specification, tested and ready for immediate installation.

For maintenance engineers and procurement teams supporting legacy GE Genius I/O architectures, sourcing a verified original IC670CHS001E is critical. Counterfeit or incompatible substitutes risk signal integrity failures, ground faults, and bus communication errors that can cascade across the entire Genius Bus segment. Every IC670CHS001E unit shipped by SMARTNEXMSK is inspected, function-tested, and backed by a 12-month warranty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Genius I/O terminal block such as the IC670CHS001E is flagged for replacement during a control cabinet inspection or fault diagnosis, experienced maintenance engineers know that the terminal block itself is rarely the only component that warrants attention. A thorough preventive maintenance pass on the same cabinet should include verification of the IC670GBI001 Genius Bus Interface Unit, which manages all bus communications for the I/O block cluster. A degraded BIU can cause intermittent data errors that mimic terminal block faults, so confirming BIU firmware revision and bus termination resistance is essential before closing out the work order.

The IC670MDL640 discrete output module and IC670MDL740 analog input module mounted in the same Genius I/O block assembly should be inspected for loose connector seating and contamination on the backplane contacts. Field power distribution to the I/O block is typically routed through a 24 VDC power supply module — verify output voltage under load and check for capacitor bulge or thermal discoloration on the supply board. Inline fuse holders and 2A fast-blow fuses protecting individual I/O circuits should be tested for continuity and replaced on a time-based schedule regardless of apparent condition.

For plants running GE Series 90-30 or Series 90-70 PLCs alongside Genius I/O, the IC693CMM311 communications coprocessor or IC697BEM731 Genius Bus Controller in the main rack should be included in the inspection scope. Bus cable shield continuity and termination resistor values at both ends of the Genius Bus segment are frequently overlooked during reactive maintenance but are a leading cause of intermittent I/O faults. Signal isolators on analog loops feeding the terminal block should be checked for drift, and terminal strip end barriers and labeling should be refreshed to support future maintenance accuracy.

Where HMI panels such as the QuickPanel+ or Cimplicity-connected workstations display persistent I/O fault alarms tied to this block address, clearing the fault log and performing a forced I/O test after terminal block replacement confirms full restoration before returning the system to automatic control. Documenting the as-found and as-left condition of all inspected components in the CMMS supports lifecycle tracking and informs future spare parts stocking decisions.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a Permit to Work and isolate the affected Genius I/O block from field power. Do not de-energize the entire Genius Bus segment unless required — the IC670CHS001E terminal block can be replaced with the bus active on most system configurations, subject to your site safety procedures.

Step 2 — Wire Harness Retention: The IC670CHS001E is designed so that the field wiring harness can be disconnected as a single assembly and transferred directly to the replacement terminal block. Label all wires before disconnection if the harness connector is not used. Photograph the as-found wiring arrangement.

Step 3 — Module Swap: Remove the faulty terminal block by releasing the DIN rail latch or panel mounting screws. Seat the replacement IC670CHS001E, reconnect the field wiring harness, and verify terminal torque to the manufacturer specification (typically 0.5–0.6 Nm for signal terminals).

Step 4 — Bus Verification: Power up the I/O block and confirm that the Genius Bus Controller registers the block at the correct bus address. Check the HMI or PLC diagnostic screen for I/O fault status. Perform a forced I/O test on representative discrete and analog channels to confirm signal integrity.

Step 5 — Documentation: Record the replaced part number, revision, serial number, date, and technician ID in the CMMS. Update the spare parts inventory to trigger a replenishment order for the consumed IC670CHS001E unit, maintaining minimum stock levels for this critical component.

This workflow is applicable to both planned maintenance windows and emergency breakdown recovery scenarios. SMARTNEXMSK maintains ready stock of IC670CHS001E and related Genius I/O components to support same-day or next-day dispatch for urgent plant requirements.

Spare Parts Support FAQ

Q1: Is the IC670CHS001E compatible with all revisions of the GE Genius I/O block assembly?
The IC670CHS001E revision E is backward compatible with earlier revisions (A through D) of the same terminal block assembly. It is designed for use with all standard GE Genius I/O discrete and analog block types that accept the CHS001 form-factor terminal block. If your application uses a non-standard or high-density block variant, please contact our technical team with your full system configuration for compatibility confirmation before ordering.

Q2: How is the IC670CHS001E tested before shipment?
Every unit undergoes a pre-shipment inspection covering physical condition (terminal integrity, connector seating, housing cracks), continuity testing across all terminal positions, and bus connector pin verification. Units that do not pass inspection are quarantined and not shipped. A test report is available upon request for critical plant applications.

Q3: What is the recommended spare parts stocking strategy for Genius I/O terminal blocks?
For plants with 10 or more Genius I/O blocks in service, industry best practice recommends holding a minimum of 2–3 IC670CHS001E units on-site as cold spares. For critical process lines where a single I/O fault can trigger a plant trip, a hot spare (pre-configured and stored in the control room) is advisable. SMARTNEXMSK offers volume pricing for stocking orders and can support annual blanket purchase agreements to lock in pricing and availability.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers defects in materials and workmanship under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact [email protected] with the order number, part number, failure description, and photographs of the failed unit. Replacement units are dispatched within 3 business days of claim approval.
