GE IC693ACC307A Maintenance-Ready Spare for 90-30 Automation

GE IC693ACC307A Maintenance-Ready Spare for 90-30 Automation

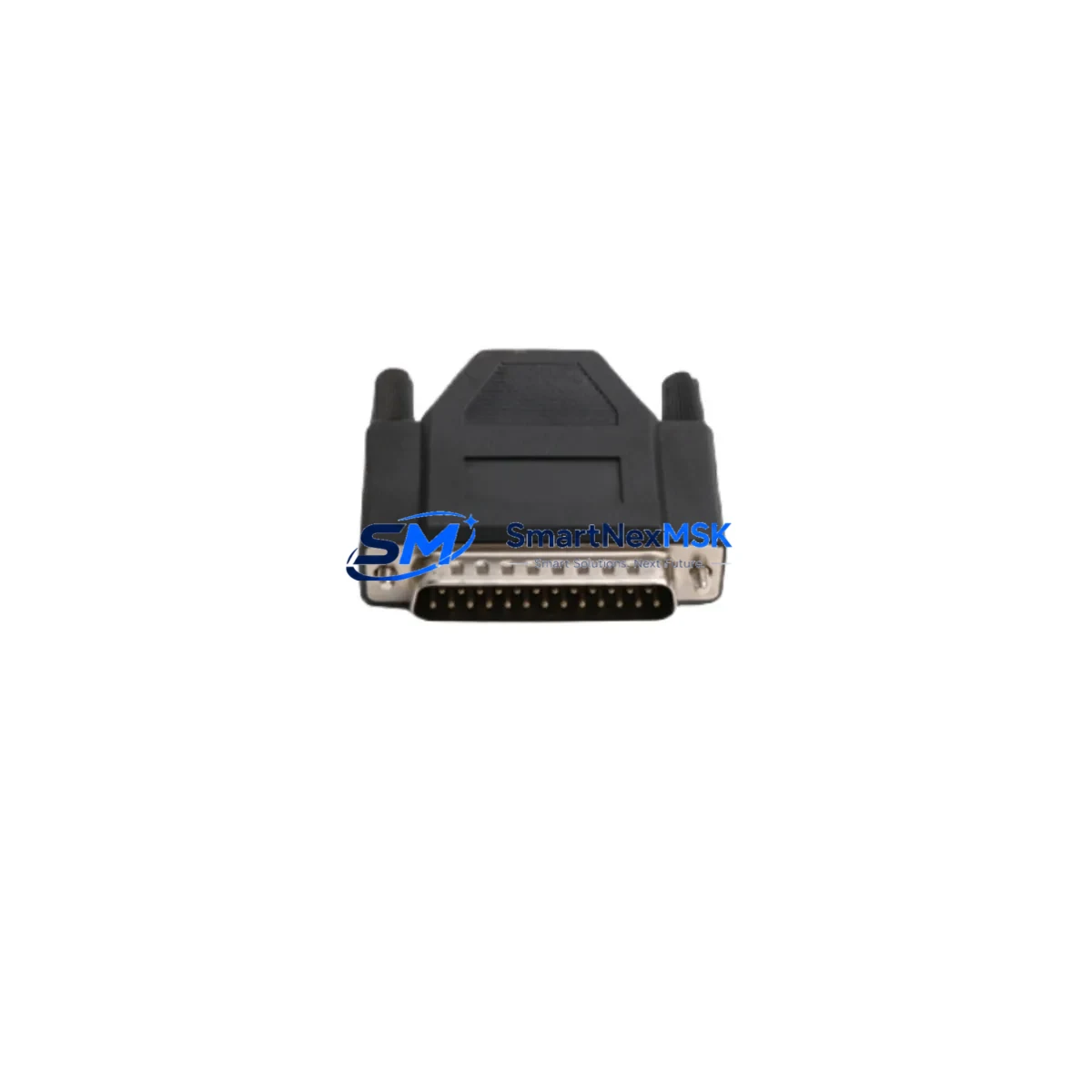

Unplanned downtime in a Series 90-30 control system rarely traces back to a single failed module — it often begins with a degraded bus connection, a loose termination, or a missing spare on the shelf. The GE IC693ACC307A bus terminal plug is a precision-engineered backplane termination accessory designed to maintain signal integrity across the Series 90-30 rack. Sourced as an original GE Fanuc component, this spare is tested before dispatch, packaged for long-term storage, and backed by a 12-month warranty — giving maintenance engineers and procurement teams the confidence to stock it as a first-line replacement item.

The IC693ACC307A terminates the I/O bus at the end of a Series 90-30 rack assembly, preventing signal reflection and ensuring stable communication between the CPU module and all installed I/O modules. Without a properly seated bus terminator, intermittent communication faults, spurious I/O errors, and diagnostic alarms can appear — symptoms that are frequently misdiagnosed as CPU or module failures, leading to unnecessary replacements and extended downtime. Keeping a verified IC693ACC307A spare on hand eliminates this diagnostic ambiguity and enables a sub-15-minute corrective action during a live fault event.

For facilities operating aging Series 90-30 systems — particularly those running IC693CPU364, IC693CPU374, or IC693CPU323 processors — the bus terminator is a low-cost, high-impact spare that is frequently overlooked in standard spare parts kits. Maintenance planners should treat it with the same priority as power supply modules such as the IC693PWR321 or IC693PWR330, which are equally critical to rack stability and are recommended for concurrent inspection during any bus-related fault investigation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A disciplined spare parts strategy for Series 90-30 systems extends well beyond the bus terminator itself. When a maintenance engineer investigates a bus fault or schedules a planned rack overhaul, the IC693ACC307A replacement should be performed alongside a structured inspection of all components sharing the same electrical environment.

Begin with the IC693PWR321 or IC693PWR330 power supply module — voltage sag or ripple from a degraded PSU is a leading cause of intermittent bus errors that mimic terminator faults. Verify output voltage under load before condemning the bus plug. Next, inspect all IC693MDL series digital I/O modules seated in the rack: loose module latches or oxidized backplane contacts can create the same symptom profile as a failed terminator. If the system includes analog I/O, the IC693ALG series modules should be checked for signal drift, which can indicate backplane noise — a condition the bus terminator directly influences.

For systems with remote I/O drops, inspect the IC693BEM331 or IC693CMM321 communications modules. A degraded bus termination at the local rack can introduce noise that propagates through the communications link, causing intermittent faults at remote I/O racks. Simultaneously, review the IC693CHS series rack chassis for physical damage, bent backplane pins, or corrosion — conditions that no terminator replacement can resolve without chassis-level intervention.

Procurement engineers building a comprehensive Series 90-30 spare parts kit should also include the IC693ACC300 hand-held programmer or a compatible programming cable, enabling rapid online diagnostics without requiring a dedicated engineering workstation. For facilities with HMI integration, ensure that the QuickPanel or third-party HMI communication parameters remain validated after any rack maintenance, as bus reseating can occasionally trigger communication timeouts that require a soft reset on the HMI side.

Finally, review terminal block wiring and field-side fusing on all I/O modules during the same maintenance window. Replacing the IC693ACC307A while leaving degraded wiring terminations or blown field fuses unaddressed will not restore full system reliability. A complete corrective maintenance event should treat the bus terminator replacement as the starting point, not the endpoint, of the inspection workflow.

Site Replacement Workflow

Step 1 — Preparation: Before beginning, confirm the replacement IC693ACC307A is the correct revision for your rack configuration. Cross-reference the rack model (IC693CHS391 through IC693CHS398) against GE Fanuc documentation to verify compatibility. Place the PLC system in a safe state per your site’s lockout/tagout procedure.

Step 2 — Removal: With rack power de-energized, locate the bus terminal plug at the rightmost slot of the Series 90-30 rack. The IC693ACC307A is a plug-in component — grip firmly and pull straight out from the backplane connector. Inspect the vacated connector for bent pins or debris before installing the replacement.

Step 3 — Installation: Align the IC693ACC307A with the backplane bus connector and press firmly until fully seated. No fasteners are required. Verify the plug is flush with the rack face and that no adjacent modules have been disturbed during the process.

Step 4 — Verification: Re-energize the rack and observe the CPU module status LEDs. A healthy Series 90-30 system should show a solid RUN LED with no I/O FAULT or BUS FAULT indicators. Use the programming software (Proficy Machine Edition or equivalent) to perform an online rack scan and confirm all modules are recognized and communicating correctly.

Step 5 — Documentation: Record the replacement in your maintenance log, including the date, technician, rack ID, and the replaced component’s condition. Update your spare parts inventory to trigger reorder of a replacement IC693ACC307A — maintaining at least one unit per rack in your spare parts store is the recommended minimum stock level for continuous operation facilities.

This workflow applies equally to emergency corrective replacements and scheduled preventive maintenance events. The IC693ACC307A’s tool-free installation design means a trained technician can complete the replacement in under 10 minutes, making it one of the fastest corrective actions available for a Series 90-30 bus fault scenario.

Spare Parts Support FAQ

Q1: Is the IC693ACC307A compatible with all Series 90-30 rack sizes?
Yes. The IC693ACC307A is designed to terminate the I/O bus on all standard Series 90-30 rack configurations, including 5-slot (IC693CHS391) and 10-slot (IC693CHS392, IC693CHS397) chassis. It is not interchangeable with Series 90-70 or VersaMax rack accessories — always verify the rack model before ordering.

Q2: What is included in the 12-month warranty, and how is a claim initiated?
The 12-month warranty covers manufacturing defects and functional failure under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact our sales team with the order reference, installation date, and a description of the observed fault. Replacement units are dispatched after fault verification.

Q3: How should the IC693ACC307A be stored as a long-term spare?
Store in the original anti-static packaging in a dry environment between -40°C and 85°C, away from direct sunlight and corrosive atmospheres. For facilities maintaining a multi-year spare parts inventory, inspect stored units annually for connector oxidation. Units stored correctly in original packaging retain full functionality for 5+ years under standard warehouse conditions.

Q4: Can this part be used to replace an older IC693ACC307 (without the ‘A’ suffix)?
In most cases, yes — the ‘A’ revision designation typically reflects a minor manufacturing or materials update that maintains full backward compatibility with the same rack and CPU configurations. However, always cross-reference with your GE Fanuc system documentation or contact our technical team to confirm compatibility for your specific rack revision before installation in a critical production environment.
