GE IC694MDL645 Safety-Enhanced DC Input Module for Harsh Sites

GE IC694MDL645 Safety-Enhanced DC Input Module for Harsh Industrial Sites

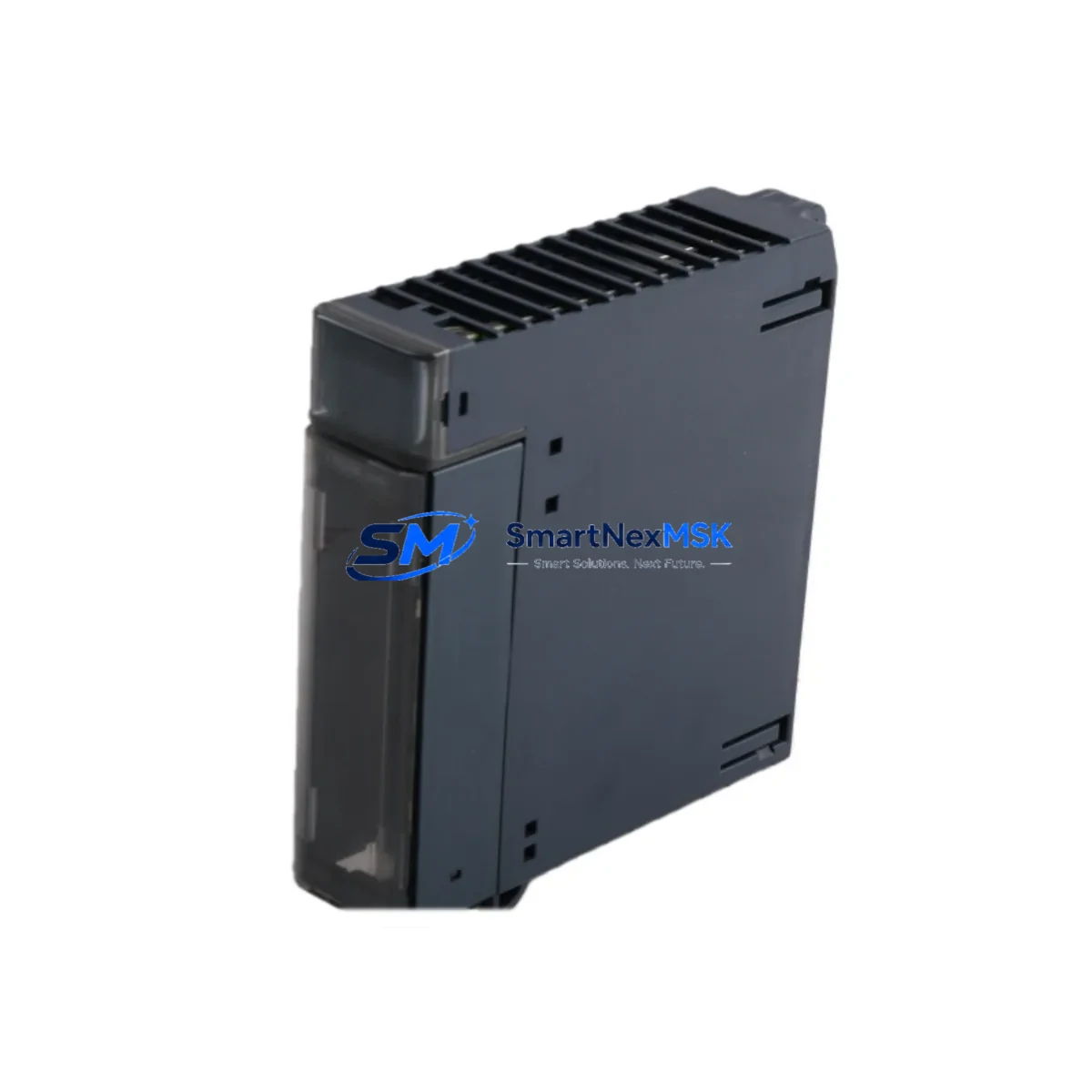

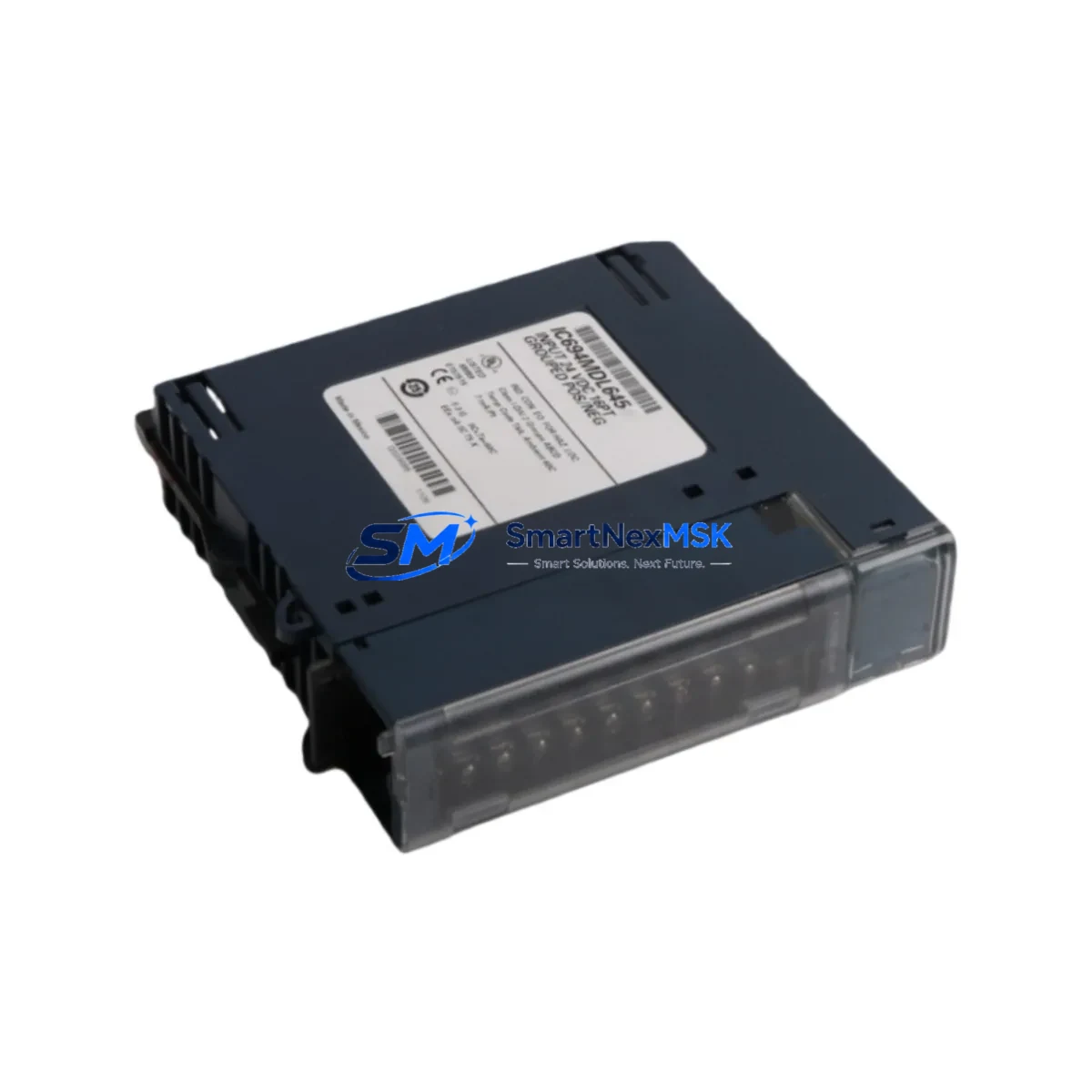

The GE Fanuc IC694MDL645 is a 16-point, 12/24VDC discrete input module engineered for the GE Series 90-30 PLC platform. Designed to operate reliably in high-noise, high-vibration, and thermally demanding industrial environments, this module is a cornerstone component in safety-critical control architectures across petrochemical, power generation, mining, water treatment, metallurgical, and continuous manufacturing facilities. Every unit supplied by SMARTNEXMSK is sourced from verified channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty.

Safety Reliability Table

Control Cabinet Protection Strategy

In demanding industrial control cabinets, the IC694MDL645 does not operate in isolation — it functions as part of a layered protection architecture. When paired with the GE IC694MDL654 (16-point DC output module), the input-output pair forms a tightly coupled discrete I/O layer capable of handling high-cycle interlock and safety relay feedback loops without signal degradation. The CPU module — typically a GE IC694CPU364 or IC694CPU374 — processes the field signals captured by the IC694MDL645 and executes the safety logic within deterministic scan cycles, ensuring that emergency stop (E-stop) and interlock conditions are acted upon within milliseconds.

Power integrity is equally critical. The GE IC694PWR331 power supply module provides stable 5 VDC backplane power, and when combined with an upstream 24 VDC DIN-rail power supply (such as those from the PULS or Phoenix Contact range), it ensures that input signal levels remain within the ON/OFF threshold bands of the IC694MDL645 even during grid fluctuations or motor-start inrush events. For applications where power redundancy is mandatory, a secondary IC694PWR330 can be configured in parallel to eliminate single-point power failure risk.

In high-EMI environments — such as those containing variable frequency drives (VFDs), large contactors, or arc furnaces — the optical isolation built into the IC694MDL645 is the first line of defense against signal corruption. Supplementing this with proper cable segregation, shielded field wiring, and ferrite cores on signal cables further reduces the risk of spurious input triggering. For communication-intensive cabinets, the GE IC694CMM321 (Communications Control Module) or IC694BEM331 (Bus Expansion Module) can be integrated to extend the rack architecture without compromising the signal integrity of the discrete input layer. Where Profibus or Ethernet/IP connectivity is required, the GE IC695PBM300 Profibus Master module complements the IC694MDL645 in hybrid control architectures, enabling seamless integration between the discrete safety layer and higher-level SCADA or DCS systems.

For analog measurement alongside discrete safety inputs, the GE IC694ALG220 (4-channel analog input module) is frequently deployed in the same chassis, allowing temperature, pressure, or flow signals to be processed in parallel with the discrete interlock signals managed by the IC694MDL645. This combination is particularly effective in boiler control, compressor protection, and pump station safety systems.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hydrocarbon processing facilities, the IC694MDL645 is deployed in Safety Instrumented Systems (SIS) and Emergency Shutdown (ESD) panels to monitor field device status — including valve position feedback, pressure switch contacts, and flame detector outputs. Its optical isolation and surge suppression prevent false trips caused by ground loops or lightning-induced transients on long field cable runs, which are common in large refinery complexes.

Power Generation & Substation Control: Turbine control panels and substation automation systems rely on discrete input modules to monitor breaker status, relay feedback, and protection relay trip signals. The IC694MDL645’s fast response time and noise immunity make it suitable for high-voltage switchgear environments where electromagnetic interference from bus bars and transformers is a constant challenge.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The IC694MDL645’s ruggedized design and IEC 68-2-6 vibration compliance allow it to maintain reliable input scanning in conveyor control, crusher interlock, and ventilation safety systems — environments where module failure can result in production shutdowns or personnel safety incidents.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the IC694MDL645 to monitor pump run/fail status, level switch contacts, and UV disinfection system interlocks. The module’s ability to operate reliably in high-humidity environments (up to 95% RH non-condensing) makes it well-suited for wet process areas where condensation is a persistent concern.

Metallurgy & Steel Production: In electric arc furnace (EAF) and continuous casting environments, the IC694MDL645 handles discrete input signals from temperature limit switches, cooling water flow switches, and hydraulic pressure contacts. The module’s EMI immunity is critical in these settings, where high-current switching events generate intense electromagnetic fields that can corrupt unprotected I/O signals.

Port & Material Handling Automation: Container terminal cranes, ship loaders, and conveyor systems require reliable discrete I/O for anti-collision interlocks, overload protection, and position limit monitoring. The IC694MDL645 provides the signal integrity and diagnostic transparency (via per-point LED indicators) needed to support rapid fault identification during maintenance windows, minimizing crane downtime in 24/7 port operations.

Safety and Quality FAQ

Q1: What warranty coverage does SMARTNEXMSK provide for the IC694MDL645?
Every IC694MDL645 unit is covered by a 12-month warranty from the date of shipment. If the module fails under normal operating conditions within the warranty period, SMARTNEXMSK will provide a replacement or full refund. Warranty claims are processed within 3 business days of receiving the returned unit.

Q2: How is each IC694MDL645 tested before shipment?
Each module undergoes a full functional verification test on a live GE Series 90-30 backplane prior to shipment. All 16 input points are exercised, optical isolation integrity is confirmed, and LED indicator operation is verified. A test report is available upon request for quality-critical procurement processes.

Q3: Is the IC694MDL645 compatible with both IC693 and IC694 Series 90-30 chassis?
Yes. The IC694MDL645 is backward-compatible with IC693-series chassis and fully compatible with IC694-series racks. It can be installed in any slot of a 5-slot, 10-slot, or expansion chassis without requiring firmware changes, provided the CPU firmware supports the module type (CPU firmware r9.0 or later recommended).

Q4: Can SMARTNEXMSK support long-term or repeat supply of the IC694MDL645?
Yes. SMARTNEXMSK maintains standing inventory of the IC694MDL645 and related Series 90-30 components to support MRO (Maintenance, Repair & Operations) procurement programs. For facilities requiring scheduled spare parts replenishment or emergency replacement stock, our team can establish a supply agreement with priority allocation and guaranteed lead times. Contact us at [email protected] to discuss your requirements.
