GE IC695ALG508 Safety-Enhanced RTD Input for Harsh Sites

GE IC695ALG508 Safety-Enhanced RTD Input for Harsh Industrial Sites

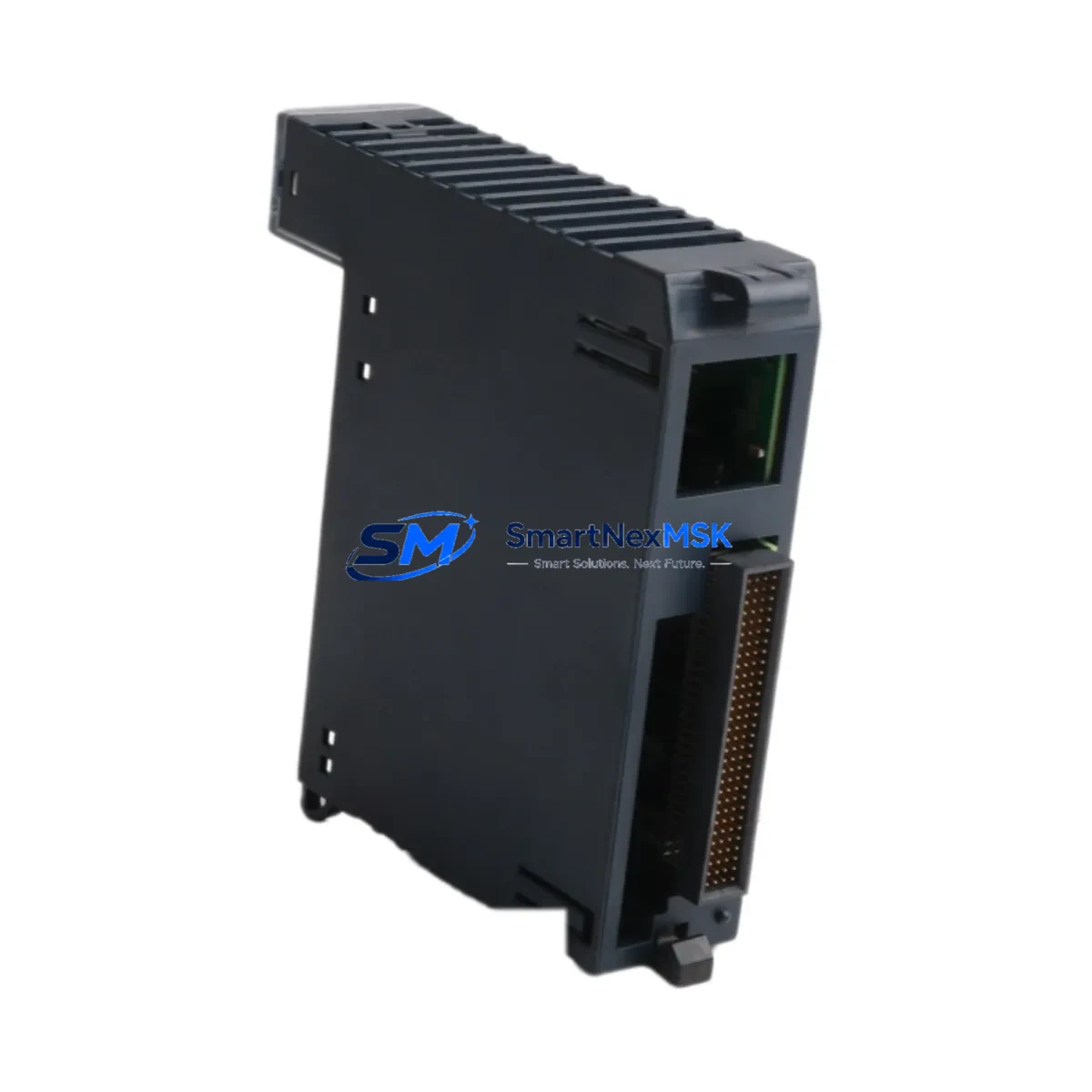

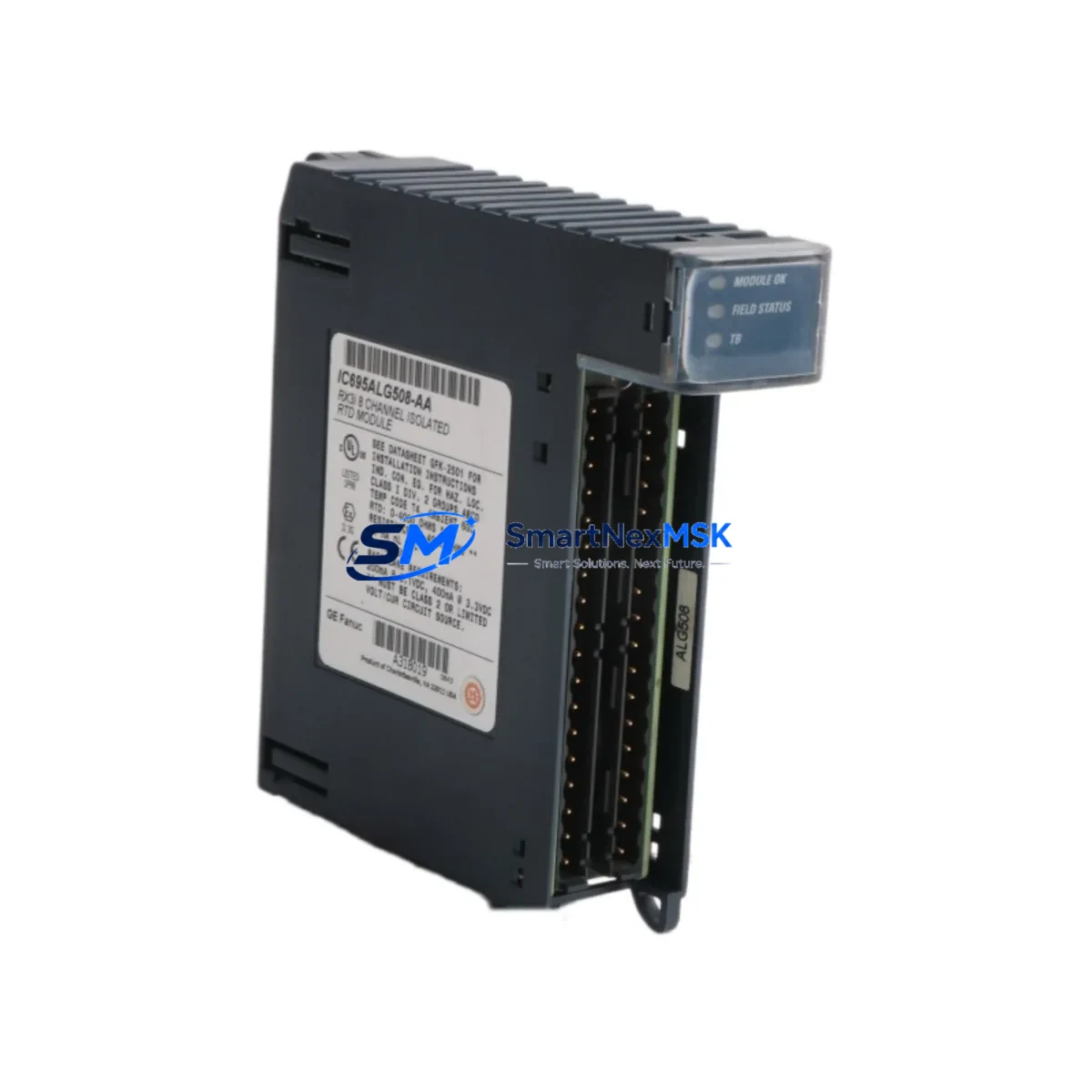

The GE IC695ALG508 is an 8-channel isolated RTD analog input module engineered for the GE PACSystems RX3i platform, purpose-built to deliver continuous, high-integrity temperature measurement in the most demanding industrial environments. Whether deployed in petrochemical processing, power generation, metallurgical smelting, water treatment, mining extraction, or port logistics, this module is designed to maintain signal accuracy and control loop stability under conditions of extreme electromagnetic interference, wide thermal cycling, mechanical vibration, and sustained high-load operation.

In critical industrial facilities where process uptime is non-negotiable, the IC695ALG508 serves as a foundational component of the safety instrumentation layer. Its fully isolated channel architecture prevents ground loops and cross-channel interference — a common source of signal drift and spurious trips in high-density control cabinets. Each of the eight RTD input channels operates independently, ensuring that a fault on one channel does not propagate to adjacent measurement points or compromise the integrity of the broader safety interlock loop.

The module is designed to interface directly with Pt100, Pt1000, Ni120, and other standard RTD sensor types, providing flexible deployment across diverse process measurement scenarios including reactor temperature monitoring, motor winding protection, heat exchanger control, and furnace zone regulation. Its high-resolution analog-to-digital conversion ensures that even small temperature deviations — which may indicate early-stage equipment stress or process excursion — are captured and reported to the PACSystems RX3i CPU with minimal latency.

In control cabinet environments where the IC695ALG508 is co-located with power conditioning modules such as the IC695PSA040 or IC695PSD040 power supply modules, the module’s isolated input design provides an additional layer of protection against voltage transients and surge events originating from the power rail. This is particularly important in facilities with large motor drives, arc furnaces, or high-frequency switching equipment that generate significant conducted and radiated interference. Complementary backplane modules such as the IC695CHS016 universal backplane and IC695ETM001 Ethernet interface module are commonly deployed alongside the IC695ALG508 to form a complete, networked RX3i control node.

For applications requiring coordinated analog output and closed-loop control, the IC695ALG508 is frequently paired with the IC695ALG704 analog output module, enabling full PID temperature control loops within a single RX3i rack. In safety-critical interlock architectures, the temperature data acquired by the IC695ALG508 feeds directly into logic executed by the IC695CPE330 or IC695CPE400 CPU modules, which evaluate trip conditions and command protective actions through discrete output modules such as the IC695MDL765. This tightly integrated signal chain — from RTD sensor through isolated input module to CPU to output relay — forms the backbone of reliable safety instrumented system (SIS) design in continuous process industries.

The module’s wide operating temperature range and conformal coating options make it suitable for installation in outdoor substations, coastal facilities with high humidity and salt spray, and underground mining control rooms where condensation and particulate contamination are persistent concerns. Its robust mechanical design withstands the vibration profiles encountered in compressor stations, pump houses, and heavy rolling mill environments without compromising measurement accuracy or module seating integrity on the backplane.

From a supply chain and maintenance perspective, the IC695ALG508 is stocked as a verified, tested spare part with full functional validation prior to shipment. Each unit undergoes pre-shipment inspection covering channel isolation resistance, input accuracy across the full RTD range, and backplane communication integrity. This ensures that replacement modules can be installed during planned maintenance windows or emergency shutdowns with confidence, minimizing the risk of commissioning delays caused by latent defects. A 12-month warranty is provided on all units, covering manufacturing defects and functional failures under normal operating conditions.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the IC695ALG508 within a well-engineered RX3i control cabinet requires careful attention to the surrounding module ecosystem. The IC695PSA040 AC power supply module provides stable, regulated backplane power that isolates the analog input circuitry from mains-borne transients — a critical consideration in facilities where large variable frequency drives or welding equipment share the same electrical infrastructure. For cabinets requiring DC power input, the IC695PSD040 offers equivalent protection with 24VDC supply compatibility.

Signal integrity on the RTD wiring is further protected by proper cable routing practices and, where necessary, the use of shielded twisted-pair cables terminated at a single grounding point. In high-interference environments such as electric arc furnace control rooms or induction heating installations, additional surge protection devices installed at the cabinet entry point prevent transient energy from reaching the IC695ALG508 input terminals. The IC695ETM001 Ethernet module, when used for remote monitoring and diagnostics, should be configured with appropriate network segmentation to prevent cyber-induced control disruptions from affecting the analog measurement chain.

For applications requiring discrete safety outputs triggered by temperature exceedance, the IC695MDL765 relay output module provides the hardwired trip capability needed to de-energize process equipment in response to CPU-evaluated alarm conditions. The IC695ALG704 analog output module completes the closed-loop control architecture by translating CPU setpoint commands into 4–20 mA signals for control valves, variable speed drives, or other final control elements. Together, these modules form a coherent, safety-oriented control strategy within the PACSystems RX3i platform.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the IC695ALG508 monitors reactor bed temperatures, heat exchanger outlet conditions, and distillation column profiles where temperature excursions can trigger runaway reactions or equipment damage. Its isolated channel design prevents a single sensor fault from masking adjacent measurement points, preserving the integrity of the safety interlock system.

In power generation facilities — including thermal, hydro, and combined-cycle plants — the module provides continuous winding temperature monitoring for large generators and transformers, feeding data to protection relays and DCS systems that initiate controlled shutdowns before thermal damage occurs. The module’s EMI immunity is essential in switchyard environments where high-voltage switching generates intense electromagnetic fields.

In mining and mineral processing, the IC695ALG508 monitors conveyor drive motor temperatures, crusher bearing temperatures, and flotation cell process temperatures in environments characterized by heavy vibration, dust ingress, and wide ambient temperature swings. Its robust mechanical design and conformal coating options ensure reliable operation in these harsh conditions.

In water and wastewater treatment, the module supports temperature monitoring of biological treatment processes, UV disinfection systems, and pump motor windings, where continuous operation is mandated by regulatory requirements and process uptime directly affects public health outcomes.

In metallurgical and steel production environments, the IC695ALG508 is deployed in continuous casting temperature control, rolling mill drive monitoring, and furnace zone regulation — applications where measurement accuracy directly influences product quality and equipment longevity.

Safety and Quality FAQ

Q: What warranty coverage is provided with the IC695ALG508?
A: All IC695ALG508 units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly with replacement or repair options to minimize your operational downtime.

Q: What pre-shipment testing is performed on each unit?
A: Every IC695ALG508 undergoes a comprehensive functional validation prior to shipment, including per-channel RTD input accuracy verification across the full measurement range, channel-to-channel isolation resistance testing, backplane communication integrity checks, and visual inspection for physical damage. Test records are available upon request.

Q: Is the IC695ALG508 compatible with my existing PACSystems RX3i backplane and CPU?
A: The IC695ALG508 is compatible with all standard IC695 universal backplanes (IC695CHS012, IC695CHS016) and is supported by IC695 series CPUs including the IC695CPE330, IC695CPE400, and IC695CPE302. Configuration is performed through GE Proficy Machine Edition software. If you have a specific backplane or CPU model, contact us to confirm compatibility before ordering.

Q: Can long-term supply and replacement support be guaranteed?
A: Yes. We maintain dedicated stock of the IC695ALG508 and key PACSystems RX3i spare parts to support planned maintenance programs, emergency replacements, and long-term service contracts. Our inventory is continuously replenished to ensure availability for critical infrastructure operators who cannot tolerate extended lead times for control system spares.
