GE IC695ALG616 Safety-Enhanced Analog Input Module

GE IC695ALG616 Safety-Enhanced Analog Input Module: Reliable Control for Harsh Industrial Sites

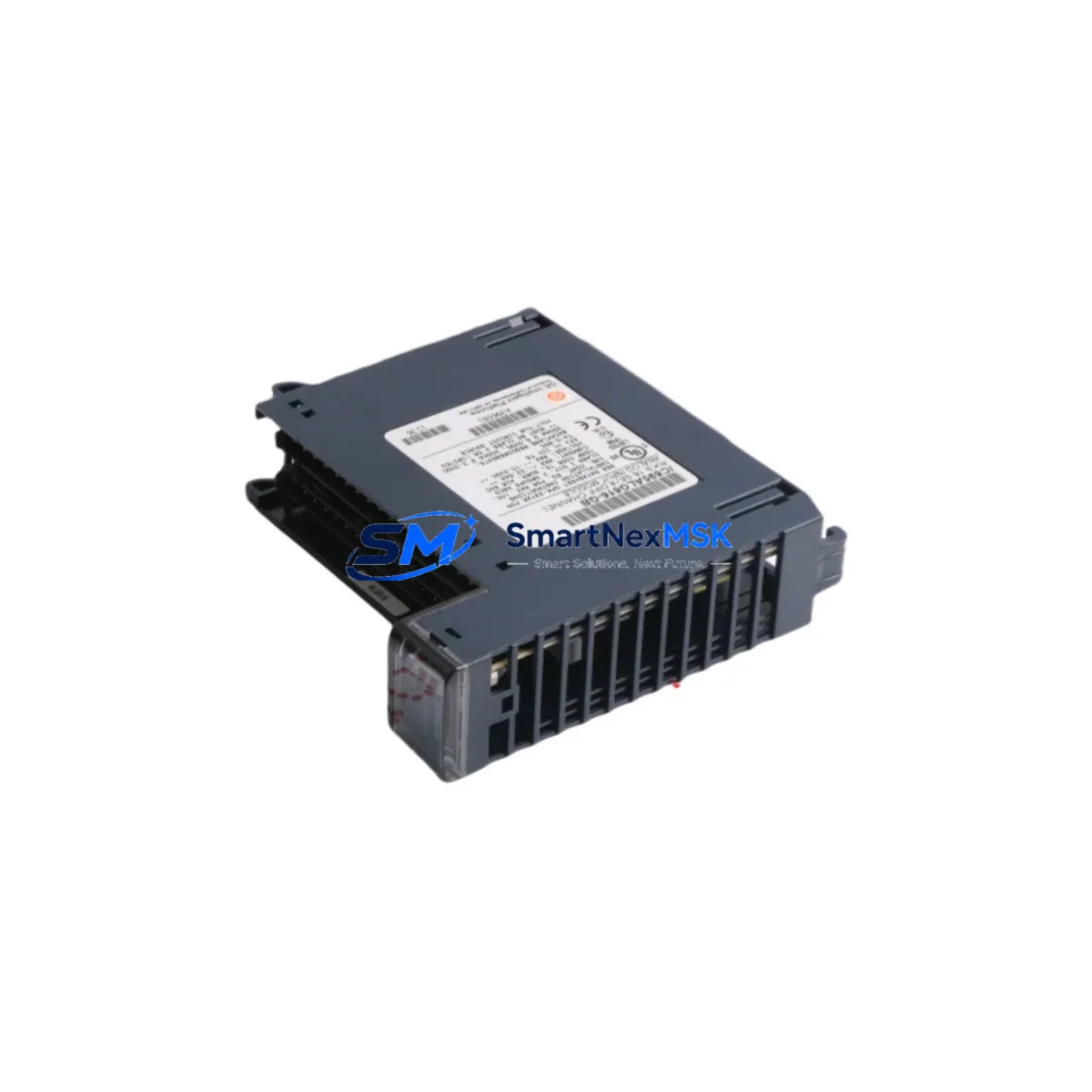

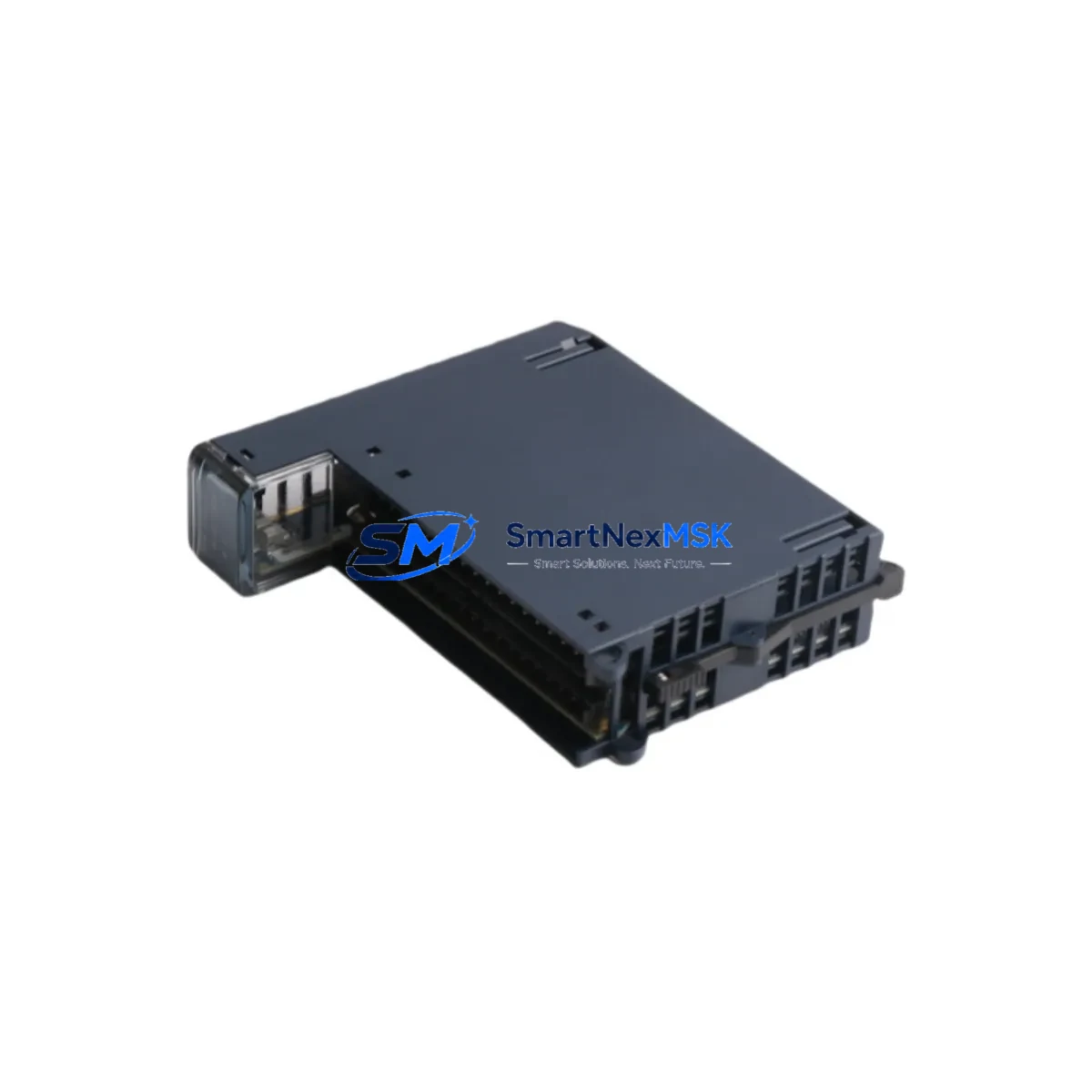

The GE IC695ALG616 is a 16-channel universal analog input module engineered for the GE PACSystems RX3i platform, purpose-built to deliver uninterrupted signal acquisition in the most demanding industrial environments. Whether deployed in petrochemical processing, power generation, mining extraction, water treatment, metallurgical smelting, port logistics, or continuous-process manufacturing, this module provides the signal integrity and operational resilience that safety-critical control loops demand.

In high-load production facilities where control interruptions carry serious safety and financial consequences, the IC695ALG616 stands as a cornerstone of analog signal management. Its universal input architecture accepts voltage, current (4–20 mA), thermocouple, and RTD signals across all 16 channels simultaneously, eliminating the need for multiple single-function modules and reducing cabinet complexity. This consolidation directly lowers the risk of wiring faults, connector failures, and inter-module interference — all common contributors to unplanned downtime in heavy industrial settings.

Signal drift is one of the most insidious threats to process safety. The IC695ALG616 addresses this with high-resolution 16-bit A/D conversion and on-board cold junction compensation for thermocouple inputs, ensuring that temperature readings in furnace control, reactor monitoring, and heat-exchanger regulation remain accurate even as ambient conditions fluctuate. In environments subject to strong electromagnetic interference — such as those near variable-frequency drives (VFDs), large motor starters, or high-current bus bars — the module’s EMI-hardened design maintains signal fidelity without requiring additional shielding infrastructure.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered RX3i control cabinet, the IC695ALG616 does not operate in isolation — it functions as part of a tightly integrated safety and control architecture. The module slots into an IC695CHS016 universal backplane alongside the IC695CPE330 CPU, which handles real-time ladder logic execution and coordinates all I/O scanning. Power integrity is maintained by the IC695PSA040 AC power supply, which provides regulated, noise-filtered DC power to the backplane, protecting every installed module — including the IC695ALG616 — from power-line surges and voltage sags that are common in facilities with large motor loads.

For digital safety interlock circuits operating in parallel with the analog loop, the IC695MDL654 discrete output module handles relay-driven shutdown commands, while the IC695MDL664 discrete input module reads field-level safety switch states. Together, these modules form a coordinated safety response layer: when the IC695ALG616 detects an out-of-range analog signal — such as an over-temperature condition or a 4–20 mA loop break — the CPU can immediately trigger a controlled shutdown via the discrete output module, preventing equipment damage or personnel hazard.

Communications redundancy is addressed through the IC695ETM001 Ethernet module, which maintains SRTP and Modbus TCP connectivity to the SCADA layer even during high-traffic network conditions. For facilities using PROFIBUS DP fieldbus architectures, the IC695PBM300 PROFIBUS master module extends the RX3i’s reach to remote I/O stations and intelligent field devices, reducing the number of analog signal cables running through hazardous areas. Surge protection at the field terminal level is further reinforced by inline transient voltage suppressors and shielded twisted-pair cabling practices, ensuring that the IC695ALG616’s input channels are not exposed to destructive surge events originating from field instrumentation or long cable runs.

For applications requiring redundant CPU operation, the IC695CRU320 CPU redundancy module pairs with a secondary CPE to provide bumpless transfer in the event of a primary CPU fault — a configuration commonly specified in power plant distributed control systems and refinery emergency shutdown (ESD) panels where the IC695ALG616 monitors critical process variables.

Critical Industrial Safety Applications

Petrochemical & Refinery: In continuous distillation columns and reactor temperature control loops, the IC695ALG616 monitors thermocouple and RTD inputs from multiple process zones simultaneously. Its open-wire detection and over-range alarm capabilities provide early warning of sensor failures before they escalate into process upsets or safety system activations. The module’s ability to handle both millivolt-level thermocouple signals and 4–20 mA transmitter outputs on the same backplane simplifies cabinet design in hazardous-area control rooms.

Power Generation: In coal-fired, gas turbine, and hydroelectric generating stations, analog input accuracy is critical for turbine speed control, boiler drum level monitoring, and generator excitation regulation. The IC695ALG616’s 16-bit resolution and channel isolation prevent cross-channel interference in environments where high-voltage switching events can induce transient noise on signal wiring.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The IC695ALG616’s industrial-grade construction and wide operating temperature range make it suitable for conveyor belt load monitoring, crusher motor current sensing, and ventilation airflow measurement in these harsh conditions.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on precise pH, dissolved oxygen, turbidity, and flow measurement. The IC695ALG616 accepts 4–20 mA signals from all major analytical transmitter brands, providing a reliable interface between field sensors and the PACSystems RX3i control platform without requiring signal conditioners.

Metallurgy & Steel Production: In electric arc furnaces, continuous casting lines, and rolling mills, the IC695ALG616 monitors thermocouple inputs from high-temperature zones while simultaneously reading current and voltage signals from power regulation systems. Its EMI hardening is particularly valuable in these environments, where large induction furnaces and high-current bus systems generate intense electromagnetic fields.

Port & Heavy Logistics: Container crane control systems and ship-loader automation rely on precise load cell and position sensor inputs. The IC695ALG616’s universal input capability and diagnostic features support predictive maintenance strategies by enabling continuous monitoring of motor current signatures and hydraulic pressure trends.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the IC695ALG616?
The 12-month warranty covers all manufacturing defects and functional failures occurring under normal operating conditions from the date of shipment. This includes channel-level signal processing failures, backplane interface faults, and power regulation issues internal to the module. Warranty claims are processed with priority turnaround to minimize production downtime. Replacement units are dispatched from in-stock inventory upon fault confirmation.

Q2: What pre-shipment testing is performed on each IC695ALG616 unit?
Every IC695ALG616 unit undergoes functional verification prior to shipment, including channel-by-channel signal acquisition testing across voltage, current, and thermocouple input modes, backplane communication integrity checks, and diagnostic register validation. Units that do not pass all test criteria are quarantined and not shipped. Test records are retained and available upon request for quality-critical procurement processes.

Q3: Is the IC695ALG616 compatible with all PACSystems RX3i CPU versions?
The IC695ALG616 is compatible with all current-generation PACSystems RX3i CPUs, including the IC695CPE302, IC695CPE305, IC695CPE310, IC695CPE330, and IC695CPE400. It is also backward-compatible with earlier RX3i CPU firmware versions. Configuration is performed through GE’s Proficy Machine Edition (PME) software, and the module’s hardware configuration block is supported in PME version 8.0 and later. For legacy Series 90-30 migration projects, adapter backplanes are available to integrate RX3i modules into existing cabinet footprints.

Q4: Can long-term supply continuity be guaranteed for the IC695ALG616?
Yes. We maintain dedicated buffer stock of the IC695ALG616 to support both immediate replacement needs and planned maintenance schedules. For facilities operating PACSystems RX3i platforms in critical infrastructure roles, we offer reserved inventory arrangements and priority allocation agreements. Our supply chain covers both new-production and certified-refurbished units, ensuring that customers can source replacement modules regardless of manufacturer lead-time fluctuations. All units — new or refurbished — carry the same 12-month warranty and pass identical pre-shipment testing protocols.
