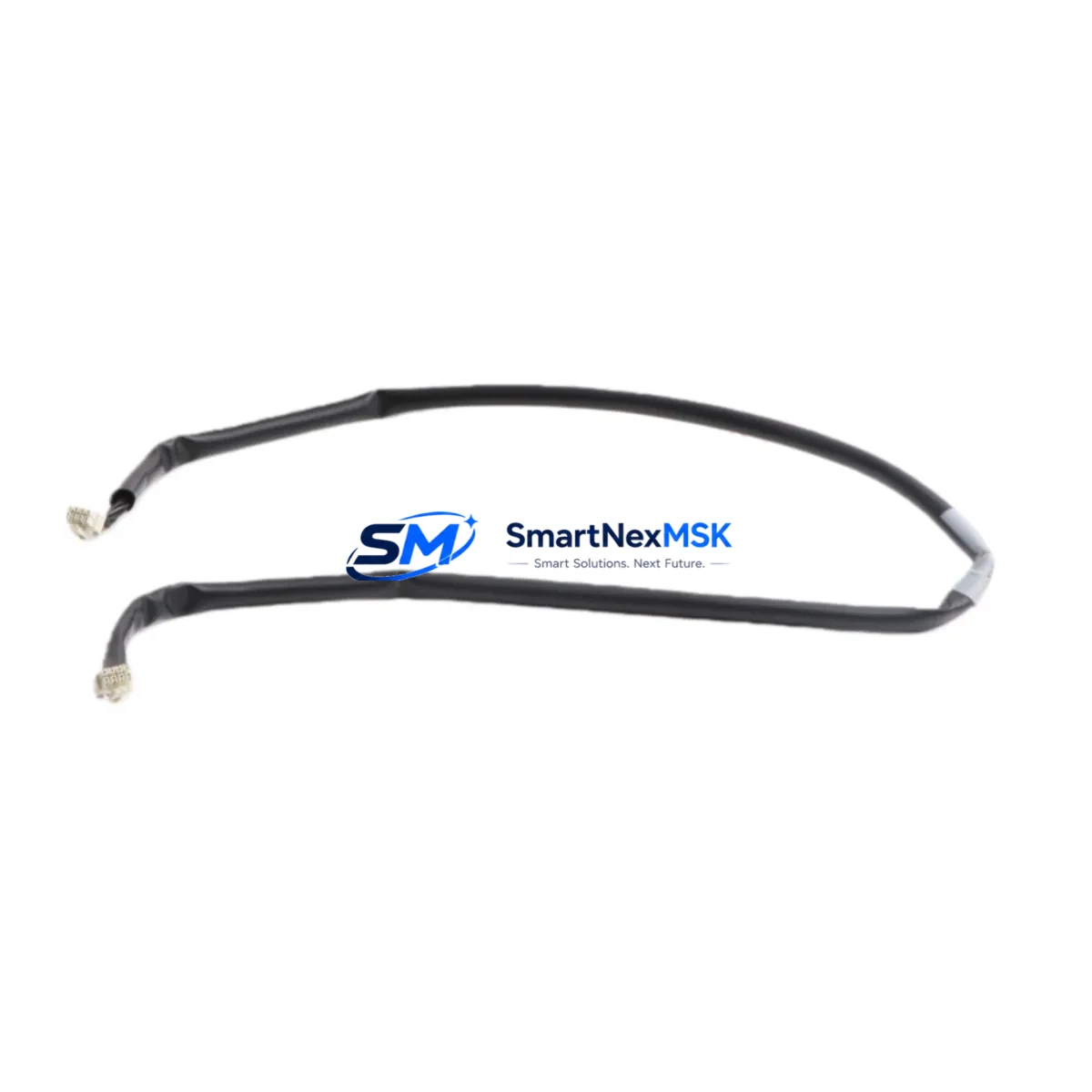

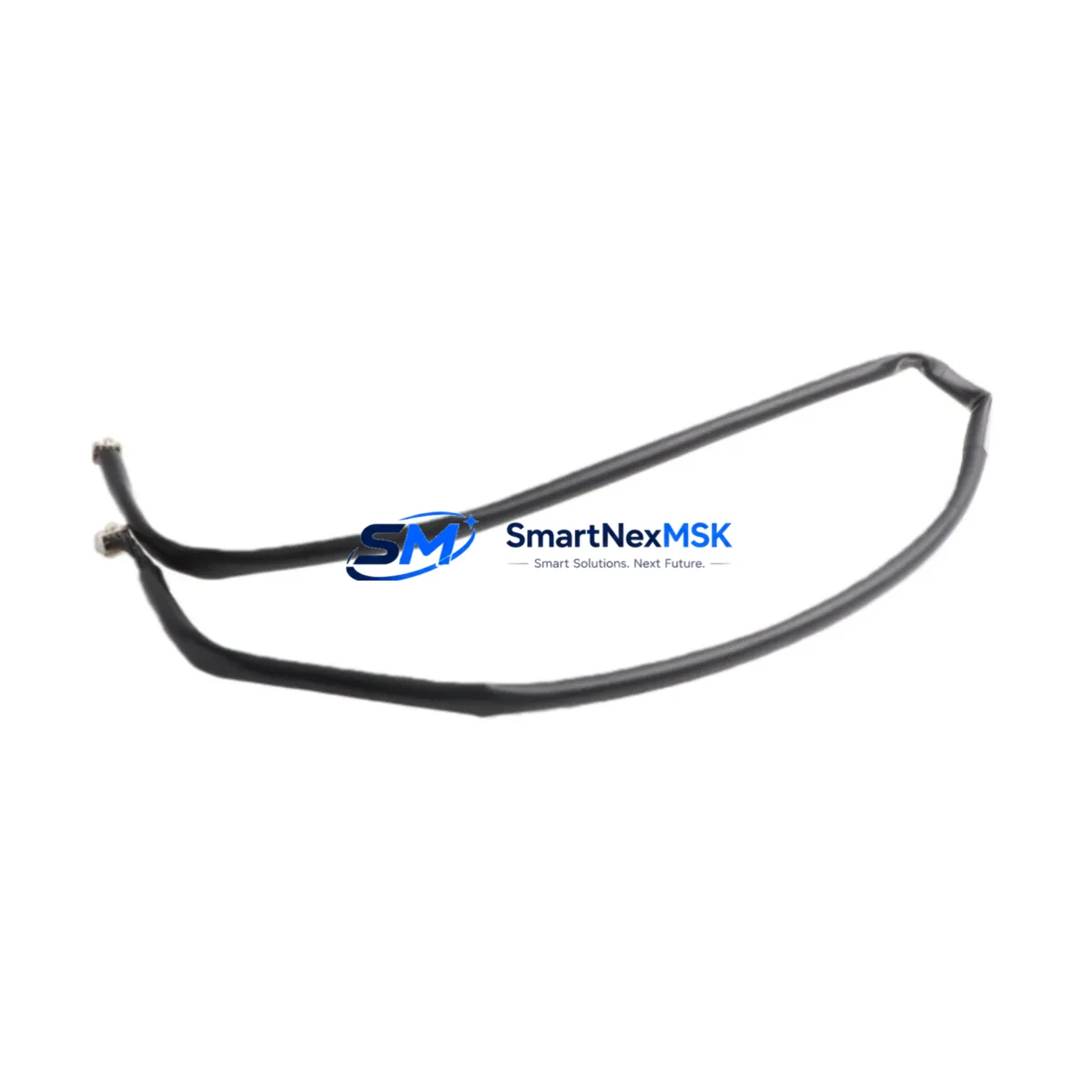

GE IC695CBL001 Retrofit-Ready Energy Pack Cable for PACSystems RX3i Control Systems
The GE IC695CBL001 is the factory-specified Energy Pack Interconnect Cable for the GE PACSystems RX3i platform, designed to connect the IC695ACC400 Energy Pack module to the CPU backplane. In legacy system modernization projects, this cable is frequently the overlooked component that determines whether a retrofit succeeds on the first attempt or requires costly rework. Whether you are replacing a failed cable in an aging control cabinet, upgrading a Series 90-30 system to the RX3i platform, or restoring a system after an unplanned shutdown, the IC695CBL001 is a direct, plug-and-play replacement that requires no firmware changes and no re-addressing of the CPU module.
Industrial facilities running GE PACSystems RX3i controllers — including the IC695CPU310, IC695CPU315, and IC695CPU320 — rely on the Energy Pack to maintain volatile memory during power interruptions. Without a properly seated and functional IC695CBL001, the Energy Pack cannot perform its protective function, leaving program logic, data tables, and retentive registers vulnerable to loss during power cycling or emergency shutdowns. Sourcing a verified replacement cable with documented compatibility is therefore a critical step in any planned maintenance or emergency restoration workflow.
Upgrade Compatibility Table
| Attribute | Details |
|---|---|
| Compatible CPU Modules | IC695CPU310, IC695CPU315, IC695CPU320, IC695CPU330 |
| Compatible Energy Pack | IC695ACC400 |
| Backplane Interface | RX3i Universal Backplane (IC695CHS007, IC695CHS012, IC695CHS016) |
| Installation Requirement | No tools required; keyed connector prevents mis-insertion |
| Communication Compatibility | Not applicable (passive cable; no protocol dependency) |
| Replacement Recommendation | Direct drop-in replacement; no parameter changes required |
| Commissioning Notes | Verify Energy Pack charge status via CPU diagnostic LEDs after installation |
| Warranty | 12-Month Warranty included |
Retrofit Planning for Existing Automation Systems
When planning a retrofit or upgrade involving the IC695CBL001, engineers must consider the broader control system architecture to avoid compatibility gaps and unplanned downtime. In a typical RX3i control cabinet, the IC695CBL001 works in conjunction with the IC695ACC400 Energy Pack, the IC695PSA040 or IC695PSD040 power supply module, and the CPU backplane. During a Series 90-30 to RX3i migration, the entire backplane assembly is replaced, which means the IC695CHS007 or IC695CHS016 universal backplane must be installed before the cable can be seated correctly.
I/O expansion in RX3i systems often involves adding IC694MDL340 discrete input modules or IC694MDL754 discrete output modules on remote drop racks connected via the IC695PBM300 PROFIBUS Master module or the IC695ETM001 Ethernet module. When migrating from a PROFIBUS-based Series 90-30 architecture to an Ethernet-based RX3i architecture, the IC695CBL001 remains unchanged, but the communication modules, network topology, and HMI screen tag mappings must all be updated in Proficy Machine Edition. Engineers should verify that all retentive data blocks are backed up to the IC695ACC400 Energy Pack before cutting power to the original system, and that the IC695CBL001 is the last component installed before the first power-on of the upgraded rack.
For systems that include an IC695RMX128 redundancy memory transfer cable or an IC695HSC304 high-speed counter module, the Energy Pack and its interconnect cable are especially critical, as these modules depend on retentive memory to maintain their operational state across power cycles. HMI panels connected via the IC695ETM001 should be tested for tag resolution after the CPU is restarted with the new Energy Pack cable in place, confirming that all analog and discrete I/O addresses resolve correctly in the SCADA or HMI application.
Downtime Control During System Migration
Minimizing downtime during a PACSystems RX3i retrofit requires a structured pre-cutover checklist. Before removing the original IC695CBL001 or the IC695ACC400 Energy Pack, engineers should perform a full program upload from the CPU to Proficy Machine Edition, verify that all retentive data values are documented, and confirm that the replacement cable has been visually inspected for connector integrity. The keyed connector on the IC695CBL001 prevents reverse insertion, but the locking tab must be fully engaged to ensure reliable contact during vibration-prone industrial operation.
During the physical swap, the CPU should be placed in STOP mode and the IC695PSA040 power supply de-energized before disconnecting the cable. After installing the new IC695CBL001 and reseating the IC695ACC400, the power supply should be re-energized and the CPU allowed to complete its self-diagnostic cycle before being returned to RUN mode. This sequence protects the original program logic, preserves retentive register values, and ensures that field devices connected through IC694MDL340 input modules and IC694MDL754 output modules resume normal operation without requiring a cold restart or manual re-initialization of the control program.
Retrofit Support FAQ
Q: Is the IC695CBL001 a direct replacement for the original GE factory cable?
A: Yes. The IC695CBL001 is the OEM-specified interconnect cable for the PACSystems RX3i Energy Pack. It is a direct, plug-and-play replacement that requires no configuration changes, no firmware updates, and no re-addressing of the CPU or backplane modules.
Q: What commissioning steps are required after installing the IC695CBL001?
A: After installation, energize the IC695PSA040 power supply and observe the CPU diagnostic LEDs. The Energy Pack charge indicator on the IC695ACC400 should illuminate within 60 seconds. Place the CPU in RUN mode and verify that all I/O modules, including any IC694MDL340 or IC694MDL754 modules on the rack, are reporting correctly in Proficy Machine Edition before releasing the system to production.
Q: Will the IC695CBL001 work with all RX3i backplane sizes?
A: The IC695CBL001 is compatible with all standard RX3i universal backplanes, including the IC695CHS007 (7-slot), IC695CHS012 (12-slot), and IC695CHS016 (16-slot). It is not compatible with Series 90-30 backplanes, which use a different Energy Pack architecture.
Q: What warranty is included with this cable?
A: Every IC695CBL001 shipped by SMARTNEXMSK includes a 12-month warranty covering manufacturing defects and connector integrity. Pre-shipment functional testing is performed on all units. Contact sales@smartnexmsk.com for warranty claims or technical support.
