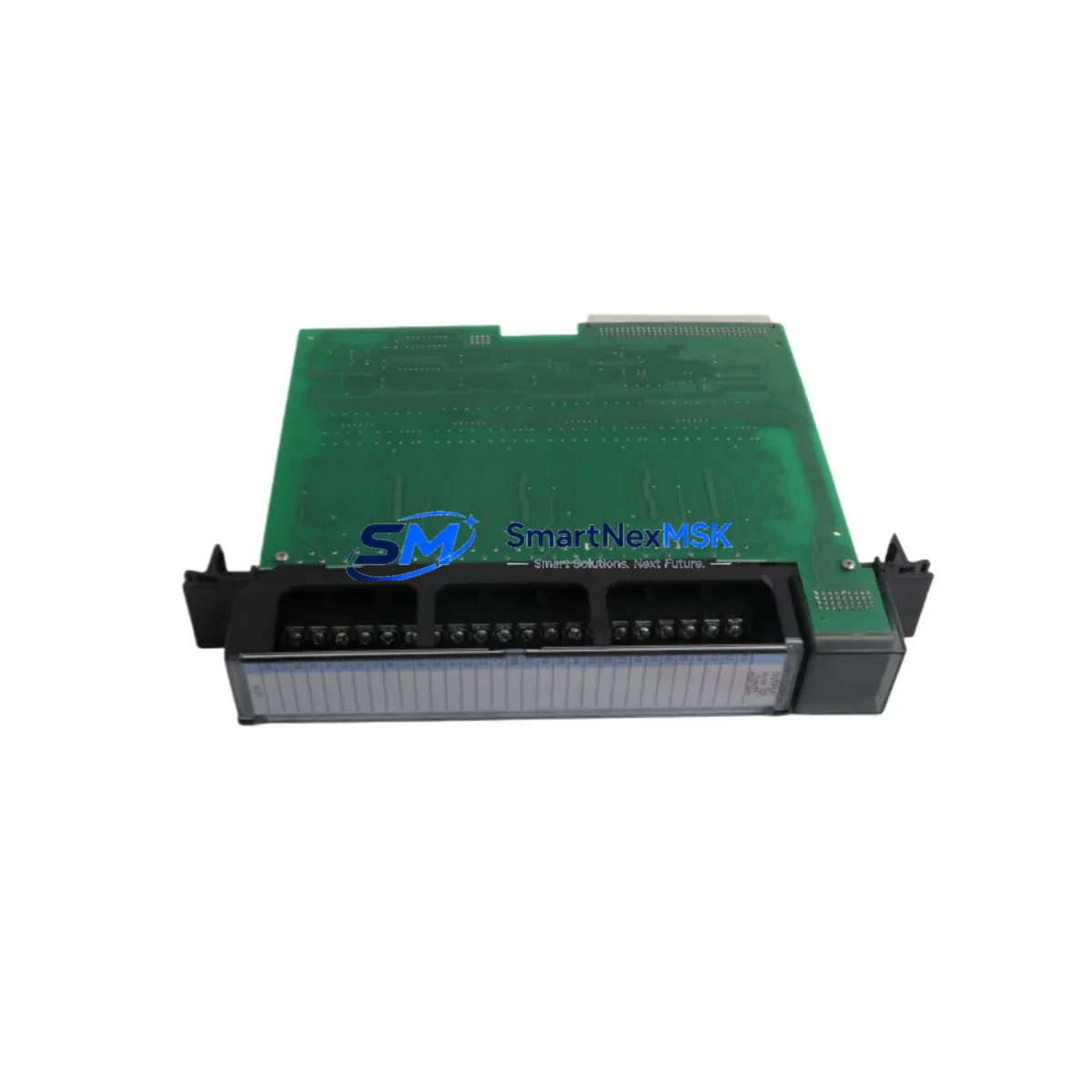

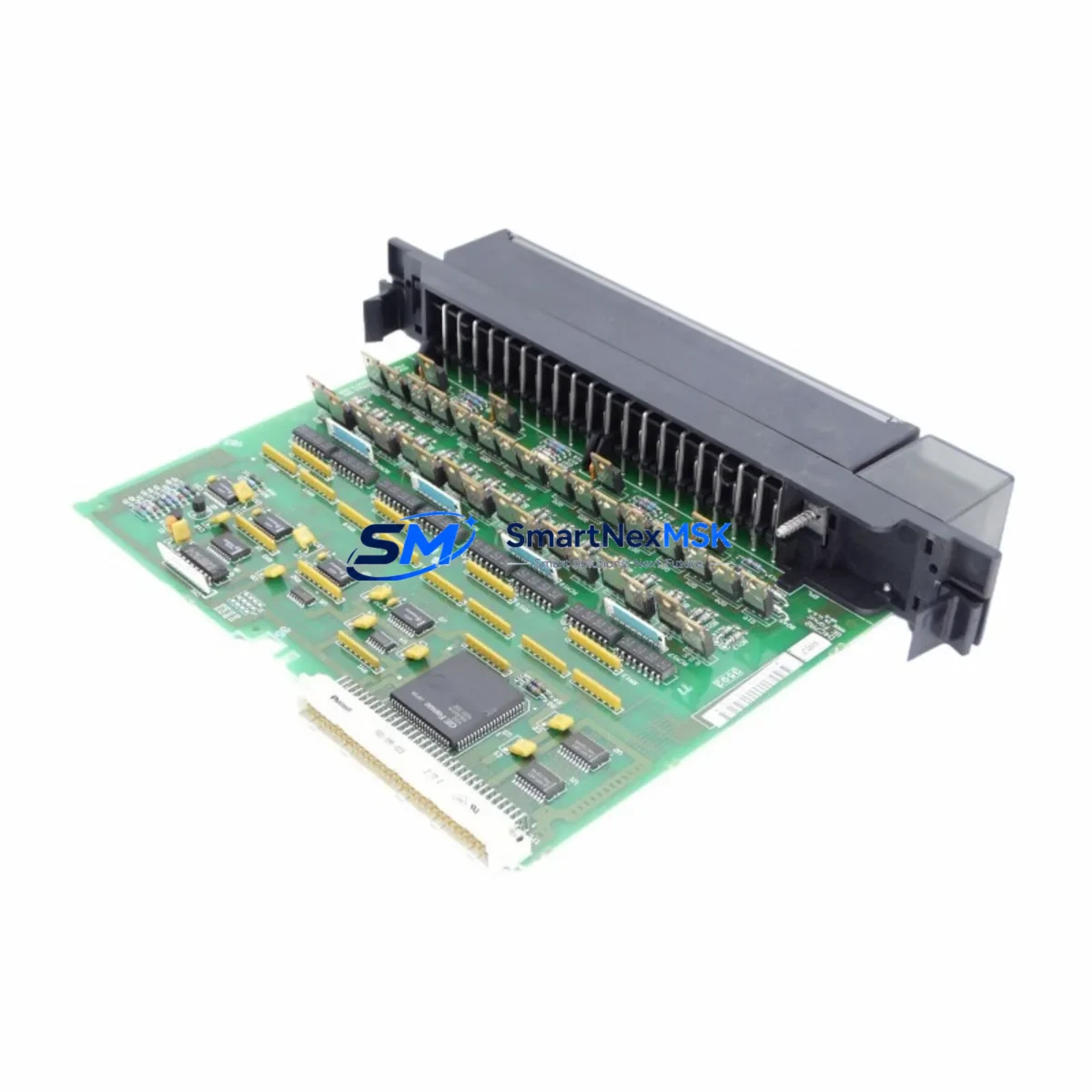

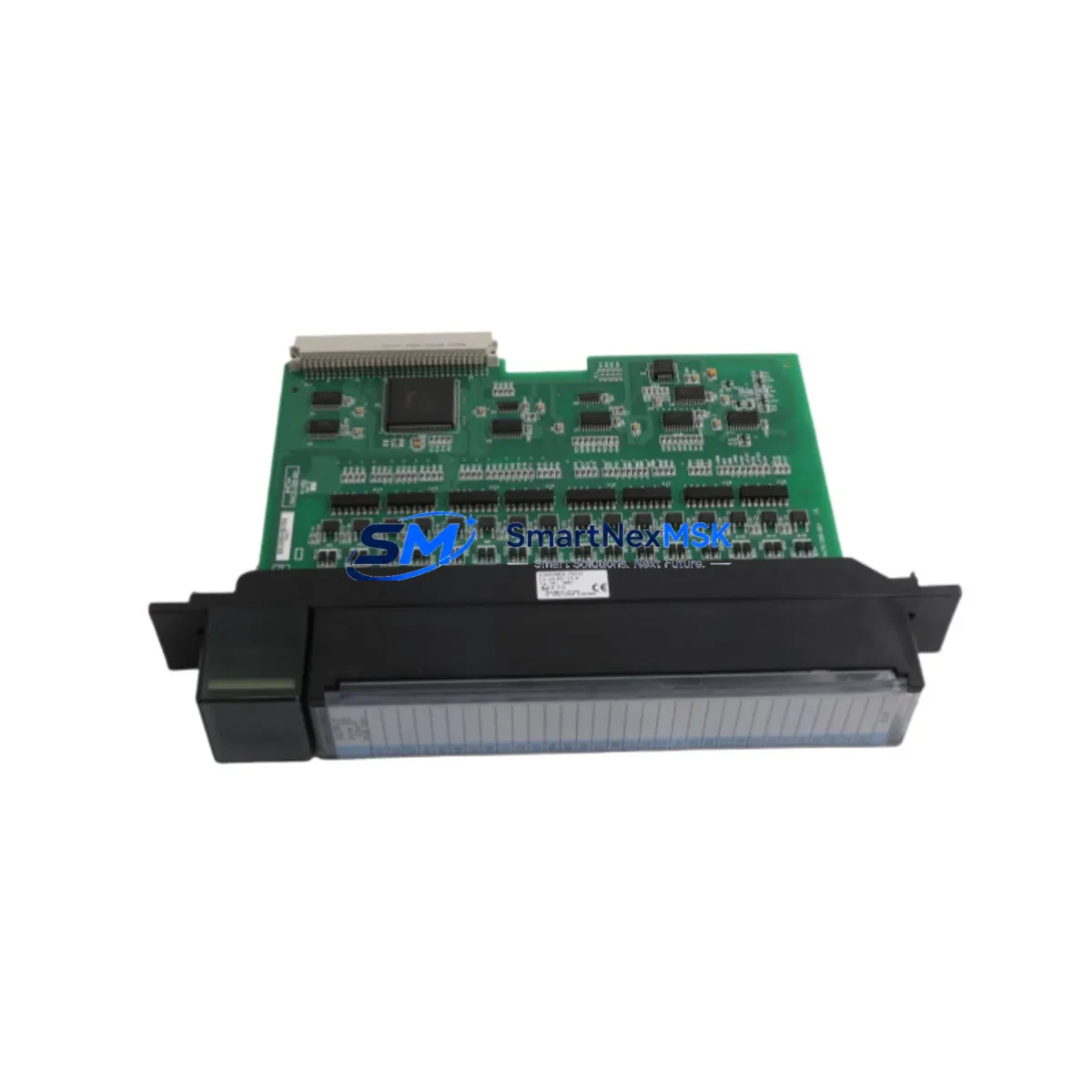

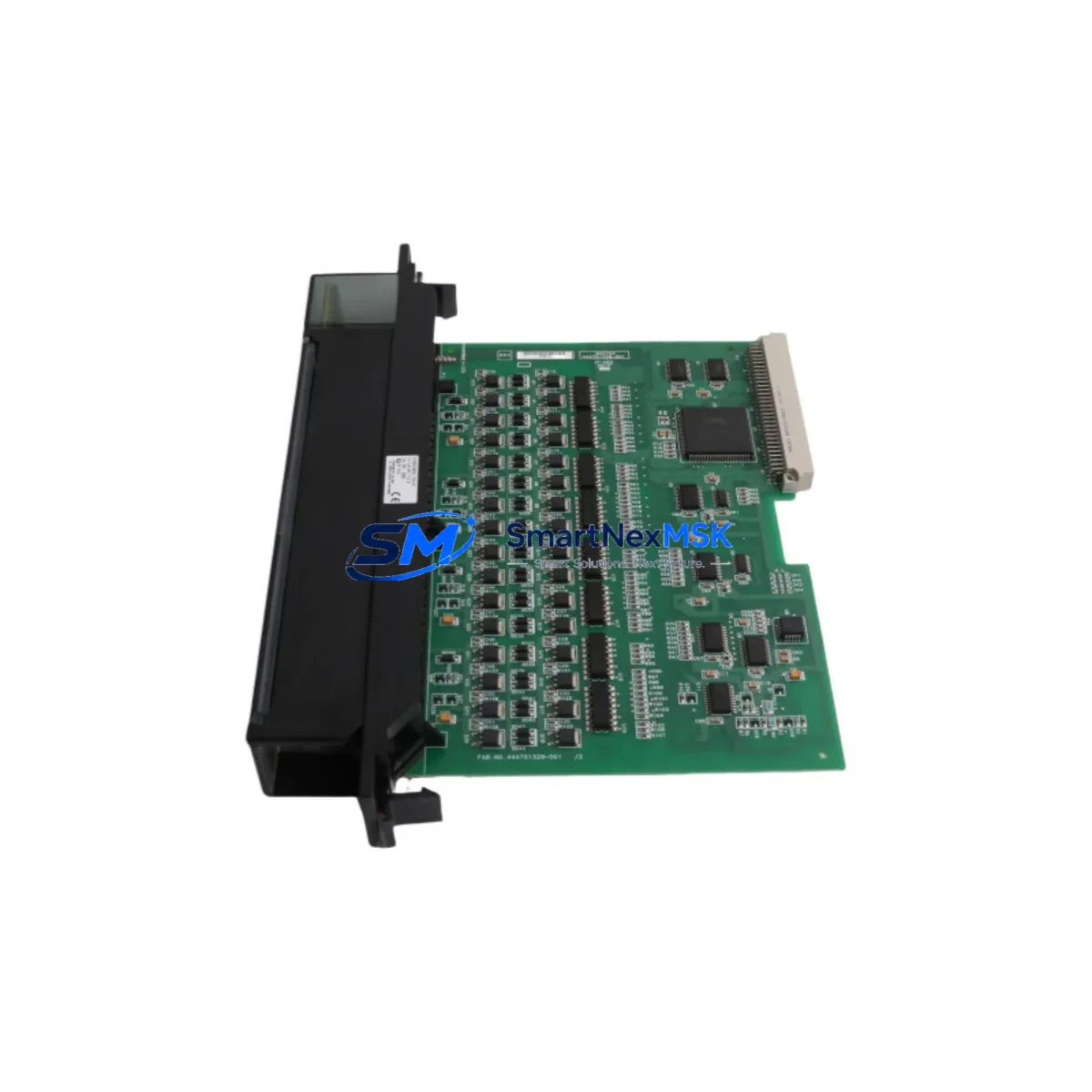

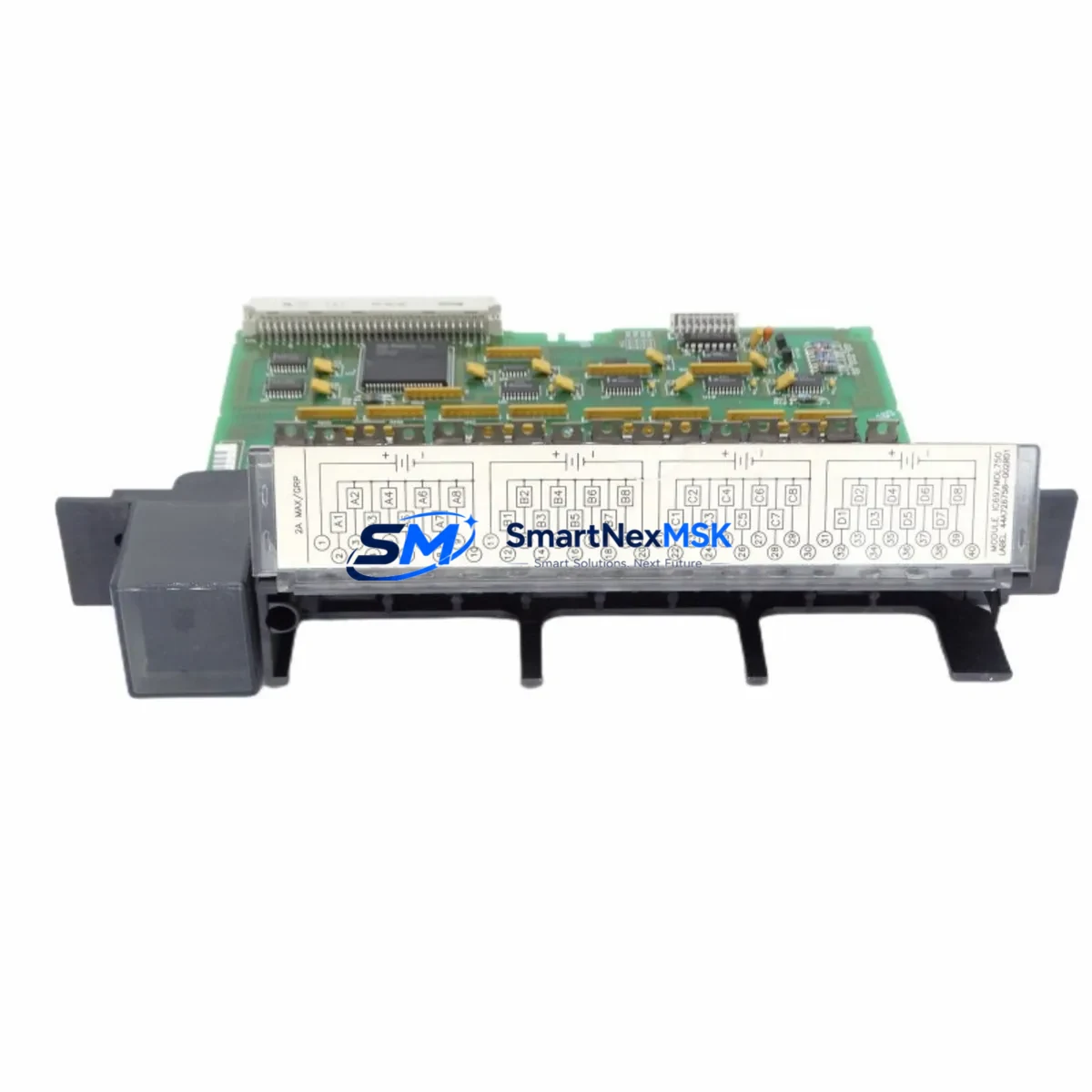

GE IC697MDL750 Safety-Enhanced 32-Pt 120VAC Output Module

GE IC697MDL750 Safety-Enhanced 32-Pt 120VAC Output Module: Reliable Control for Harsh Industrial Sites

The GE IC697MDL750 is a 32-point, 120VAC discrete output module engineered for the GE Series 90-70 PLC platform — one of the most widely deployed programmable logic controller architectures in heavy industrial environments worldwide. Designed to operate continuously in high-load, high-interference, and safety-critical control cabinets, the IC697MDL750 delivers the output switching reliability that petrochemical plants, power generation facilities, mining operations, water treatment systems, and metallurgical production lines demand around the clock.

In modern industrial automation, the output module is the final command executor in every control loop. A single point of failure at this stage — whether caused by voltage surge, thermal stress, signal drift, or module misoperation — can cascade into unplanned downtime, process safety incidents, or costly equipment damage. The IC697MDL750 is built to eliminate these risks through robust optical isolation on all 32 output channels, high-immunity surge suppression circuitry, and a wide operating temperature tolerance that sustains performance in ambient conditions from 0°C to 60°C without derating.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the IC697MDL750 as part of a comprehensive control cabinet protection strategy requires careful attention to the entire signal chain — from field device through to the PLC backplane. In high-load AC output applications, the module is typically installed alongside the GE IC697PWR711 or IC697PWR724 power supply modules, which provide regulated, noise-filtered DC bus power to the Series 90-70 rack. Stable power delivery is the first line of defense against module misoperation and output channel latching errors under surge conditions.

For applications where the IC697MDL750 controls motor starters, solenoid valves, or contactor coils in continuous production environments, it is common practice to pair the output module with the GE IC697MDL340 or IC697MDL341 discrete input modules on the same rack, creating a closed-loop verification architecture where output commands are confirmed by field-side feedback signals. This pairing is especially critical in safety interlock circuits where false output activation or missed de-energization could trigger process shutdowns or equipment damage.

Communication integrity between the Series 90-70 CPU and remote I/O racks is maintained through the GE IC697BEM711 Bus Expansion Module or IC697CMM711 communications module, ensuring that the IC697MDL750 receives scan-cycle commands without latency or packet loss — even in environments with high electromagnetic interference from variable frequency drives, arc furnaces, or high-voltage switchgear. For installations requiring redundant CPU architectures, the module integrates seamlessly with IC697CPU782 redundancy configurations, where hot-standby failover protects output continuity during CPU switchover events.

In control cabinets serving hazardous area boundaries or critical safety loops, the IC697MDL750 is frequently installed in conjunction with external surge protection devices and DIN-rail mounted Phoenix Contact TRABTECH or equivalent surge arrestors on the AC field wiring side. This layered protection approach — combining the module’s internal transient suppression with external surge coordination — is the industry standard for protecting output channels in lightning-prone outdoor substations, coastal petrochemical terminals, and high-altitude mining control rooms.

For system integrators managing spare parts inventory, the IC697MDL750 is a direct form-fit-function replacement for aging output modules in existing Series 90-70 racks, eliminating the need for rack reconfiguration or CPU reprogramming during emergency maintenance windows. Stocking one or two units alongside the IC697MDL752 (240VAC variant) and the IC697MDL753 (relay output variant) provides comprehensive output module coverage for mixed-voltage control cabinets common in legacy industrial facilities.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process environments such as crude distillation units, compressor control systems, and emergency shutdown (ESD) panels, the IC697MDL750 controls AC-powered solenoid valves, pump motor starters, and alarm annunciator circuits. Its optical isolation prevents ground loop currents — a common source of spurious output activation in large grounded process plants — from corrupting the control signal. The module’s per-point LED diagnostics allow maintenance technicians to identify failed output channels without interrupting the production scan cycle.

Power Generation and Substation Automation: Thermal power plants and hydroelectric facilities rely on Series 90-70 PLC systems for turbine auxiliary control, cooling water pump sequencing, and transformer protection relay interfacing. The IC697MDL750’s 120VAC output rating aligns directly with the control voltage standards used in North American and Asian power utility switchgear, making it a natural fit for generator excitation control panels and bus transfer automation systems where output reliability is non-negotiable.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The IC697MDL750’s rugged construction and wide thermal operating range make it suitable for conveyor belt control systems, crusher motor sequencing, and ventilation fan interlock circuits in coal, copper, and gold mining facilities. Its compatibility with the full Series 90-70 rack ecosystem means it can be deployed in existing mine control rooms without infrastructure changes.

Water and Wastewater Treatment: Municipal water treatment plants and industrial effluent systems use AC output modules to control submersible pump starters, UV disinfection system contactors, and chemical dosing pump relays. The IC697MDL750’s surge suppression capability is particularly valuable in these environments, where long field cable runs to remote pump stations create significant inductive load switching transients that can damage unprotected output modules over time.

Metallurgical and Steel Production: Electric arc furnace control systems, rolling mill automation, and continuous casting line PLCs operate in some of the most electromagnetically hostile environments in industrial automation. The IC697MDL750’s optical isolation and transient suppression provide the noise immunity required to maintain reliable output switching in the presence of high-frequency interference generated by thyristor drives, induction heaters, and high-current bus bars common in steel plant control rooms.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the IC697MDL750?
Every IC697MDL750 unit shipped by SMARTNEXMSK carries a 12-month warranty from the date of shipment. This covers functional failures under normal operating conditions. Warranty replacement or repair is processed promptly to minimize your site downtime. Extended warranty options are available upon request for critical spare parts programs.

Q2: What pre-shipment testing is performed on each module?
Each IC697MDL750 undergoes a comprehensive functional test protocol prior to shipment, including output channel activation verification across all 32 points, backplane communication integrity check, optical isolation resistance measurement, and visual inspection for physical damage or component anomalies. Burn-in testing under load is performed on refurbished units to screen for early-life failures before the module reaches your facility.

Q3: Is the IC697MDL750 compatible with my existing Series 90-70 rack and CPU?
Yes. The IC697MDL750 is fully compatible with all standard GE Series 90-70 rack configurations including the IC697CHS750, IC697CHS782, and IC697CHS790 chassis, and operates with all Series 90-70 CPU modules including the IC697CPU731, IC697CPU771, IC697CPU781, and IC697CPU782. No firmware updates or configuration changes are required when replacing an existing IC697MDL750 in an operational system.

Q4: Can SMARTNEXMSK support long-term supply for ongoing maintenance programs?
Yes. SMARTNEXMSK maintains dedicated inventory of the IC697MDL750 and related Series 90-70 I/O modules to support ongoing spare parts programs for industrial facilities with multi-year maintenance contracts. We provide lead-time commitments, volume pricing for stocking orders, and expedited shipping for emergency breakdown situations. Contact our technical sales team to establish a preferred supplier agreement for your site’s PLC spare parts requirements.
