GE IC697MDL970 Safety-Enhanced Relay Output for Harsh Sites

GE IC697MDL970 Safety-Enhanced Relay Output for Harsh Industrial Sites

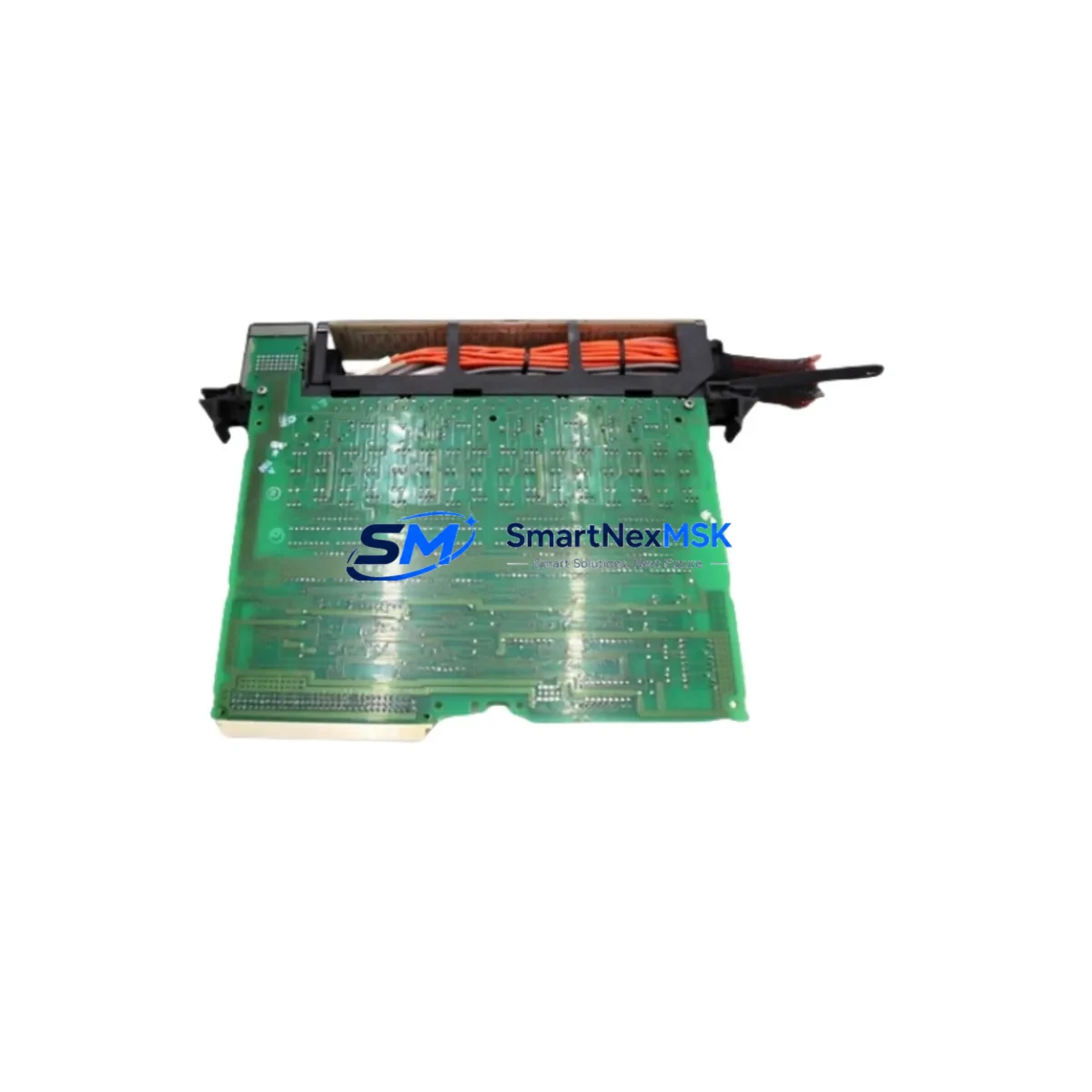

The GE Fanuc IC697MDL970 is a 16-point relay output module engineered for the GE Series 90-70 PLC platform, purpose-built to deliver uninterrupted control performance in the most demanding industrial environments. Whether deployed in petrochemical processing units, power generation switchgear panels, metallurgical furnace control cabinets, mining hoist systems, or continuous-process water treatment facilities, the IC697MDL970 provides the output switching reliability that safety-critical applications demand.

In high-load, high-interference production environments, relay output modules are among the most stress-exposed components in a control cabinet. The IC697MDL970 addresses this directly: its relay contacts are rated for resistive and inductive loads, enabling direct actuation of solenoid valves, motor starters, alarm annunciators, and interlock relays without intermediate signal conditioning. This eliminates a common failure point in safety interlock circuits and reduces the risk of spurious trips or missed actuations caused by signal degradation between the PLC output and the field device.

Surge and transient protection is integral to the module’s design. In facilities where large motors, arc furnaces, or high-frequency drives operate in proximity to control panels, voltage transients and electromagnetic interference (EMI) are constant threats to module integrity. The IC697MDL970’s isolated relay outputs provide inherent galvanic separation between the PLC backplane and field wiring, protecting the Series 90-70 CPU — such as the IC697CPU772 or IC697CPU781 — from destructive surge energy that could otherwise propagate through the I/O bus and corrupt program execution or damage processor memory.

Signal drift and module misbehavior under thermal stress are eliminated by the module’s wide operating temperature tolerance, making it suitable for control cabinets in outdoor substations, desert-climate compressor stations, or poorly ventilated machine rooms. When paired with the IC697PWR711 or IC697PWR724 power supply modules, the IC697MDL970 operates within a stable, well-regulated backplane power environment, further reducing the risk of relay chatter or false output activation caused by power rail fluctuations.

In critical interlock and emergency shutdown (ESD) circuits, the IC697MDL970 is frequently used alongside IC697MDL940 discrete input modules to form closed-loop safety monitoring circuits. The combination allows the Series 90-70 system to both read field sensor states and actuate shutdown devices within the same scan cycle, minimizing response latency in safety-critical sequences. For applications requiring analog process control alongside discrete safety outputs, the IC697ALG320 analog output module and IC697ALG230 analog input module complement the IC697MDL970 within the same rack, enabling integrated process and safety logic in a single chassis.

Communication reliability is equally important in distributed control architectures. The IC697MDL970 operates within Series 90-70 racks that may include IC697CMM742 communications modules for Genius Bus or Ethernet connectivity, ensuring that output commands from remote SCADA systems or DCS supervisory layers are executed without latency or packet loss. In facilities where the Series 90-70 system interfaces with a GE Mark VI turbine control system or a third-party DCS via the IC697BEM731 bus expansion module, the IC697MDL970’s deterministic relay switching behavior ensures that cross-system interlock commands are honored with the timing precision that turbine protection and process safety management systems require.

Replacement and spare parts availability is a persistent concern for facilities running legacy Series 90-70 infrastructure. SMARTNEXMSK maintains verified stock of the IC697MDL970 with full pre-shipment functional testing, including contact resistance verification, coil actuation testing, and backplane interface validation. Every unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions, providing procurement teams and maintenance engineers with the assurance needed for long-term spare parts planning.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust Series 90-70 control cabinet built around the IC697MDL970 requires a layered protection strategy that addresses power quality, signal integrity, and communication continuity simultaneously. At the power layer, the IC697PWR711 and IC697PWR724 power supply modules provide regulated backplane voltage with built-in overload protection, ensuring that relay coil actuation transients do not destabilize the CPU or other I/O modules sharing the rack. For cabinets with high inductive load switching, external surge suppressors on field wiring terminals are recommended to complement the module’s inherent isolation.

At the I/O layer, the IC697MDL970 works in concert with IC697MDL940 and IC697MDL653 discrete input modules to create complete digital I/O subsystems capable of monitoring field sensor states and driving output actuators within the same PLC scan. For process control loops requiring analog feedback, the IC697ALG320 analog output module provides 4–20 mA or 0–10 V signals to control valves and variable speed drives, while the IC697ALG230 handles analog sensor inputs from pressure transmitters, flow meters, and temperature sensors.

At the processor layer, the IC697CPU772 and IC697CPU781 CPUs provide the program execution environment for safety ladder logic and function block diagrams. The IC697MEM715 memory expansion module ensures sufficient program and data memory for complex interlock logic without risk of memory overflow during runtime. For multi-rack configurations in large control cabinets, the IC697BEM731 bus expansion module extends the I/O bus to remote racks, maintaining deterministic scan times across distributed I/O assemblies.

Critical Industrial Safety Applications

The IC697MDL970 is deployed across a wide range of heavy industrial sectors where control system reliability directly impacts personnel safety and production continuity. In petrochemical and refinery facilities, the module drives emergency shutdown valves, blowdown actuators, and fire and gas alarm panels within Series 90-70-based safety instrumented systems. Its galvanic isolation prevents ground loop currents — common in large process plants with extensive field wiring — from causing spurious relay actuation or contact welding.

In power generation and substation automation, the IC697MDL970 controls circuit breaker trip coils, transformer tap changers, and load shedding relays. The module’s ability to switch both AC and DC loads makes it suitable for both legacy electromechanical relay panels being retrofitted with PLC control and modern digital protection schemes. In mining and mineral processing, the module is used in hoist control systems, conveyor interlock circuits, and crusher protection panels, where the combination of high inductive loads and vibration-rich environments demands relay output modules with proven mechanical durability.

In water and wastewater treatment, the IC697MDL970 controls pump motor starters, valve actuators, and chemical dosing systems in continuous 24/7 operations where unplanned downtime carries regulatory and public health consequences. In metallurgical and steel mill applications, the module is integrated into furnace control systems, rolling mill interlocks, and ladle transfer car controls, where high ambient temperatures and strong electromagnetic fields from induction heating equipment test the limits of standard I/O hardware. The IC697MDL970’s thermal tolerance and EMI resistance make it a reliable choice in these environments.

Safety and Quality FAQ

Q: What does the 12-month warranty cover for the IC697MDL970?
A: The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions, including relay contact failure, coil actuation faults, and backplane interface errors. Warranty claims are processed with priority turnaround to minimize control system downtime. Contact [email protected] for warranty service initiation.

Q: What pre-shipment testing is performed on each IC697MDL970 unit?
A: Every IC697MDL970 unit undergoes contact resistance measurement on all 16 relay points, coil actuation verification at rated voltage, and backplane interface continuity testing before shipment. Units that do not meet GE Fanuc original specification thresholds are quarantined and not shipped. A test record is available upon request.

Q: Is the IC697MDL970 compatible with all GE Series 90-70 rack configurations?
A: Yes. The IC697MDL970 is compatible with all standard IC697 rack sizes (5-slot, 9-slot, and 13-slot) and is interchangeable with other Series 90-70 relay output modules of the same point count. It is fully compatible with all IC697 CPU variants and does not require firmware updates or configuration changes when used as a direct replacement in an existing rack.

Q: Can SMARTNEXMSK support long-term supply of the IC697MDL970 for ongoing maintenance programs?
A: Yes. SMARTNEXMSK maintains standing inventory of the IC697MDL970 and can support scheduled spare parts programs, annual maintenance kits, and emergency replacement orders with expedited shipping. For facilities managing multi-year maintenance contracts on Series 90-70 systems, we recommend establishing a blanket order arrangement to ensure priority allocation. Contact [email protected] or call +86 18259474341 to discuss supply agreements.
