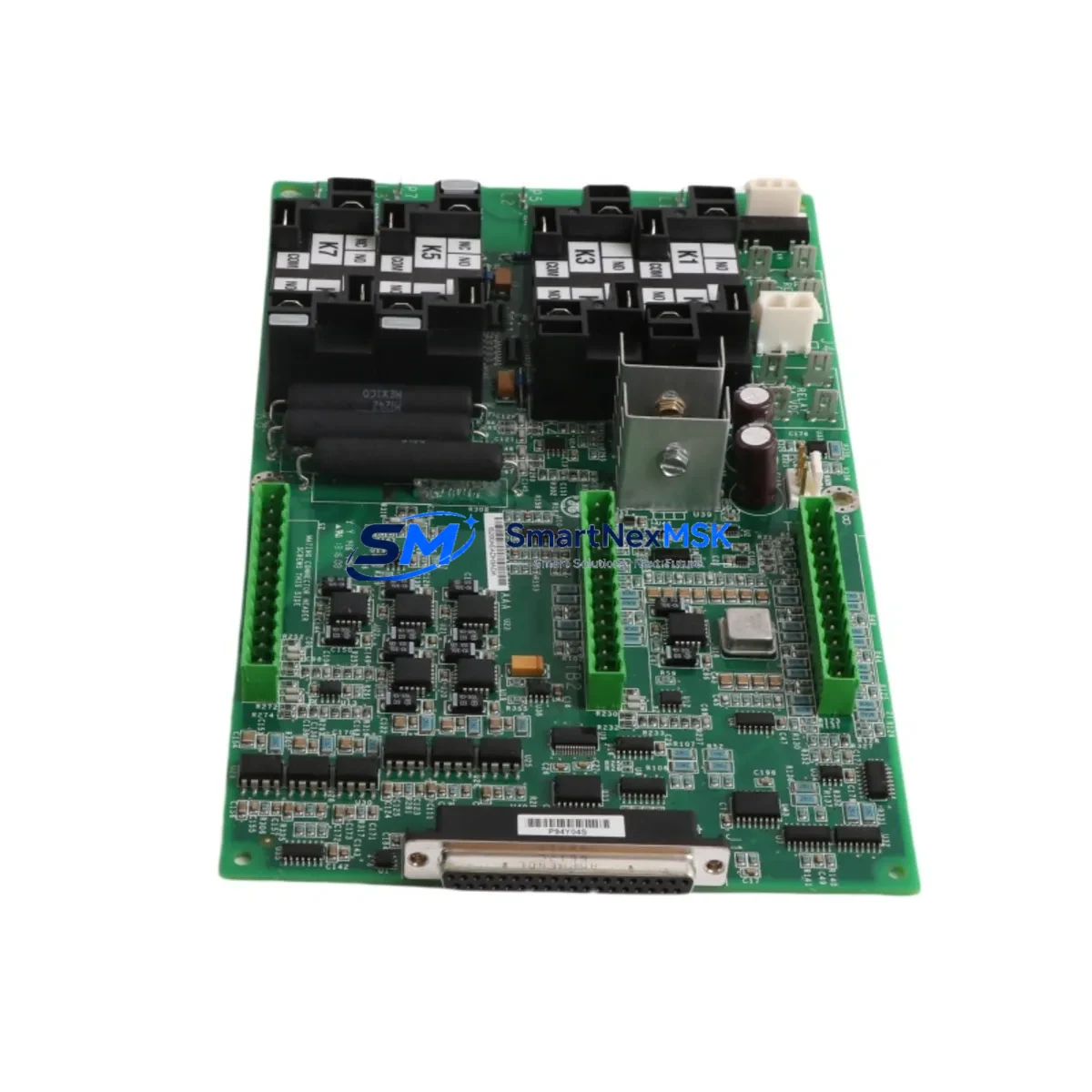

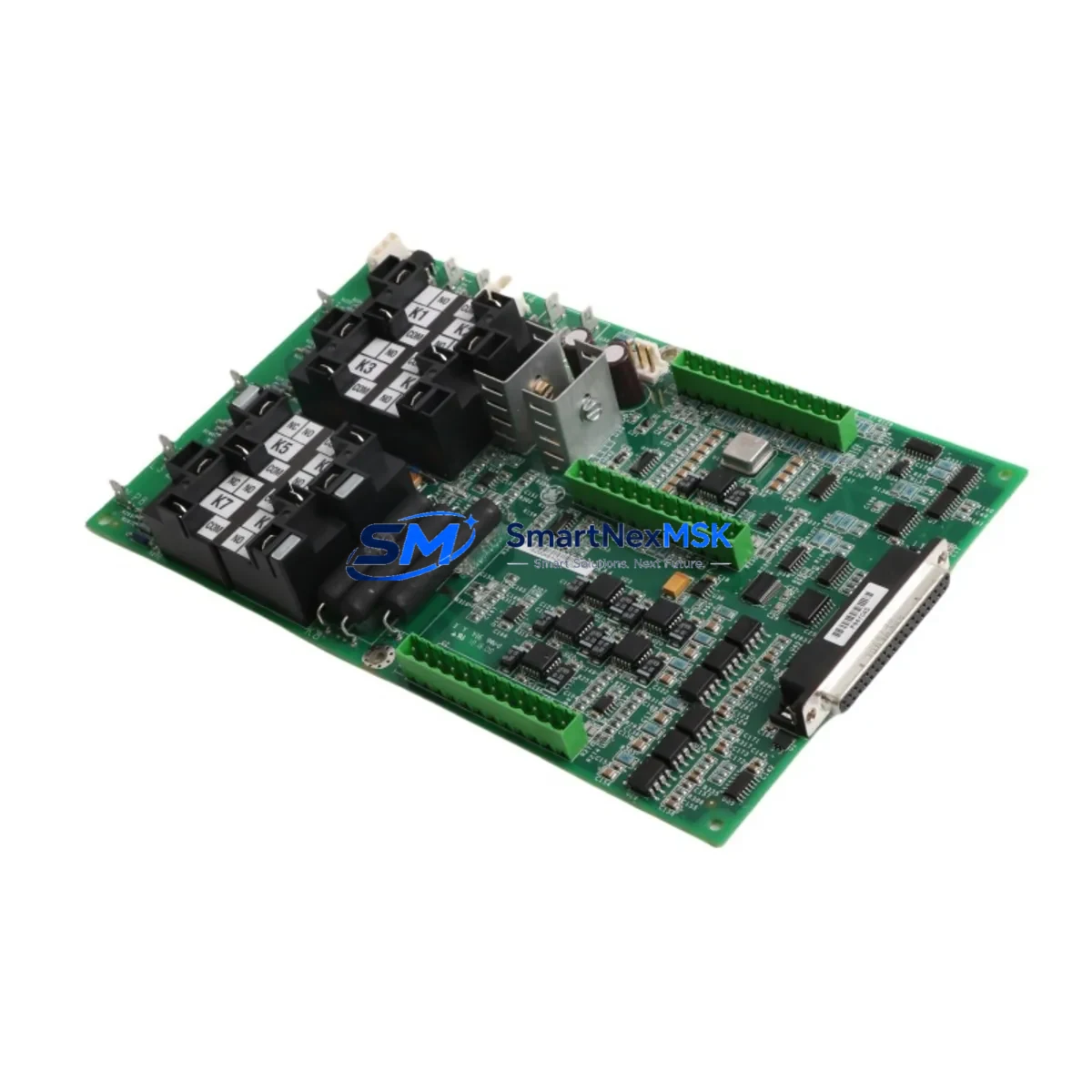

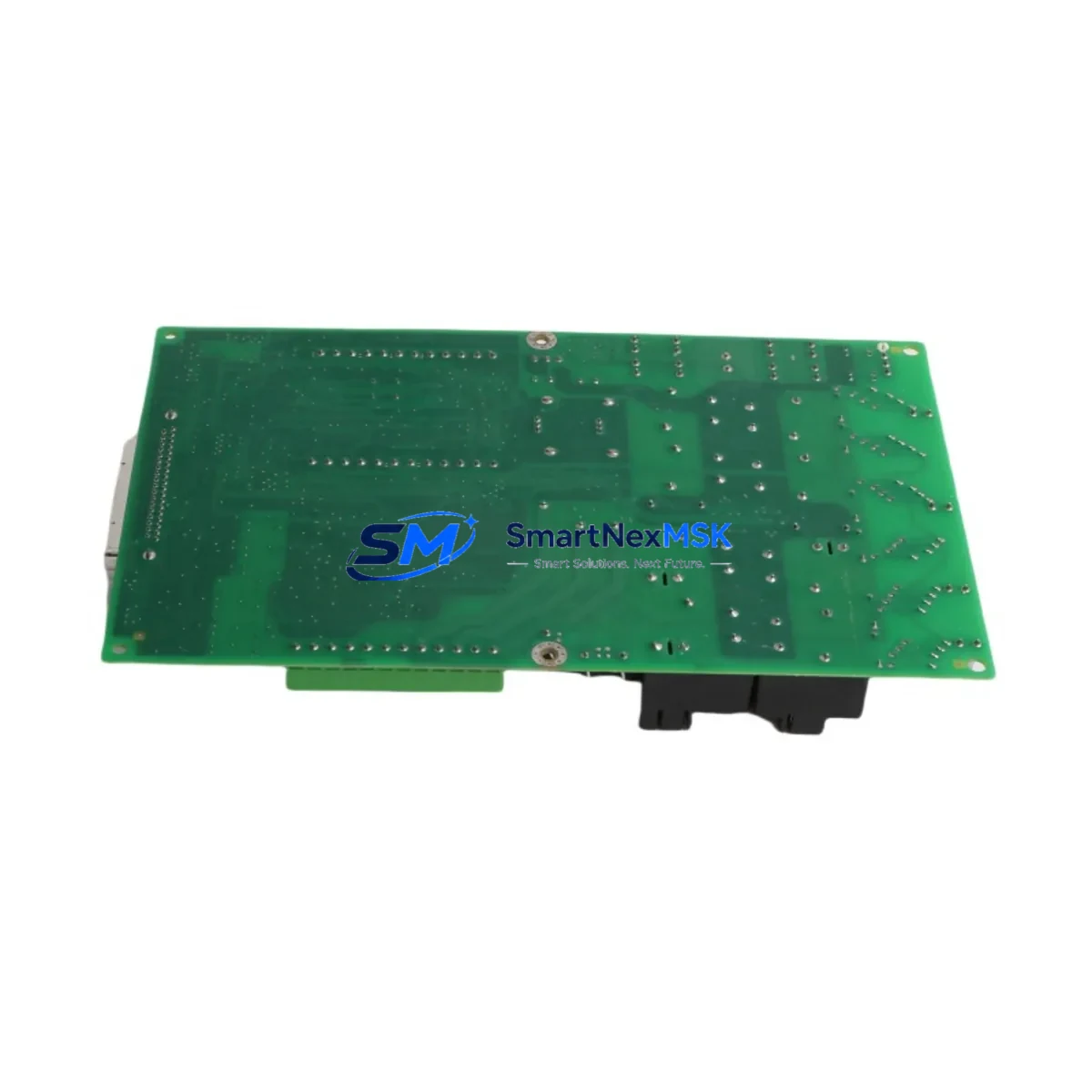

GE IS200AEADH4A Safety-Enhanced I/O Terminal Board Mark VI

GE IS200AEADH4A Safety-Enhanced I/O Terminal Board: Reliable Control in Harsh Industrial Sites

The GE IS200AEADH4A is a ruggedized input terminal board engineered for the GE Mark VI turbine control system, one of the most widely deployed distributed control platforms in power generation, petrochemical, and heavy industrial environments. Designed to operate continuously under high electrical noise, thermal stress, and mechanical vibration, the IS200AEADH4A serves as a critical interface between field sensors and the Mark VI controller core — making it an indispensable component in safety-critical I/O architectures where signal integrity and control continuity are non-negotiable.

In high-load continuous production facilities — including gas turbine power plants, combined-cycle stations, offshore platforms, and refinery compressor trains — the integrity of every I/O channel directly determines whether a safety interlock responds correctly. The IS200AEADH4A provides stable, low-impedance signal conditioning for thermocouple, RTD, and discrete inputs routed into the Mark VI VCMI or VTUR processor boards. Its robust terminal block design resists contact oxidation and vibration-induced loosening, reducing the risk of intermittent signal faults that can trigger spurious trips or, worse, mask genuine process anomalies.

Safety Reliability Table

Control Cabinet Protection Strategy

A Mark VI control cabinet operating in a gas turbine or compressor train environment is only as reliable as its weakest I/O interface. The IS200AEADH4A is typically installed alongside complementary boards and modules that together form a layered protection architecture. The IS200VCMIH2B VCMI board acts as the primary communication and I/O management processor, coordinating data from multiple terminal boards including the IS200AEADH4A. Upstream power integrity is maintained by the IS200EPBAG1A power board, which conditions and distributes 28 VDC to the I/O tier — any instability here propagates directly to signal quality on the terminal board.

For applications involving servo valve control or high-speed actuator feedback, the IS200VSVO servo controller board works in tandem with the IS200AEADH4A to close the control loop with minimal latency. In safety interlock circuits, the IS200TRLYH1B relay output terminal board handles the output side of the same safety loop that the IS200AEADH4A monitors on the input side — together they form a complete hardwired safety function. Communication redundancy is supported through the IS200STCIH2A communication interface board, which ensures that even if one Ethernet path degrades, the Mark VI system maintains its control and diagnostic link to the DCS or SCADA layer.

Surge events from nearby motor starts, capacitor bank switching, or lightning-induced transients on field cables are a persistent threat in heavy industrial sites. Installing Phoenix Contact TRABTECH surge protection devices on incoming signal lines ahead of the IS200AEADH4A terminal block significantly extends board service life. Similarly, the IS200AEPAH1A analog I/O expansion board can be paired with the IS200AEADH4A to extend the number of monitored analog channels without adding a second controller node. For power system redundancy, the IS200EPBAG1A dual-feed power module and an APC Smart-UPS or equivalent 24 VDC UPS module ensure that a utility disturbance does not interrupt the Mark VI’s I/O scan cycle. Grounding discipline — enforced through a dedicated equipotential bonding bar within the control cabinet — is the final layer that prevents common-mode noise from corrupting the low-level thermocouple signals processed by the IS200AEADH4A.

Critical Industrial Safety Applications

Power Generation (Gas & Steam Turbines): The IS200AEADH4A is most commonly found in Frame 6B, 7E, and 9E gas turbine control panels, where it collects exhaust thermocouple readings, vibration probe signals, and lube oil pressure switch states that feed directly into the turbine protection logic. A failed or drifting input on this board can cause a missed overspeed detection or a delayed flame-out response — both catastrophic outcomes in a live generation unit.

Petrochemical & Refinery Compressor Trains: In centrifugal and reciprocating compressor applications, the IS200AEADH4A monitors suction/discharge temperatures and seal gas pressures. Its signal conditioning accuracy is essential for anti-surge control systems, where a 1–2°C measurement error can push the compressor into surge, causing mechanical damage and unplanned shutdown.

Mining & Mineral Processing: Large grinding mills and conveyor drive systems in mining operations use Mark VI-based control panels for motor protection and process interlocking. The IS200AEADH4A collects bearing temperature and motor winding RTD data, enabling predictive maintenance alerts before thermal damage occurs.

Water & Wastewater Treatment: In large pumping stations and desalination plants, the IS200AEADH4A interfaces with flow transmitters and level sensors in critical dosing and transfer circuits. Reliable signal acquisition prevents chemical overdosing events and pump cavitation damage.

Metallurgy & Steel Production: Continuous casting and rolling mill control systems demand zero-tolerance I/O reliability. The IS200AEADH4A’s robust terminal design withstands the high ambient temperatures and electromagnetic interference generated by induction furnaces and large DC drives common in steel plant environments.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the IS200AEADH4A?
The 12-month warranty covers all functional failures arising from component defects or workmanship issues under normal operating conditions. If the board fails to perform its specified I/O functions within the warranty period, we provide a replacement or full refund. The warranty period begins from the date of shipment and is documented with a serial-numbered test certificate included in the package.

Q2: What pre-shipment testing is performed on each IS200AEADH4A?
Every IS200AEADH4A unit undergoes a full functional verification test that includes channel-by-channel signal continuity checks, insulation resistance measurement, and a burn-in cycle to screen for early-life component failures. A test report is available upon request and accompanies each shipment to support your incoming inspection process.

Q3: Is the IS200AEADH4A compatible with all Mark VI controller variants?
The IS200AEADH4A is designed for use within the GE Mark VI turbine control system and is compatible with VCMI, VTUR, and VSVO processor configurations. Compatibility with specific firmware revisions or custom Mark VI panel builds should be confirmed against your existing panel documentation. Our technical team can assist with cross-referencing your panel BOM prior to purchase.

Q4: Can you guarantee long-term supply and replacement support for this part?
Yes. We maintain dedicated inventory of IS200AEADH4A and related Mark VI I/O boards to support both planned maintenance schedules and emergency breakdown replacements. Our stock is sourced from verified channels and stored in ESD-safe, climate-controlled conditions. For critical plant spares programs, we can discuss reserved stock arrangements to ensure availability when you need it most.
