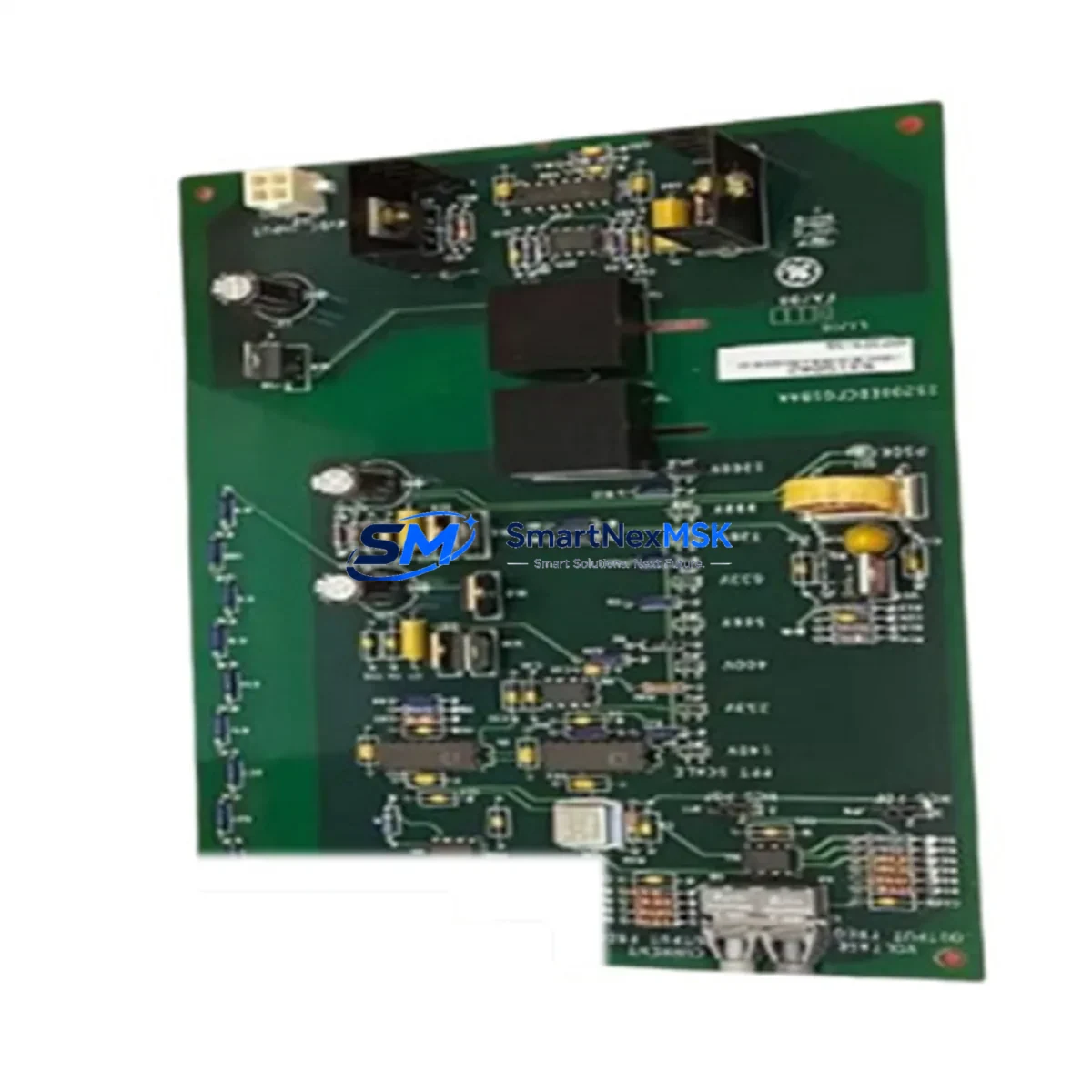

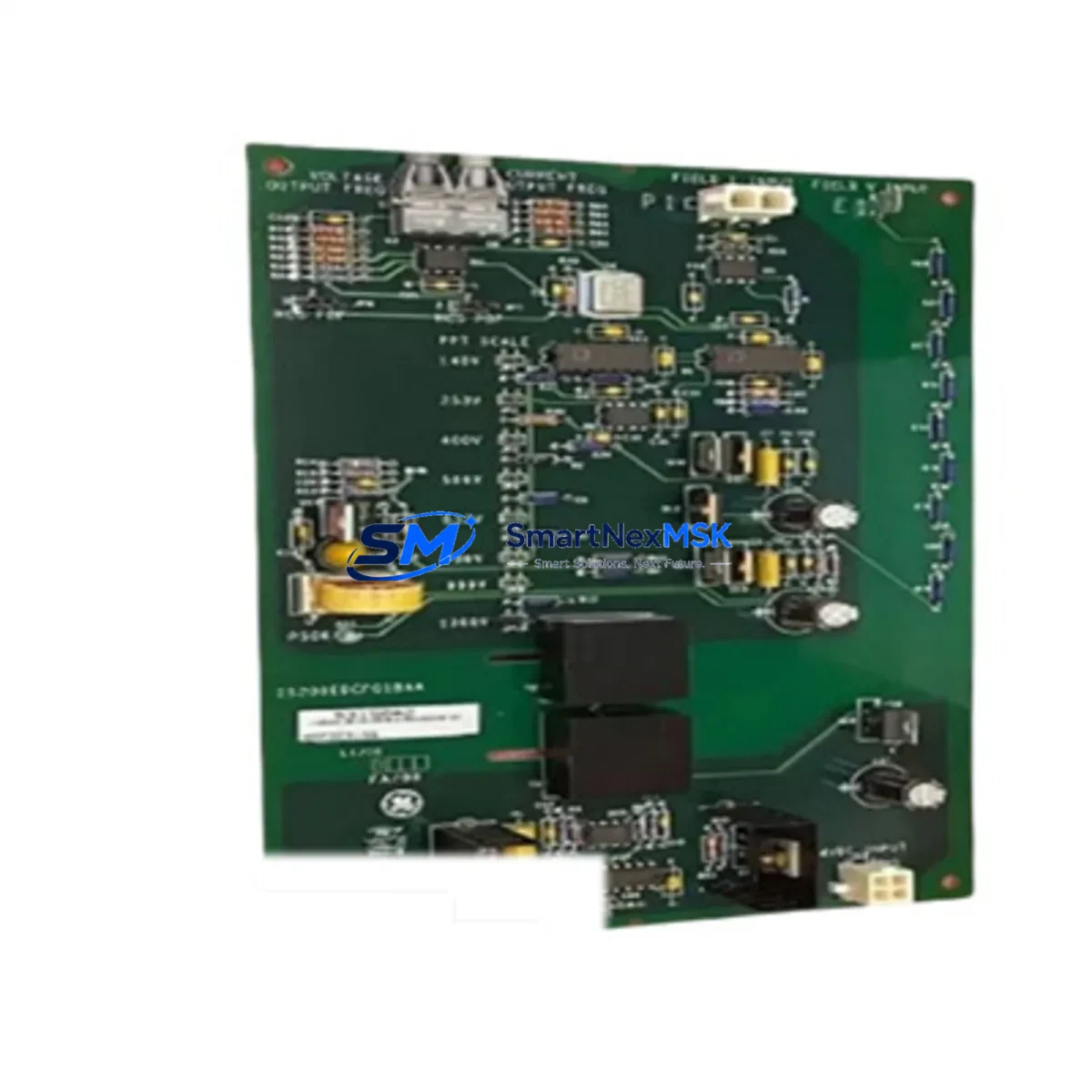

GE IS200EDCFG1BAA Safety-Enhanced Exciter DC Feedback Module for Harsh Industrial Sites
The GE IS200EDCFG1BAA is a ruggedized Exciter DC Feedback Module engineered for the GE Mark VI turbine control platform — one of the most demanding and safety-critical distributed control architectures deployed in power generation, petrochemical processing, and heavy industrial facilities worldwide. Designed to operate continuously in high-load, high-interference environments, this module plays a pivotal role in maintaining exciter loop integrity, preventing signal drift, and ensuring that turbine control systems remain stable under the most adverse field conditions.
In critical turbine control cabinets, the IS200EDCFG1BAA interfaces directly with the exciter regulation circuit, providing real-time DC feedback signals that the Mark VI controller relies upon to maintain generator excitation within safe operating limits. Any degradation in this feedback path — whether caused by electrical noise, power supply fluctuation, surge transients, or module aging — can result in excitation instability, generator trip events, or in worst-case scenarios, uncontrolled field current runaway. The IS200EDCFG1BAA is built to eliminate these failure modes through robust signal conditioning, galvanic isolation, and hardened input protection circuitry.
Field engineers working in combined-cycle power plants, gas turbine peaking stations, and industrial cogeneration facilities consistently rely on this module as a long-term, drop-in replacement for aging or failed exciter feedback boards. Its compatibility with the full GE Mark VI I/O architecture — including the VCMI communication interface module, the PPRO protection processor board, the TTUR turbine trip relay module, and the PSVO servo output card — makes it a cornerstone component in any Mark VI cabinet refurbishment or safety upgrade project.
Safety Reliability Table
| Parameter | Specification / Capability |
|---|---|
| Part Number | IS200EDCFG1BAA |
| Platform Compatibility | GE Mark VI Turbine Control System |
| Module Function | Exciter DC Feedback Signal Conditioning |
| Signal Isolation | Galvanic isolation on DC feedback inputs |
| Surge / Transient Protection | Built-in input surge suppression circuitry |
| Operating Temperature | 0°C to +60°C (industrial cabinet rated) |
| Humidity Tolerance | 5% to 95% RH, non-condensing |
| EMI / RFI Resistance | Hardened for high-interference industrial environments |
| Power Supply Compatibility | Mark VI standard backplane power (±15 VDC / +5 VDC) |
| Mounting | Mark VI I/O rack, standard card slot |
| Outgoing Test Standard | Full functional test prior to shipment |
| Warranty | 12 Months — covers functional failure under normal operating conditions |
| Condition | New / Refurbished (tested to OEM specification) |
| Lead Time | In stock — same-day or next-business-day dispatch available |
Control Cabinet Protection Strategy
A reliable Mark VI turbine control cabinet is only as strong as its weakest feedback path. The IS200EDCFG1BAA anchors the exciter feedback loop, but its effectiveness is amplified when paired with a complete suite of protection and communication components. In a properly configured Mark VI cabinet, the IS200VCMIH2B VCMI communication interface module manages high-speed I/O data exchange between the controller and field devices, while the IS200PPROS1A protection processor board executes turbine protection logic and trip decisions in real time. Together, these modules form the backbone of a fault-tolerant control architecture.
On the power supply side, the IS200EPCTG1A power conditioning terminal board and associated IS200PSVO servo output card ensure that exciter drive signals remain clean and stable even during grid disturbances or local power fluctuations. Upstream, a dedicated 24 VDC redundant power supply module — such as those used in the Mark VI PDIO power distribution assembly — provides the low-voltage rail stability that the IS200EDCFG1BAA’s analog circuitry depends upon for accurate feedback measurement.
For plants operating in environments with significant electromagnetic interference — such as those near large motor drives, arc furnaces, or high-voltage switchgear — the addition of the IS200TTUR turbine trip relay module and IS200DSPXH1D digital signal processor board provides an additional layer of signal integrity protection. These components work in concert with the IS200EDCFG1BAA to ensure that exciter feedback data reaching the Mark VI controller is free from noise-induced errors that could trigger spurious trips or mask genuine fault conditions.
Communication integrity is equally critical. The IS200ECTBG1A exciter control terminal board provides the physical interface layer between the IS200EDCFG1BAA and the field wiring, offering screw-terminal connectivity with built-in transient suppression. When combined with the IS200STCIH2B serial communication interface card for Modbus or PROFIBUS integration, operators gain full remote visibility into exciter loop health — enabling predictive maintenance before a feedback anomaly escalates into an unplanned shutdown.
Critical Industrial Safety Applications
The IS200EDCFG1BAA is deployed across a wide range of safety-critical industrial sectors where turbine control reliability is non-negotiable:
Power Generation (Gas & Steam Turbines): In combined-cycle power plants and peaking stations, the module maintains exciter feedback accuracy during rapid load changes and grid frequency events. Loss of exciter feedback in these environments can result in generator under-excitation, leading to reactive power instability and potential grid disconnection.
Petrochemical & Refinery Sites: Compressor trains and process gas turbines in refineries operate in classified hazardous areas with high ambient temperatures and corrosive atmospheres. The IS200EDCFG1BAA’s hardened design ensures continuous operation in these conditions, supporting the safety interlock systems that protect against overspeed and over-excitation events.
Mining & Mineral Processing: Large grinding mill drives and conveyor system turbines in mining operations demand uninterrupted control loop performance. The module’s surge protection capability is particularly valuable in these environments, where heavy equipment switching generates significant electrical transients on shared power distribution systems.
Water & Wastewater Treatment: Pump station turbines and large centrifugal blowers in municipal water treatment facilities rely on stable exciter control to maintain consistent flow rates. The IS200EDCFG1BAA supports the continuous, unattended operation that these critical infrastructure applications require.
Metallurgy & Steel Production: Rolling mill drives and blast furnace blower turbines in steel plants operate in extreme thermal and electromagnetic environments. The module’s robust construction and wide operating temperature range make it well-suited for these demanding applications, where control system downtime directly translates to significant production losses.
Port & Marine Terminal Operations: Shore power systems and large crane drive turbines at container terminals require reliable exciter control to manage the high inrush currents associated with heavy lift operations. The IS200EDCFG1BAA provides the feedback stability needed to prevent exciter saturation during these high-demand cycles.
Safety and Quality FAQ
Q1: What does the 12-month warranty cover for the IS200EDCFG1BAA?
The 12-month warranty covers all functional failures under normal operating conditions, including signal conditioning failures, communication faults, and component-level defects. Warranty claims are processed with priority turnaround, and a replacement unit can be dispatched while the failed module is under evaluation, minimizing your site downtime.
Q2: What pre-shipment testing is performed on each IS200EDCFG1BAA unit?
Every IS200EDCFG1BAA unit undergoes a comprehensive functional test protocol before dispatch. This includes DC feedback signal accuracy verification, input surge protection validation, backplane communication integrity check, and thermal cycling to confirm stable operation across the full operating temperature range. A test report is available upon request.
Q3: Is the IS200EDCFG1BAA compatible with all Mark VI hardware revisions?
The IS200EDCFG1BAA is designed for the GE Mark VI I/O architecture and is compatible with standard Mark VI rack configurations. For specific hardware revision compatibility — particularly in older Mark VI installations or those that have undergone partial upgrades — our technical team can verify compatibility based on your cabinet serial number and existing board revision data before shipment.
Q4: Can you guarantee long-term supply availability for ongoing maintenance programs?
Yes. SMARTNEXMSK maintains dedicated inventory of the IS200EDCFG1BAA and related Mark VI components to support long-term maintenance contracts and emergency spare programs. We work with industrial facilities that require guaranteed spare availability over multi-year maintenance windows, and can provide framework agreements for priority stock reservation upon request.
