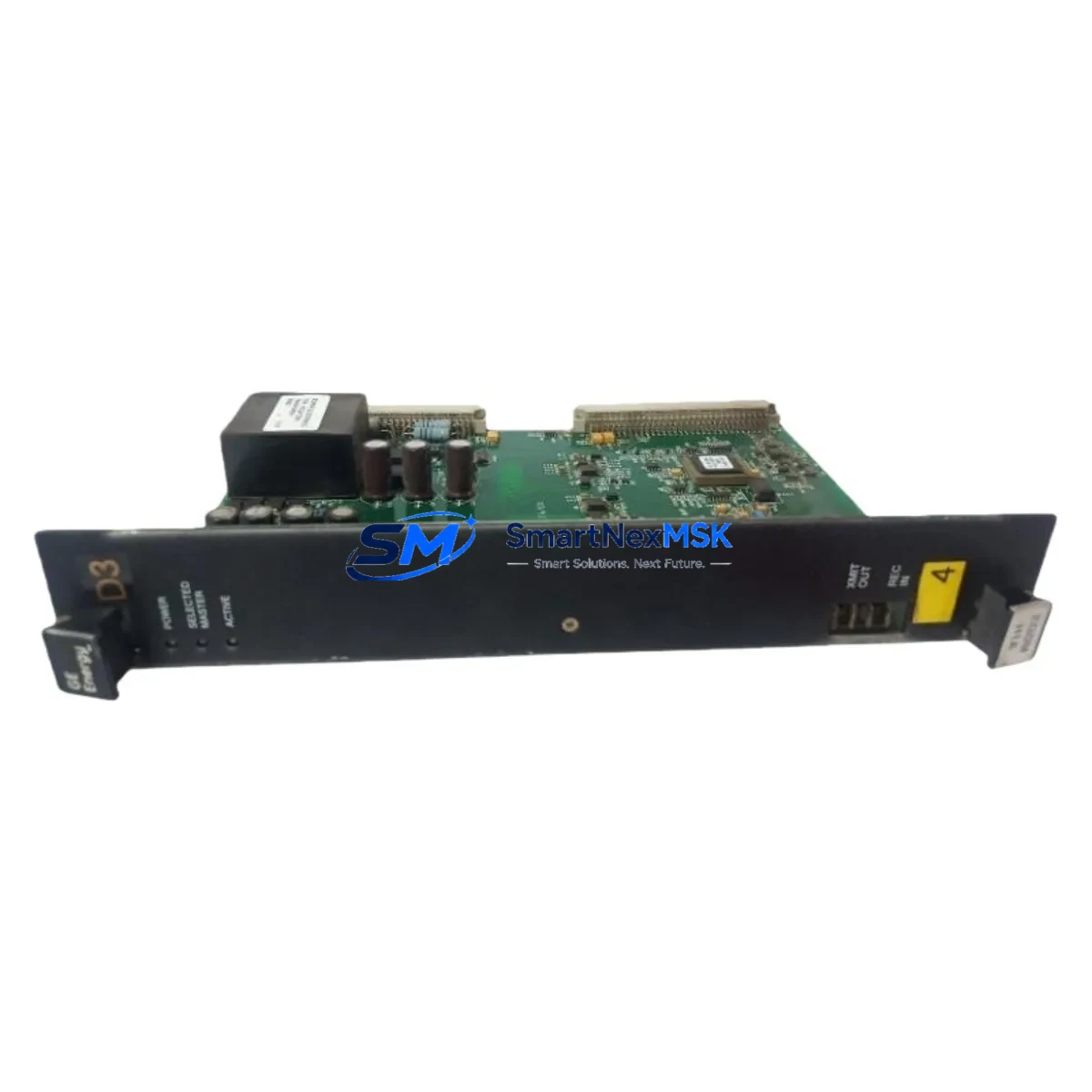

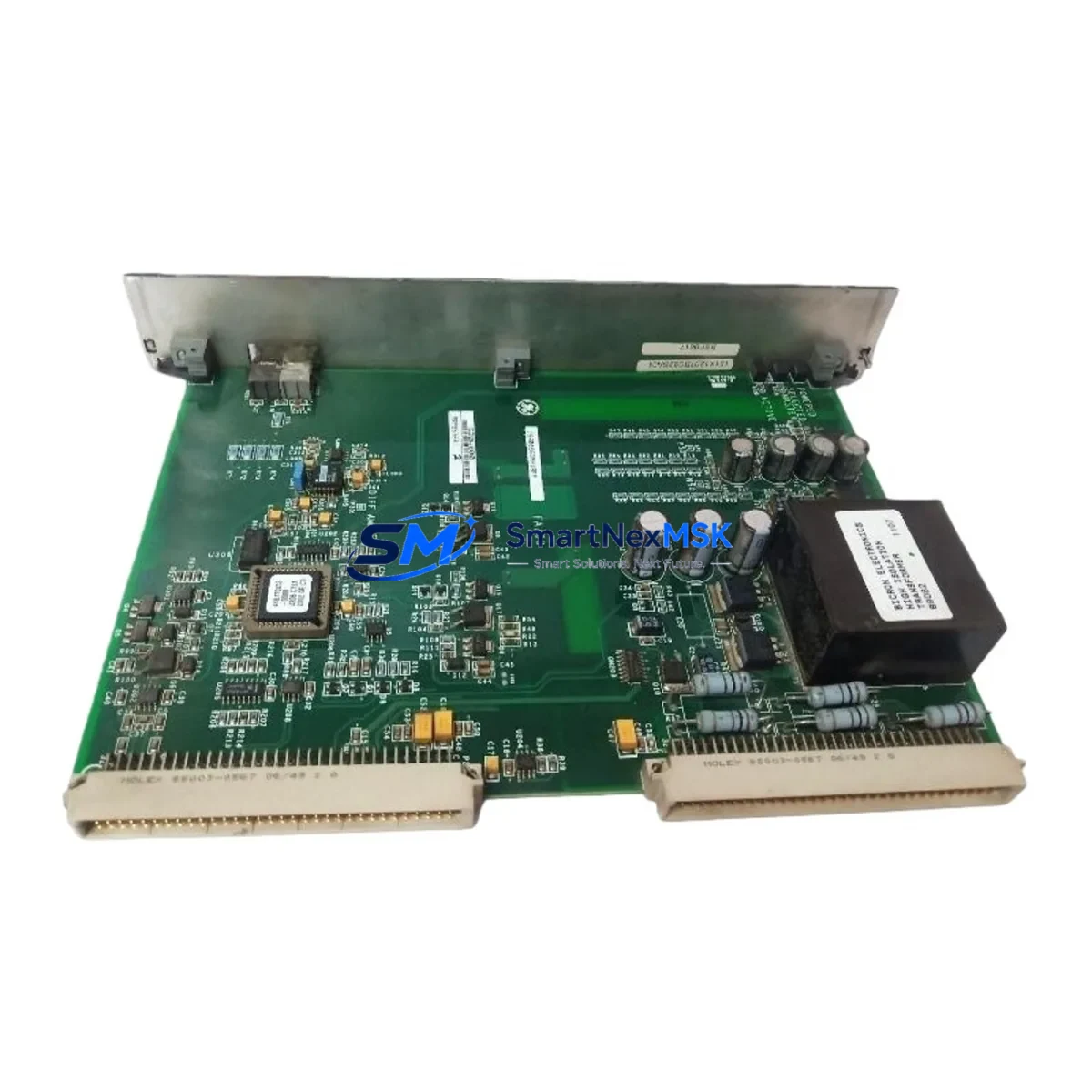

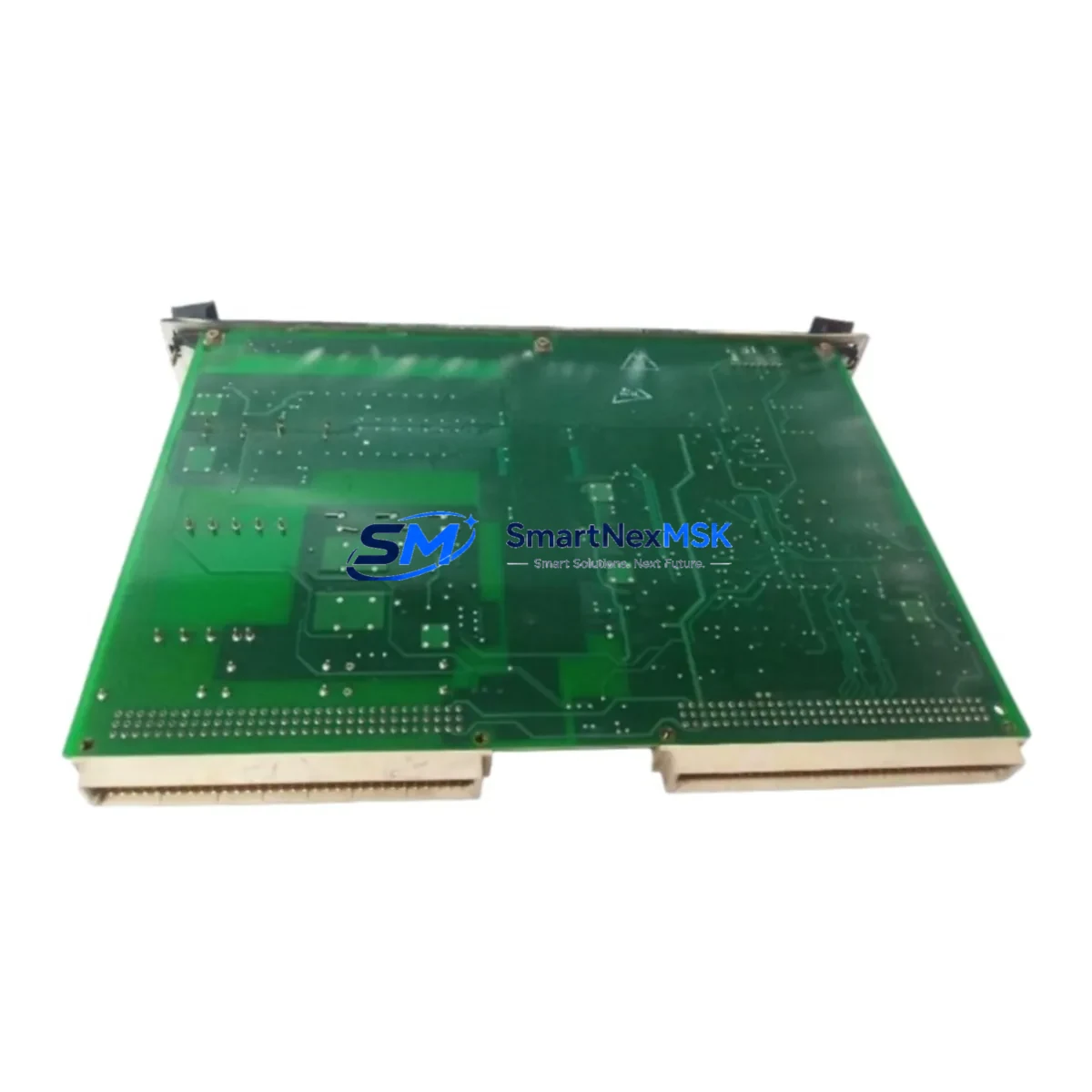

GE IS200EGDMH1AFG Safety-Enhanced Exciter Ground Detector

GE IS200EGDMH1AFG Safety-Enhanced Exciter Ground Detector: Reliable Ground Fault Protection for Harsh Industrial Control Sites

The GE IS200EGDMH1AFG is a ruggedized exciter ground detector module engineered for deployment within GE EX2100 excitation systems and Mark VI turbine control platforms. In high-stakes industrial environments — including power generation, petrochemical processing, metallurgical plants, and continuous manufacturing facilities — undetected ground faults in excitation circuits represent one of the most critical risks to generator and turbine availability. The IS200EGDMH1AFG is purpose-built to eliminate that risk, providing continuous, real-time ground fault monitoring that protects both equipment and personnel.

Designed to operate reliably under the demanding conditions of heavy industrial control cabinets, this module withstands wide temperature fluctuations, high electromagnetic interference (EMI), voltage transients, and the mechanical vibration common to turbine halls and compressor stations. Its ruggedized construction ensures that even in environments where signal integrity is routinely challenged by variable-frequency drives, large motor starts, and switching power supplies, the IS200EGDMH1AFG maintains accurate, stable ground fault detection without nuisance trips or missed fault events.

Within a properly configured EX2100 excitation panel, the IS200EGDMH1AFG works in close coordination with companion modules such as the IS200EACFG1A AC feedback card, the IS200EPCTG1A power converter control board, and the IS200EDIFG1A digital I/O interface module. Together, these components form a tightly integrated safety and control architecture that ensures excitation current is precisely regulated while any ground fault condition is immediately flagged to the Mark VI controller — enabling protective relay action before equipment damage can occur.

In critical interlock circuits, the IS200EGDMH1AFG feeds fault status signals directly into the Mark VI IS215UCVEH2A VME controller or the IS200TTURH1CBB turbine control I/O terminal board, allowing the distributed control system to execute automatic shutdown sequences or alarm escalation in accordance with site safety logic. This integration is essential in facilities operating under IEC 61511 functional safety requirements or where SIL-rated interlock loops govern turbine trip and generator protection.

Power supply stability is equally critical to the reliable operation of the IS200EGDMH1AFG. Installations should ensure that the module is fed from a well-regulated DC bus, ideally protected by a dedicated IS200EPSMG1A power supply module or equivalent EX2100-series power conditioning unit. Surge protection devices and EMI filters on the excitation bus further reduce the risk of transient-induced measurement errors that could compromise ground fault detection accuracy during grid disturbances or capacitor bank switching events.

For communication integrity within the Mark VI architecture, the IS200EGDMH1AFG relies on the IONet and ARCNET communication backbones managed by the IS215ACLEH2A communication interface board. Maintaining clean, low-latency communication between the ground detector and the controller is essential for timely fault response — particularly in fast-acting protection schemes where milliseconds matter. Any communication anomaly or packet loss in this path should be treated as a safety-critical event and investigated immediately.

Replacement and spare parts management for the IS200EGDMH1AFG is straightforward. SMARTNEXMSK maintains verified stock of this module alongside related EX2100 and Mark VI components, including the IS200ESELH1A selector card and IS200ECTBG1A exciter control terminal board. All units undergo pre-shipment functional testing and insulation verification to confirm that ground detection circuitry is fully operational before dispatch — eliminating the risk of installing a defective spare during a critical maintenance window.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust EX2100 excitation control cabinet is only as reliable as its weakest protection layer. The IS200EGDMH1AFG anchors the ground fault detection layer, but effective cabinet-level protection demands a coordinated approach across multiple subsystems. The IS200EPCTG1A power converter control board governs the firing of thyristor bridges, and any ground fault that goes undetected at the excitation winding level can propagate destructive fault currents through these power semiconductors within milliseconds. By providing early-warning ground fault signals, the IS200EGDMH1AFG enables the control system to initiate a controlled de-excitation sequence rather than a destructive fault trip.

On the I/O side, the IS200EDIFG1A digital interface module collects discrete status signals from protection relays, breaker auxiliary contacts, and field suppression switches. When the IS200EGDMH1AFG asserts a ground fault alarm, this signal is routed through the IS200EDIFG1A to the Mark VI controller, where it is processed against the site’s protective relay logic. Simultaneously, the IS200EACFG1A AC feedback card monitors excitation voltage and current waveforms, providing the controller with the data needed to distinguish a genuine ground fault from a transient measurement artifact — reducing nuisance trips in environments with high harmonic distortion.

Power quality within the cabinet is maintained by the IS200EPSMG1A power supply module, which provides regulated DC power to all control cards including the IS200EGDMH1AFG. Voltage sags, micro-interruptions, and conducted EMI on the DC bus are among the most common causes of spurious ground fault indications; a well-maintained power supply module is therefore a direct contributor to ground detection reliability. Surge protection devices installed at the cabinet entry point, combined with EMI filtering on signal cables, complete the cabinet-level protection strategy and ensure that the IS200EGDMH1AFG operates within its specified measurement accuracy across all load conditions.

Critical Industrial Safety Applications

The IS200EGDMH1AFG is deployed across a wide range of heavy industrial sectors where generator excitation reliability is non-negotiable. In power generation plants — including gas turbine, steam turbine, and combined-cycle facilities — the module provides continuous ground fault surveillance on the excitation winding, enabling operators to detect insulation degradation before it progresses to a phase-to-ground fault that could force an unplanned unit trip. In facilities operating multiple generating units, a single undetected ground fault can cascade into a second ground fault on a different phase, resulting in a double ground fault that causes severe winding damage and extended outage.

In petrochemical and refinery environments, where continuous operation of compressor trains and process pumps is critical to production throughput and safety, the IS200EGDMH1AFG supports the excitation systems of large synchronous motors and generators driving critical rotating equipment. Ground fault events in these applications can trigger emergency shutdown systems (ESD), and the ability to detect and localize a ground fault before ESD activation allows maintenance teams to plan corrective action during a scheduled maintenance window rather than an emergency outage.

In mining and mineral processing operations, where large synchronous drives power ball mills, crushers, and hoisting equipment, the IS200EGDMH1AFG provides the ground fault detection layer required by electrical safety regulations governing high-voltage rotating machinery in underground and surface mining environments. Similarly, in metallurgical plants operating electric arc furnaces and rolling mill drives, the module’s ability to maintain accurate ground fault detection in the presence of extreme harmonic distortion and high-frequency interference from thyristor converters is a key operational requirement.

Water treatment and pumping stations operating large motor-generator sets for water supply and wastewater treatment rely on the IS200EGDMH1AFG to maintain excitation system integrity in outdoor and semi-outdoor installations subject to humidity, condensation, and wide ambient temperature swings. In port and terminal applications, where shore power systems and large crane drives incorporate synchronous generators, the module supports the ground fault protection schemes required by maritime electrical safety standards.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the IS200EGDMH1AFG?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions consistent with GE EX2100 system specifications. If the module fails to perform its ground fault detection function within the warranty period due to a component or assembly defect, SMARTNEXMSK will provide a replacement unit at no additional cost. The warranty period begins from the date of shipment.

Q2: What pre-shipment testing is performed on the IS200EGDMH1AFG before dispatch?
Every IS200EGDMH1AFG unit undergoes a full functional test that verifies ground fault detection circuit operation, signal output integrity, and power supply input performance. Insulation resistance verification is also performed to confirm that the module’s internal isolation barriers meet GE’s original specification. Test records are retained and can be provided upon request for quality documentation purposes.

Q3: Is the IS200EGDMH1AFG compatible with both EX2100 and Mark VI systems?
Yes. The IS200EGDMH1AFG is designed for use within GE’s EX2100 excitation system, which is fully integrated with the Mark VI turbine control platform. It is compatible with EX2100e and EX2100e-series excitation panels and communicates with the Mark VI controller via the standard IONet and ARCNET communication architecture. Compatibility with specific panel revisions should be confirmed against the GE EX2100 system documentation for the target installation.

Q4: Can SMARTNEXMSK support long-term supply of the IS200EGDMH1AFG for ongoing maintenance programs?
Yes. SMARTNEXMSK maintains ongoing inventory of the IS200EGDMH1AFG and related EX2100 / Mark VI spare parts to support planned maintenance programs, emergency replacements, and capital spares strategies. For customers requiring guaranteed stock reservation or scheduled delivery programs, please contact our sales team to discuss a supply agreement tailored to your maintenance cycle and site requirements.
