GE IS200STAIH2ACB Maintenance-Ready Spare for Mark VIe Automation

GE IS200STAIH2ACB Maintenance-Ready Spare for Mark VIe Automation

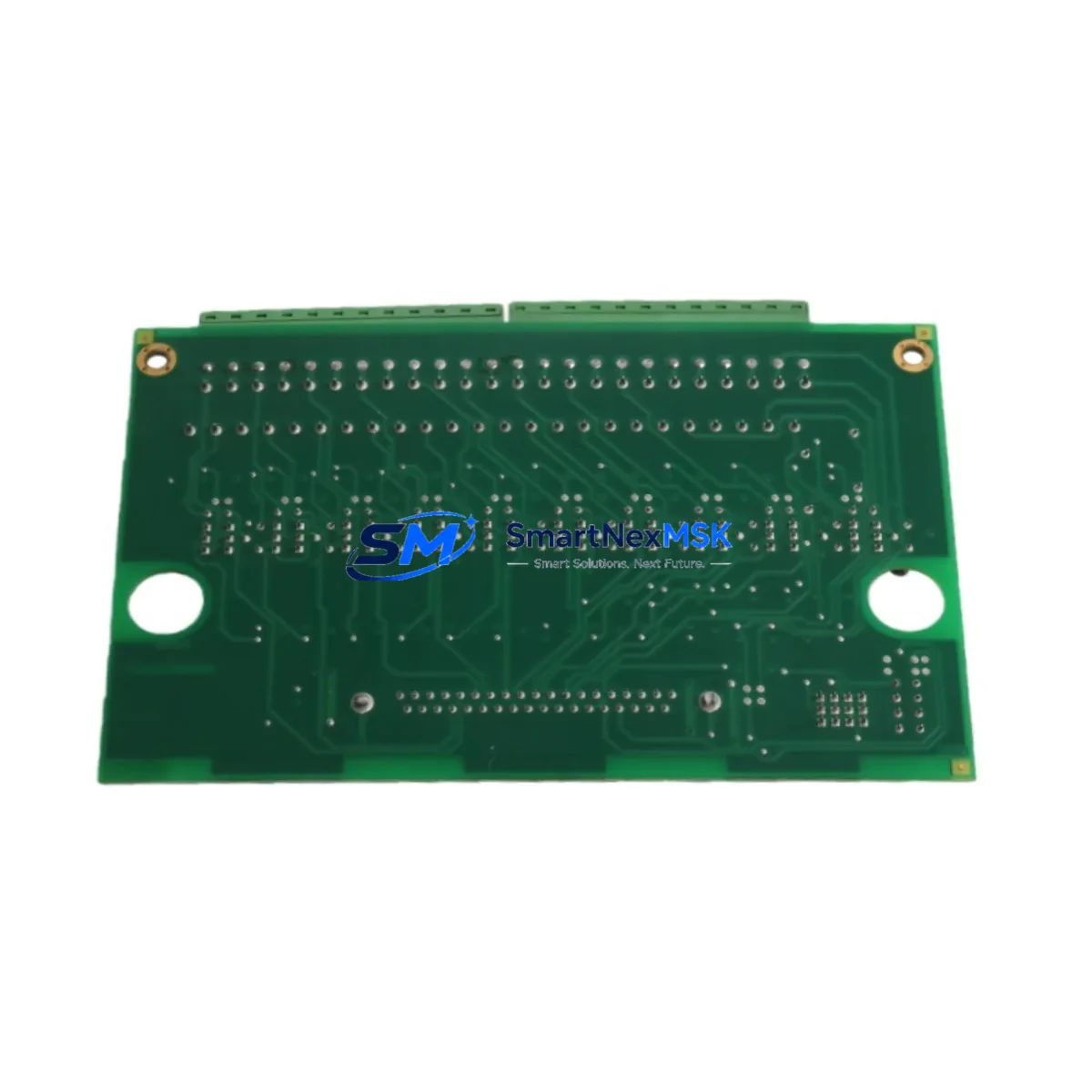

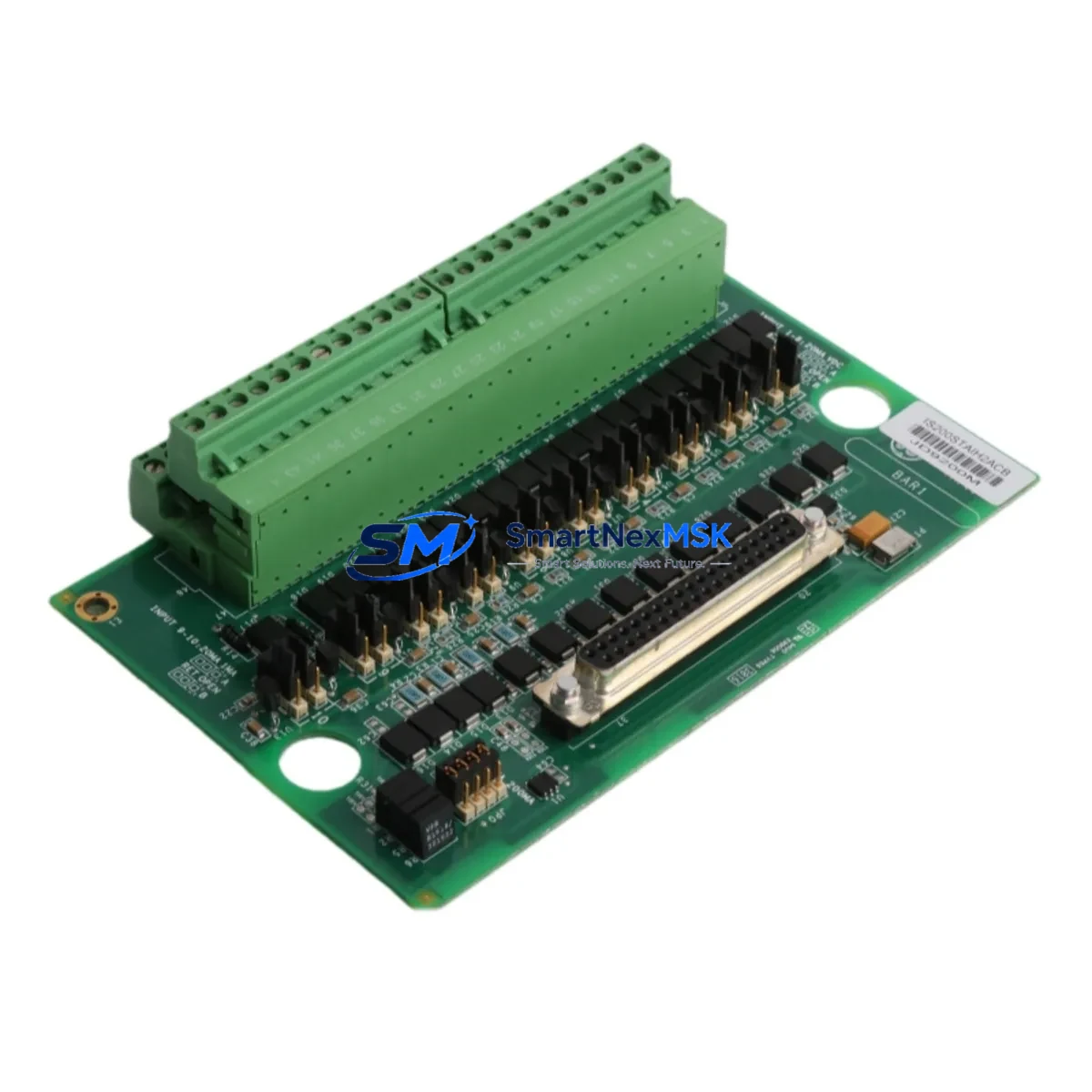

The GE IS200STAIH2ACB (interchangeable with IS230STAIH2A) is an original analog input terminal board engineered for the GE Mark VIe turbine control platform. Designed for gas turbine, steam turbine, and combined-cycle power generation systems, this terminal board serves as the critical interface between field instrumentation and the Mark VIe I/O pack assembly. For maintenance engineers managing aging DCS infrastructure or planning scheduled outages, having a verified spare of the IS200STAIH2ACB on hand is a fundamental risk-reduction strategy.

In industrial power generation and heavy process environments, unplanned downtime caused by a failed analog input terminal board can result in significant production losses. The IS200STAIH2ACB handles thermocouple, RTD, and milliamp analog signal inputs that feed directly into turbine protection and control logic. A degraded or failed board can trigger nuisance trips, loss of temperature monitoring, or complete shutdown of the control loop — all scenarios that demand immediate spare availability.

This listing covers a tested, original GE spare with full functional verification prior to shipment, backed by a 12-month warranty. Each unit undergoes bench-level inspection to confirm connector integrity, board-level continuity, and compatibility with the Mark VIe I/O architecture before dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer identifies the IS200STAIH2ACB as a replacement need, the scope of inspection should extend beyond the terminal board itself. The Mark VIe control cabinet is an integrated system, and a failure in one analog input channel often signals stress or degradation in adjacent components.

During a planned outage or corrective maintenance event involving this terminal board, engineers should simultaneously inspect the IS200STAIS1A STAI I/O pack that mates directly with the IS200STAIH2ACB — connector wear or firmware mismatches between the pack and terminal board are a common source of intermittent analog faults. The IS200VTURH1B turbine protection module and associated IS200TRLYH1B relay output terminal board should also be checked, as these components share the same control cabinet backplane and are part of the same protective relay logic chain.

For power supply integrity, verify the IS200EPCTG1A power converter module and the IS200PSCDH1A power supply distribution board — voltage sags or ripple on the 28 VDC bus can cause analog input boards to report erratic readings before a hard failure occurs. Terminal wiring connected to the IS200STAIH2ACB should be inspected for insulation breakdown, loose ferrules, and correct shielding grounding, particularly on thermocouple extension cables.

Communication health between the Mark VIe controller and the I/O network should be validated using the IS200IOCIH1A IONet communication module. If the system uses redundant I/O, the IS200STAIH2ACB on the redundant path should be swapped simultaneously to maintain symmetry. Additionally, the IS200DTURH1B digital turbine protection terminal board and any installed IS200VSVOH1B servo output modules in the same cabinet should be visually inspected for corrosion, heat discoloration, or connector damage during the same maintenance window.

For facilities managing legacy Mark VIe installations approaching end-of-support, maintaining a minimum stock of two IS200STAIH2ACB units — alongside spares for the STAI I/O pack and the IONet communication module — is a widely adopted best practice to ensure rapid recovery from unplanned analog input failures without waiting on extended lead times.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the failed board’s SKU (IS200STAIH2ACB or IS230STAIH2A) against the cabinet drawing and the Mark VIe configuration file. Both SKUs are functionally interchangeable in the Mark VIe STAI I/O assembly, but confirm the hardware revision level matches your system’s firmware baseline.

Step 2 — Safe isolation: Place the affected I/O pack into bypass mode via the Mark VIe Toolbox software before disconnecting field wiring. This prevents nuisance trips during the swap. Tag and photograph all terminal wiring before removal.

Step 3 — Board swap: Remove the I/O pack from the terminal board, disconnect field wiring from the terminal strip, and extract the IS200STAIH2ACB from the cabinet. Install the replacement board, reconnect field wiring per the tagged photograph, and re-mate the I/O pack.

Step 4 — Functional verification: Using Mark VIe Toolbox, perform a channel-by-channel analog input verification. Confirm signal values match expected engineering unit readings from field instruments. Check for any active diagnostics or I/O fault alarms before returning the system to automatic control.

Step 5 — Documentation: Record the replaced board’s serial number, installation date, and firmware revision in the plant maintenance management system (CMMS). Reorder a replacement spare immediately to restore buffer stock.

This workflow minimizes turbine downtime to under two hours for a prepared maintenance team and eliminates the risk of extended outages caused by unavailable spares or incorrect replacement procedures.

Spare Parts Support FAQ

Q1: Is the IS200STAIH2ACB fully interchangeable with the IS230STAIH2A?
Yes. Both SKUs refer to the same GE Mark VIe analog input terminal board design. The IS230STAIH2A designation is used in some GE documentation and cabinet drawings interchangeably with IS200STAIH2ACB. Always verify the hardware revision suffix against your system’s BOM before installation.

Q2: What testing is performed before shipment?
Each IS200STAIH2ACB unit is bench-tested for connector integrity, board-level continuity, and visual inspection for physical damage, corrosion, or component anomalies. A functional verification report is available upon request. All units ship with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can this terminal board be used in non-GE turbine control systems?
The IS200STAIH2ACB is designed specifically for the GE Mark VIe I/O architecture and is not directly compatible with third-party DCS or PLC platforms without custom adaptation. It is compatible across Mark VIe installations regardless of turbine OEM (GE, Siemens-licensed, or third-party Mark VIe integrators), provided the I/O pack and firmware versions are aligned.

Q4: What is the recommended spare parts stocking strategy for this board?
For facilities operating one to three Mark VIe-controlled turbines, a minimum of two IS200STAIH2ACB units in on-site inventory is recommended. For larger fleets or critical baseload units, three to five units provide adequate coverage for both corrective and preventive replacement cycles. Long-term supply continuity is supported — contact our team for volume pricing and annual supply agreements.
