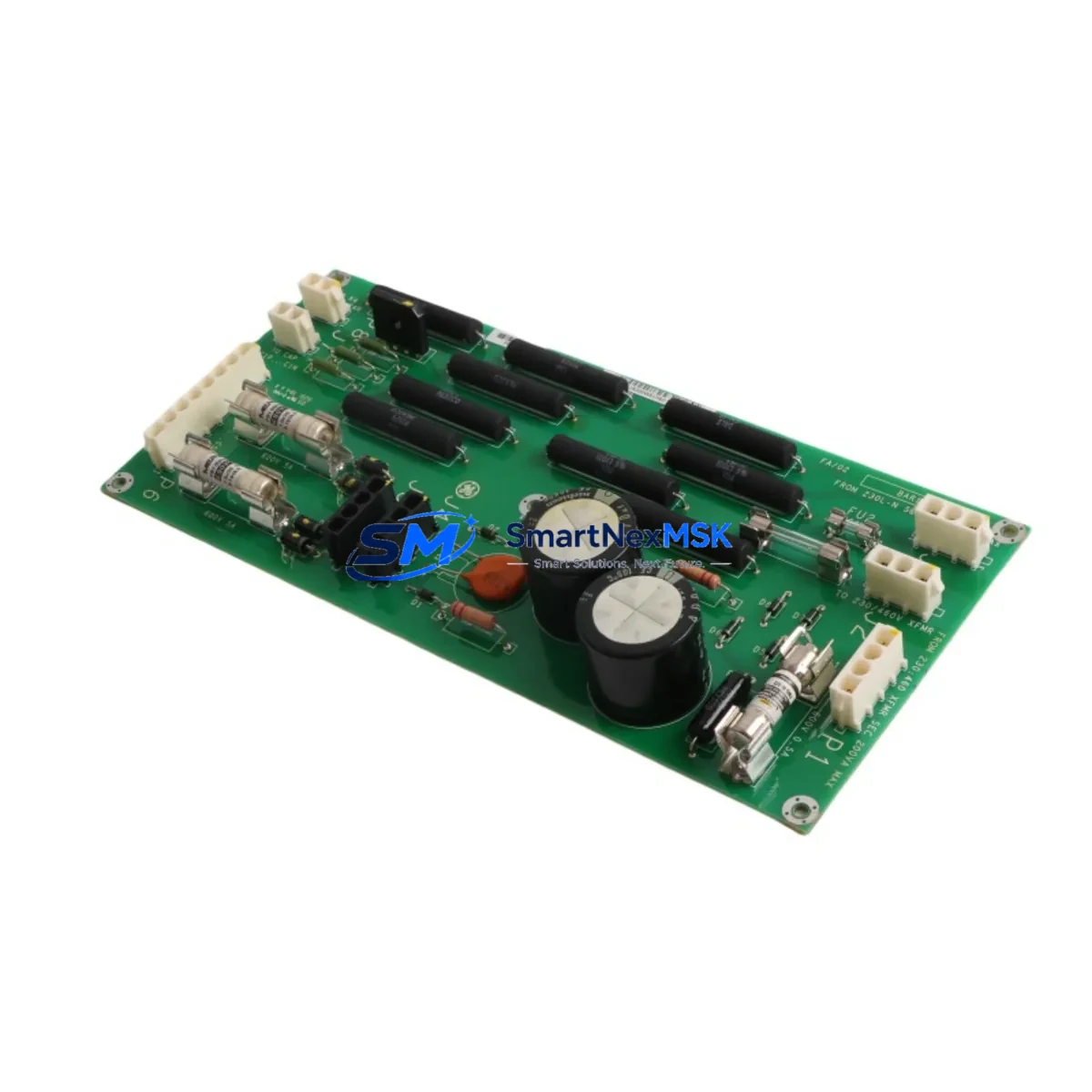

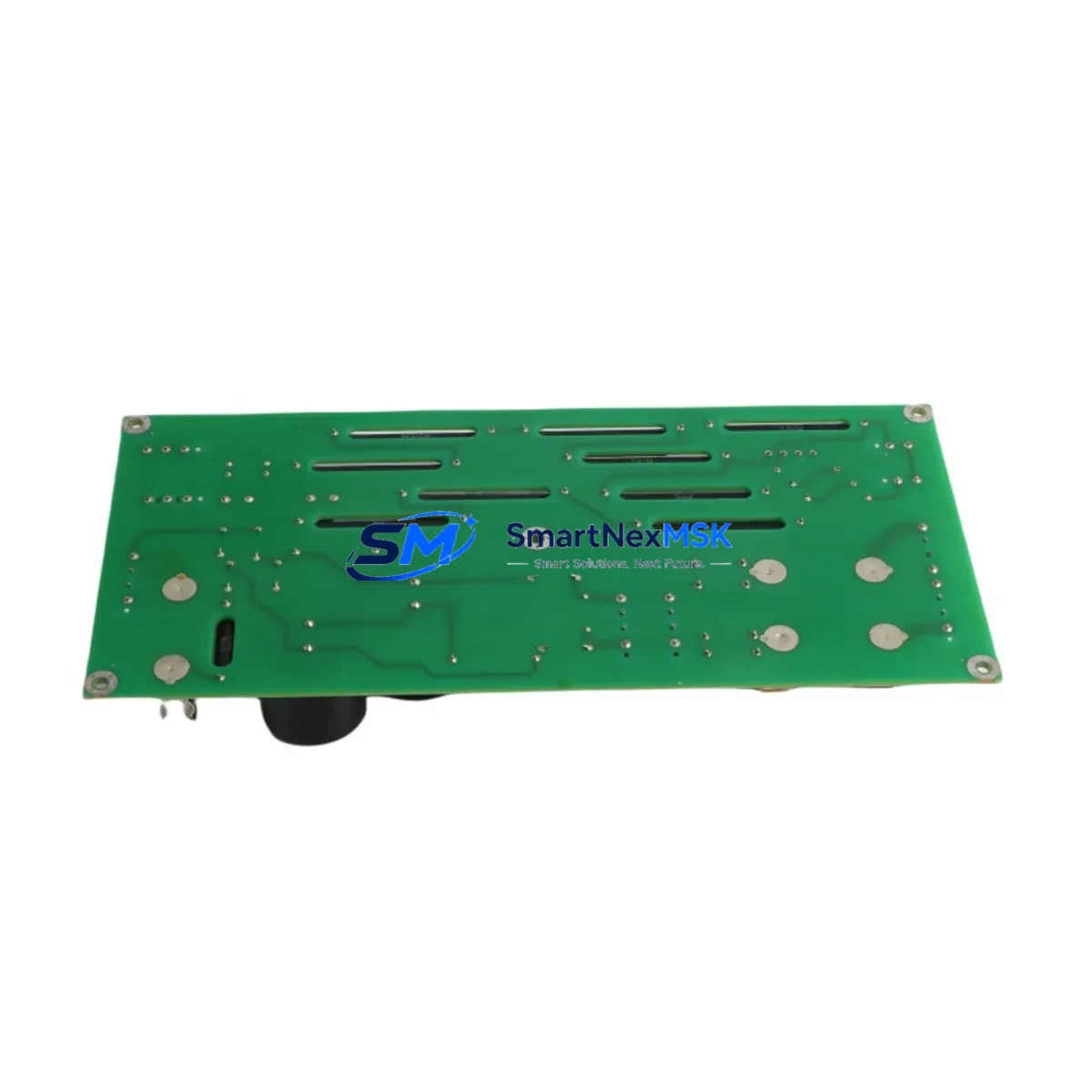

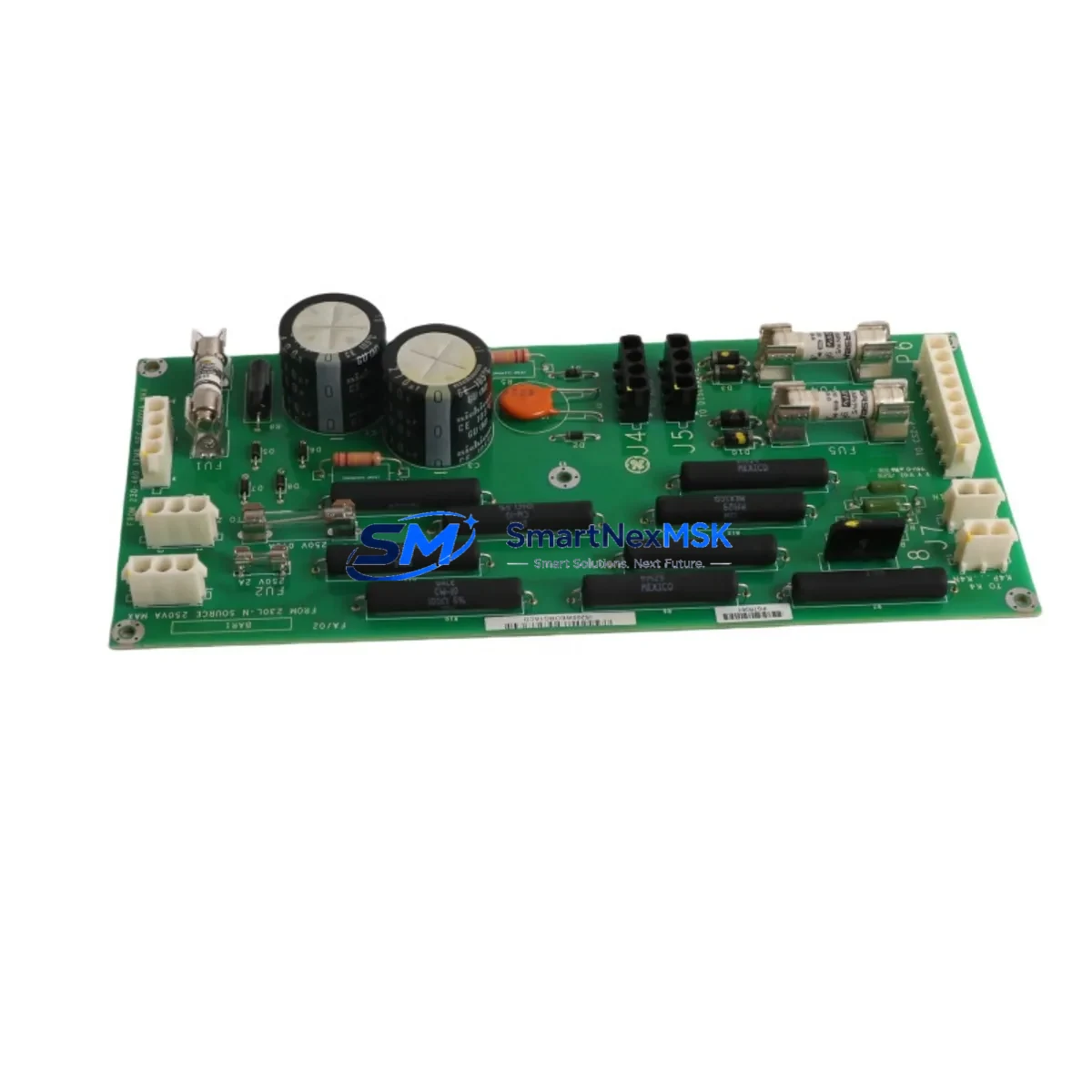

GE IS200WEORG1A Retrofit-Ready Excitation Output Board for EX2100 Mark VI Control Systems
The GE IS200WEORG1A is a critical Excitation Regulator Output Board designed for seamless integration into GE EX2100 and Mark VI turbine control platforms. As legacy excitation systems approach end-of-life and OEM support windows close, the IS200WEORG1A has become one of the most sought-after retrofit components for power generation facilities, petrochemical plants, and heavy industrial operations running aging GE control architectures. This board serves as a verified drop-in replacement for discontinued excitation output modules, enabling engineers to restore full system functionality without redesigning the control cabinet or migrating to an entirely new control platform.
Whether your facility is executing a planned outage upgrade, responding to an unplanned module failure, or proactively building a critical spare inventory, the IS200WEORG1A delivers the electrical compatibility, backplane interface alignment, and firmware handshake characteristics required by the EX2100 excitation controller. Each unit shipped from SMARTNEXMSK stock undergoes pre-shipment functional verification, including output channel continuity checks, backplane connector integrity inspection, and visual PCB examination — all documented under our 12-month warranty program.
Upgrade Compatibility Table
| Parameter | IS200WEORG1A Specification | Retrofit Notes |
|---|---|---|
| Compatible Platform | GE EX2100, Mark VI | Verify firmware revision on UCVEH or UCPEH controller card before installation |
| Backplane Interface | VME-style 96-pin DIN connector | Confirm rack slot assignment matches original module address in ToolboxST configuration |
| Output Channels | Analog excitation regulation outputs | Re-verify field terminal wiring against original I/O drawing; terminal block pitch is identical to predecessor boards |
| Communication Compatibility | IONet (GE proprietary) | No protocol migration required when replacing within same Mark VI rack |
| Power Supply Requirement | +5 VDC / +15 VDC / -15 VDC from rack PSU | Confirm IS200EPSMG1A or equivalent power supply capacity before hot-swap; check rail voltages under load |
| Installation Type | Direct rack insertion, no bracket modification | Torque backplane connector screws to spec; avoid over-tightening on aged rack guides |
| Commissioning Tool | GE ToolboxST / WorkstationST | Re-download I/O configuration after module swap; validate signal scaling and alarm setpoints |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment functional test report |
Retrofit Planning for Existing Automation Systems
Successful integration of the IS200WEORG1A into an operating turbine control system requires careful pre-outage planning across multiple subsystems. Engineers should begin by auditing the existing Mark VI rack configuration using ToolboxST to confirm the current module slot address, I/O block assignments, and any custom scaling applied to excitation output channels. The IS200WEORG1A slots into the same VME-format rack used across the EX2100 platform, sharing the backplane with companion boards such as the IS200VCRCH1B voltage regulator card, the IS200EPSMG1A rack power supply module, and the IS200TRLYH1B relay output terminal board.
Terminal wiring should be documented from the original IS200WEORG1A or its predecessor before removal. Field cables connecting to the excitation transformer, AVR feedback circuits, and field breaker control loops must be re-landed precisely on the replacement board’s terminal block. Because the IS200WEORG1A uses the same terminal pitch and labeling convention as other Mark VI I/O boards, most facilities can reuse existing field wiring without modification — a significant advantage over cross-platform migrations that require complete rewiring of the control cabinet.
For sites also upgrading their HMI layer, the IS200WEORG1A retrofit is fully compatible with GE’s Cimplicity SCADA environment. Existing HMI faceplates for excitation control, reactive power regulation, and field current monitoring do not require redesign when the replacement board is installed within the same Mark VI architecture. If the facility is simultaneously migrating from an older Mark V platform, additional IONet gateway configuration via the IS200IOCNG1A communication interface card may be required to bridge legacy serial links to the updated control network.
Sites managing multiple turbine units should consider stocking the IS200WEORG1A alongside related critical spares including the IS200VTURH1B turbine protection card, IS200DSPXH1B digital signal processor board, and IS200STCIH1B static excitation interface module. Coordinating spare inventory across these interdependent modules reduces the risk of extended outages caused by cascading failures in the excitation and protection subsystems.
Downtime Control During System Migration
Minimizing turbine downtime during an IS200WEORG1A replacement requires a structured hot-swap protocol and pre-validated spare. Before the planned outage window, engineers should use ToolboxST to export the current I/O configuration, alarm setpoints, and excitation control parameters as a backup file. This ensures that if the replacement module requires re-commissioning from scratch, the original logic can be reloaded without manual re-entry — protecting weeks of tuning work accumulated during initial commissioning.
During the physical swap, the Mark VI rack should be de-energized at the local control panel before extracting the failed IS200WEORG1A. After seating the replacement board and securing the backplane connector, rack power can be restored and the ToolboxST configuration re-downloaded to the new module. Signal verification should follow the original loop check procedure: confirm analog output scaling on each excitation channel, verify field current feedback signals are within expected range, and test the field breaker open/close command path before returning the unit to automatic voltage regulation mode.
For facilities that cannot tolerate a full control system outage, SMARTNEXMSK can support pre-shipment configuration consultation to ensure the replacement IS200WEORG1A is prepared to the correct firmware baseline and I/O mapping before it arrives on site — further compressing the active installation window to under two hours in most cases.
Retrofit Support FAQ
Q: Is the IS200WEORG1A a direct drop-in replacement for all EX2100 excitation output boards?
A: The IS200WEORG1A is compatible with EX2100 and Mark VI racks using the standard VME backplane. Confirm your rack revision and ToolboxST firmware version before ordering. Our technical team can cross-reference your existing part number against known compatible revisions.
Q: What commissioning steps are required after installing the replacement board?
A: After physical installation, re-download the I/O configuration via ToolboxST, verify analog output scaling on all excitation channels, and perform a loop check on field current feedback and field breaker control circuits. HMI faceplate validation in Cimplicity should follow before returning to automatic mode.
Q: Does the IS200WEORG1A require any terminal wiring changes compared to the original board?
A: No. The IS200WEORG1A uses the same terminal block pitch and labeling as the original Mark VI I/O boards. Existing field cables can be re-landed without modification in the vast majority of retrofit applications.
Q: What does the 12-month warranty cover?
A: Our 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit ships with a pre-shipment functional test report. Warranty claims are processed directly through SMARTNEXMSK with priority replacement dispatch to minimize your system downtime.
