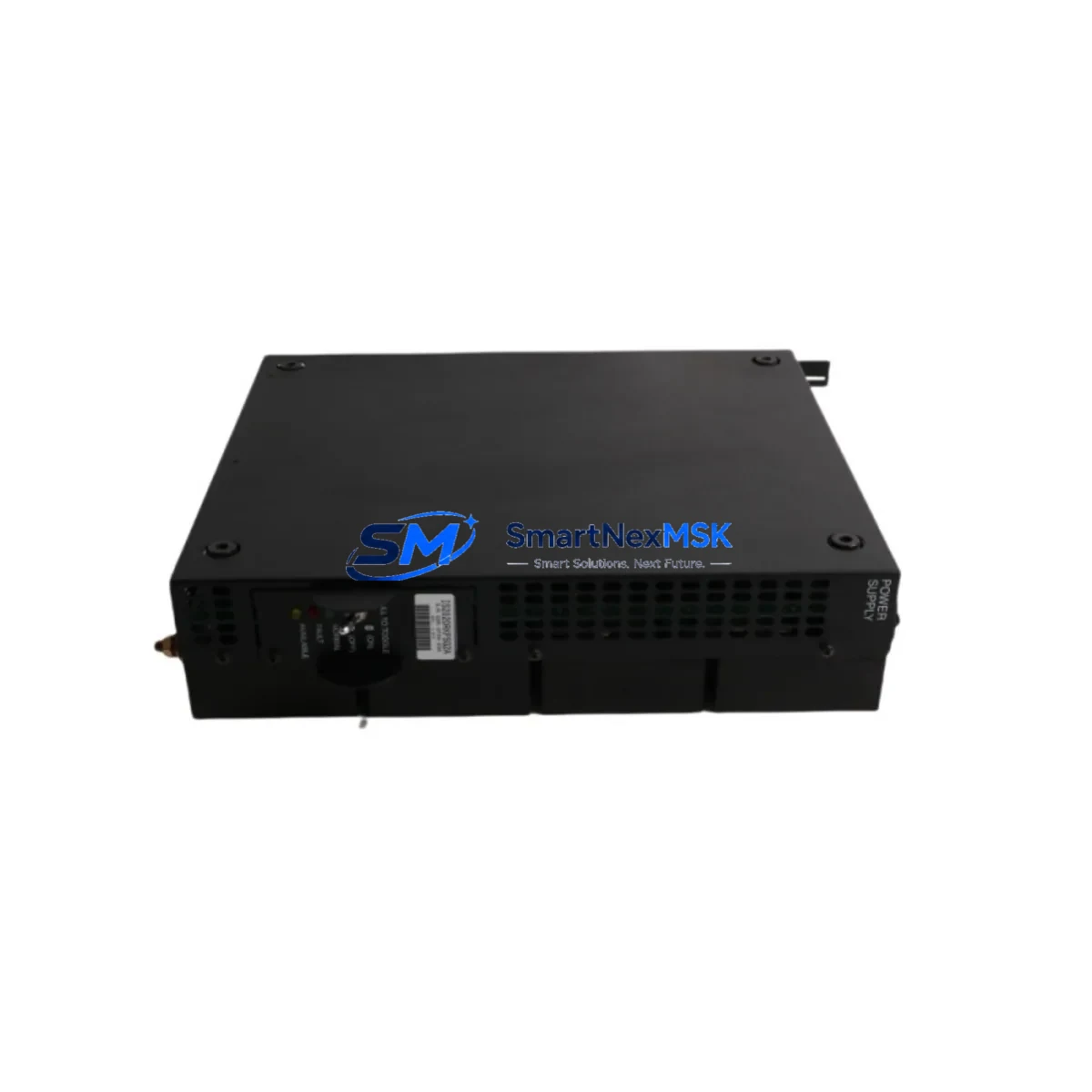

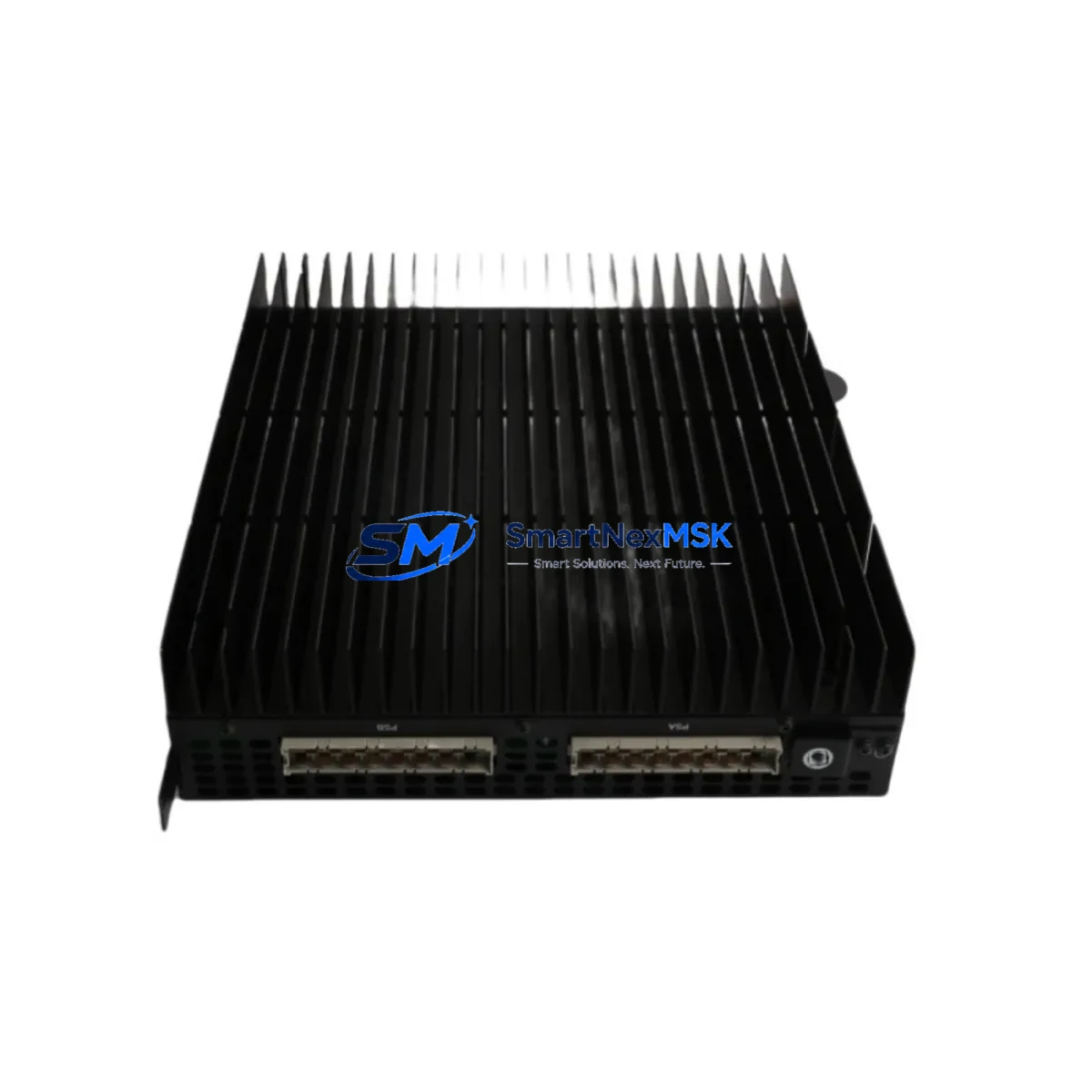

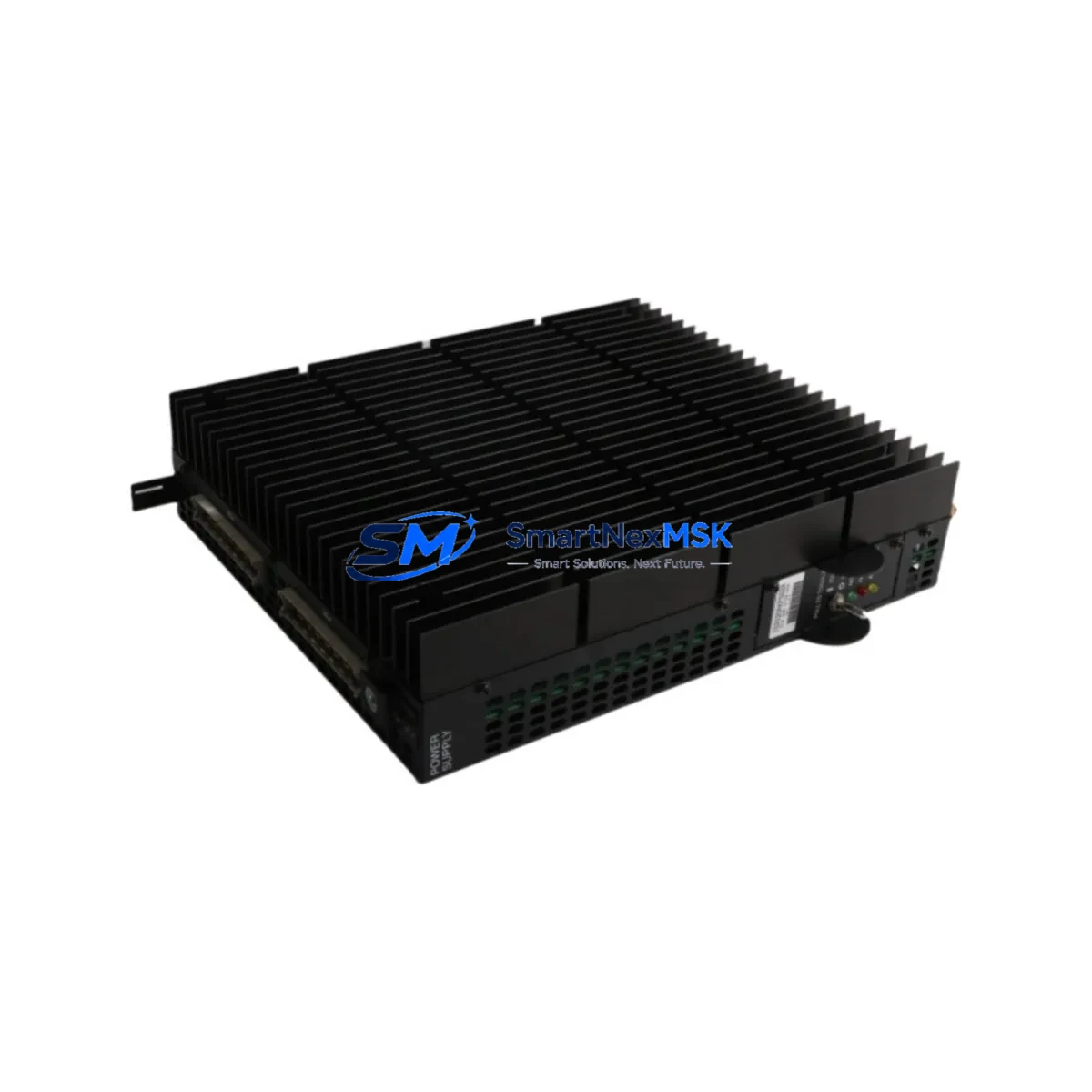

GE IS2020RKPSG1AK Safety-Enhanced Rack Power Supply Module

GE IS2020RKPSG1AK Safety-Enhanced Rack Power Supply Module: Reliable Control in Harsh Industrial Sites

The GE IS2020RKPSG1AK is a ruggedized rack-mount power supply module engineered for the GE Mark VIe turbine control system — one of the most widely deployed distributed control platforms in power generation, petrochemical, and heavy industrial environments. Designed to deliver stable, conditioned DC power to the Mark VIe I/O and controller racks, the IS2020RKPSG1AK is a critical component in any control cabinet where power integrity directly determines process safety and uptime.

In continuous production facilities — gas turbines, steam turbines, combined-cycle plants, and compressor trains — power supply stability is not a convenience feature; it is a safety requirement. Voltage sags, transient surges, and ripple noise on the DC bus can cause downstream modules such as the IS200TTURH1C turbine trip relay, IS200TRLYH1B relay output module, and IS200VSVOH1B servo valve output module to misoperate, triggering spurious trips or, worse, failing to respond to a genuine fault condition. The IS2020RKPSG1AK addresses these risks by providing tightly regulated, low-ripple DC output with built-in surge suppression and overcurrent protection, ensuring that every downstream I/O card in the rack receives clean, stable power regardless of upstream grid disturbances.

Safety Reliability Table

Control Cabinet Protection Strategy

A Mark VIe control cabinet is an integrated safety ecosystem. The IS2020RKPSG1AK sits at the foundation of that ecosystem, supplying conditioned power to every active module in the rack. When specifying or replacing this power supply, engineers should consider the full protection architecture of the cabinet.

On the I/O side, modules such as the IS200TBCIH1C terminal board and IS200TBAIH1C analog input terminal board rely on stable DC rail voltage to maintain accurate signal conditioning. Any power rail instability directly degrades the measurement accuracy of 4–20 mA process signals, potentially masking developing faults in temperature, pressure, or flow loops. Similarly, the IS200TSVOH1B servo output module requires a clean power supply to maintain precise valve positioning — a critical function in fuel control and steam admission circuits where positioning errors can escalate to turbine overspeed or flame-out events.

On the communications and controller side, the IS200UCVEH2A VME controller card and IS200UERAH1A Ethernet communication module are sensitive to power quality. Brownouts or micro-interruptions on the DC bus can cause controller resets or communication dropouts on the IONet network, breaking the real-time data exchange between the Mark VIe controller and the HMI or historian. The IS2020RKPSG1AK’s regulated output prevents these events by maintaining bus voltage within the tight tolerance window required by GE’s Mark VIe architecture.

For sites operating redundant power configurations, the IS2020RKPSG1AK is typically deployed alongside a second power supply module in an N+1 arrangement. This redundancy is essential in critical interlock loops — for example, in emergency shutdown (ESD) circuits where the IS200TRLYH1B relay output module must remain energized or de-energized in a defined safe state regardless of any single power supply failure. Pairing the IS2020RKPSG1AK with a properly rated UPS or DC bus capacitor bank further extends ride-through capability during grid disturbances, protecting the entire control rack from momentary outages that would otherwise trigger nuisance trips.

For surge protection at the cabinet entry point, coordinating the IS2020RKPSG1AK with a DIN-rail mounted surge protective device (SPD) on the AC input feed is strongly recommended in lightning-prone regions or sites with heavy motor switching loads. This layered protection strategy — SPD at the panel entry, regulated power supply at the rack level, and redundant module configuration — represents best practice for Mark VIe installations in petrochemical, power, and mining environments.

Critical Industrial Safety Applications

Power Generation (Gas & Steam Turbines): The IS2020RKPSG1AK is most commonly found in gas turbine and steam turbine control panels where the Mark VIe system manages fuel control, speed governing, and protective tripping. In these applications, power supply reliability is directly linked to turbine availability and personnel safety. A failed or degraded power supply can disable the overspeed protection relay or the flame detection circuit, creating a hazardous condition. Stocking a verified replacement IS2020RKPSG1AK on-site is standard practice for any plant with a mean time to repair (MTTR) target below 4 hours.

Petrochemical and Refinery Sites: In ATEX-adjacent control rooms and marshalling cabinets serving hazardous area field instruments, the Mark VIe rack must maintain continuous operation to support safety instrumented functions (SIF). The IS2020RKPSG1AK’s surge-protected, regulated output ensures that SIL-rated I/O modules receive the stable power required to maintain their designed probability of failure on demand (PFD) values.

Mining and Mineral Processing: Conveyor drive control, crusher motor management, and ventilation fan interlock systems in underground and open-cut mining operations subject control hardware to extreme vibration, dust ingress, and wide ambient temperature swings. The ruggedized construction of the IS2020RKPSG1AK makes it suitable for these demanding environments, where a power supply failure can halt production and trigger mandatory safety shutdowns.

Water and Wastewater Treatment: Large pumping stations and treatment plants using GE Mark VIe for pump sequencing and chemical dosing control depend on uninterrupted power to the control rack. The IS2020RKPSG1AK supports continuous operation in these facilities, where a control system outage can result in regulatory non-compliance or environmental incidents.

Metallurgy and Steel Production: Electric arc furnace (EAF) and rolling mill control systems generate severe electrical noise and voltage transients on the plant power network. The IS2020RKPSG1AK’s built-in transient suppression provides a critical buffer between the noisy plant power environment and the sensitive Mark VIe controller and I/O modules, maintaining control system integrity during heavy load switching events.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all functional failures of the IS2020RKPSG1AK under normal operating conditions. If the module fails to perform its specified power regulation and protection functions within the warranty period, we will provide a replacement unit at no charge. The warranty period begins from the date of shipment and applies to the specific serial number supplied.

Q2: What pre-shipment testing is performed on the IS2020RKPSG1AK?
Every IS2020RKPSG1AK unit undergoes a full functional test prior to dispatch. This includes output voltage regulation verification under load, overcurrent protection trip testing, and visual inspection for connector integrity and component condition. A test record is available upon request for quality-critical applications.

Q3: Is this module compatible with all Mark VIe rack configurations?
The IS2020RKPSG1AK is designed for the GE Mark VIe standard rack backplane. Compatibility should be confirmed against your specific rack assembly drawing and GE Mark VIe system documentation. If you are unsure whether this part number matches your rack revision, please contact our technical team with your existing module’s nameplate data and we will confirm compatibility before shipment.

Q4: Can you support long-term or repeat supply of this module?
Yes. We maintain ongoing stock of Mark VIe power supply and I/O modules to support planned maintenance programs, emergency replacements, and multi-unit project requirements. For sites with annual maintenance windows or spare parts management programs, we can discuss scheduled supply agreements to ensure IS2020RKPSG1AK availability aligns with your planned outage calendar.
