GE IS210TREAH1A Retrofit-Ready Terminal Board for Mark VI Control Systems

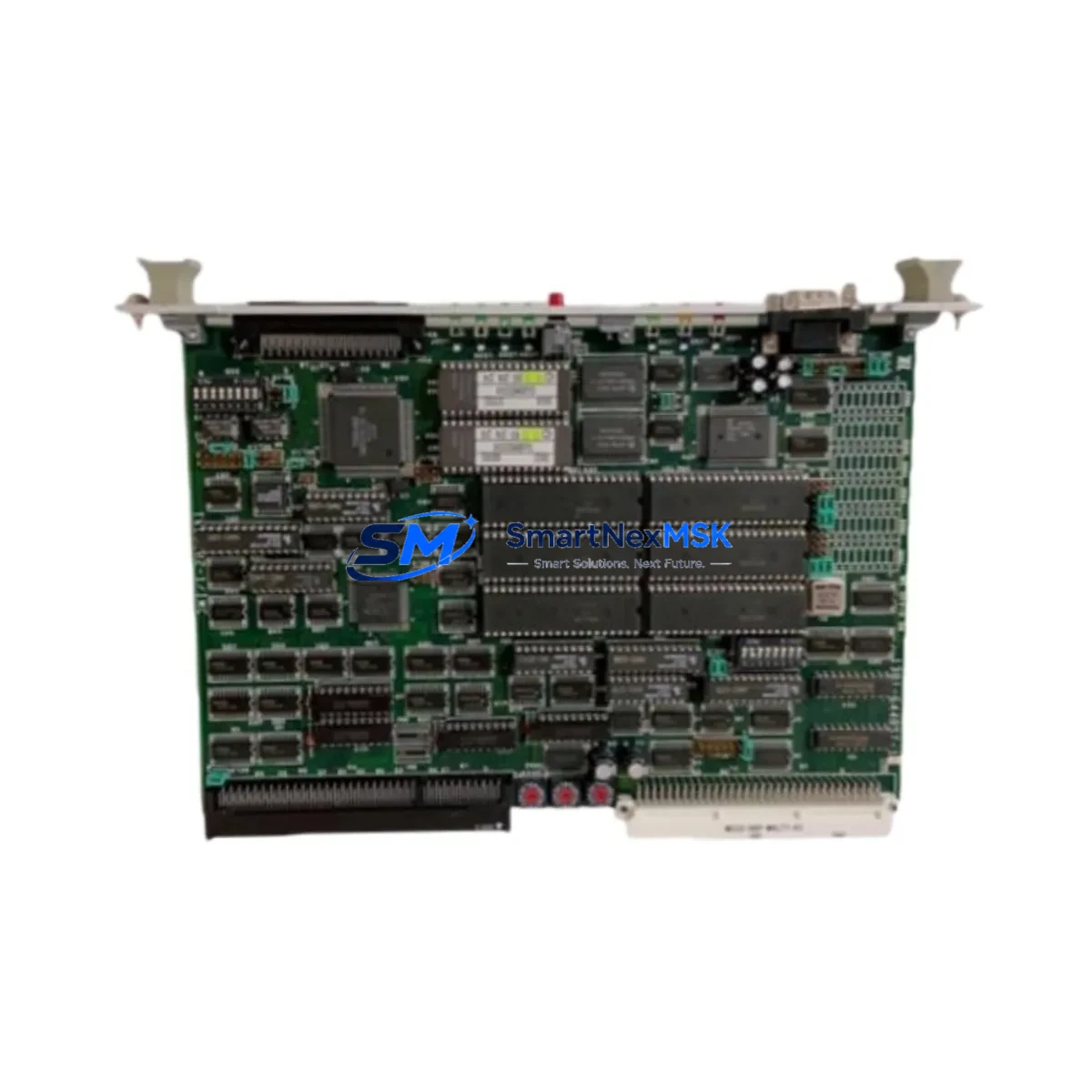

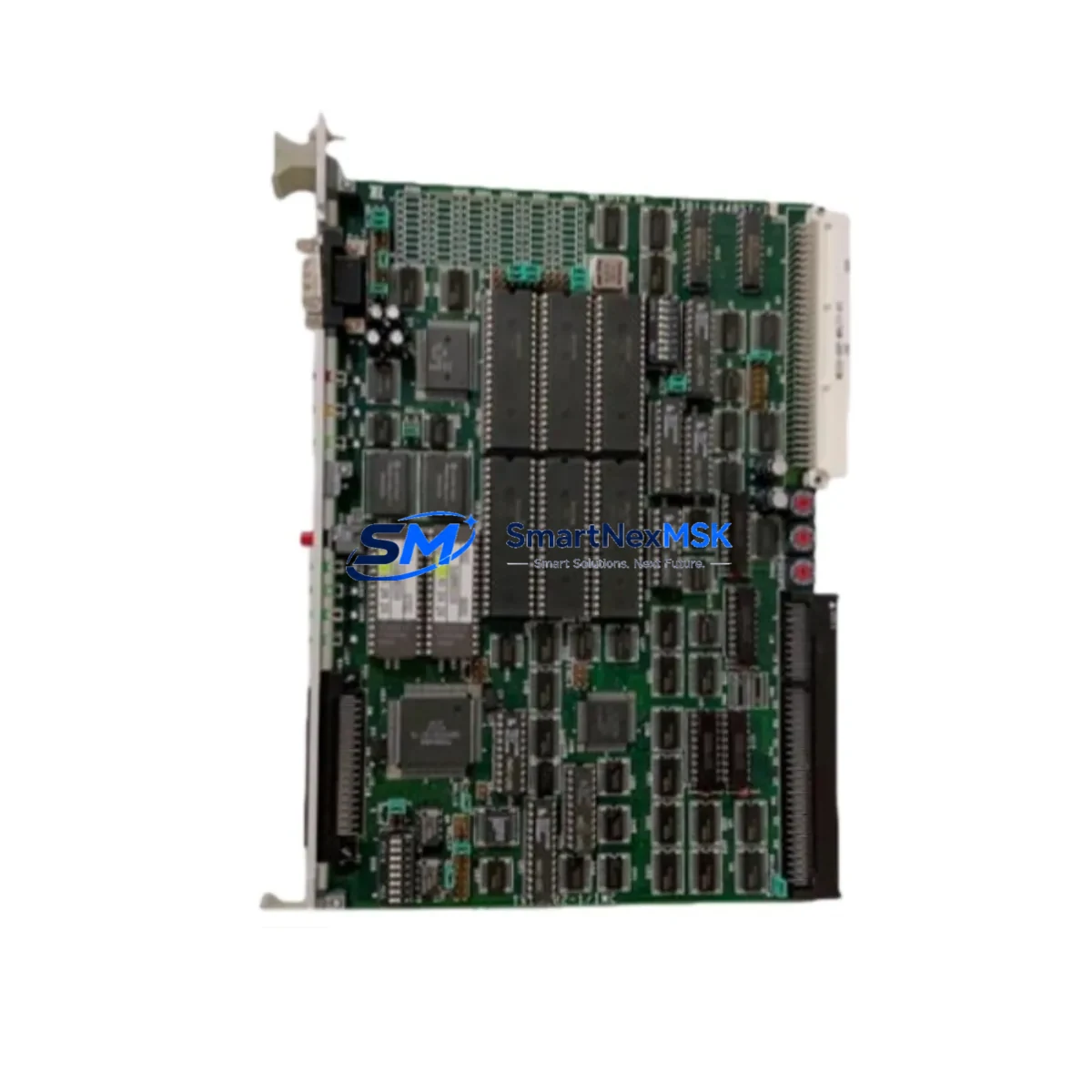

The GE IS210TREAH1A is a high-reliability I/O terminal board engineered for the GE Mark VI Speedtronic turbine control platform. As legacy Mark V and early Mark VI installations reach end-of-life, the IS210TREAH1A has become a critical retrofit component for power generation facilities, petrochemical plants, and industrial process operators seeking to extend the operational life of their existing control infrastructure without a full DCS migration.

This terminal board serves as the physical interface layer between field wiring and the Mark VI controller backplane, supporting analog and digital I/O signal conditioning, terminal block wiring, and shield grounding. It is compatible with the VCMI, VTUR, VSVO, and VGEN I/O packs commonly deployed in Mark VI simplex and TMR (Triple Modular Redundant) configurations. When replacing a failed or obsolete terminal board, engineers must verify the I/O pack type, terminal assignment map, and cable harness connector orientation before installation.

Sourced from verified industrial surplus and factory-refurbished channels, each IS210TREAH1A unit shipped by SMARTNEXMSK undergoes functional inspection, terminal continuity testing, and visual examination for corrosion, damaged traces, or connector wear. All units are backed by a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IS210TREAH1A retrofit begins well before the physical swap. During the planning phase, engineers should pull the existing terminal board wiring diagram and cross-reference it against the IS210TREAH1A terminal assignment sheet. Field cables connecting thermocouples, RTDs, 4–20 mA transmitters, and discrete I/O devices must be labeled and photographed before disconnection. If the existing installation uses IS200TREAH1A (an earlier hardware revision), the terminal layout is largely identical, but firmware compatibility with the installed VCMI board should be confirmed via the GE Mark VI release notes.

In TMR configurations, the IS210TREAH1A is typically installed in sets of three — one per controller (R, S, T). Replacing a single board in a TMR rack requires careful attention to the IONET switch configuration and the VCMI addressing to avoid a controller mismatch alarm. The Mark VI I/O rack and associated PPRO power supply module should be inspected for adequate power headroom before adding or replacing terminal boards, as aging power supplies may not sustain the inrush current during hot-swap operations.

For sites migrating from Mark V to Mark VI, the IS210TREAH1A is often part of a broader upgrade that includes replacing the TCCA controller card, SDCC I/O processor, and associated Mark V terminal boards with their Mark VI equivalents. In these projects, the HMI interface — typically a Cimplicity or iFIX SCADA screen — must be updated to reflect new tag names and I/O addresses generated by the ToolboxST configuration tool. Communication links using the legacy ARCNET protocol must be migrated to IONET Ethernet, which may require installing a new managed Ethernet switch in the control cabinet.

I/O expansion projects that add new measurement points — such as additional thermocouple inputs for exhaust temperature spreads or new vibration monitoring channels — frequently require additional terminal boards of the IS210TREAH1A type alongside VTUR I/O packs for thermocouple inputs or VDYN packs for dynamic/vibration signals. Proper grounding of shield conductors at the terminal board is essential to prevent noise interference on analog channels, particularly in high-EMI environments near large motors or variable frequency drives.

Downtime Control During System Migration

Minimizing turbine or process downtime during a terminal board replacement requires a structured pre-outage preparation protocol. Before the planned maintenance window, the control engineer should export the full ToolboxST project file and create a verified backup of the Mark VI application program, including all I/O configurations, alarm setpoints, and sequence logic. This backup should be stored on an isolated engineering workstation — not on the controller itself — to ensure recovery capability if the new board requires a firmware update that temporarily disrupts communication.

During the outage window, the recommended sequence is: (1) place the turbine in a safe shutdown state and verify all permissives are cleared; (2) de-energize the I/O rack section containing the terminal board while keeping adjacent racks powered where possible; (3) disconnect and label all field wiring; (4) remove the failed IS210TREAH1A and install the replacement unit; (5) re-terminate field wiring per the original wiring diagram; (6) power up the rack and verify IONET communication is established in ToolboxST; (7) perform a point-by-point I/O check against the signal list before releasing the turbine for restart.

In simplex Mark VI systems where no redundancy exists, this process must be completed within the planned outage window. In TMR systems, a single controller can often be taken offline for board replacement while the remaining two controllers maintain turbine protection — consult the site-specific safety procedures before attempting a live-rack swap. SMARTNEXMSK maintains ready stock of IS210TREAH1A units to support emergency replacement scenarios, with same-day dispatch available for urgent orders.

Retrofit Support FAQ

Q1: Is the IS210TREAH1A a direct drop-in replacement for the IS200TREAH1A?
In most Mark VI installations, yes. The IS210TREAH1A is the current production revision and is backward-compatible with the IS200TREAH1A terminal layout. However, you should verify the I/O pack firmware version in ToolboxST to confirm compatibility, as very early Mark VI releases may require a firmware update on the VCMI board before the newer terminal board revision is recognized correctly.

Q2: What commissioning steps are required after installing a replacement IS210TREAH1A?
After physical installation and field wiring re-termination, open ToolboxST and perform a hardware scan to confirm the new board is detected. Verify the I/O pack address assignment matches the original configuration. Run a full I/O force test on all channels to confirm signal integrity. Check analog input scaling and zero/span calibration for any 4–20 mA or thermocouple channels. Clear any latched alarms and confirm no IONET communication faults before returning the system to service.

Q3: Can the IS210TREAH1A be used in a Mark VI TMR system if only one of the three boards has failed?
Yes. In a TMR configuration, each controller (R, S, T) has its own terminal board. A single failed board can be replaced without affecting the other two controllers, provided the replacement is performed during a planned maintenance window with proper safety permissives in place. After replacement, ToolboxST will re-synchronize the replaced controller with the active TMR pair automatically once IONET communication is restored.

Q4: What does the 12-month warranty cover?
All IS210TREAH1A units supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of shipment. The warranty covers functional failure and manufacturing defects under normal operating conditions. Each unit is tested for terminal continuity and basic I/O pack interface functionality prior to dispatch. In the event of a warranty claim, SMARTNEXMSK will provide a replacement unit or full refund after fault verification. Contact sales@smartnexmsk.com with your order number and fault description to initiate a claim.
