GE IS215REBFH1B Retrofit-Ready VME Bus Interface for Mark VI

GE IS215REBFH1B Retrofit-Ready VME Bus Interface for Mark VI Control Systems

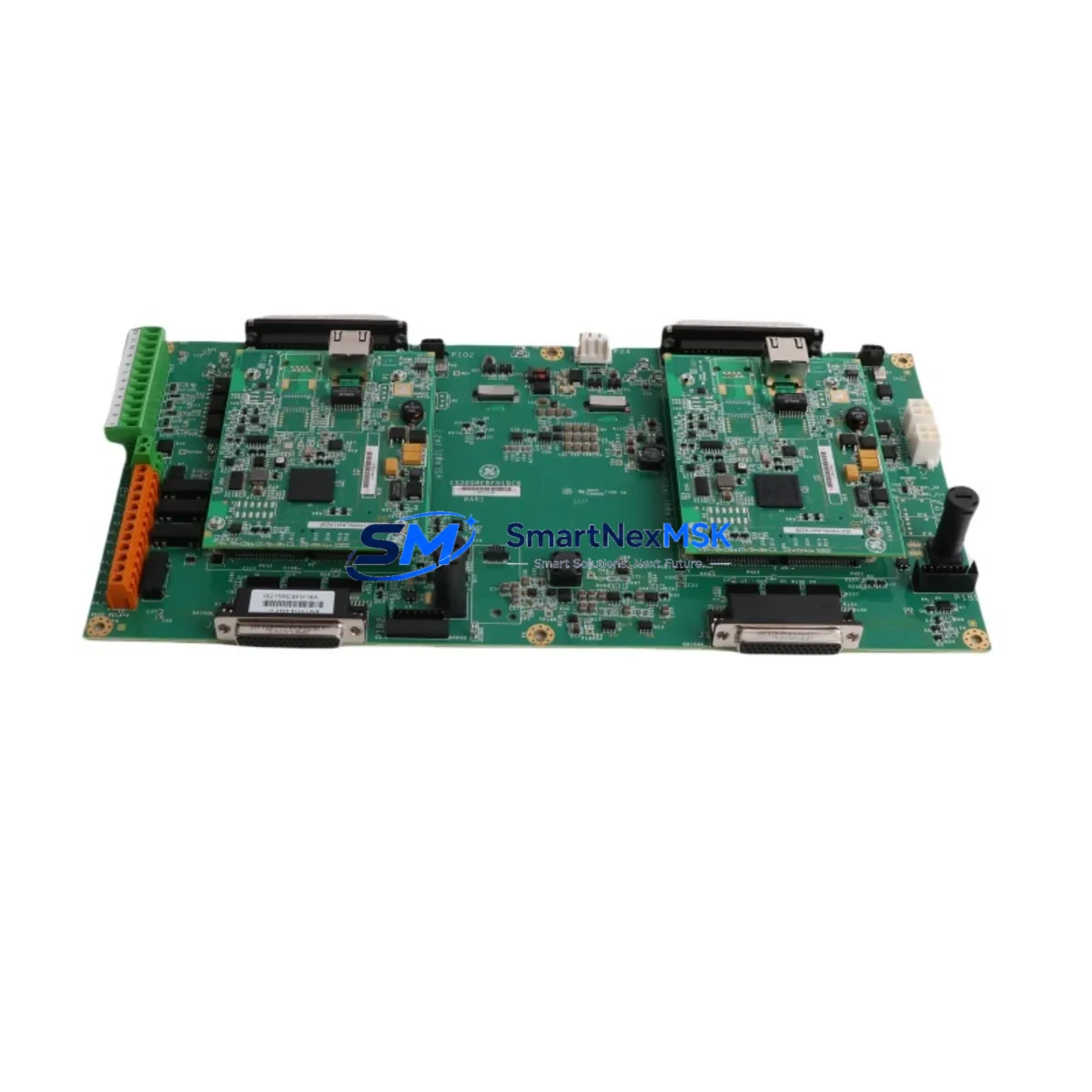

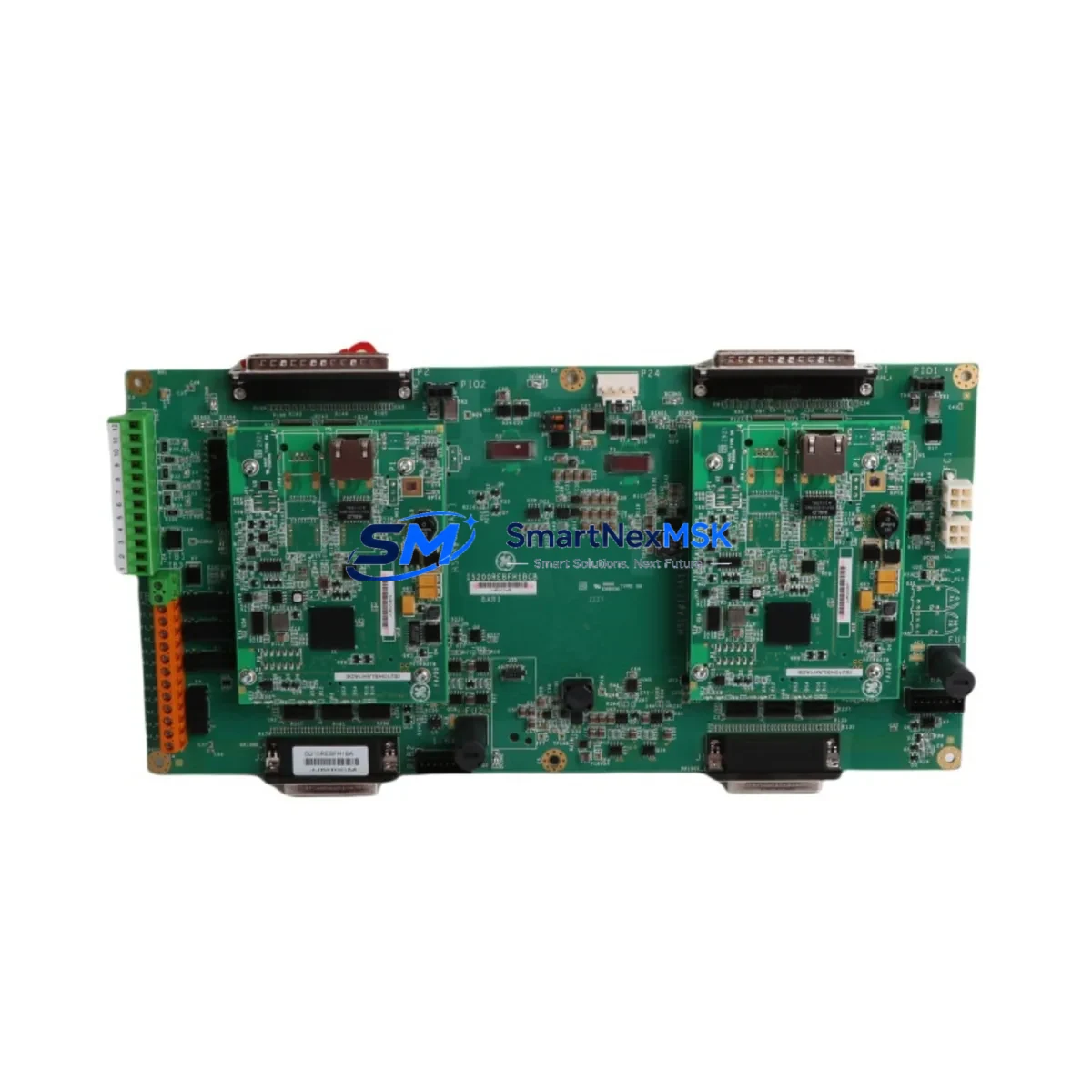

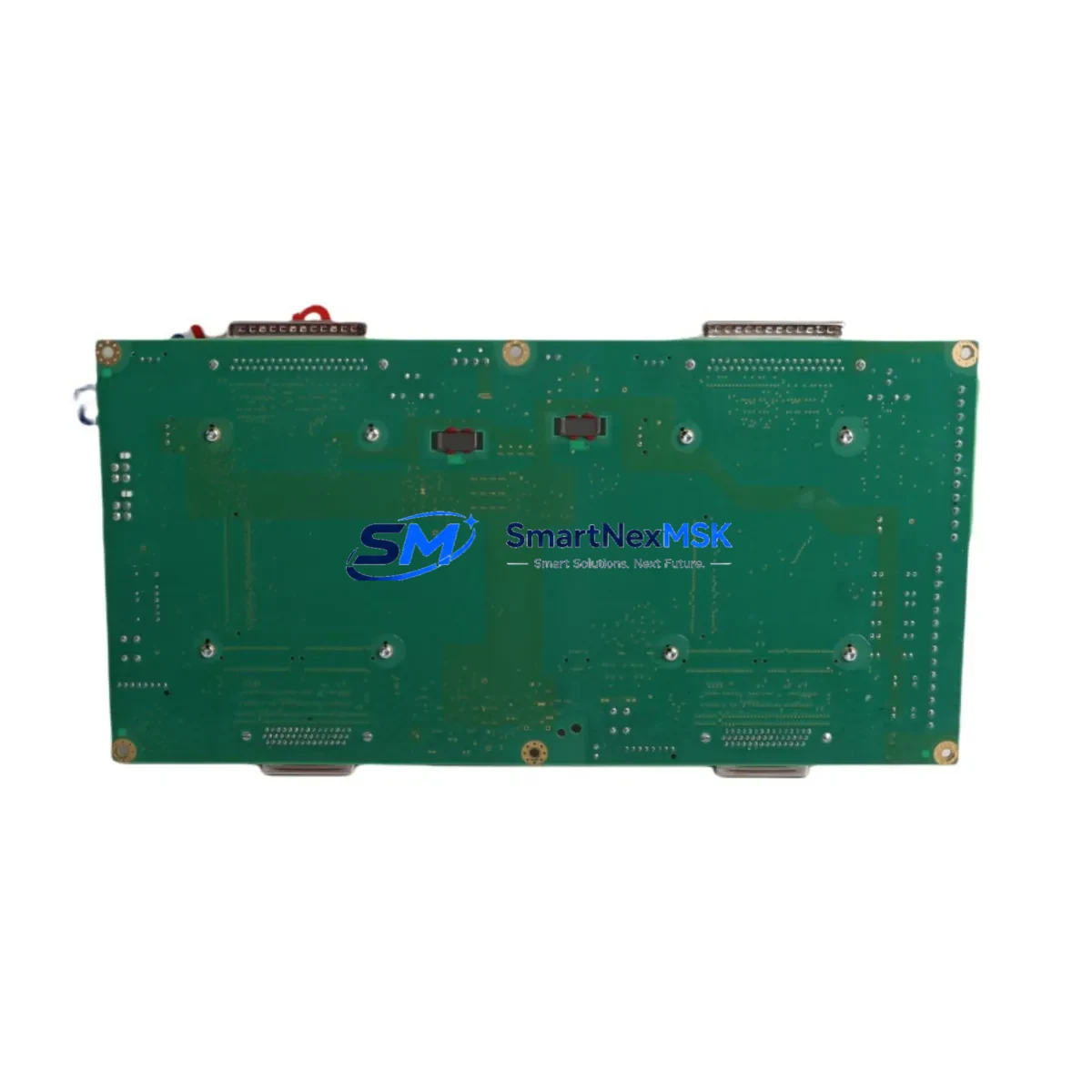

The GE IS215REBFH1B is a VME Bus Interface Board engineered for seamless integration into GE Mark VI turbine control systems. As aging Mark VI installations approach end-of-support milestones, plant engineers and automation integrators increasingly rely on verified retrofit-ready replacements to sustain operational continuity without committing to full platform migrations. The IS215REBFH1B addresses this need directly — providing a drop-in compatible solution for facilities managing gas turbines, steam turbines, and combined-cycle power generation assets where control system uptime is non-negotiable.

This board serves as the primary VME backplane communication interface within the Mark VI controller chassis. It manages data exchange between the VCMI (VME Communications Module Interface) and downstream I/O boards such as the IS215VCRCH1B and IS215VCMIH2C, coordinating real-time signal routing across the control rack. When the original IS215REBFH1B fails or degrades, the consequences extend beyond the board itself — loss of backplane communication can cascade into faults across connected terminal boards, I/O modules, and HMI display links, triggering unplanned shutdowns.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful IS215REBFH1B replacement begins well before the board arrives on-site. Retrofit planning for Mark VI systems requires a structured review of the existing rack configuration, power budget, and communication topology. The Mark VI controller chassis typically houses a combination of the VCMI module, PPRO (Protection Processor), TPRO (Turbine Processor), and associated I/O boards — all of which depend on stable VME backplane communication that the IS215REBFH1B facilitates.

Before removal of the failed board, engineers should document the current DIP switch settings for module addressing and capture a full export of the Mark VI Toolbox configuration, including I/O assignments, control constants, and alarm setpoints. The IS215VCMIH2C VME Communications Module Interface and IS215VCRCH1B VME Converter Board should be inspected for correlated faults, as backplane degradation often affects adjacent modules simultaneously.

Power supply capacity is a critical pre-installation check. The Mark VI rack draws regulated +5 VDC and ±12 VDC from the IS200EPSMG1A or equivalent power supply module. Confirm that the power supply output is within specification before inserting the replacement board — undervoltage conditions during boot can corrupt firmware initialization and produce misleading diagnostic codes.

Terminal board wiring should be verified against the original engineering drawings. The IS200TBCIH1C and IS200TBAIH1C terminal boards connected to the I/O side of the rack must retain their original field wiring during the board swap. No field rewiring is required for a like-for-like IS215REBFH1B replacement, but technicians should confirm terminal torque values and inspect for oxidation on high-density connectors.

For sites also upgrading communication infrastructure, the IS215REBFH1B retrofit is often performed in conjunction with IONet switch replacement or fiber optic link upgrades between the Mark VI controller and the HMI workstation running Cimplicity or ToolboxST. Ensuring the IONet Ethernet segment is stable before powering the replacement board eliminates a common source of post-installation communication faults.

Programming cable access via the IS200UCSAS1A serial interface or USB-to-serial adapter should be confirmed available for post-installation verification using Mark VI Toolbox. Technicians should be prepared to perform a controlled I/O force test to validate that all analog and digital signals are correctly mapped before returning the unit to automatic control.

Downtime Control During System Migration

Minimizing turbine downtime during a Mark VI VME board replacement requires a disciplined pre-outage preparation protocol. The most effective approach is to pre-configure and bench-test the replacement IS215REBFH1B against a known-good rack configuration before the scheduled maintenance window. Where a spare Mark VI chassis or simulator is available, full functional verification — including IONet communication, I/O scan cycle confirmation, and HMI tag refresh — should be completed offline.

During the outage window, the sequence should follow: controlled turbine shutdown and cooldown to safe access conditions → Mark VI Toolbox configuration backup → rack power-down with lockout/tagout → board removal and replacement → DIP switch verification → rack power-up → IONet link confirmation → I/O force test → HMI display validation → return to automatic control. A well-prepared team can complete this sequence in under four hours for a single-board replacement, preserving the original control logic without reprogramming.

Where redundant Mark VI controllers (TMR — Triple Modular Redundancy) are installed, the replacement can often be performed on one controller leg while the remaining two legs maintain turbine control, reducing the outage to a brief synchronization window rather than a full shutdown. This approach requires careful coordination with the DCS operator and confirmation that the Mark VI TMR voting logic is functioning correctly on the remaining legs before proceeding.

All replaced boards should be retained for failure analysis and as emergency spares. The IS215REBFH1B, even when non-functional in its primary role, may retain recoverable firmware or configuration data useful for future diagnostics.

Retrofit Support FAQ

Q: Is the IS215REBFH1B a direct drop-in replacement for the original board in my Mark VI rack?
A: Yes, the IS215REBFH1B is a direct form-fit-function replacement for the original GE part. No rack modification or wiring change is required. Verify DIP switch module address settings match your original configuration before powering up.

Q: What commissioning steps are required after installation?
A: After installation, connect to the Mark VI controller via Mark VI Toolbox, confirm IONet Ethernet link status, perform an I/O scan to verify all configured points are responding, and validate HMI tag mapping on the Cimplicity or ToolboxST display. A controlled I/O force test is recommended before returning to automatic operation.

Q: How is the board tested before shipment?
A: Each IS215REBFH1B unit undergoes functional testing on a compatible VME rack prior to shipment, including backplane communication verification and power rail checks. A test report is available upon request. All units are covered by a 12-month warranty against functional defects.

Q: What if my Mark VI system uses a different firmware revision than the replacement board?
A: Firmware revision compatibility should be confirmed against your Mark VI Toolbox version and VCMI module revision. In most cases, the IS215REBFH1B is firmware-agnostic at the hardware level, but if a firmware mismatch is identified during commissioning, our technical support team can advise on revision alignment procedures.
