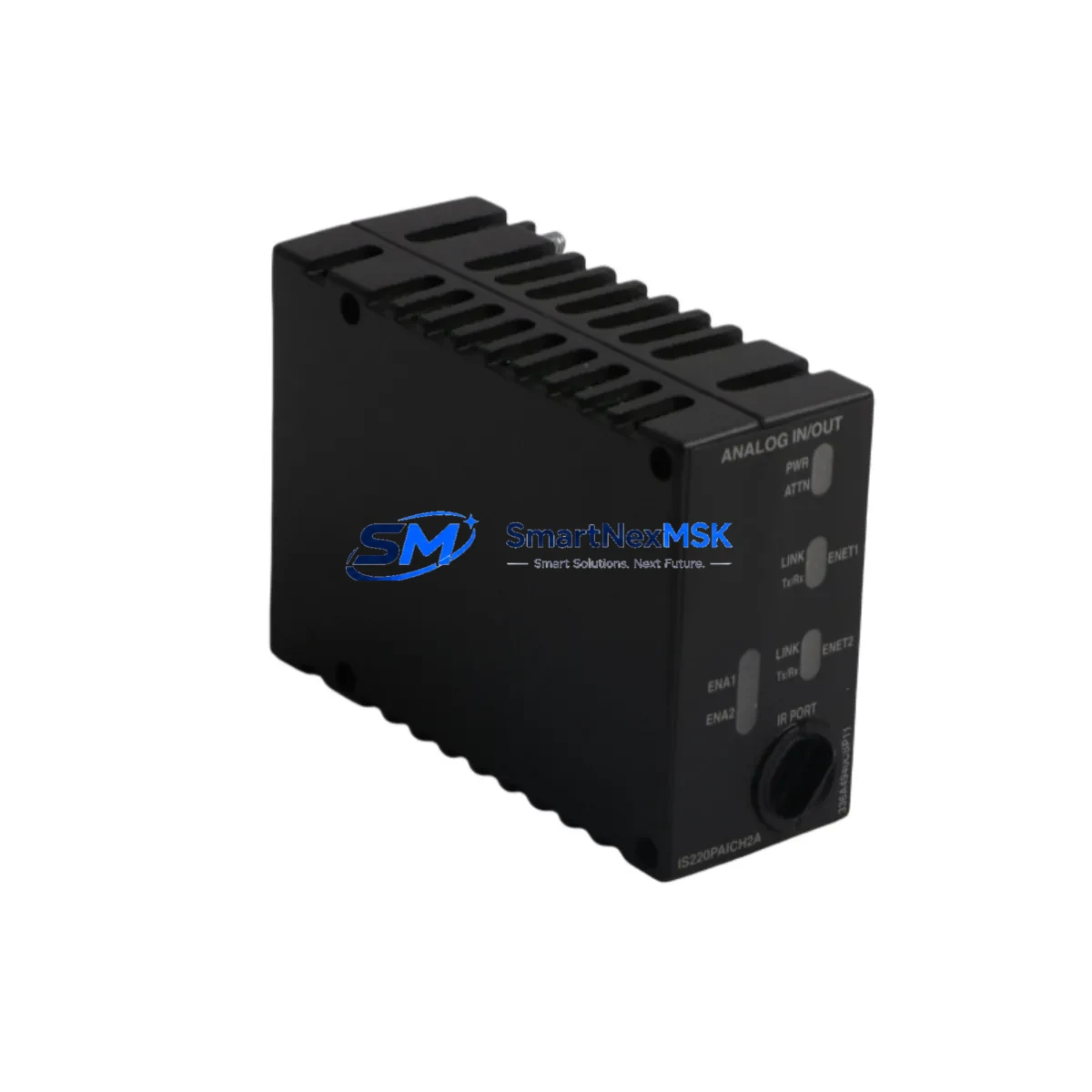

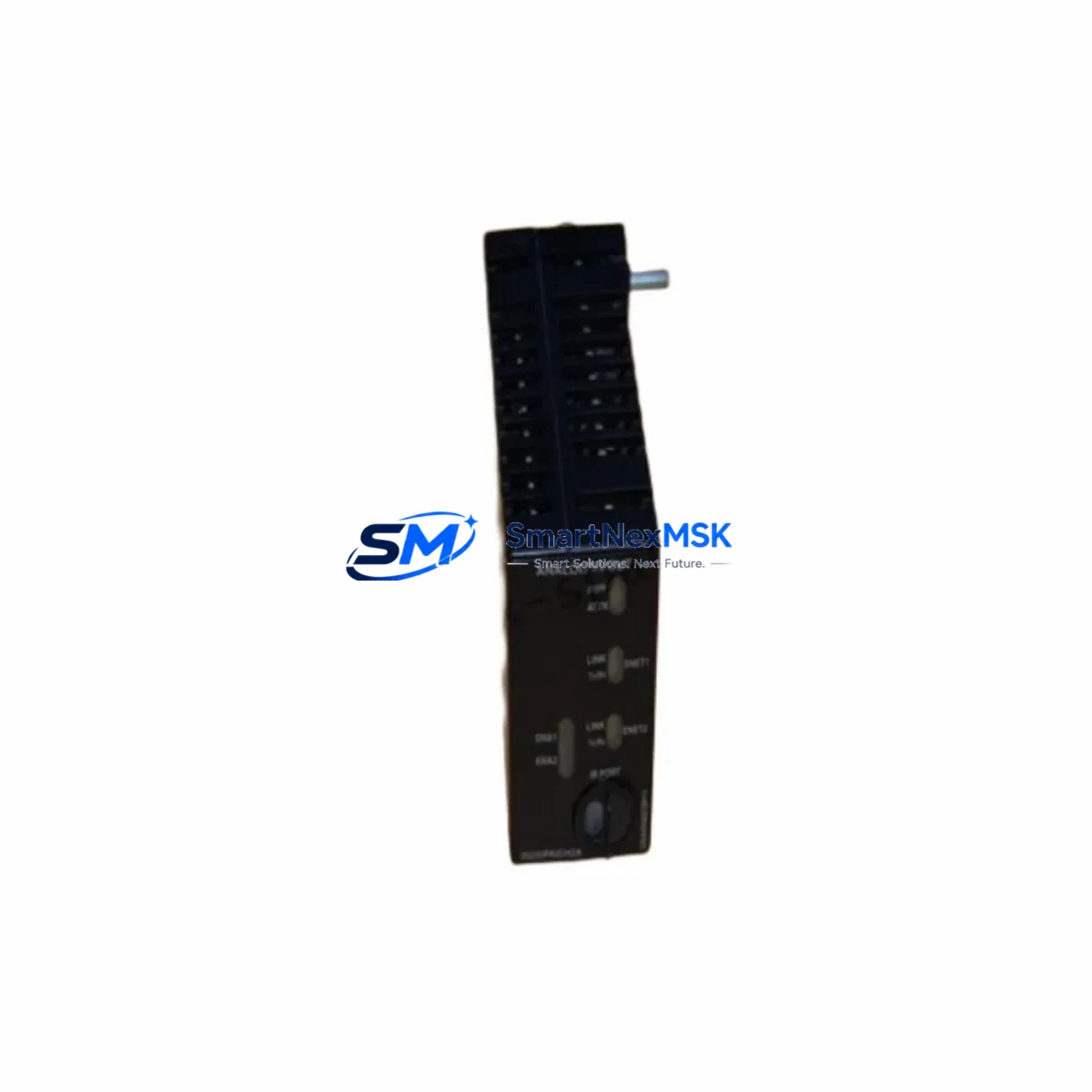

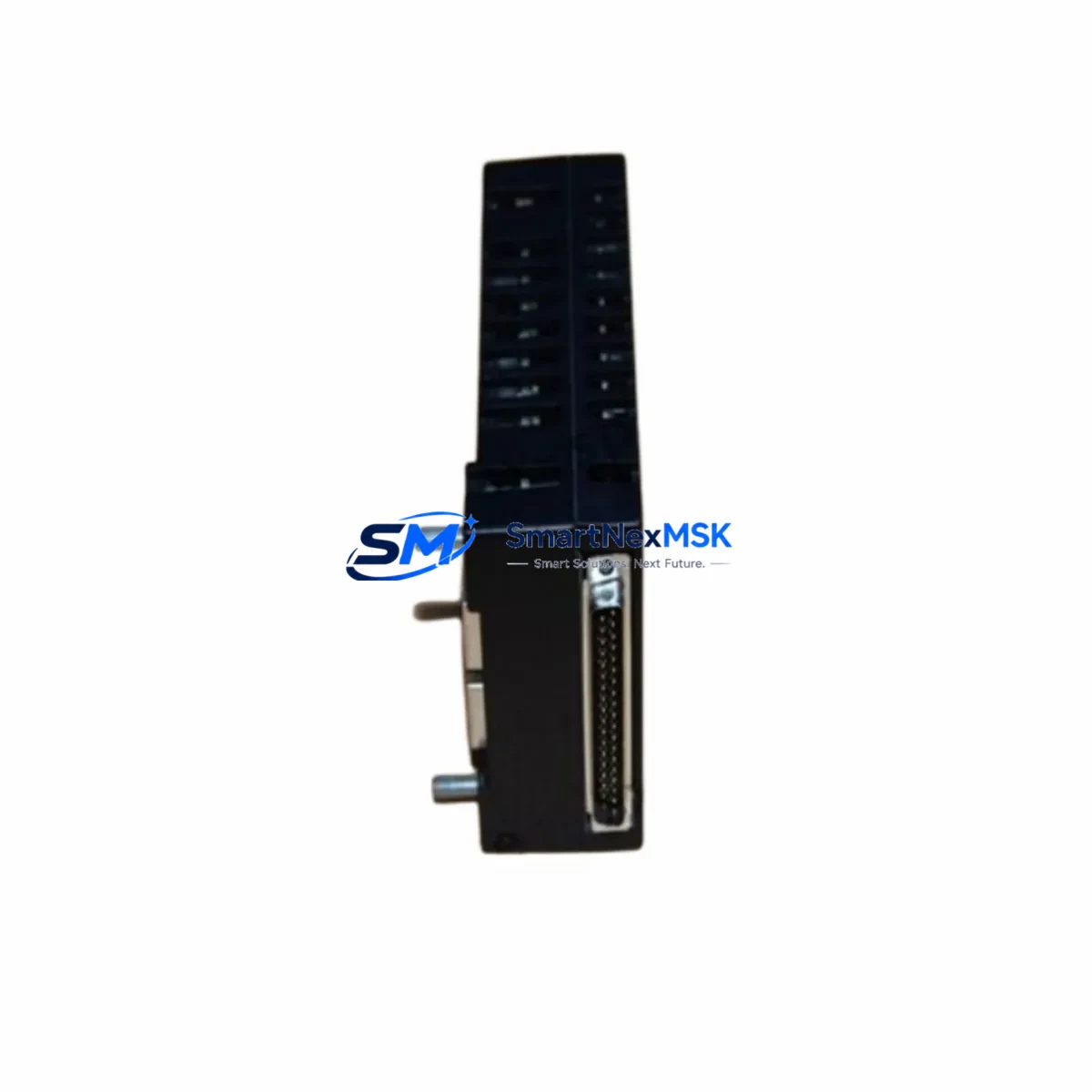

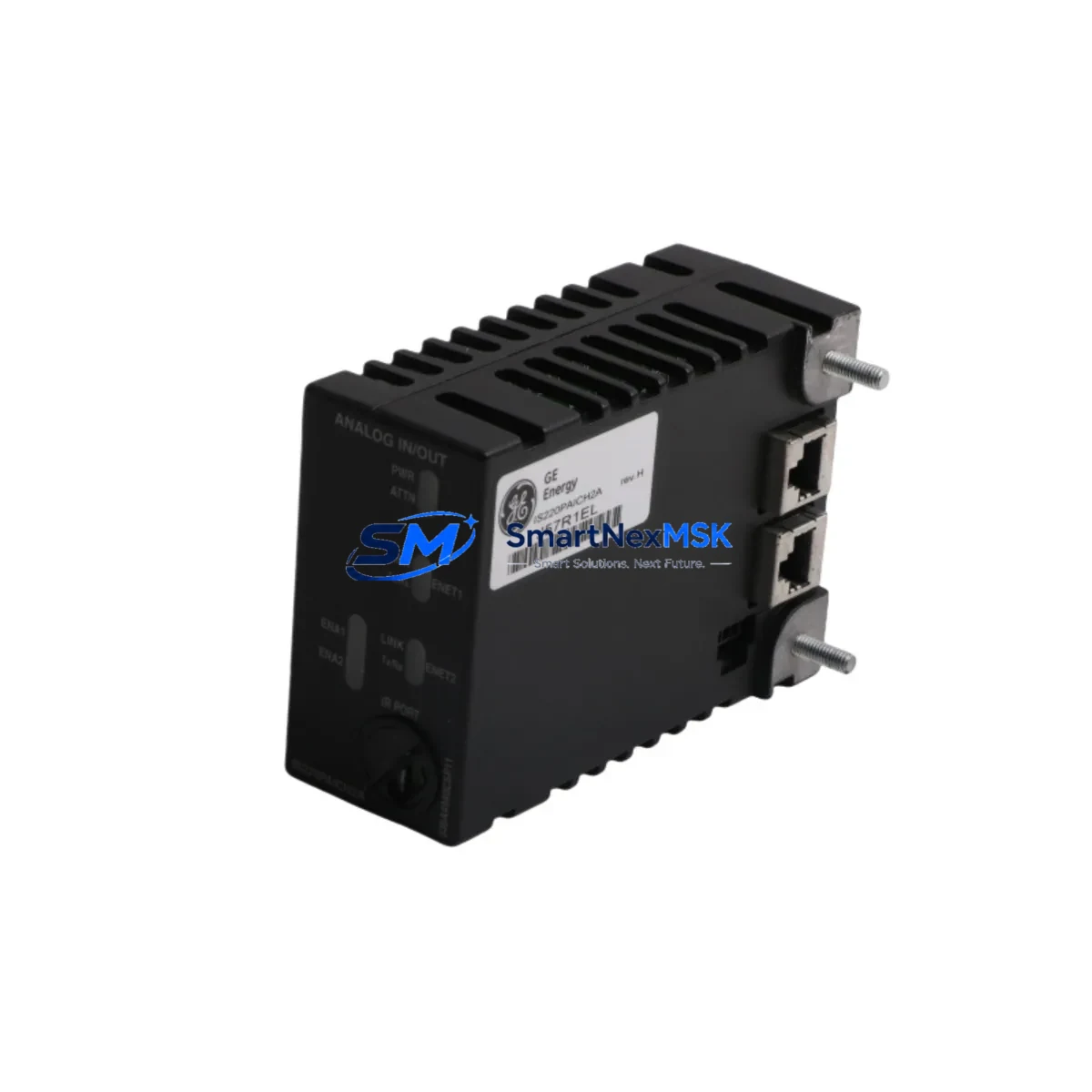

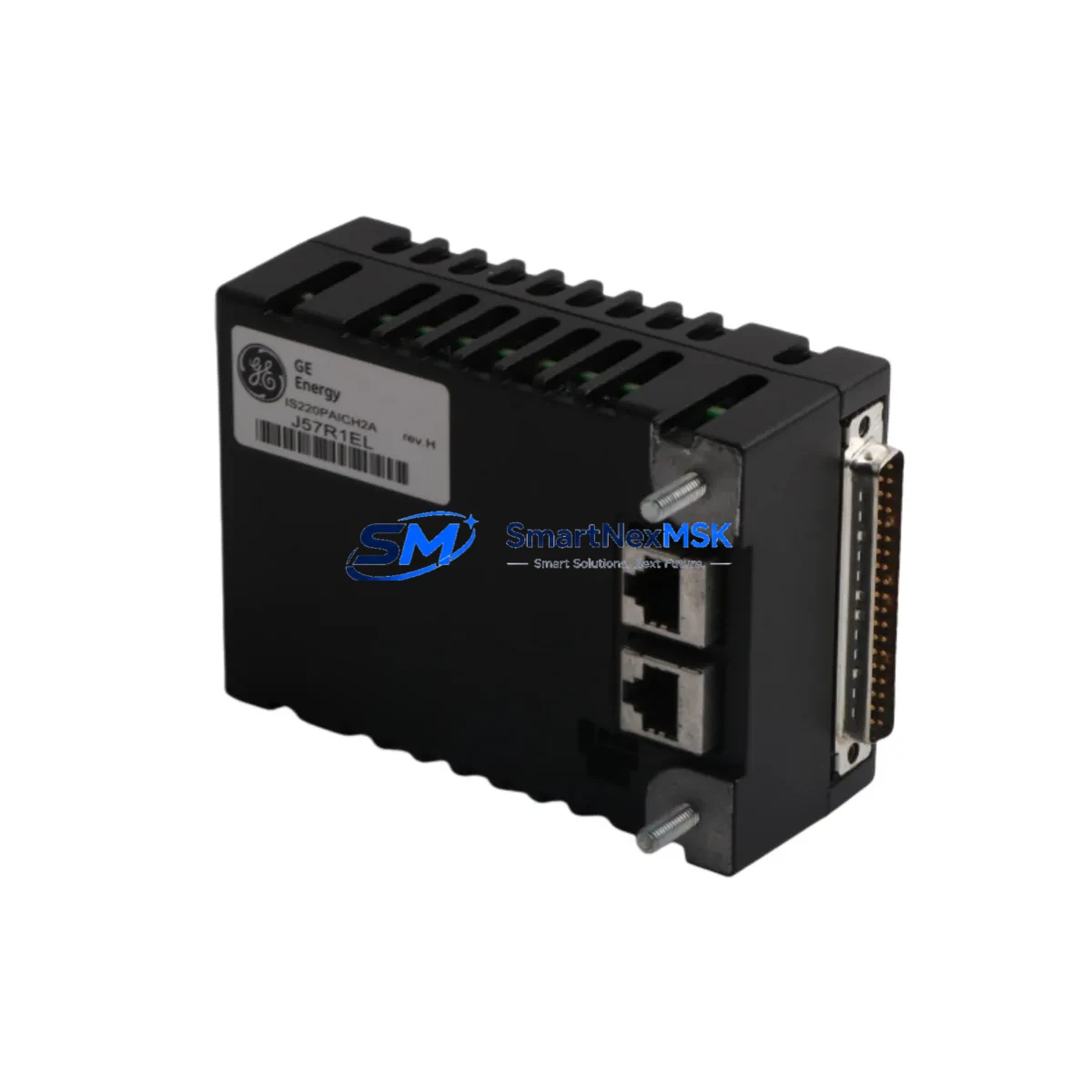

GE IS220PAICH2A Safety-Enhanced Analog I/O Module

GE IS220PAICH2A Safety-Enhanced Analog I/O Module for Harsh Industrial Sites

The GE IS220PAICH2A is a high-integrity analog input/output module engineered for the GE Mark VIe Distributed Control System (DCS) platform. Designed to operate reliably in the most demanding industrial environments — including petrochemical plants, power generation facilities, metallurgical operations, mining control rooms, and continuous process manufacturing — this module delivers the signal accuracy, noise immunity, and thermal stability that safety-critical control loops demand.

In high-load, high-interference production environments, analog signal integrity is the foundation of safe process control. The IS220PAICH2A addresses this directly: its precision analog front-end minimizes signal drift under fluctuating ambient temperatures, while its robust EMI shielding architecture suppresses interference from variable-frequency drives, high-current bus bars, and adjacent power switching equipment. For engineers managing critical interlock circuits — where a millivolt of signal error can trigger a spurious trip or, worse, mask a genuine process fault — this level of analog fidelity is non-negotiable.

The module integrates seamlessly within the Mark VIe I/O network, communicating over the IONet Ethernet backbone that underpins GE’s redundant control architecture. When paired with the IS220PTURH1A turbine control I/O module, the IS215VCMIH2A VME communication module, and the IS200TREGH1B terminal board, the IS220PAICH2A forms part of a fully coordinated analog measurement and control chain capable of sustaining continuous operation through power transients, ground faults, and communication anomalies.

Safety Reliability Table

Control Cabinet Protection Strategy

A single analog I/O module does not operate in isolation — its safety contribution depends entirely on the integrity of the surrounding control cabinet ecosystem. In a Mark VIe-based control enclosure, the IS220PAICH2A is typically installed alongside the IS215VCMIH2A VME communication interface module, which manages the IONet data exchange between I/O packs and the controller. Any communication fault at this layer — packet loss, CRC errors, or bus contention — can cause the analog module to report stale values, triggering unnecessary process shutdowns or, in worst-case scenarios, allowing a real process deviation to go undetected.

To protect against power-related disruptions, the IS220PAICH2A relies on the Mark VIe’s distributed 28 VDC I/O power architecture, typically sourced through IS200EPCTG1A power conditioning terminal boards and backed by redundant DC power supplies. Voltage sags below the module’s operating threshold can cause transient resets that corrupt in-progress analog conversions — a particularly dangerous condition in flow measurement or pressure monitoring loops tied to safety instrumented functions.

Field wiring integrity is equally critical. The IS220PAICH2A connects to field instruments through dedicated terminal boards such as the IS200TREGH1B or IS200TTURH1CBB, which provide the physical termination points for 4–20 mA transmitters, RTDs, and thermocouples. Loose terminations, corroded screw terminals, or improperly shielded cable runs at these boards are among the most common sources of analog signal drift in heavy industrial installations. Pairing the IS220PAICH2A with properly specified shielded instrumentation cable and grounding the shield at a single point — typically at the terminal board — eliminates the majority of common-mode noise issues seen in high-EMI environments such as arc furnace control rooms or variable-speed drive enclosures.

For applications requiring redundant analog measurement — such as turbine exhaust temperature monitoring or reactor pressure control — the IS220PAICH2A can be deployed in a dual-module configuration alongside the IS220PTURH1A turbine I/O module, with the Mark VIe controller performing continuous cross-validation between channels. This architecture ensures that a single module failure does not result in a loss of measurement, allowing the control system to maintain safe operation while maintenance personnel replace the faulted unit without a process shutdown.

Surge protection at the cabinet entry point — typically implemented using DIN-rail-mounted surge protective devices on the 24 VDC instrument power rail — further reduces the risk of transient damage to the IS220PAICH2A’s analog front-end circuitry. In outdoor substations or coastal petrochemical facilities where lightning-induced surges are a recurring concern, this layer of protection is essential for maintaining module service life and avoiding unplanned replacements.

Critical Industrial Safety Applications

Petrochemical and Refinery Operations: In continuous distillation, catalytic cracking, and hydroprocessing units, the IS220PAICH2A monitors critical process variables — column differential pressure, reboiler temperature, and feed flow — that feed directly into the plant’s Safety Instrumented System (SIS). Accurate, drift-free analog measurement at this layer is a prerequisite for SIL 2 loop integrity. A module that introduces even 0.5% measurement error under high-temperature cabinet conditions can cause the SIS to miscalculate process state, either failing to initiate a protective shutdown or triggering a spurious trip that halts production unnecessarily.

Power Generation — Gas and Steam Turbines: The Mark VIe platform is the dominant DCS in GE-frame gas turbine installations worldwide. In this context, the IS220PAICH2A handles exhaust thermocouple inputs, compressor inlet pressure signals, and fuel control valve position feedback. These signals are processed in real time by the turbine protection logic; any interruption or degradation in analog signal quality can cause the turbine to trip on a false over-temperature or over-speed condition, resulting in significant generation loss and mechanical stress from rapid thermal cycling.

Mining and Mineral Processing: In semi-autogenous grinding (SAG) mill control, flotation cell level management, and tailings pump station automation, the IS220PAICH2A provides the analog measurement backbone for load optimization and equipment protection. The harsh electromagnetic environment created by large variable-frequency drives and high-current motor starters makes EMI-resistant analog I/O a critical selection criterion. Modules that cannot maintain signal integrity in this environment contribute directly to mill throughput variability and unplanned mechanical failures.

Water and Wastewater Treatment: In municipal water treatment facilities and industrial effluent management systems, the IS220PAICH2A monitors flow, pH, turbidity, and chemical dosing rates. Regulatory compliance in these facilities depends on continuous, accurate measurement — a module failure that causes a gap in the process historian record can trigger regulatory reporting obligations and potential fines, in addition to the direct operational impact of uncontrolled chemical dosing.

Metallurgy and Steel Production: Electric arc furnace (EAF) and basic oxygen furnace (BOF) control environments represent some of the most electrically hostile conditions in industrial automation. The IS220PAICH2A’s shielded analog architecture and robust common-mode rejection make it suitable for temperature and pressure measurement in these environments, where competing modules with inadequate EMI protection routinely exhibit signal saturation and false readings during high-current arc events.

Safety and Quality FAQ

Q: What does the 12-month warranty cover for the IS220PAICH2A?
A: The 12-month warranty covers all functional defects in the IS220PAICH2A from the date of shipment. If the module fails to perform within its specified analog accuracy, communication, or I/O parameters under normal operating conditions, we will replace or repair the unit at no charge. The warranty applies to both new and refurbished units and is supported by our pre-shipment functional test documentation.

Q: What pre-shipment testing is performed on each IS220PAICH2A?
A: Every IS220PAICH2A undergoes a full functional test prior to dispatch. This includes analog channel accuracy verification across the full 4–20 mA and voltage input range, IONet communication handshake testing, power rail integrity checks, and visual inspection for connector damage, corrosion, or component anomalies. Test records are available upon request for quality-critical procurement processes.

Q: Is the IS220PAICH2A compatible with all Mark VIe controller revisions?
A: The IS220PAICH2A is designed for the GE Mark VIe platform and is compatible with standard Mark VIe I/O racks and terminal board configurations. Compatibility with specific controller firmware revisions should be verified against the GE Mark VIe I/O compatibility matrix for your installation. Our technical team can assist with compatibility verification prior to order confirmation.

Q: Can you support long-term or repeat supply of the IS220PAICH2A for ongoing maintenance programs?
A: Yes. We maintain standing inventory of the IS220PAICH2A and related Mark VIe I/O modules to support planned maintenance programs, critical spare strategies, and emergency replacement requirements. For facilities operating multiple GE Mark VIe systems, we can establish a preferred supplier arrangement with reserved stock allocation and priority dispatch to minimize exposure to unplanned downtime caused by module unavailability.
