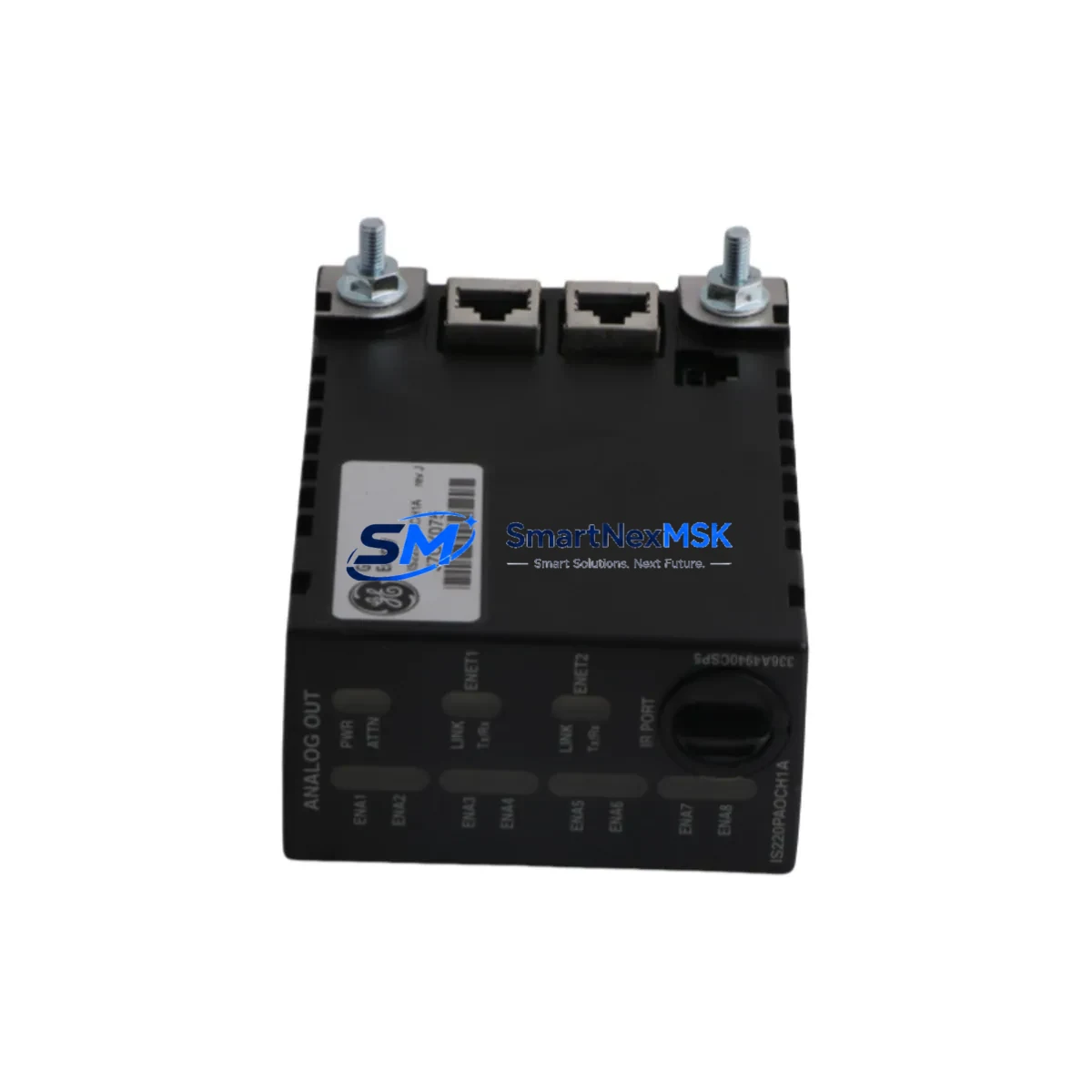

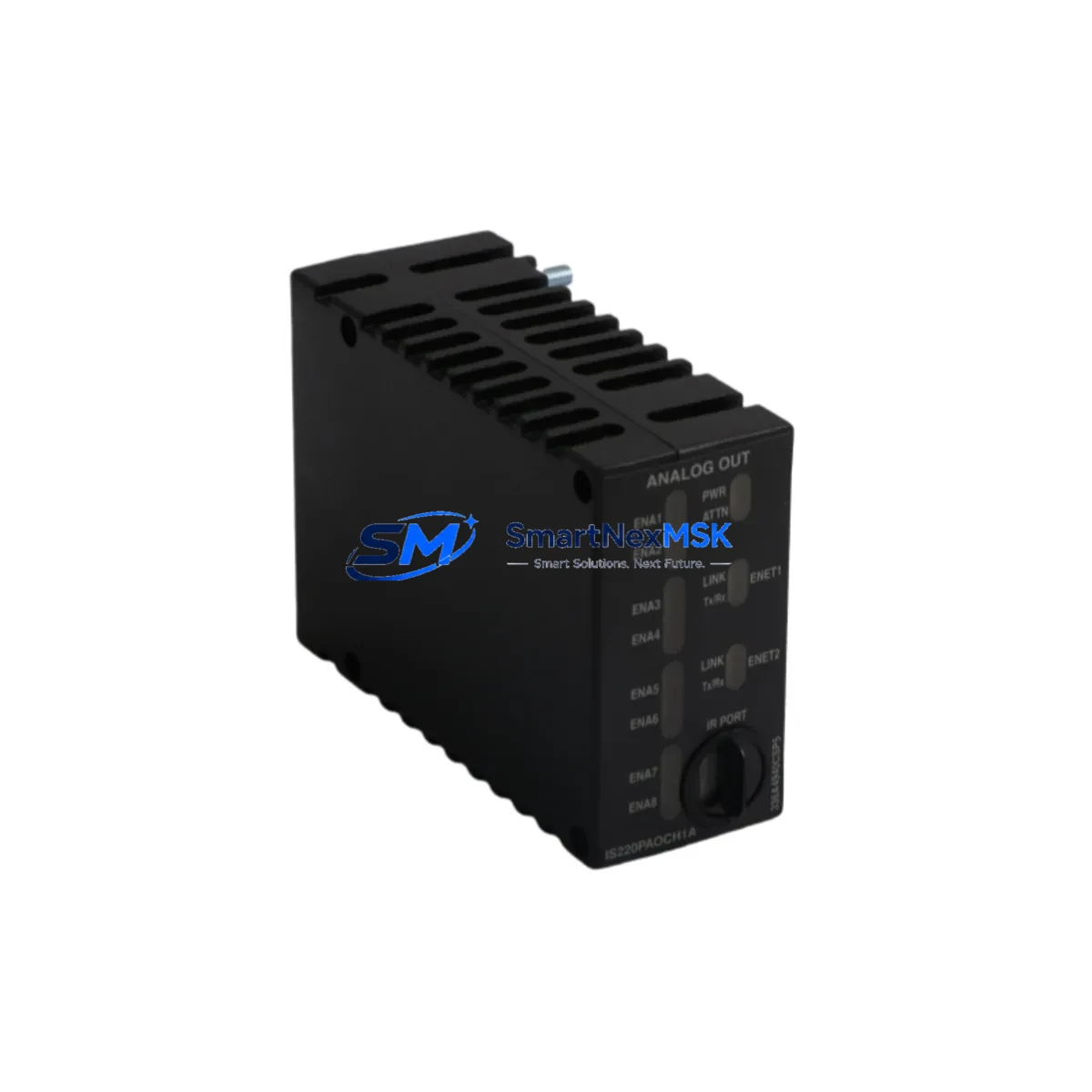

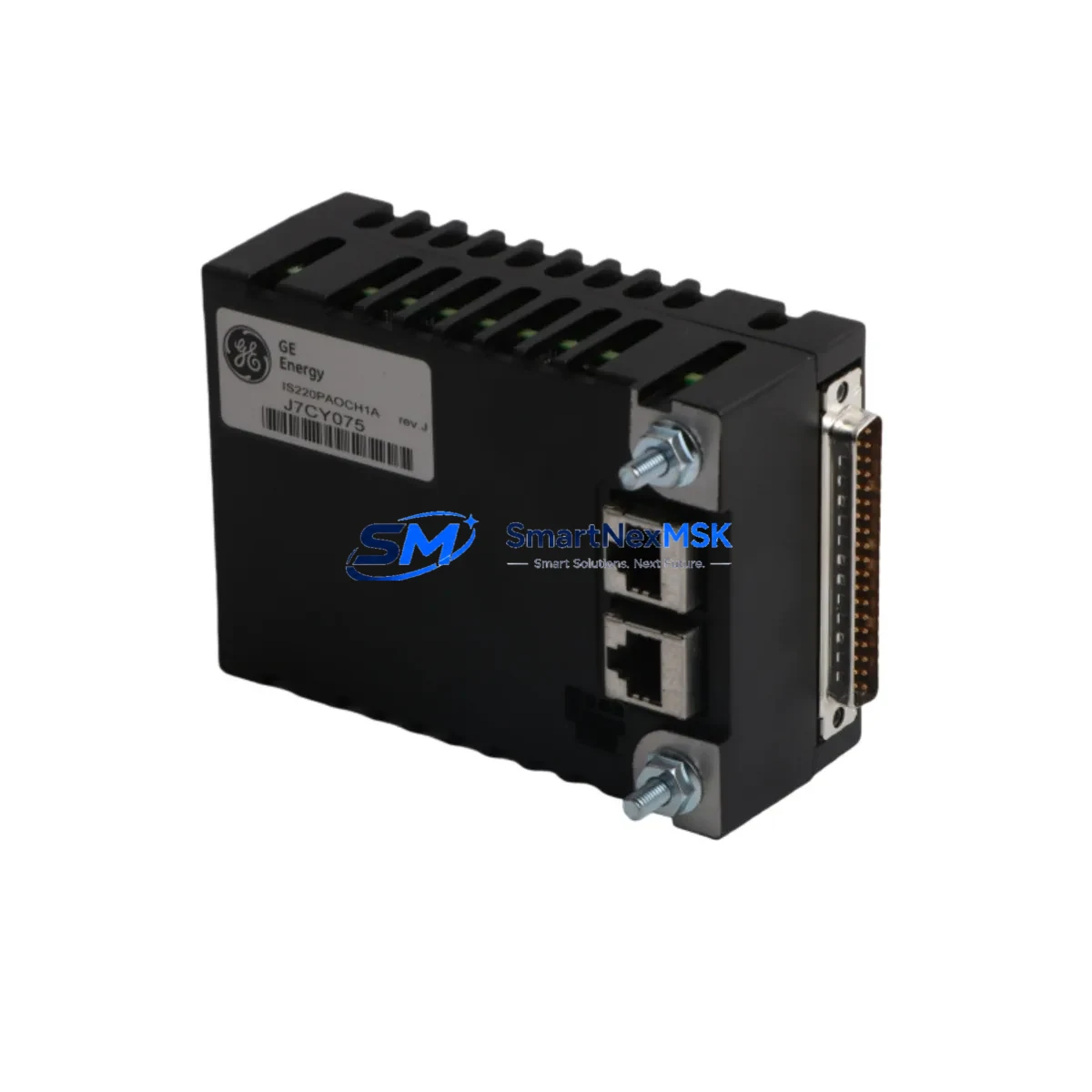

GE IS220PAOCH1A Safety-Enhanced Analog Output Module

GE IS220PAOCH1A Safety-Enhanced Analog Output Module for Harsh Industrial Sites

The GE IS220PAOCH1A is a high-integrity analog output module engineered for the GE Mark VI turbine control platform, purpose-built to sustain continuous, fault-tolerant operation in the most demanding industrial environments. Whether deployed in petrochemical processing, power generation, mining extraction, water treatment, metallurgical smelting, port logistics, or continuous manufacturing, this module delivers the signal precision and electrical resilience that safety-critical control loops demand. At SMARTNEXMSK, every IS220PAOCH1A unit is sourced, inspected, and dispatched with a 12-month warranty, ensuring your control cabinet remains protected from the moment of installation.

Safety Reliability Table

Control Cabinet Protection Strategy

In a Mark VI turbine control cabinet, the IS220PAOCH1A analog output module operates as the final command interface between the controller and field actuators — governing valve positioners, speed governors, fuel control actuators, and cooling system drives. Its 16-bit resolution ensures that even minute setpoint corrections are transmitted without signal drift, a critical requirement in combustion control and load-following applications where a 0.1 mA deviation can cascade into a turbine trip event.

To maintain the integrity of the entire control loop, the IS220PAOCH1A is typically installed alongside the GE IS220PSCAH1A power supply conditioner module, which filters incoming DC bus noise and prevents voltage sag from propagating into the analog output circuitry. Upstream, the GE IS220PAICH1A analog input module feeds process variable data into the Mark VI controller, forming a closed-loop pair with the IS220PAOCH1A for PID regulation of turbine parameters such as exhaust temperature, inlet guide vane position, and compressor discharge pressure.

Communication integrity between the IS220PAOCH1A and the Mark VI controller rack is maintained through the GE IS220PTURH1A turbine control I/O terminal board, which provides the physical wiring interface and signal conditioning layer. In triple-redundant (TMR) configurations, three IS220PAOCH1A modules operate in parallel, with the GE IS220PTCCH1A communication controller module arbitrating voted output signals to eliminate single-point failures in the output path.

For installations in hazardous areas or zones with elevated electromagnetic interference — such as arc furnace control rooms, offshore platform control cabinets, or substation automation panels — the IS220PAOCH1A’s built-in surge suppression works in concert with external Phoenix Contact TRABTECH surge protection devices and Weidmüller signal isolators to create a multi-layer transient defense. The GE IS220PPROH1A protection relay output module is often co-located in the same rack to handle discrete trip commands, while the IS220PAOCH1A manages the continuous modulating outputs that govern normal operating setpoints.

Power system stability for the entire Mark VI rack is typically ensured by a GE IS200EPCTG1A DC power entry module, which distributes conditioned 28 VDC to all I/O modules including the IS220PAOCH1A. In sites with unreliable utility power, an upstream industrial UPS provides ride-through capability, preventing the analog output channels from entering an undefined state during momentary power interruptions — a scenario that could otherwise cause actuators to fail to their last commanded position rather than a safe default.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In fluid catalytic cracking (FCC) units and hydrocracker control systems, the IS220PAOCH1A drives control valve positioners that regulate feed flow, reactor pressure, and fractionator temperature. Signal integrity at the analog output stage is non-negotiable — a drifting output channel can cause a runaway exothermic reaction or an unplanned unit shutdown. The module’s galvanic channel isolation prevents ground loop currents from corrupting adjacent output signals in multi-loop control configurations.

Power Generation & Grid Synchronization: Gas turbine generators operating in combined-cycle power plants rely on the IS220PAOCH1A to modulate inlet guide vane actuators and fuel control valves during load ramp events. The module’s 16-bit output resolution supports the fine-grained control authority required for frequency regulation and automatic generation control (AGC) compliance, where output stability directly affects grid stability.

Mining & Mineral Processing: In SAG mill and ball mill drive control systems, the IS220PAOCH1A provides speed reference signals to variable frequency drives (VFDs) controlling multi-megawatt grinding motors. The module’s EMI immunity is critical in these environments, where large motor switching transients and high-power cable runs create severe electromagnetic interference that can corrupt unprotected analog signals.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the IS220PAOCH1A to control chemical dosing pumps, aeration blower VFDs, and filter backwash valve actuators. Continuous 24/7 operation requirements make module reliability paramount — an output channel failure in a chlorination control loop can result in regulatory non-compliance and public health risk.

Metallurgy & Steel Production: In electric arc furnace (EAF) and continuous casting control systems, the IS220PAOCH1A manages electrode positioning actuators and mold oscillation drives. The harsh electromagnetic environment of steelmaking — characterized by kiloampere arc currents and high-frequency switching noise — demands the module’s full EMI shielding and surge suppression capabilities to maintain output accuracy.

Safety and Quality FAQ

Q1: What warranty coverage does SMARTNEXMSK provide for the GE IS220PAOCH1A?
Every IS220PAOCH1A shipped by SMARTNEXMSK carries a 12-month warranty covering functional defects under normal operating conditions. If a module fails within the warranty period, we provide a replacement or full refund. Our warranty terms are documented and traceable to each unit’s shipment record.

Q2: How is each IS220PAOCH1A tested before shipment?
All units undergo pre-shipment functional verification including power-on self-test (POST) confirmation, output channel continuity checks, and visual inspection for physical damage, corrosion, or component anomalies. Units sourced from decommissioned systems are fully cleaned, re-tested, and re-labeled before dispatch. Test records are available upon request for critical safety applications.

Q3: Is the IS220PAOCH1A compatible with all Mark VI system configurations?
The IS220PAOCH1A is designed for the GE Mark VI platform and is compatible with both simplex and TMR (Triple Modular Redundant) rack configurations. It interfaces with the standard Mark VI VME backplane and is recognized by the Mark VI toolbox software. For Mark VIe systems, please confirm the I/O pack architecture with our technical team before ordering, as terminal board compatibility may vary.

Q4: Can SMARTNEXMSK support long-term or repeat supply of the IS220PAOCH1A?
Yes. SMARTNEXMSK maintains ongoing inventory of GE Mark VI I/O modules including the IS220PAOCH1A and related components. We support planned maintenance programs, emergency replacement orders, and long-term supply agreements for facilities managing aging Mark VI fleets. Contact our sales team to discuss stocking arrangements and lead time commitments for your site’s spare parts program.
