GE IS220PTCCH1A Maintenance-Ready Spare for Mark VIe Automation

GE IS220PTCCH1A Maintenance-Ready Spare for Mark VIe Automation

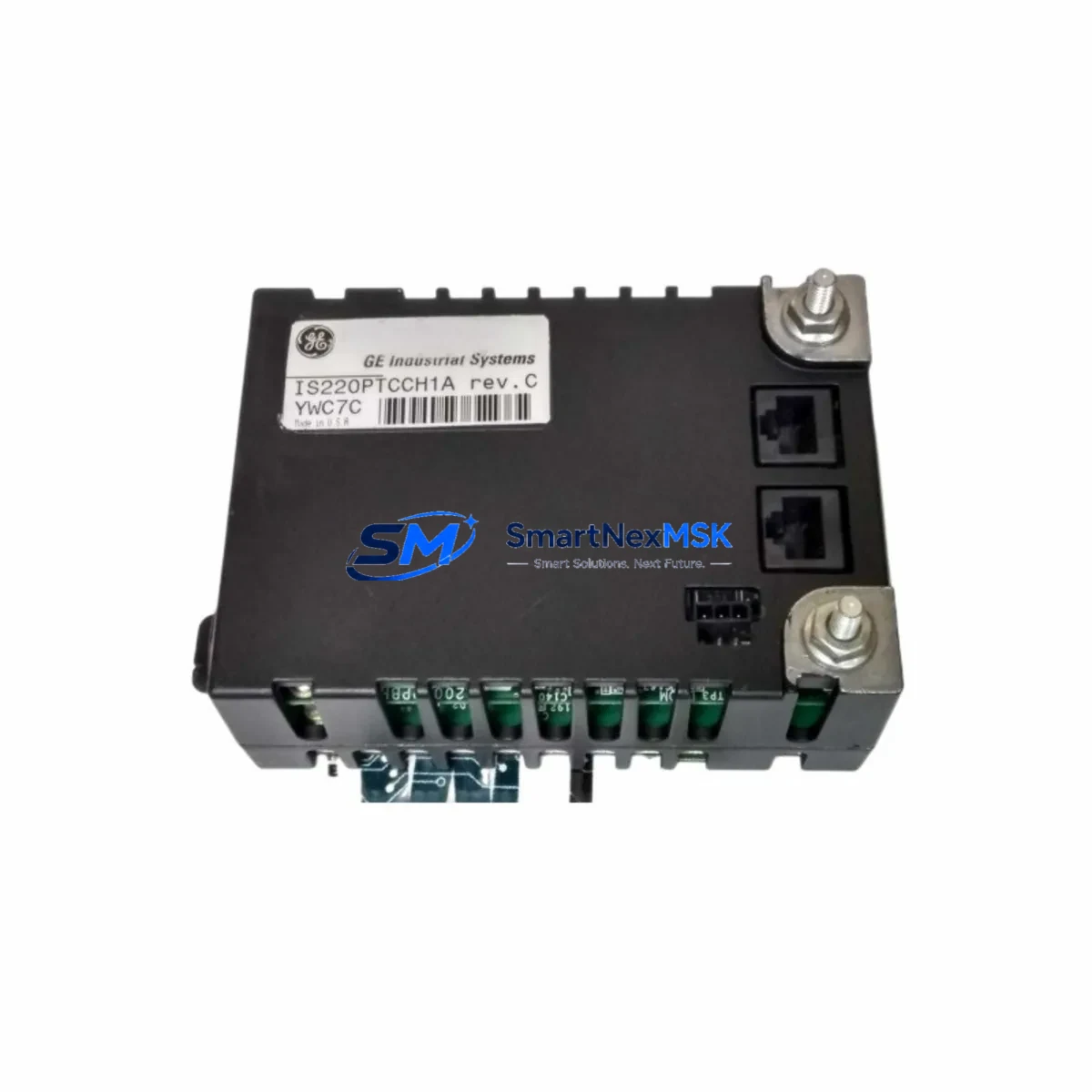

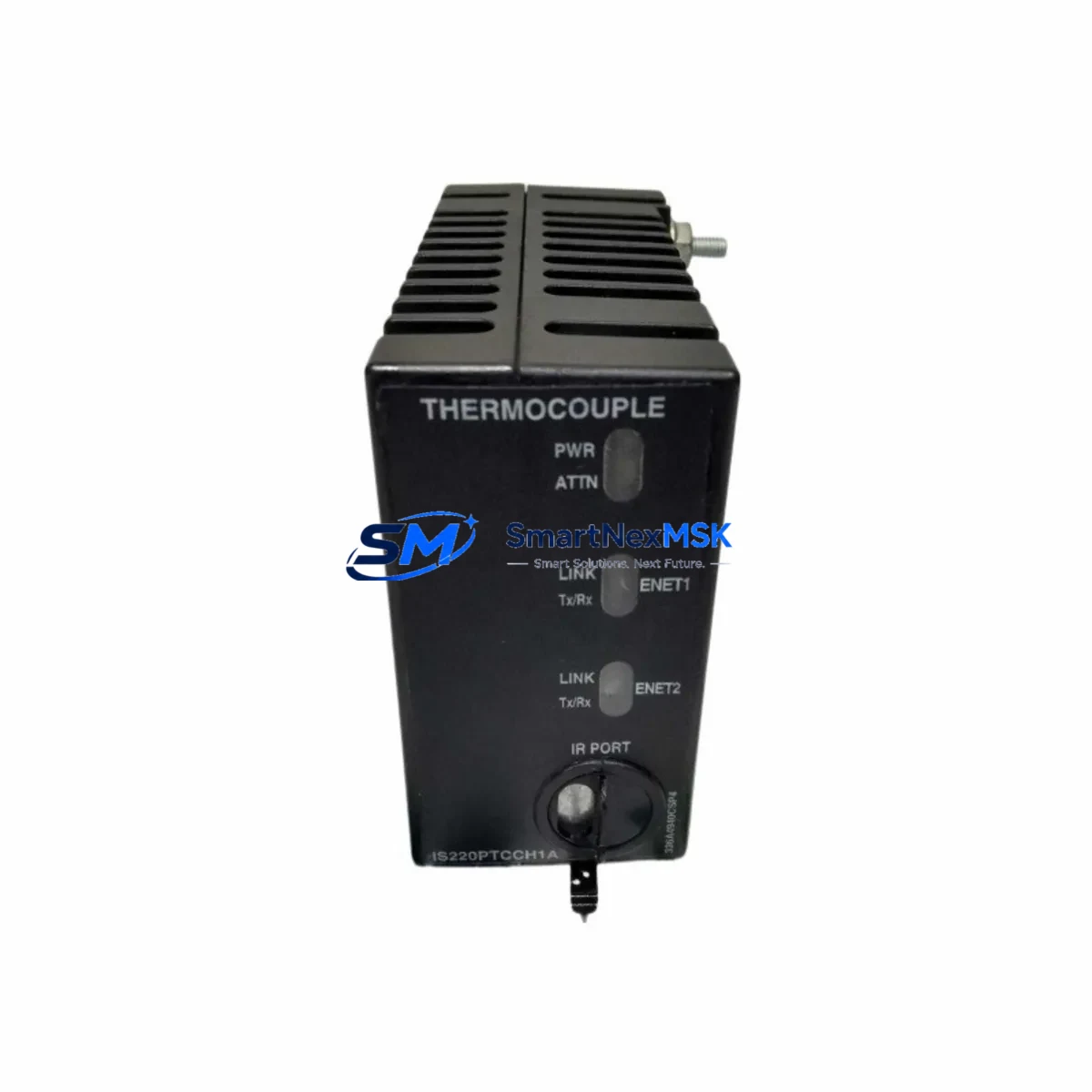

The GE IS220PTCCH1A is a thermocouple input module designed for the GE Mark VIe distributed control system — one of the most widely deployed turbine and process control platforms in power generation, oil & gas, and heavy industrial facilities. As original equipment ages and OEM support windows narrow, maintaining a verified spare of the IS220PTCCH1A in your parts inventory is a frontline strategy for minimizing unplanned downtime and protecting continuous operation.

This module handles multi-channel thermocouple signal acquisition, converting raw TC inputs into engineering-unit data for the Mark VIe controller. Failure or signal drift in this module directly impacts temperature monitoring loops, turbine protection logic, and process safety interlocks. Maintenance engineers responsible for turbine control cabinets and DCS I/O racks should treat the IS220PTCCH1A as a critical-path spare — not a reactive purchase.

Each unit supplied by SMARTNEXMSK is sourced from verified industrial channels, functionally tested prior to shipment, and backed by a 12-month warranty. We maintain stock to support both planned outage kits and emergency same-week dispatch requirements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a planned replacement of the IS220PTCCH1A, experienced maintenance engineers know that a single module swap rarely tells the full story of a degrading I/O rack. A thorough inspection of the surrounding Mark VIe cabinet should accompany any thermocouple input module replacement.

Start with the terminal board assembly — the TBTCH or TREG terminal board that the IS220PTCCH1A plugs into. Corroded or loose terminal connections are a leading cause of intermittent TC signal faults that are often misdiagnosed as module failure. Inspect all field wiring terminations for oxidation, especially in high-humidity or coastal environments.

Next, verify the Mark VIe rack power supply module (such as the IS220PPDAH1A or equivalent PPDA-series power supply). A marginal rack power supply can cause erratic behavior across multiple I/O modules simultaneously — replacing the TC input module without checking rail voltage stability is a common maintenance oversight that leads to repeat failures.

The IS220PSCAH1A Mark VIe controller module (or its redundant pair) should be checked for active diagnostic alarms related to IONet communication with the IS220PTCCH1A. If the controller is logging persistent I/O faults, the issue may be upstream of the TC module itself — inspect the IONet Ethernet switch and fiber patch cables connecting the I/O rack to the controller chassis.

For turbine applications, also inspect the IS220PVIBH1A vibration monitoring module and IS220PTURBH1A speed input module in the same rack. These modules share the same IONet segment and backplane power, and their health is directly correlated with the reliability of the overall turbine protection system. A cabinet inspection that covers TC inputs, vibration, and speed monitoring in a single outage window is far more cost-effective than multiple reactive interventions.

Don’t overlook the signal isolators and surge protection devices on the thermocouple field wiring. In older installations, unprotected TC wiring running through cable trays near high-voltage equipment can introduce common-mode noise that degrades measurement accuracy over time. Replacing the IS220PTCCH1A without addressing field-side signal integrity issues will result in the same fault recurring.

Finally, review the IS220PTCCH1A diagnostic data in the Mark VIe ToolboxST configuration software before and after replacement. Confirm that all channel calibration offsets are correctly transferred to the replacement module and that no latent configuration mismatches exist in the I/O pack definition.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement IS220PTCCH1A part number matches the installed revision level. Check the Mark VIe ToolboxST project file for the I/O pack configuration assigned to this module slot. Document all active channel assignments and engineering unit scaling before proceeding.

Step 2 — Safe isolation: Follow site-specific LOTO (Lockout/Tagout) procedures. The Mark VIe supports hot-swap of I/O modules in redundant configurations — confirm whether your system is configured for simplex or TMR (Triple Modular Redundant) operation before removing the module under power.

Step 3 — Physical swap: Remove the IS220PTCCH1A from the I/O rack. Inspect the backplane connector for bent pins or contamination. Install the replacement module and confirm the IONet link LED illuminates within 30 seconds of insertion.

Step 4 — Configuration restore: Using ToolboxST, download the I/O pack configuration to the replacement module. Verify all thermocouple channels report valid engineering-unit values within expected process ranges. Compare live readings against redundant measurement points where available.

Step 5 — Functional test and sign-off: Run a channel-by-channel verification against known reference temperatures or a TC simulator. Log the post-replacement diagnostic report from ToolboxST and file it in the equipment maintenance record. Update the spare parts inventory to trigger reorder of a replacement IS220PTCCH1A for the next outage cycle.

This workflow applies equally to legacy Mark VI systems where IS220PTCCH1A modules are used as cross-compatible replacements, extending the operational life of older turbine control platforms without requiring a full DCS migration.

Spare Parts Support FAQ

Q1: Is this IS220PTCCH1A a genuine GE original part or a third-party compatible?
All IS220PTCCH1A units supplied by SMARTNEXMSK are original GE-manufactured modules sourced from verified industrial supply channels. We do not supply counterfeit, refurbished-without-disclosure, or third-party compatible substitutes. Each unit is functionally tested before shipment and ships with a 12-month warranty.

Q2: How do I confirm compatibility with my specific Mark VIe system revision?
The IS220PTCCH1A is compatible across Mark VIe I/O rack configurations using the standard IONet architecture. Compatibility depends on your ToolboxST project revision and the terminal board assembly installed in your rack. Share your system’s I/O pack part number and ToolboxST version with our technical team at sales@smartnexmsk.com and we will confirm compatibility before shipment.

Q3: What is your recommended spare parts stocking strategy for Mark VIe thermocouple input modules?
For facilities operating 2–4 Mark VIe racks, we recommend maintaining a minimum of one IS220PTCCH1A as a cold spare. For critical turbine protection applications or remote sites with long logistics lead times, a quantity of two is advisable. Pair this with a spare terminal board and a verified IONet switch port to ensure a complete replacement kit is available for emergency response.

Q4: What pre-shipment testing does SMARTNEXMSK perform on the IS220PTCCH1A?
Each module undergoes power-on functional testing to verify IONet communication, channel signal acquisition, and onboard diagnostics prior to dispatch. Modules that fail any test parameter are quarantined and not shipped. A test report is available upon request. All units ship with ESD-protective packaging and are covered by a 12-month warranty from the date of shipment.
