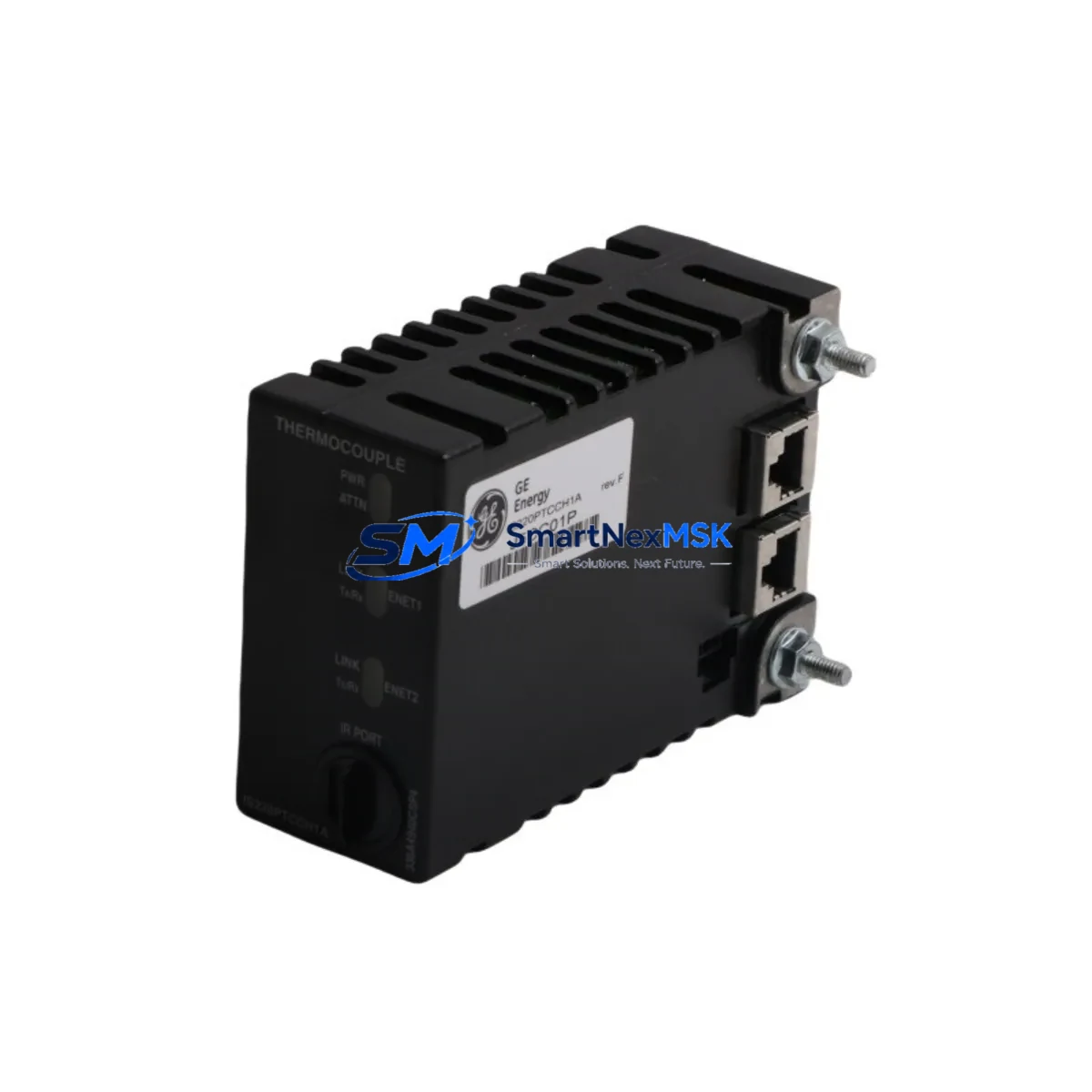

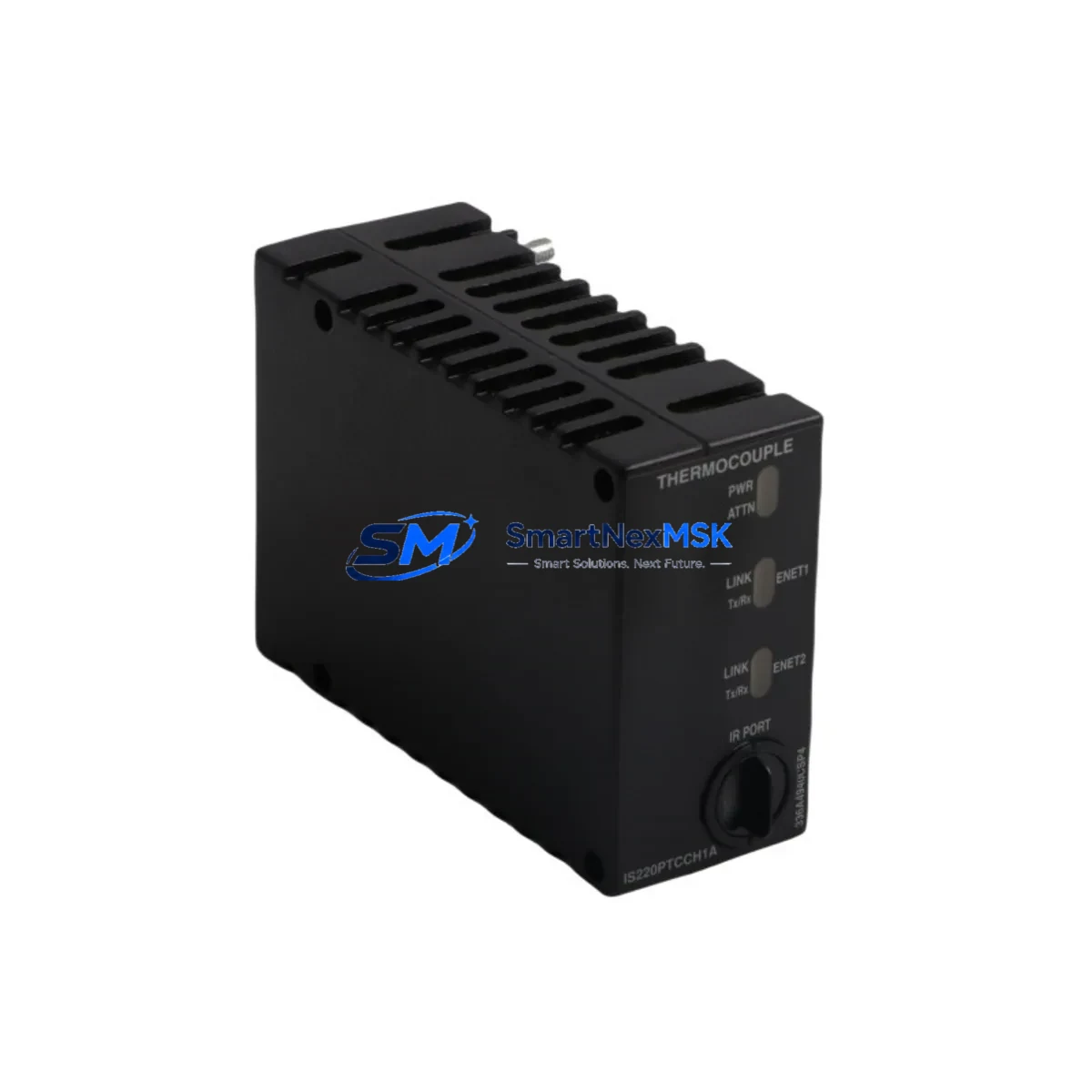

GE IS220PTCCH1B Safety-Enhanced Thermocouple Input Module

GE IS220PTCCH1B Safety-Enhanced Thermocouple Input Module for Harsh Industrial Sites

The GE IS220PTCCH1B is a ruggedized thermocouple input module engineered for the GE Mark VIe Distributed Control System (DCS), purpose-built to deliver uninterrupted temperature signal acquisition in the most demanding industrial environments. Designed for continuous-process facilities where control loop integrity is non-negotiable, this module addresses the full spectrum of field-level hazards — from high-frequency electromagnetic interference and ground-loop noise to transient surge events, thermal cycling stress, and vibration-induced connector fatigue. In petrochemical reactors, power generation turbine halls, metallurgical furnaces, and water treatment control rooms, the IS220PTCCH1B serves as a critical front-end sensing node that keeps safety interlocks and process control loops operating within defined safe states.

Industrial sites running continuous production schedules cannot tolerate signal drift or module misoperation. The IS220PTCCH1B provides cold-junction compensation and high-resolution analog-to-digital conversion across multiple thermocouple types (J, K, T, E, R, S, B), ensuring that temperature readings fed into the Mark VIe controller remain accurate even when ambient cabinet temperatures fluctuate or when nearby high-power drives introduce conducted noise onto the signal wiring. Its isolated input architecture prevents ground-loop currents from corrupting measurement integrity — a common failure mode in large industrial plants where multiple earthing points exist across extended cable runs.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust Mark VIe control cabinet deployment extends well beyond a single I/O module. The IS220PTCCH1B operates as part of an integrated protection architecture where every component in the signal chain contributes to overall system safety and uptime. In a typical turbine or process control cabinet, the IS220PTCCH1B works alongside the IS220PTURH1B turbine protection module, which handles speed and vibration inputs critical to emergency shutdown sequences. Temperature data from the IS220PTCCH1B feeds directly into the IS215UCVEH2A Mark VIe controller unit, where safety logic executes trip and interlock decisions in real time.

Power supply stability is foundational to module reliability. The IS220PTCCH1B rack is typically powered through the IS200EPSMG1A power supply module, which provides regulated, filtered DC power to the I/O backplane. In redundant configurations, dual power feeds ensure that a single power supply failure does not interrupt thermocouple signal acquisition. Surge events on incoming AC lines — common in mining substations and port crane control rooms — are mitigated upstream by the IS200PSCDG1A power conditioning board before reaching sensitive I/O circuitry.

On the communications side, the IS220PTCCH1B transmits digitized temperature values over the Mark VIe IONet to the controller. Network integrity is maintained through the IS220PSCAH1B serial communications adapter, which manages protocol conversion and network fault isolation. In safety-critical applications, the IS220PAICH1B analog input module complements the IS220PTCCH1B by handling 4–20 mA process signals — pressure, flow, and level — within the same I/O rack, allowing a unified safety interlock strategy across all process variables.

For digital output control — activating solenoid valves, motor starters, or emergency shutdown relays based on temperature thresholds — the IS220PDOAH1B digital output module operates in the same rack ecosystem. Relay output variants such as the IS220PRTDH1B RTD input module extend temperature measurement capability to resistance-based sensors in applications where thermocouple accuracy alone is insufficient. Together, these modules form a tightly integrated, cross-validated safety I/O layer that minimizes the risk of undetected failures in critical control loops.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hydrocarbon processing facilities, the IS220PTCCH1B monitors reactor bed temperatures, heat exchanger outlet conditions, and fired heater tube skin temperatures. Accurate thermocouple data is essential for preventing runaway reactions and triggering emergency depressurization sequences. The module’s surge suppression and isolation characteristics protect measurement integrity in environments where large motor starts and switching operations generate significant electrical transients on shared cable trays.

Power Generation — Gas and Steam Turbines: GE Mark VIe systems are the native control platform for GE Frame 6, Frame 7, and Frame 9 gas turbines. The IS220PTCCH1B monitors exhaust gas temperatures (EGT), combustion liner temperatures, and bearing metal temperatures. Deviations beyond safe operating limits trigger automatic load shedding or turbine trip sequences. Continuous, drift-free temperature measurement is a prerequisite for both operational efficiency and compliance with turbine OEM safety requirements.

Metallurgical and Steel Plants: Electric arc furnaces, ladle furnaces, and continuous casting lines operate at extreme temperatures with high electromagnetic interference from large induction heating systems. The IS220PTCCH1B’s EMI-filtered input design maintains signal fidelity in these environments, providing reliable temperature feedback for melt control, tapping sequence automation, and cooling water safety interlocks.

Mining and Mineral Processing: Conveyor drive motors, ball mill bearings, and crusher gearboxes require continuous temperature monitoring to prevent catastrophic mechanical failures. In underground mining environments where cable runs are long and grounding is imperfect, the IS220PTCCH1B’s isolated input architecture prevents ground-loop interference from masking genuine temperature alarms.

Water and Wastewater Treatment: Thermal disinfection processes, boiler systems, and heat exchanger networks in water treatment plants rely on precise temperature control. The IS220PTCCH1B provides the measurement accuracy required for regulatory compliance and process safety, operating reliably in humid, chemically aggressive cabinet environments.

Port and Marine Terminal Automation: Crane drive systems, ship-to-shore conveyor motors, and bulk material handling equipment generate significant heat loads. The IS220PTCCH1B monitors motor winding and bearing temperatures in control systems where unplanned downtime directly impacts cargo throughput and vessel scheduling.

Safety and Quality FAQ

Q1: What warranty coverage does the IS220PTCCH1B carry?
Every IS220PTCCH1B unit supplied by SMARTNEXMSK is backed by a 12-month quality warranty from the date of shipment. If the module exhibits any functional defect under normal operating conditions within the warranty period, we provide replacement or repair support. Our warranty reflects our confidence in the pre-shipment testing and inspection process applied to every unit before dispatch.

Q2: What pre-shipment testing is performed on each unit?
Each IS220PTCCH1B undergoes a comprehensive functional verification process prior to shipment. This includes power-on self-test validation, channel-by-channel input signal simulation across supported thermocouple types, communication interface handshake testing with Mark VIe rack hardware, and visual inspection for connector integrity and board-level condition. Units that do not pass all test criteria are quarantined and not dispatched.

Q3: Is the IS220PTCCH1B compatible with all Mark VIe rack configurations?
The IS220PTCCH1B is designed for the GE Mark VIe IS200/IS220 series I/O rack platform. It is compatible with standard Mark VIe simplex, dual, and triple-redundant (TMR) rack configurations when used with the appropriate terminal board. Customers should confirm their specific rack revision and terminal board model (e.g., IS200TBCIH1C) to ensure full compatibility. Our technical team can assist with compatibility verification prior to order confirmation.

Q4: Can SMARTNEXMSK support long-term and repeat supply of the IS220PTCCH1B?
Yes. SMARTNEXMSK maintains dedicated inventory of GE Mark VIe IS220 series modules to support both emergency replacement and planned maintenance programs. We understand that industrial facilities require reliable spare parts availability to meet their preventive maintenance schedules and minimize unplanned downtime risk. Repeat orders, blanket purchase agreements, and priority stock reservation arrangements are available for facilities with ongoing Mark VIe fleet maintenance requirements. Contact our sales team to discuss supply continuity options.
