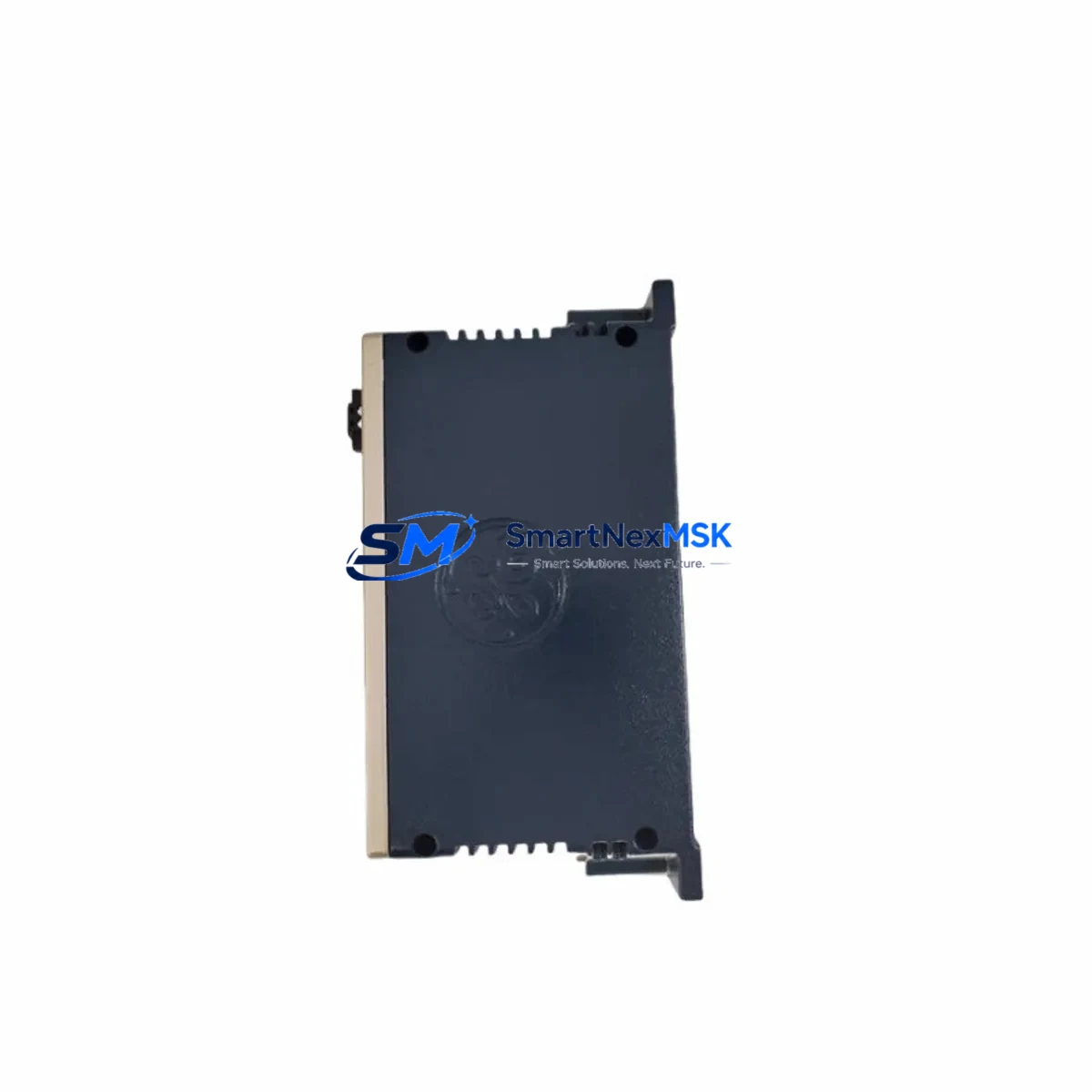

The GE IS420PUAAH1A is an original Communication I/O Module designed for the GE Mark VIe turbine control platform — one of the most widely deployed distributed control architectures in power generation, oil & gas, and heavy industrial facilities worldwide. As aging Mark VIe systems continue to operate beyond their original design life, maintaining a verified spare of the IS420PUAAH1A is a critical element of any proactive maintenance strategy.

This module serves as the communication backbone between the Mark VIe controller and field I/O networks, enabling real-time data exchange across turbine protection, sequencing, and monitoring loops. A failed or degraded IS420PUAAH1A can result in loss of communication integrity, spurious trips, or complete unit shutdown — making rapid spare availability essential for minimizing mean time to repair (MTTR) and protecting production continuity.

Each unit supplied by SMARTNEXMSK is sourced from verified industrial channels, functionally tested prior to dispatch, and backed by a 12-month warranty. We support maintenance engineers and procurement teams with reliable lead times, pre-shipment inspection reports, and long-term supply continuity for legacy GE Mark VIe infrastructure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules a planned outage to replace or inspect the IS420PUAAH1A, the scope of work should extend beyond the module itself. The IS420PUAAH1A operates within a tightly integrated Mark VIe I/O network, and adjacent components are subject to the same thermal cycling, vibration, and electrical stress that degrades communication modules over time.

During the same maintenance window, engineers should inspect and consider stocking spares for the following associated components:

• IS420UCSBH3A / IS420UCSBH4A (Mark VIe UCS Controller Board) — the upstream controller that manages IONet communication; a degraded controller can cause intermittent IS420PUAAH1A faults that are misdiagnosed as module failures.
• IS420ESWBH3A (Mark VIe Ethernet Switch Module) — provides the IONet switching fabric; inspect for port errors and replace if packet loss is detected on the I/O network segment.
• IS420YAICS1A / IS420YAICS1B (Analog I/O Module) — commonly installed in the same I/O rack; verify channel calibration and terminal block integrity during the same outage.
• IS420YDOAS1A (Digital Output Module) — check relay contact resistance and output fuse condition; worn contacts can cause false actuator commands during turbine restart sequences.
• IS420YDIEH1A (Digital Input Module) — inspect field wiring terminations and verify input threshold voltages; degraded inputs can mask protective trip signals.
• Terminal blocks and I/O marshalling connectors — corrosion or loose terminations on the IS420 series I/O connectors are a leading cause of intermittent faults; re-torque and inspect during every planned outage.
• 24 VDC power supply modules (e.g., IS420PTURH1A or equivalent) — measure output voltage under load; a sagging power rail will cause communication errors across multiple I/O modules simultaneously.
• Mark VIe backplane and rack chassis — inspect backplane connector pins for oxidation; a single bent or corroded pin can disrupt the entire I/O segment.
• Signal isolators and surge protection devices on field instrument loops — particularly on thermocouple and RTD inputs connected to the same I/O rack, where ground faults can propagate into the communication module.
• HMI workstation and ToolboxST configuration backup — before replacing the IS420PUAAH1A, ensure the current Mark VIe configuration is backed up; firmware version compatibility between the replacement module and the active controller must be confirmed before energizing.

A structured spare parts kit covering these components reduces the risk of secondary failures during restart and supports a faster return-to-service timeline.

Site Replacement Workflow

Replacing the GE IS420PUAAH1A in a live Mark VIe system requires careful sequencing to avoid unplanned trips or communication faults during the changeover. The following workflow reflects best practices for field replacement in turbine control environments:

1. Pre-replacement verification: Confirm the replacement IS420PUAAH1A firmware revision matches the active Mark VIe system version using ToolboxST. Mismatched firmware is the most common cause of post-replacement communication failures.
2. Configuration backup: Export the full Mark VIe configuration from ToolboxST and store it on an isolated engineering workstation before any hardware changes.
3. IONet isolation: In redundant Mark VIe configurations, verify that the redundant I/O path is healthy before removing the faulty module. Do not proceed if both paths show faults.
4. Module removal: Follow GE Mark VIe hardware installation procedures for hot-swap removal. Avoid touching backplane connectors; use ESD-safe handling throughout.
5. Replacement installation: Seat the IS420PUAAH1A firmly into the rack slot, verify LED status indicators (PWR, COM, FLT) after power-up, and confirm IONet link establishment in ToolboxST diagnostics.
6. Functional test: Cycle through I/O channel reads and verify all field signals are correctly mapped before returning the unit to automatic control.
7. Documentation: Record the replacement in the site maintenance log with the new module serial number, firmware version, and post-replacement test results.

This workflow applies equally to emergency replacements following unplanned failures. Having a pre-tested IS420PUAAH1A spare on-site reduces emergency replacement time from days to hours, directly limiting production loss exposure.

Spare Parts Support FAQ

Q1: What is the expected service life of the IS420PUAAH1A, and when should I plan for replacement?
The IS420PUAAH1A is a long-life industrial module, but communication I/O modules in high-cycle turbine environments typically show increased fault rates after 8–12 years of continuous service. We recommend stocking at least one verified spare per Mark VIe I/O rack and scheduling proactive replacement during any major planned outage where the module has exceeded 10 years of service.

Q2: How do I verify compatibility between a replacement IS420PUAAH1A and my existing Mark VIe system?
Compatibility is determined by the Mark VIe system firmware version and the hardware revision of the IS420PUAAH1A (H1A suffix indicates the hardware revision). Before ordering, provide your ToolboxST system version and existing module hardware revision to our technical team. We will confirm compatibility and, where required, supply a module with matching firmware pre-loaded.

Q3: What pre-shipment testing does SMARTNEXMSK perform on the IS420PUAAH1A?
Every IS420PUAAH1A unit undergoes functional power-on testing, communication interface verification, and visual inspection for connector and board integrity before dispatch. A test report is available upon request. Units are shipped in ESD-safe packaging with protective end caps on all connectors.

Q4: What does the 12-month warranty cover, and what is the replacement process?
The 12-month warranty covers functional failure under normal operating conditions. If the IS420PUAAH1A fails within the warranty period, contact [email protected] with the fault description and installation details. We will arrange priority replacement shipment. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.
