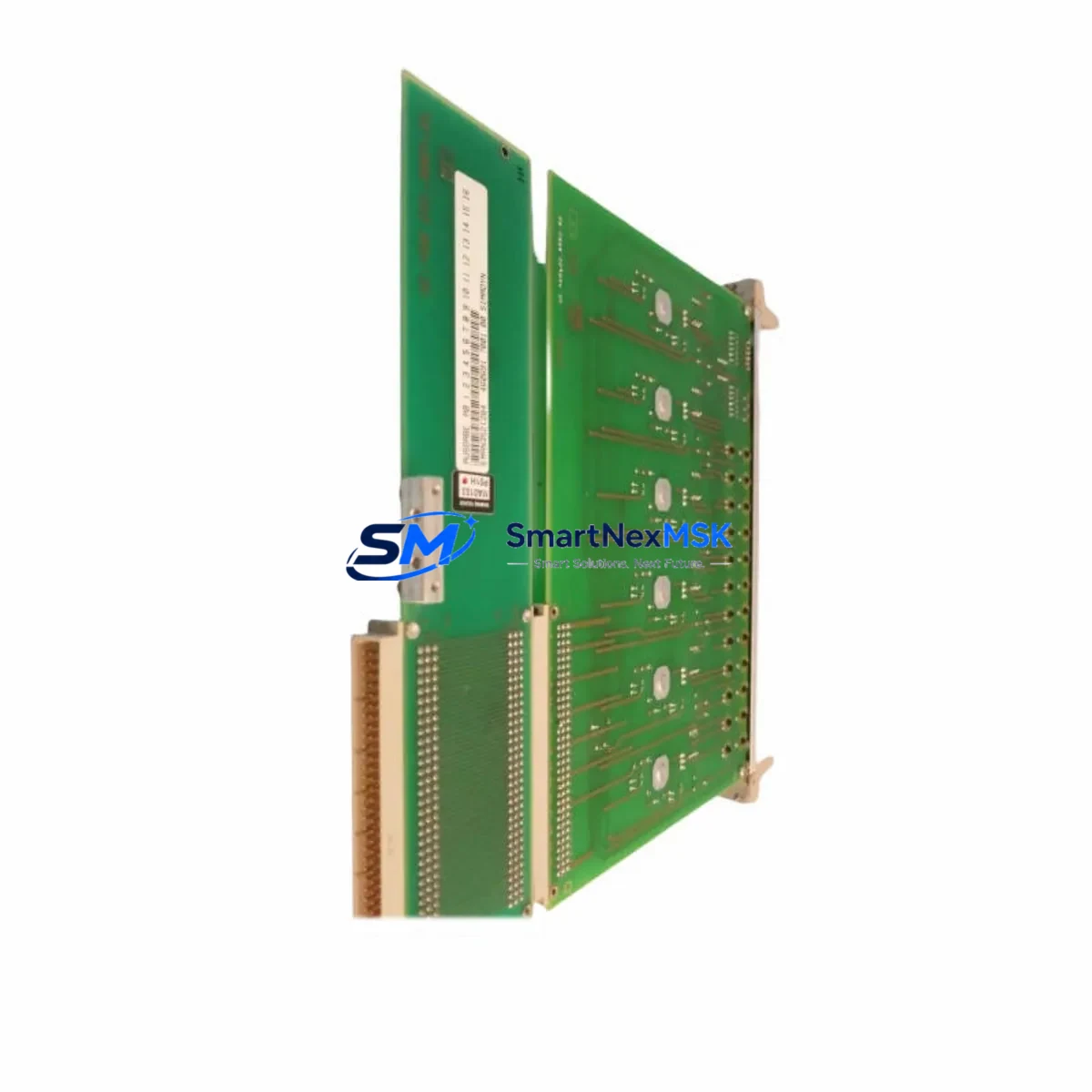

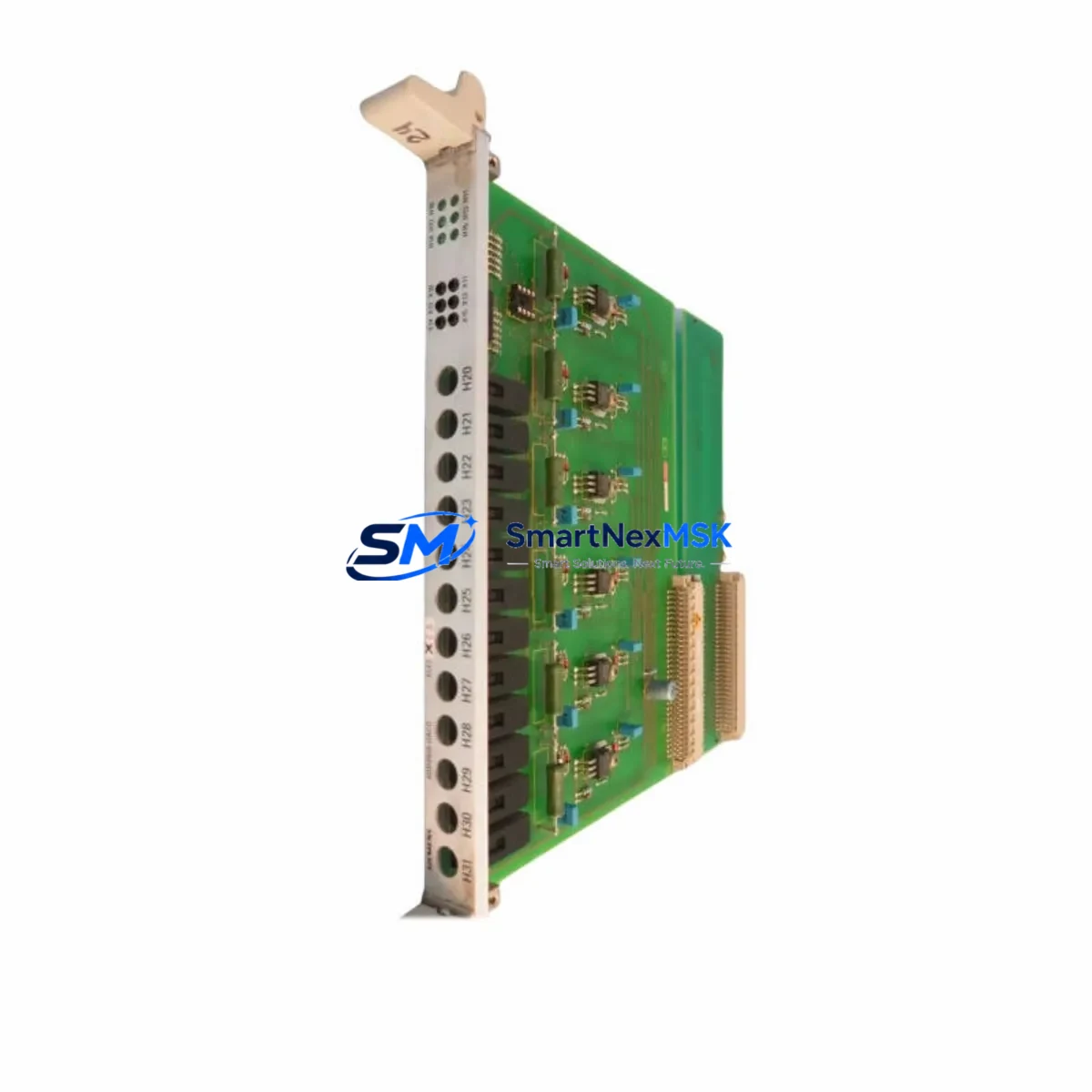

GE IS430SNUAH1A Safety-Enhanced Analogue I/O for Harsh Industrial Sites

GE IS430SNUAH1A Safety-Enhanced Analogue I/O for Harsh Industrial Sites

The GE IS430SNUAH1A is a universal analogue I/O module engineered for the GE Mark VI turbine control platform, purpose-built to sustain reliable signal integrity and safe control loop operation in the most demanding industrial environments. Designed to handle continuous high-load duty cycles, the IS430SNUAH1A delivers consistent analogue signal conditioning across 4–20 mA and voltage input/output channels, making it a critical component in safety instrumented systems (SIS), critical interlock circuits, and distributed control architectures where signal drift or module misbehavior can trigger unplanned shutdowns or hazardous process deviations.

In heavy industrial settings — including gas turbine power generation, combined-cycle plants, petrochemical processing, and offshore platforms — analogue I/O modules are among the most failure-sensitive components in the control cabinet. The IS430SNUAH1A addresses this directly through its robust hardware design, which incorporates galvanic isolation between field and controller circuits, high common-mode rejection to suppress ground loops and electromagnetic interference, and onboard diagnostics that continuously validate channel health. These features collectively reduce the risk of control interruption, signal drift under thermal stress, and false process trips caused by noise-induced measurement errors.

Safety Reliability Table

Control Cabinet Protection Strategy

The IS430SNUAH1A does not operate in isolation — its safety value is fully realized when integrated within a well-engineered Mark VI control cabinet architecture. In a typical turbine control enclosure, the module works in concert with the GE IS200VSVOH1B servo valve output module, which drives actuator positioning based on the analogue setpoints conditioned by the IS430SNUAH1A. Upstream, the GE IS200TREGH1B terminal board provides the field wiring interface, ensuring clean signal entry into the control rack and reducing the risk of wiring-induced noise or ground faults propagating into the I/O module.

Power integrity is equally critical. The IS430SNUAH1A relies on stable 28 VDC backplane power, typically supplied through the GE IS200EPSMG1A power supply module. In high-availability installations, a redundant power feed through a secondary IS200EPSMG1A or equivalent Mark VI power conditioner ensures that a single power supply fault does not interrupt analogue signal processing. Surge events from nearby motor starts, arc flash incidents, or lightning-induced transients on field cables are mitigated by the module’s onboard transient suppression, but additional protection at the cabinet entry point — such as a Phoenix Contact TRABTECH surge arrester or equivalent DIN-rail mounted SPD — is recommended for installations in exposed or high-lightning-risk environments.

For communication integrity, the IS430SNUAH1A interfaces with the Mark VI controller core — typically the GE IS200UCVEH2A VME controller card — via the high-speed backplane bus. In triple-redundant (TMR) configurations, three IS430SNUAH1A modules may be installed in parallel across the R, S, and T controller racks, with the GE IS200VTURH1BBA turbine control board coordinating voted analogue outputs to the final control elements. This TMR architecture eliminates single-point failure risk in critical interlock and protective relay circuits. The GE IS200DSPXH1DBB digital signal processor board further supports high-speed loop execution, ensuring that analogue feedback from the IS430SNUAH1A is processed within the required safety response time for turbine overspeed protection and flame detection interlocks.

Critical Industrial Safety Applications

The IS430SNUAH1A is deployed across a wide range of safety-critical industrial sectors where control loop reliability directly impacts personnel safety, environmental compliance, and asset protection.

In gas turbine power generation, the module conditions analogue feedback from exhaust thermocouples, compressor inlet pressure transmitters, and fuel flow meters, feeding real-time process values into the Mark VI protective logic. Any signal interruption or drift in these channels can mask an approaching surge condition or delay a protective trip, making the IS430SNUAH1A’s continuous self-diagnostics and channel isolation essential safety features.

In petrochemical and refinery operations, the module supports analogue control of reactor temperature, pressure differential, and flow rate in continuous process units. Its SIL 2 rating makes it suitable for use within safety instrumented functions (SIFs) that protect against runaway reactions, overpressure events, and toxic release scenarios — applications governed by IEC 61511 and OSHA PSM requirements.

In mining and mineral processing, where high-voltage motor drives, variable frequency drives (VFDs), and heavy mechanical loads generate intense electromagnetic interference, the IS430SNUAH1A’s high CMRR and galvanic isolation prevent noise-induced measurement errors that could cause conveyor belt mistracking, crusher overload, or flotation cell level control failures.

In water and wastewater treatment, the module provides reliable analogue I/O for pump station control, chemical dosing systems, and effluent quality monitoring — environments where module failure can result in regulatory non-compliance or public health risk. Its wide operating temperature range and humidity tolerance make it suitable for outdoor pump stations and underground wet wells.

In metallurgical and steel production facilities, the IS430SNUAH1A supports analogue control of furnace temperature profiles, rolling mill tension control, and cooling water flow regulation — processes where signal integrity directly determines product quality and equipment longevity.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the IS430SNUAH1A?
The 12-month warranty covers all manufacturing defects, component failures, and functional non-conformance under normal operating conditions. If the module fails to perform to its published specification within the warranty period, we will provide a replacement unit or full refund. Warranty claims are processed within 5 business days of receipt of the returned module.

Q2: What pre-shipment testing is performed on each IS430SNUAH1A unit?
Every IS430SNUAH1A unit undergoes functional verification testing prior to shipment, including channel-by-channel analogue signal accuracy checks, isolation resistance measurement, backplane communication handshake verification, and visual inspection for physical damage or counterfeit indicators. Units that do not pass all test criteria are quarantined and not shipped.

Q3: Is the IS430SNUAH1A compatible with both Mark VI and Mark VIe control systems?
The IS430SNUAH1A is designed for the GE Mark VI platform. Compatibility with Mark VIe systems depends on the specific rack and backplane configuration. We recommend confirming your rack model and firmware revision before ordering. Our technical team can assist with compatibility verification at no charge.

Q4: Can you guarantee long-term supply for ongoing maintenance and spare parts programs?
Yes. We maintain dedicated inventory of the IS430SNUAH1A and related Mark VI components to support long-term spare parts programs for power generation and process industry customers. We can provide scheduled delivery agreements, consignment stock arrangements, and advance purchase options to ensure your maintenance program is never interrupted by parts availability issues.
