HEIDENHAIN IBV660B ID331923-01 Retrofit-Ready Encoder Converter IBV Series

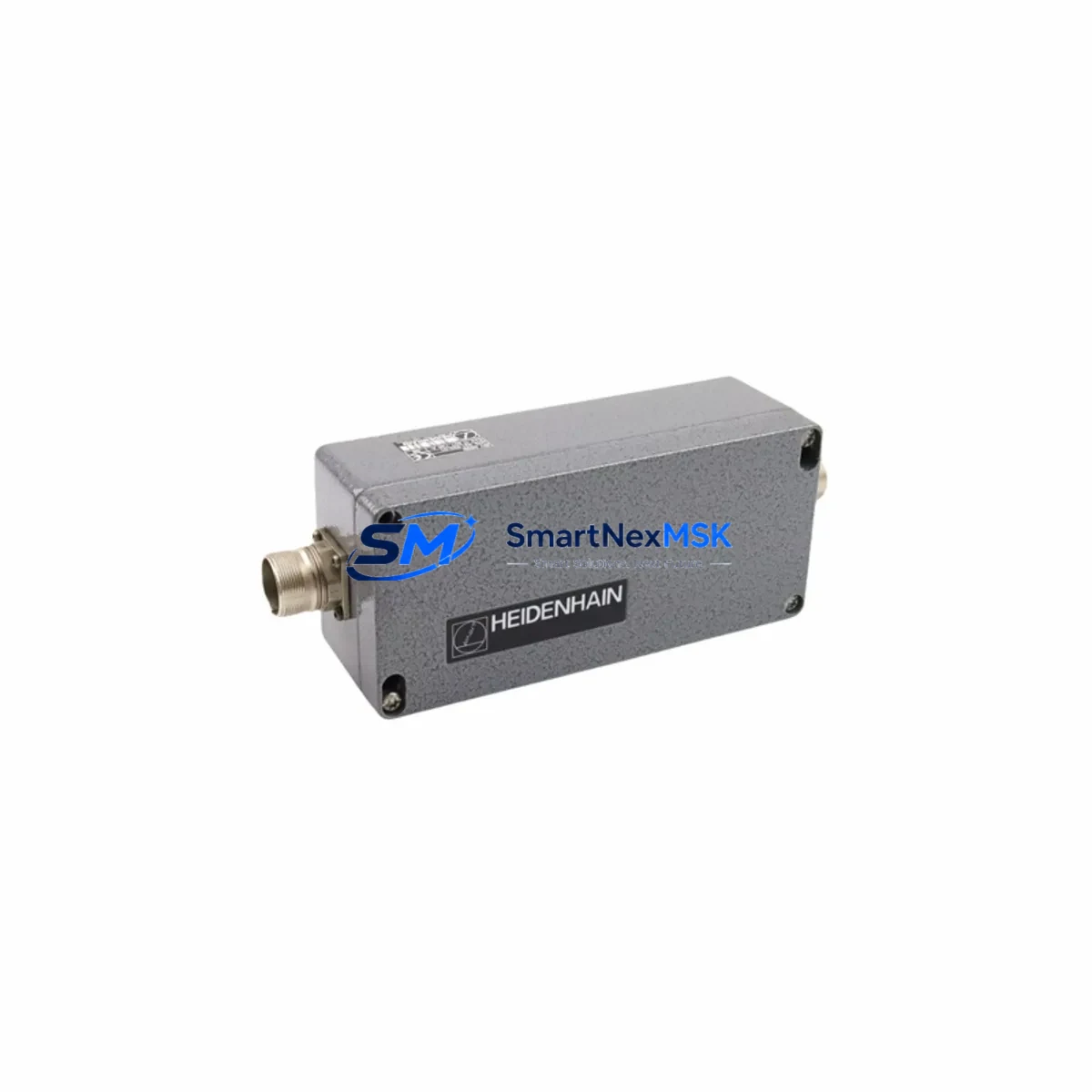

HEIDENHAIN IBV660B ID331923-01 Retrofit-Ready Encoder Signal Converter for IBV Series Control Systems

The HEIDENHAIN IBV660B (ID331923-01) is a high-precision encoder signal converter engineered for seamless integration into existing IBV Series automation architectures. Designed as a direct retrofit solution for aging or discontinued encoder interface modules, this unit supports the modernization of CNC machine tools, precision grinding systems, and multi-axis servo control platforms without requiring full system redesign. Whether you are replacing a failed IBV620B, decommissioning an end-of-life IBV640B, or upgrading signal conditioning hardware within a legacy HEIDENHAIN TNC 426 or iTNC 530 control cabinet, the IBV660B ID331923-01 delivers the electrical compatibility and mechanical form factor required for a controlled, low-risk migration.

Industrial buyers sourcing this unit for retrofit projects should verify the existing encoder output signal type — typically 1 Vpp sinusoidal — against the IBV660B input specification before installation. In multi-axis systems where the EXE 610 or EXE 650 interpolation electronics are already in service, the IBV660B can be integrated without modifying the downstream signal chain. Confirm that the DC 5 V supply rail on the existing control cabinet can sustain the additional current draw, particularly when the IBV660B is installed alongside other active modules such as the PWM 9 power supply unit or the UE 2xx series safety relay.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the IBV660B ID331923-01 into a legacy control system requires a structured pre-installation audit. Begin by documenting the existing encoder wiring topology — particularly the cable shield grounding scheme — since improper shielding on the encoder cable between the linear scale and the IBV module is a leading cause of signal noise after retrofit. In systems where the original IBV620B was wired using HEIDENHAIN PUR cable assemblies, the same cable can typically be reused with the IBV660B without retermination, provided the connector shell and pin assignments are verified against the updated wiring diagram.

For control cabinets running a HEIDENHAIN TNC 430 or iTNC 530 controller, the IBV660B slots into the existing encoder interface position on the MC 422 or CC 422 control board carrier. If the system uses a modular rack architecture with an LE 3xx logic unit, confirm that the backplane slot addressing is updated in the NC machine parameters after the module swap. Failure to update the axis address table will result in encoder feedback errors at power-on, even if the hardware connection is correct.

In retrofit projects involving protocol migration — for example, transitioning from 1 Vpp sinusoidal feedback to EnDat 2.2 digital — the IBV660B serves as an intermediate signal conditioning stage while the downstream EXE 650 interpolation unit or the SE 661 signal electronics module is upgraded in a separate phase. This phased approach allows the machine to remain operational on the existing feedback protocol while the new digital encoder infrastructure is validated in parallel. During this window, the IBV660B maintains signal integrity across the full speed range of the servo axis, preventing position drift or following-error faults in the CNC program.

Power budget verification is critical when adding the IBV660B to an existing cabinet. Measure the available headroom on the DC 5 V bus — supplied by the PWM 9 or equivalent HEIDENHAIN power supply — before installation. In cabinets where multiple IBV modules, the TS 740 tool touch probe interface, and the KTY temperature monitoring circuit share the same supply rail, the additional current draw of the IBV660B must be accounted for to avoid undervoltage conditions during axis acceleration.

Downtime Control During System Migration

Minimizing production downtime during an IBV660B retrofit requires advance preparation of the replacement unit, a verified backup of the NC program and machine parameters, and a clear rollback plan in case the new module does not initialize correctly on first power-on. Before removing the original IBV620B or IBV640B, use the HEIDENHAIN TNCremo software to export the full machine parameter set and the active NC program library to an external storage device. This ensures that if the axis configuration requires adjustment after the module swap, the original parameter baseline is available for comparison.

During the physical swap, label all encoder cables before disconnection and photograph the terminal block wiring on the existing module. The IBV660B uses the same 15-pin Sub-D connector as its predecessors, but verify the pin-out against the updated HEIDENHAIN documentation, as minor revisions between IBV series generations have been documented in field service bulletins. After reconnection, perform a controlled power-on sequence: bring up the control cabinet without enabling the servo drives, confirm that the encoder feedback signal is detected by the TNC controller, and check the position display for stability before enabling axis motion.

For multi-axis machines where simultaneous replacement of all IBV modules is not feasible, a rolling replacement strategy — replacing one axis at a time and validating each before proceeding — reduces the risk of a full system outage. This approach is particularly effective in transfer line applications where individual machining stations can be isolated from the production flow while the retrofit is performed. Each replaced axis should be validated through a full reference mark traversal cycle and a test cut before the station is returned to production.

Retrofit Support FAQ

Q1: Is the IBV660B ID331923-01 a direct replacement for the IBV620B and IBV640B?
Yes. The IBV660B ID331923-01 is designed as a functional and mechanical replacement for the IBV620B and IBV640B within the HEIDENHAIN IBV Series. The connector interface, mounting footprint, and signal protocol are compatible. However, always verify the machine-specific wiring diagram and NC parameter settings before installation, as individual machine configurations may vary.

Q2: What commissioning steps are required after installing the IBV660B?
After physical installation, update the encoder module address in the NC machine parameters using the HEIDENHAIN TNC or iTNC parameter editor. Perform a reference mark traversal on the affected axis to confirm position feedback integrity. Verify the encoder signal amplitude and phase using the HEIDENHAIN PWM 21 or equivalent diagnostic tool before enabling full servo operation.

Q3: Can the IBV660B be used with non-HEIDENHAIN encoders or third-party CNC controllers?
The IBV660B is optimized for use with HEIDENHAIN linear and rotary encoders producing a 1 Vpp sinusoidal output signal. It can interface with third-party CNC controllers that accept TTL square-wave encoder feedback, provided the output signal specification is compatible. Consult the controller manufacturer’s encoder interface documentation before proceeding with a non-standard integration.

Q4: What does the 12-month warranty cover, and how is it processed?
The 12-month warranty covers manufacturing defects and functional failure under normal operating and storage conditions. It does not cover damage resulting from incorrect installation, overvoltage, or physical impact. To initiate a warranty claim, contact our sales team with the order reference, a description of the fault, and photographic evidence of the installation. Replacement or repair will be arranged within the warranty period at no additional cost.

—
