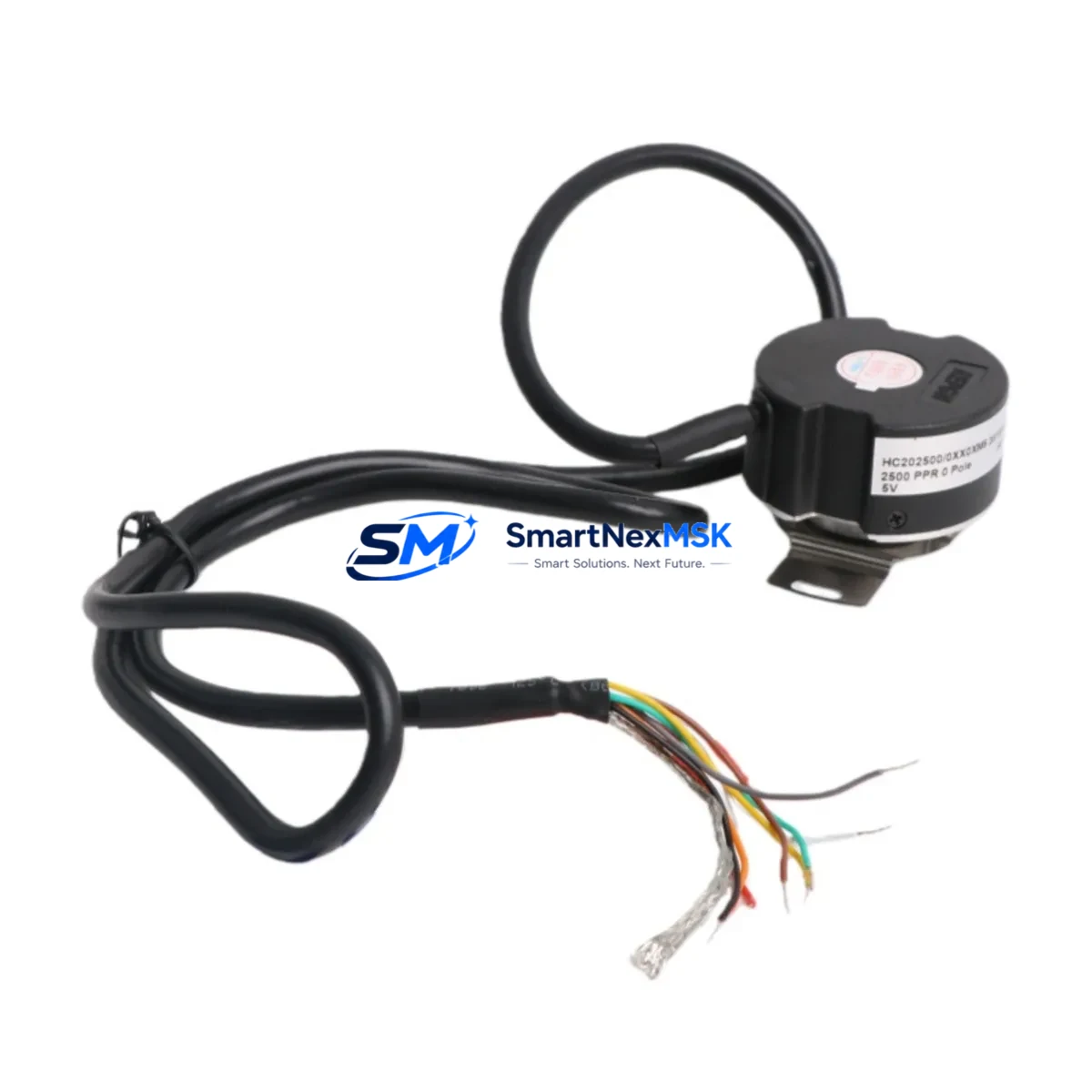

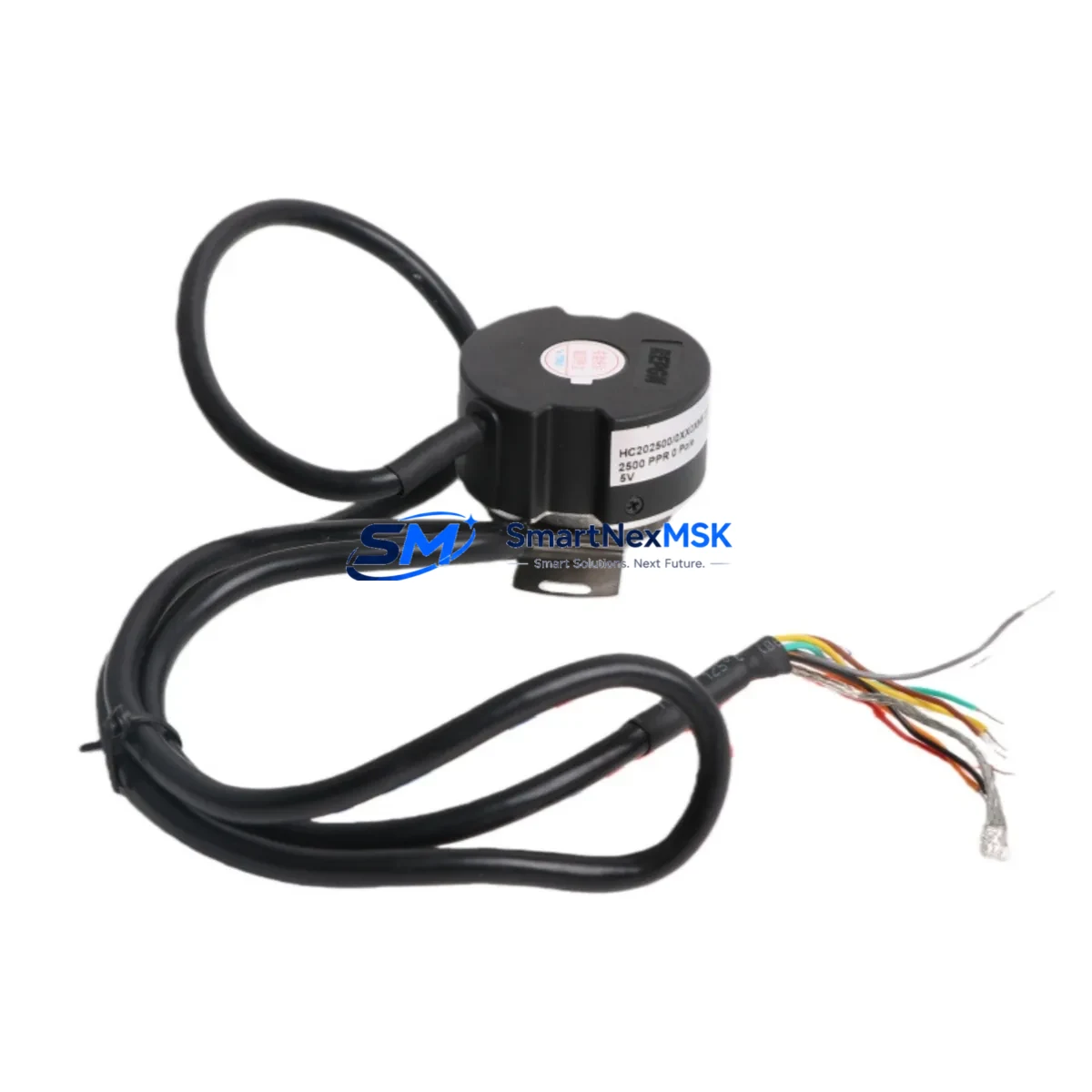

Hengstler HC202500/0XX0AJ2 Retrofit-Ready Incremental Encoder for HC20 Control Systems
The Hengstler HC202500/0XX0AJ2 is a high-resolution incremental rotary encoder engineered for seamless integration into legacy HC20 Series control architectures. With 2500 pulses per revolution (PPR), push-pull output, and a 10–30 VDC operating range, this encoder is purpose-built for retrofit deployments where dimensional compatibility, signal integrity, and minimal reconfiguration are non-negotiable. Whether you are replacing a failed unit on an aging servo axis, upgrading a worn encoder on a packaging line, or migrating a legacy motion control platform to a modern PLC-based system, the HC202500/0XX0AJ2 delivers the mechanical and electrical compatibility required for a controlled, low-risk changeover.
Industrial facilities operating Hengstler HC20 Series encoders frequently encounter obsolescence challenges as original components reach end-of-life. The HC202500/0XX0AJ2 is stocked as a direct replacement, maintaining the same shaft diameter, flange mounting pattern, and connector pinout as the original HC20 family. This eliminates the need for mechanical adapter plates or custom cable assemblies in most standard installations, significantly reducing retrofit labor time and the risk of wiring errors during changeover.
Upgrade Compatibility Table
| Parameter | HC202500/0XX0AJ2 (This Unit) | Retrofit Notes |
|---|---|---|
| Resolution | 2500 PPR | Verify PLC encoder input card supports 2500 PPR; update scaling parameters if replacing lower-resolution unit |
| Output Type | Push-Pull (HTL) | Compatible with standard HTL encoder input modules; confirm input card voltage range matches 10–30 VDC |
| Supply Voltage | 10–30 VDC | Check existing power rail; 24 VDC systems are directly compatible without modification |
| Shaft Diameter | 6 mm (standard) | Direct mechanical fit for HC20 Series mounting; verify coupling bore before installation |
| Flange / Housing | HC20 Series compatible | No adapter plate required for standard HC20 mounting positions |
| Connector / Pinout | Matches HC20 standard | Retain original cable assembly where possible; verify pin-for-pin continuity before power-on |
| Communication | Incremental A/B/Z pulse | Compatible with all standard incremental encoder input cards; no protocol migration required |
| Replacement Scope | Drop-in for HC20 family | Suitable for direct substitution; no firmware changes required in most PLC configurations |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment functional test documentation |
Retrofit Planning for Existing Automation Systems
A successful encoder retrofit begins well before the physical swap. When integrating the HC202500/0XX0AJ2 into an existing control cabinet, engineers should first audit the encoder input module currently installed on the PLC rack. Systems running Siemens S7-300 or S7-400 series controllers with FM350 or FM351 counter modules, or those using Siemens S7-1500 with TM Count 2x24V technology modules, will find the HTL push-pull output of this encoder directly compatible without signal conditioning. For installations using older Siemens S5 series hardware, a signal converter or input adapter may be required to bridge the HTL output to the legacy TTL input specification.
Before disconnecting the original encoder, document the existing wiring at the terminal block, noting the A, B, Z, and supply connections. Many HC20 installations use a standard M23 or M12 connector; retain the original cable assembly if it is in good condition, as reusing it eliminates a common source of retrofit errors. If the cable must be replaced, a pre-terminated encoder cable matched to the HC20 connector standard is the recommended approach.
On the PLC side, verify the encoder scaling parameters stored in the motion control function block or counter module configuration. If the original encoder operated at a different PPR value, the position scaling factor must be updated in the controller program before the new encoder is commissioned. For Siemens TIA Portal users, this is typically adjusted in the technology object configuration under the encoder interface settings. For systems using a Beckhoff EL5101 or EL5151 EtherCAT encoder terminal, the input filter and evaluation mode settings should be reviewed to confirm compatibility with 2500 PPR at the expected maximum shaft speed.
Power supply capacity is another critical checkpoint. The HC202500/0XX0AJ2 draws a modest supply current, but in dense control cabinets where multiple encoders, proximity switches, and I/O modules share a 24 VDC rail, it is good practice to verify that the existing power supply module — such as a Siemens SITOP PSU100S or a Phoenix Contact QUINT series unit — has sufficient headroom. A loaded rail operating near its rated output can cause intermittent encoder signal errors that are difficult to diagnose in the field.
For systems that include an HMI panel — whether a Siemens TP700 Comfort, a Weintek MT8000 series, or a Pro-face GP4000 series display — the position feedback screens and alarm setpoints linked to the encoder axis should be reviewed after commissioning. In most cases, if the PLC scaling is correctly updated, the HMI will reflect accurate position data without requiring changes to the HMI project. However, if the original encoder was configured with a non-standard PPR value that was compensated in the HMI tag scaling, those compensation values must be revised.
Where the retrofit involves a complete control platform migration — for example, moving from a legacy Mitsubishi MELSEC A-series or Q-series rack to a current iQ-R or iQ-F platform — the encoder input card selection becomes more significant. The Mitsubishi QD62 or QD62E high-speed counter module supports HTL incremental encoders and is a common choice for such migrations. In these cases, the HC202500/0XX0AJ2 can serve as the encoder standard for the upgraded platform, providing a consistent hardware baseline across the modernized system.
Downtime Control During System Migration
Minimizing production downtime during an encoder retrofit requires a structured changeover plan. The recommended approach is to complete all preparatory work — wiring documentation, PLC parameter backup, spare parts staging, and test equipment setup — during a scheduled maintenance window before the actual swap begins. The HC202500/0XX0AJ2 is pre-tested prior to shipment, with functional test records available on request, which eliminates the need for incoming inspection and allows the unit to be installed directly from the packaging.
During the changeover, the original PLC program should be backed up to an offline storage device before any parameter changes are made. If the controller supports online backup — as Siemens S7-1500 does via TIA Portal’s project comparison function — use this feature to create a restore point. This ensures that if the new encoder configuration produces unexpected behavior, the original program state can be recovered without delay.
After physical installation, perform a low-speed jog test before returning the axis to automatic mode. Verify that the A and B channel signals are present and correctly phased using a handheld oscilloscope or the diagnostic display available in most modern PLC encoder input modules. Confirm that the Z channel reference pulse is detected at the expected mechanical position. Only after these checks are complete should the axis be returned to full-speed automatic operation.
For critical production lines where even a brief unplanned stop is unacceptable, consider staging a pre-configured spare encoder — already programmed with the correct PPR and wired to a matching connector — so that future replacements can be completed in minutes rather than hours. The HC202500/0XX0AJ2’s 12-month warranty and consistent availability make it a practical choice for this kind of strategic spare parts inventory.
Retrofit Support FAQ
Q: Is the HC202500/0XX0AJ2 a direct drop-in replacement for all HC20 Series encoders?
A: The HC202500/0XX0AJ2 is mechanically and electrically compatible with the standard HC20 Series mounting and wiring configuration. If your original unit had a non-standard PPR value or a different output type (e.g., RS422 differential), please confirm the original part number before ordering to ensure full compatibility.
Q: Do I need to modify my PLC program after installing this encoder?
A: If your original encoder also operated at 2500 PPR with HTL output, no program changes are required. If the PPR value differs, update the encoder scaling parameter in your motion control or counter module configuration. A backup of the original program is always recommended before making any changes.
Q: What does the 12-month warranty cover, and is a test report included?
A: The 12-month warranty covers manufacturing defects under normal operating conditions. Each unit undergoes a pre-shipment functional test. Test documentation is available on request. Warranty claims are processed directly through SMARTNEXMSK; contact sales@smartnexmsk.com with your order reference and a description of the issue.
Q: How quickly can this encoder be shipped, and do you hold stock?
A: The HC202500/0XX0AJ2 is maintained in stock for immediate dispatch. Standard international shipping typically delivers within 5–10 business days depending on destination. Express options are available for urgent retrofit requirements. Contact +86 18259474341 for lead time confirmation on large quantity orders.
