HIMA F2DO1601 Maintenance-Ready Spare for HIMax Automation

HIMA F2DO1601 Maintenance-Ready Spare for HIMax Automation

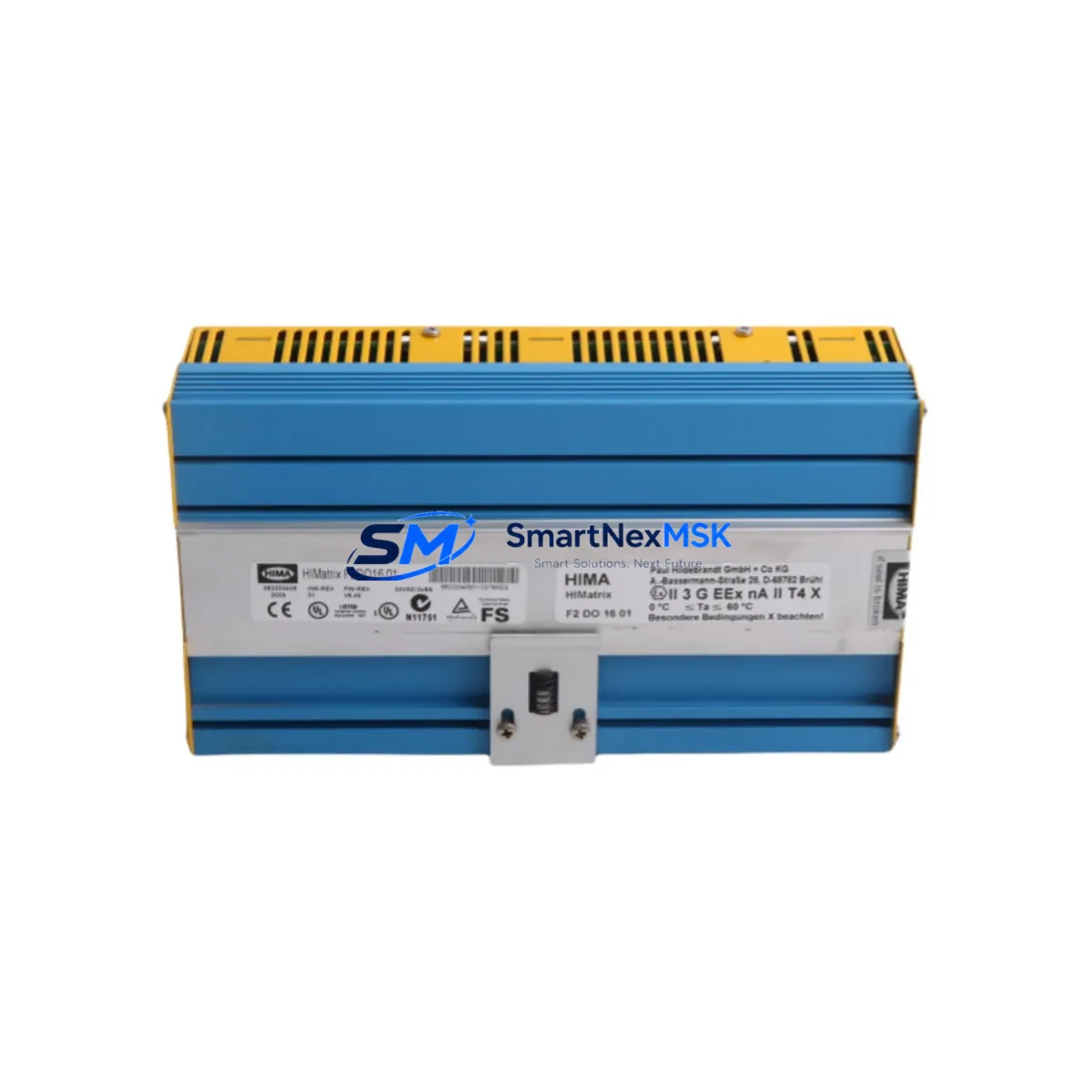

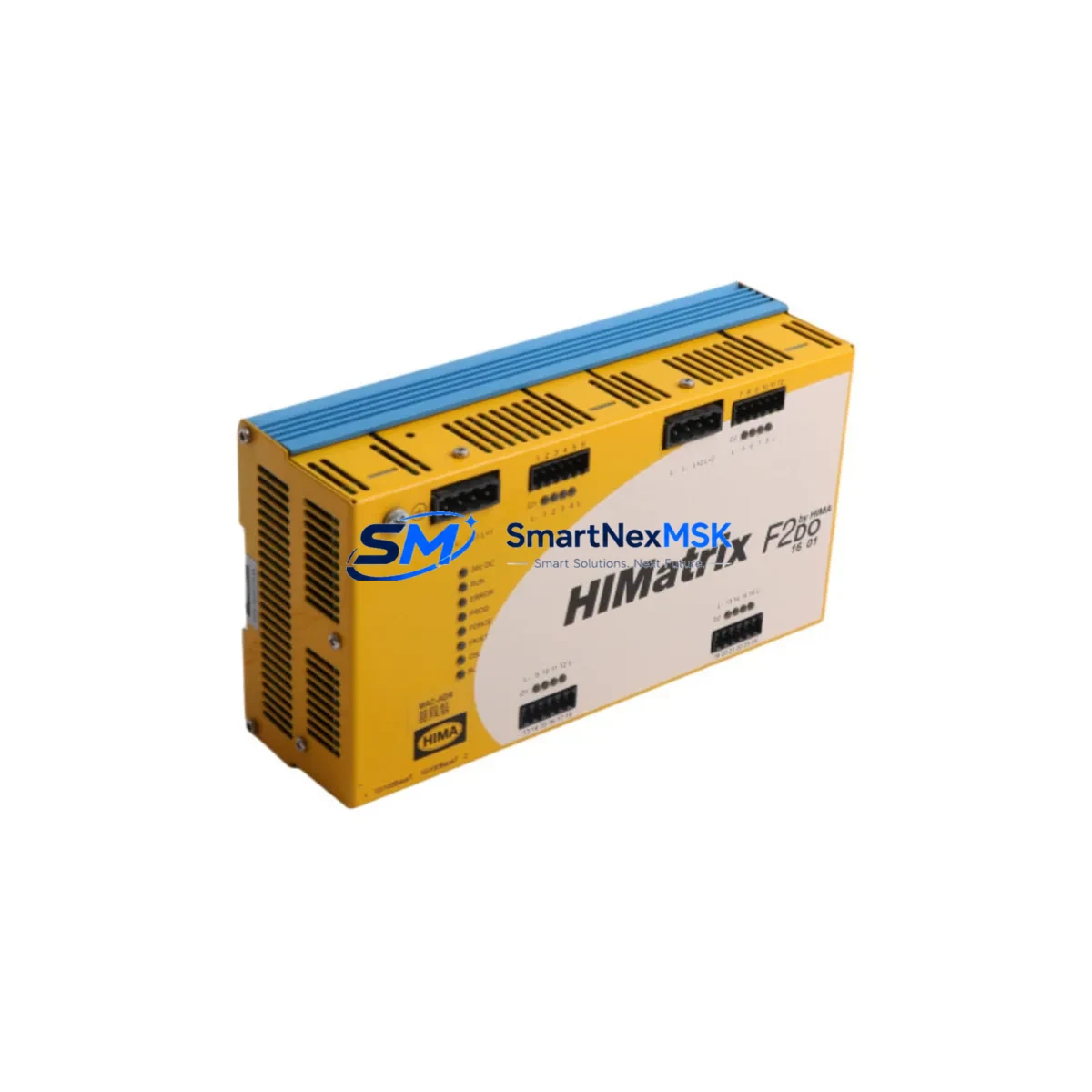

Unplanned downtime in safety-critical automation systems is one of the most costly events a plant can face. The HIMA F2DO1601 is a 16-channel SIL 3–rated digital output safety module designed for the HIMax distributed safety controller platform — a backbone of process safety in oil & gas, chemical, power generation, and offshore installations worldwide. Sourced as an original spare and pre-shipment tested, this module is stocked specifically to support maintenance engineers and procurement teams who cannot afford delays when a safety I/O slot goes offline.

Whether you are executing a planned turnaround, responding to a nuisance trip, or building a strategic spare parts buffer for aging HIMax racks, the F2DO1601 is a direct plug-in replacement that restores SIL 3 integrity without requiring system reconfiguration. Each unit ships with a 12-month warranty and full pre-delivery functional verification.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a digital output module such as the F2DO1601 is flagged for replacement during a control cabinet inspection or after a diagnostic fault, experienced maintenance engineers know that the module itself is rarely the only component that warrants attention. A thorough site assessment during the same maintenance window significantly reduces the risk of repeat callouts and unplanned shutdowns.

Begin by verifying the HIMax power supply modules (such as the F8621A or F8622A) that feed the rack. A degraded or undersized power rail can stress output modules and cause intermittent channel faults that mimic module failure. Confirm that the 24 V DC bus voltage is within tolerance at the backplane connector before inserting the replacement F2DO1601.

Next, inspect the HIMax CPU module (F8650E or equivalent) and its communication status. A healthy CPU is essential for the new output module to complete its self-test sequence and enter the operational state. If the CPU is running on a degraded firmware version or has accumulated diagnostic warnings, address those concurrently.

Check the field wiring terminals and marshalling panels connected to the 16 output channels. Loose terminations, corroded screw terminals, or undersized cable cross-sections are common root causes of output channel faults that are incorrectly attributed to the module. Torque all terminals to specification and verify continuity to each field device — solenoid valves, shutdown actuators, and relay coils are typical loads on SIL 3 digital output circuits.

Review the HIMax F2DI1601 or F2DI3201 digital input modules in the same rack or adjacent racks that form part of the same safety function loop. Input and output modules in a SIL 3 loop must both be confirmed healthy before the safety function can be validated after maintenance. A fault on the input side will prevent the output module from being exercised during proof testing.

Inspect any signal isolators or safety barriers installed between the HIMax output channels and intrinsically safe field devices. Zener barriers and galvanic isolators have finite service lives and can introduce leakage currents that affect output channel diagnostics. Replace any units showing signs of thermal stress or out-of-tolerance resistance.

For systems that include HIMax communication modules (such as F8627X for PROFIBUS or F8628X for Modbus), verify that the module replacement does not disrupt the communication schedule. Some HIMax configurations require a brief system restart or module re-registration after a hot-swap; confirm the procedure with your HIMax system documentation.

Finally, check the HIMax F2SD1601 or equivalent relay output modules in the same control cabinet. Relay contacts handling high-cycle loads degrade over time and should be included in any planned maintenance sweep of the output section. Stocking a relay output module alongside the F2DO1601 in your spare parts inventory is a practical strategy for minimizing future response times.

Site Replacement Workflow

The F2DO1601 is designed for hot-swap replacement within the HIMax platform, meaning the module can be exchanged without powering down the entire rack — a critical advantage in continuous-process environments where a full shutdown is not operationally feasible. Follow these steps to ensure a safe and efficient replacement:

1. Confirm system state. Before removal, verify that the safety function associated with the affected output channels is in a safe state (de-energized or bypassed per your site bypass management procedure). Document the bypass in your permit-to-work system.

2. Record diagnostic data. Capture the current diagnostic log from the HIMax engineering station (ELOP II Fort or SILworX) to confirm the fault code associated with the F2DO1601 slot. This baseline is essential for post-replacement verification.

3. Remove the faulty module. Unlock the module latch, slide the F2DO1601 out of the backplane slot, and place it in an ESD-protective bag for return or failure analysis.

4. Insert the replacement module. Slide the new F2DO1601 into the same slot until the latch engages. The HIMax system will automatically detect the new module and initiate its self-test sequence. Monitor the module status LEDs and the engineering station for confirmation of a healthy state.

5. Validate the safety function. Perform a partial stroke test or proof test of the associated field devices as required by your safety management system. Clear the bypass and restore the safety function to automatic mode.

6. Update maintenance records. Log the replacement in your CMMS, update the spare parts inventory, and initiate a replenishment order to restore your buffer stock. Maintaining at least one F2DO1601 in your on-site spare parts store is strongly recommended for HIMax installations with multiple output racks.

Spare Parts Support FAQ

Q1: Is this F2DO1601 an original HIMA module or a third-party replacement?
This is an original HIMA F2DO1601 module sourced from authorized supply channels. It is not a clone, refurbished unit, or third-party equivalent. Each unit undergoes pre-shipment functional testing to verify output channel integrity, backplane communication, and SIL 3 diagnostic coverage before dispatch.

Q2: How do I confirm compatibility with my existing HIMax rack configuration?
The F2DO1601 is a standard HIMax digital output module and is compatible with all HIMax rack generations that support the F2DO1601 slot type. Confirm your rack model and firmware version against the HIMA HIMax system manual. If your system is running an older firmware release, contact our technical team with your rack serial number and we will advise on any compatibility considerations before shipment.

Q3: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact sales@smartnexmsk.com with your order reference, a description of the fault, and the module serial number. We will arrange return logistics and provide a replacement or repair within an agreed lead time.

Q4: Can you support long-term or blanket spare parts orders for HIMax systems?
Yes. We support long-term supply agreements for maintenance teams managing aging HIMax installations where original HIMA modules are becoming harder to source through standard distribution channels. Contact us to discuss volume pricing, reserved stock arrangements, and scheduled delivery programs tailored to your planned maintenance calendar.
