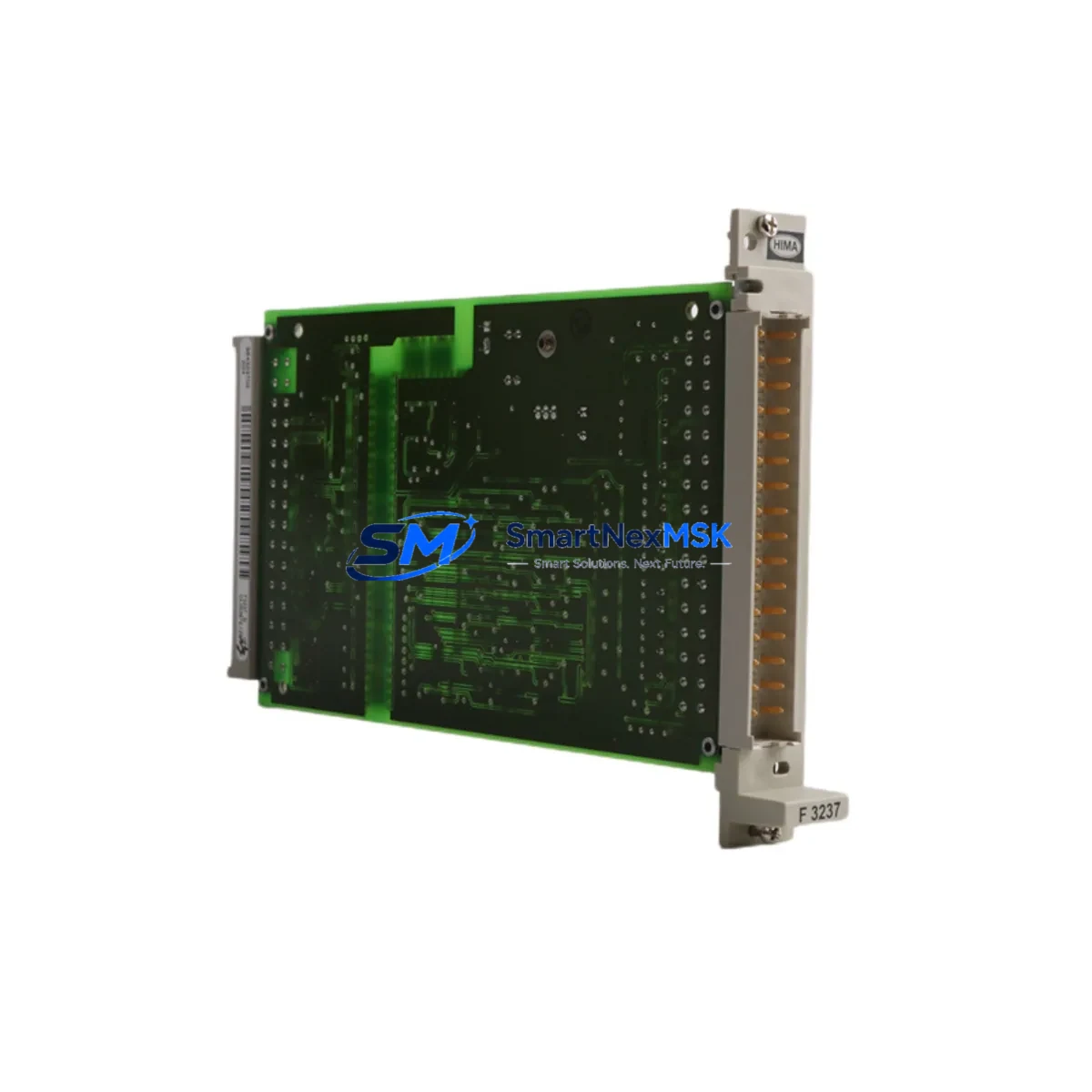

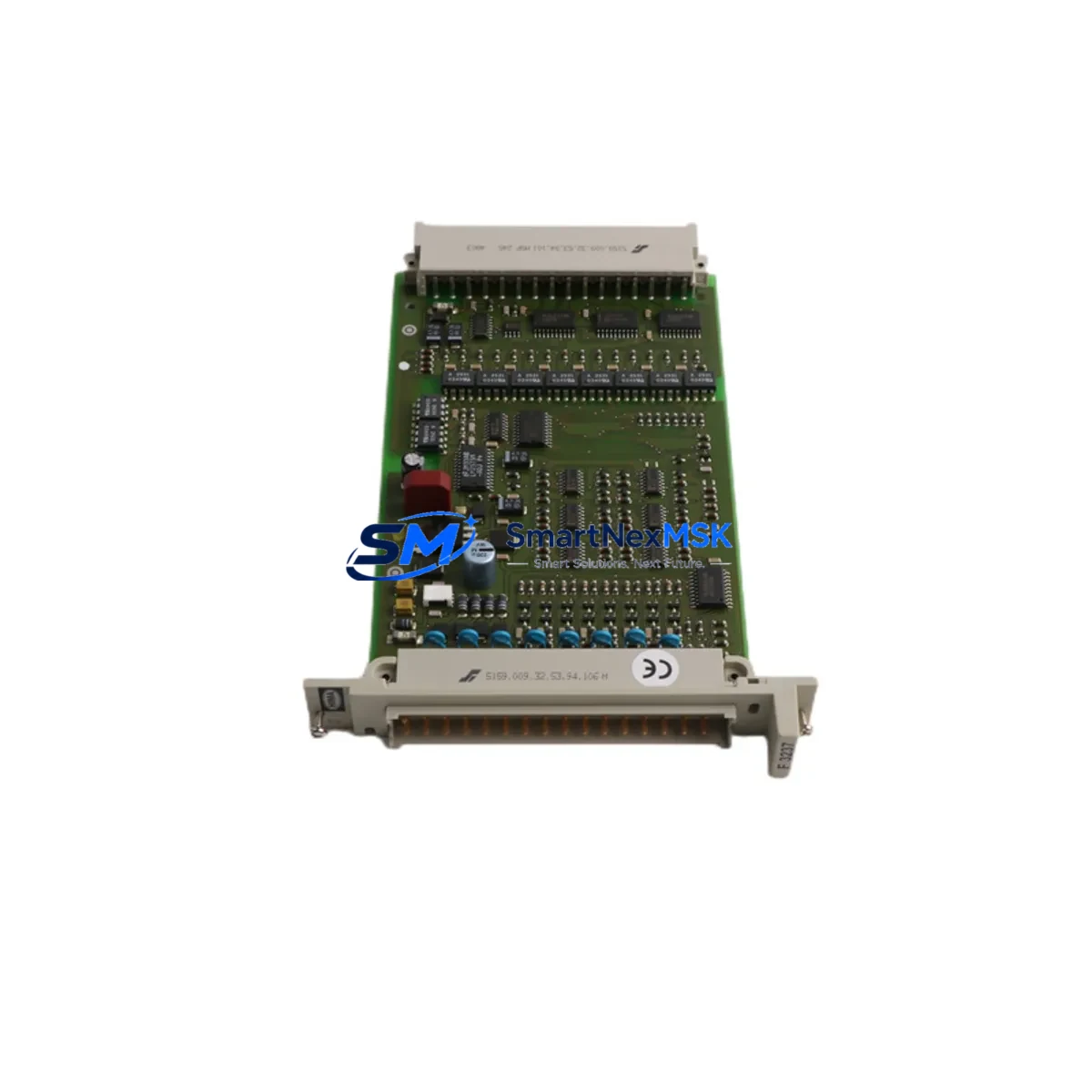

HIMA F3237 Retrofit-Ready Digital Input Module for HIMatrix Control Systems
The HIMA F3237 is a SIL 3-certified digital input module engineered for seamless integration into HIMatrix safety controllers, including the HIMatrix F35 and HIMatrix F60 platforms. As legacy safety systems approach end-of-life or require capacity expansion, the F3237 serves as a direct retrofit solution — preserving existing wiring infrastructure, backplane compatibility, and certified safety logic without requiring a full system redesign. Whether you are replacing a failed module, expanding I/O capacity on an aging control cabinet, or migrating from an earlier HIMatrix generation, the F3237 delivers the reliability and compliance that safety-critical applications demand.
Sourced from authorized distribution channels and subject to full pre-shipment functional testing, each F3237 unit is verified against HIMA’s original factory specifications before dispatch. Our 12-month warranty covers all hardware defects and ensures continuity of your safety instrumented system (SIS) operations. Global logistics support is available for urgent replacement scenarios, with expedited shipping options to minimize unplanned downtime.
Upgrade Compatibility Table
| Parameter | HIMA F3237 Specification | Retrofit Notes |
|---|---|---|
| Module Type | Digital Input (DI), SIL 3 | Direct replacement for F3236 and earlier DI variants |
| Compatible Platforms | HIMatrix F35, HIMatrix F60, HIMatrix F8650 | Verify backplane slot assignment before installation |
| Input Channels | 16 channels, 24 VDC | Channel mapping must match existing ELOP II / SILworX project |
| Backplane Interface | HIMatrix proprietary bus | No adapter required; direct slot insertion |
| Communication Compatibility | SafeEthernet, PROFIBUS DP (via CPU module) | Communication handled at CPU level; F3237 is transparent |
| Installation Requirement | DIN rail / HIMatrix rack | Confirm rack model: F35 rack vs. F60 rack slot count differs |
| Replacement Recommendation | Drop-in for F3236, F3230 series DI modules | Review terminal wiring diagram; pin-out is compatible |
| Commissioning Focus | Module address assignment, I/O forcing test | Use SILworX for online module recognition and diagnostics |
| Warranty | 12 Months | Covers hardware defects; pre-shipment functional test included |
Retrofit Planning for Existing Automation Systems
A successful F3237 retrofit begins well before the module arrives on site. Engineers should start by auditing the existing HIMatrix rack configuration — confirming the number of occupied slots, the current firmware version running on the HIMatrix F35 or F60 CPU module, and the revision of the SILworX project file. The F3237 integrates directly into the HIMatrix backplane without requiring a new rack or additional bus coupler, which significantly simplifies the physical installation phase.
Terminal wiring is a critical checkpoint. The F3237 uses the same 40-pin front connector standard as its predecessors in the HIMatrix DI module family, meaning field cables terminated to the existing connector can typically be transferred directly. However, engineers should cross-reference the original wiring diagram against the F3237 terminal assignment sheet to confirm signal polarity, common reference wiring, and any shielding requirements specific to the field device type — particularly for proximity switches, solenoid feedback signals, and emergency shutdown (ESD) loop inputs.
Power supply capacity must be verified at the rack level. The HIMatrix F35 and F60 power supply modules — such as the F8621A or F8622A — provide regulated 24 VDC to all installed I/O modules. Adding or replacing a DI module changes the total current draw on the backplane bus. Before installation, calculate the aggregate current consumption of all installed modules including the F3237 and confirm it remains within the rated output of the installed power supply module. If the existing power supply is already near capacity, a parallel power supply module may be required.
For systems using SafeEthernet for inter-controller communication or PROFIBUS DP for integration with a DCS or SCADA layer, the F3237 installation does not affect the communication stack — protocol handling is managed by the HIMatrix CPU module, not the I/O modules. However, if the retrofit is part of a broader migration from an older HIMatrix generation to a newer platform, engineers should verify that the SILworX project has been updated to reflect the new hardware configuration and that all safety function blocks referencing the replaced module’s I/O addresses have been re-validated.
HMI screen updates are often overlooked during module replacements. If the existing HMI — whether a HIMA-compatible panel or a third-party SCADA system — displays I/O status using tag names or addresses tied to the replaced module, those references must be updated in the HMI project to reflect the F3237’s assigned module address. Failure to update HMI tags can result in misleading status displays during post-retrofit commissioning, even when the safety logic is functioning correctly.
Other components commonly involved in a HIMatrix retrofit project include the HIMatrix F8650 central processing unit for larger rack configurations, the F8621A redundant power supply module for high-availability installations, PROFIBUS DP communication modules for DCS integration, SafeEthernet switches for peer-to-peer safety communication, the HIMA programming cable and SILworX engineering workstation software for project download and online diagnostics, and terminal blocks and front connectors compatible with the HIMatrix 40-pin wiring standard. In multi-rack installations, the HIMatrix F35 expansion rack and associated rack bus cables must also be inspected for compatibility with the updated module configuration.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary operational concern during any safety system retrofit. For the F3237 replacement, the most effective strategy is to prepare a complete offline commissioning package before the scheduled maintenance window begins. This includes a pre-tested SILworX project file with the F3237 configured and validated in simulation mode, a printed wiring diagram with the new terminal assignments annotated, and a step-by-step installation checklist reviewed and signed off by the responsible safety engineer.
Where process conditions permit, the replacement should be performed during a planned shutdown rather than in response to a module failure. This allows the engineering team to perform a controlled power-down of the affected rack section, transfer field wiring connectors without time pressure, insert the F3237, and execute a structured power-up and I/O verification sequence. The SILworX online diagnostics tool provides real-time module status, channel-level input state visibility, and fault code readout — enabling rapid identification of any wiring or configuration issues before the system is returned to operational mode.
For installations where continuous process control is required, consider using the HIMatrix hot-standby or redundant CPU configuration to maintain safety function coverage on unaffected I/O modules while the F3237 slot is serviced. Document all changes to the SILworX project with revision notes, and retain the pre-retrofit project backup as a recovery baseline. After the F3237 is installed and recognized by the CPU, perform a full I/O forcing test on all 16 input channels to confirm signal integrity before releasing the system to operations.
Retrofit Support FAQ
Q: Is the HIMA F3237 a direct drop-in replacement for the F3236?
A: Yes. The F3237 is backward-compatible with the F3236 and other earlier HIMatrix digital input modules in the same form factor. The backplane connector, slot dimensions, and 40-pin front wiring connector are identical. Channel count and 24 VDC input voltage rating are unchanged. You should verify the SILworX project module type assignment and update it to F3237 if required by your project revision policy.
Q: What commissioning steps are required after installing the F3237?
A: After physical installation, power up the rack and open SILworX to confirm the CPU recognizes the F3237 in the correct slot. Assign the module address if not automatically detected. Perform an I/O forcing test on all 16 channels using a calibrated signal source. Verify that HMI tag displays and SCADA alarm points reflect correct input states. Complete and sign the commissioning record before returning the system to operational service.
Q: Can the F3237 be used in a HIMatrix F60 rack alongside older module generations?
A: Yes. The HIMatrix F60 rack supports mixed-generation I/O module installations. The F3237 can coexist in the same rack with F3230-series analog input modules, F3214-series digital output modules, and other HIMatrix I/O variants. Ensure the total rack power budget is not exceeded and that the SILworX project reflects the actual installed module configuration.
Q: What does the 12-month warranty cover, and is pre-shipment testing included?
A: Every F3237 unit undergoes functional testing against HIMA factory specifications before shipment, including channel continuity verification and backplane interface checks. The 12-month warranty covers all hardware defects arising under normal operating conditions. Warranty service includes module replacement or repair. Contact our technical team with your order reference and fault description to initiate a warranty claim.
