HIMA F3421 Maintenance-Ready Spare for F3400 Automation

HIMA F3421 Maintenance-Ready Spare for F3400 Automation

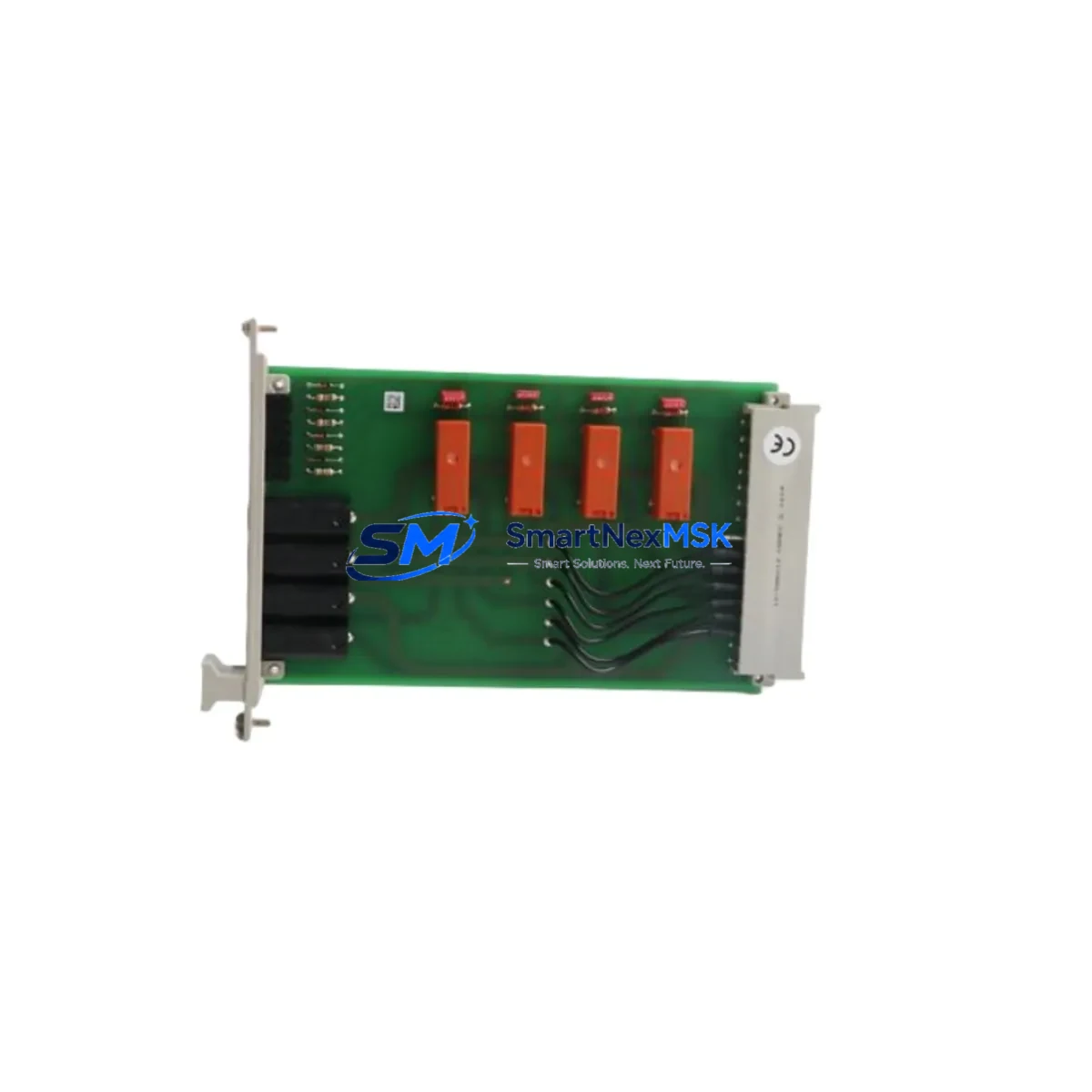

The HIMA F3421 is an original safety relay amplifier module designed for the HIMA F3400 Series safety PLC platform — one of the most widely deployed functional safety architectures in process automation, oil & gas, chemical, and power generation facilities worldwide. When a safety relay channel fails or degrades during routine diagnostics, the F3421 is the direct replacement that restores SIL2-rated loop integrity without requiring system reconfiguration or firmware changes. Sourced from authorized supply channels, each unit is inspection-tested prior to dispatch and backed by a 12-month warranty covering functional defects under normal operating conditions.

For maintenance engineers managing aging HIMA F3400 racks, the F3421 represents a critical line item in any planned spare parts inventory. Unplanned downtime in safety-instrumented systems (SIS) carries significant operational and compliance risk. Stocking at least one F3421 per active F3400 rack is a widely recommended practice in IEC 61511-aligned maintenance programs. Whether you are executing a scheduled turnaround, responding to a diagnostic fault alarm, or extending the service life of a legacy safety system, the F3421 provides a tested, drop-in solution that minimizes mean time to repair (MTTR).

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing an F3421 safety relay module is rarely an isolated task. A disciplined maintenance engineer will treat the module swap as an opportunity to inspect the entire safety loop and surrounding cabinet components. During the same maintenance window, it is advisable to verify the condition of the F3400 Series backplane connectors and rack bus integrity, as contact oxidation or mechanical stress can cause intermittent faults that mimic module failure. The 24 V DC power supply feeding the F3400 rack — often an F7553 or equivalent HIMA power module — should be load-tested to confirm it is delivering stable voltage within tolerance, since undervoltage conditions accelerate relay contact wear.

I/O wiring at the terminal blocks connected to the F3421 output channels should be inspected for insulation degradation, loose ferrules, and correct torque. In SIS applications, the field-side wiring often runs to solenoid valve drivers, motor protection relays, or interlock circuits where a poor connection can cause nuisance trips or, more critically, undetected failures. If the system includes HIMA F3236 or F3330 digital input modules in the same safety loop, their diagnostic coverage should be confirmed as part of the same inspection cycle.

Communication integrity between the F3400 controller and the engineering workstation or DCS gateway should also be validated after module replacement. HIMA systems commonly use PROFIBUS-DP or Ethernet-based communication; verifying that the F3421 replacement has not introduced any address conflicts or configuration mismatches is a mandatory post-replacement step. If the plant uses a HIMA HIMatrix or HIQuad controller in a networked safety architecture, the F3421 replacement event should be logged in the safety management system and a partial proof test conducted per the site’s SIS maintenance procedure.

Additional components that maintenance and procurement engineers should consider stocking alongside the F3421 include: F3400 Series fuse holders and 2A glass fuses for output circuit protection, DIN rail terminal blocks (Phoenix Contact or equivalent) for field wiring termination, signal isolators for 4–20 mA loops interfacing with the safety system, surge protection devices on field cable entries, and spare HIMA communication cables for the rack backplane. For sites running extended maintenance intervals, a spare F3400 Series CPU module and at least one F3236 digital input module are recommended to cover the most common failure modes identified in HIMA field service reports.

Site Replacement Workflow

Before removing the F3421 from service, confirm that the safety function it supports has been formally bypassed or inhibited in accordance with the site’s Management of Change (MOC) and bypass authorization procedure. Document the module’s slot position, wiring labels, and any DIP switch or jumper settings visible on the module face. Photograph the terminal wiring before disconnection.

Power down the affected rack section if hot-swap is not supported by the installed firmware version. Remove the F3421 by releasing the module locking mechanism and sliding it clear of the backplane connector. Inspect the backplane connector pins for damage or contamination before inserting the replacement unit. Seat the new F3421 firmly and verify the locking tab engages. Restore power and observe the module status LEDs: a steady green RUN indicator confirms successful initialization. If a fault LED illuminates, check the HIMA SILworX diagnostic log for error codes before proceeding.

Reconnect field wiring in the documented sequence, verify terminal torque, and perform a channel-level proof test by simulating the process input condition and confirming the relay output responds correctly. Update the plant’s spare parts register to reflect the consumed unit and initiate a replenishment order to maintain minimum stock levels. Record the replacement in the SIS maintenance log with the module serial number, date, technician ID, and proof test result.

Spare Parts Support FAQ

Q1: Is the F3421 compatible with all F3400 Series rack configurations?
The F3421 is designed for the HIMA F3400 Series backplane and is compatible with standard F3400 rack configurations. Compatibility with specific firmware versions or custom rack assemblies should be confirmed against the HIMA F3400 hardware manual or by contacting our technical support team before ordering.

Q2: What pre-shipment testing is performed on the F3421?
Each F3421 unit undergoes functional verification prior to dispatch, including power-on initialization checks and relay output continuity testing. Units are packaged in anti-static protective packaging with inspection documentation. The 12-month warranty covers functional defects arising under normal operating conditions from the date of shipment.

Q3: How should I manage F3421 inventory for a multi-rack F3400 installation?
For installations with three or more F3400 racks, a minimum stock of two F3421 modules is recommended to cover simultaneous or back-to-back failures during a turnaround. For critical SIS applications with zero-tolerance downtime requirements, consider a one-for-one hot-spare strategy per rack. Our team can assist with long-term supply agreements to lock in pricing and ensure availability.

Q4: Can the F3421 replace older or discontinued HIMA relay module variants?
The F3421 is the current production designation for this relay amplifier function within the F3400 Series. For legacy installations using earlier module revisions, cross-compatibility depends on hardware revision level and firmware. We recommend providing your existing module’s full nameplate data — including revision suffix and date code — so our engineers can confirm direct replaceability before shipment.
