HIMA F6217 Retrofit-Ready Analog Input for HIMatrix Systems

HIMA F6217 Retrofit-Ready Analog Input for HIMatrix Systems: Seamless Compatibility & Legacy System Upgrade

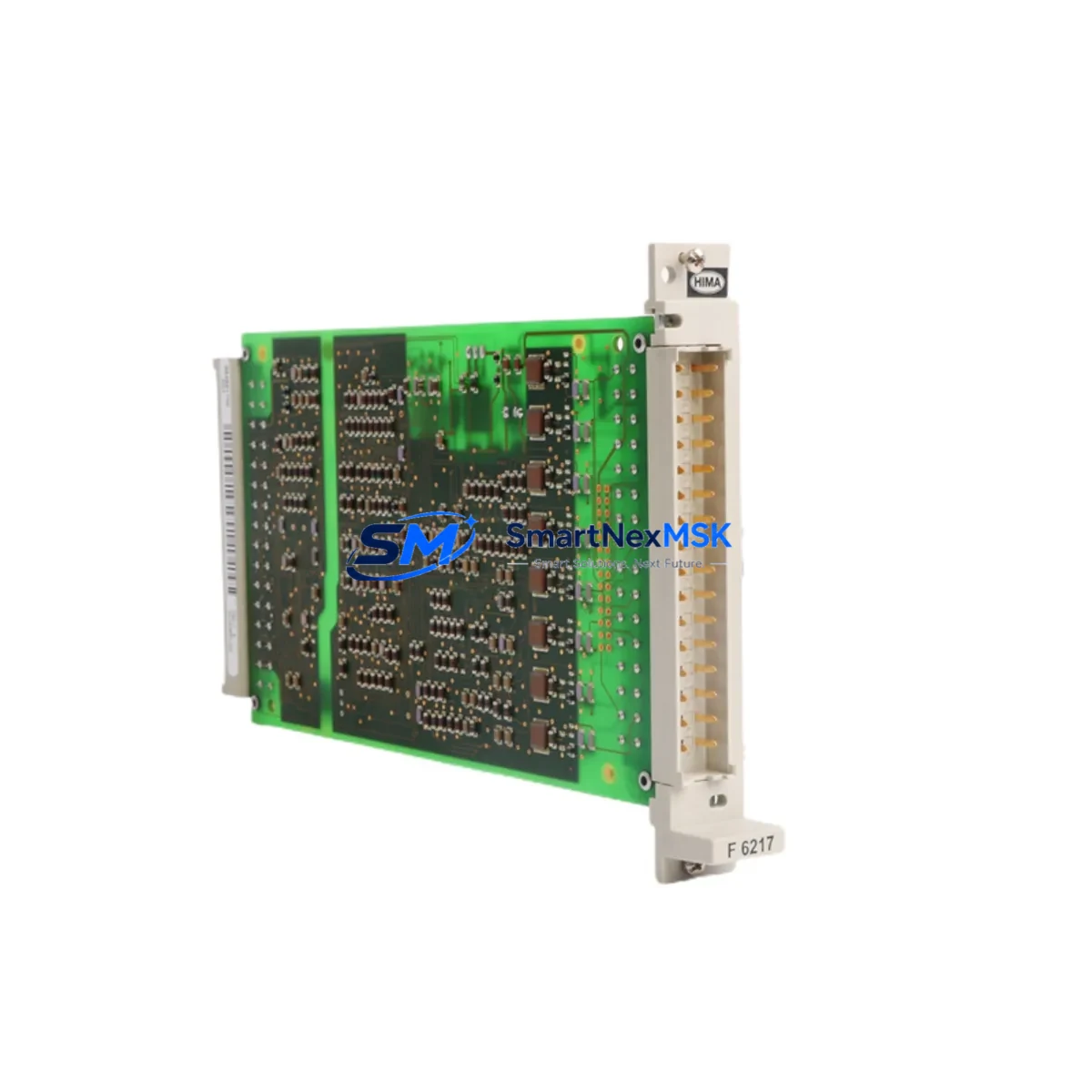

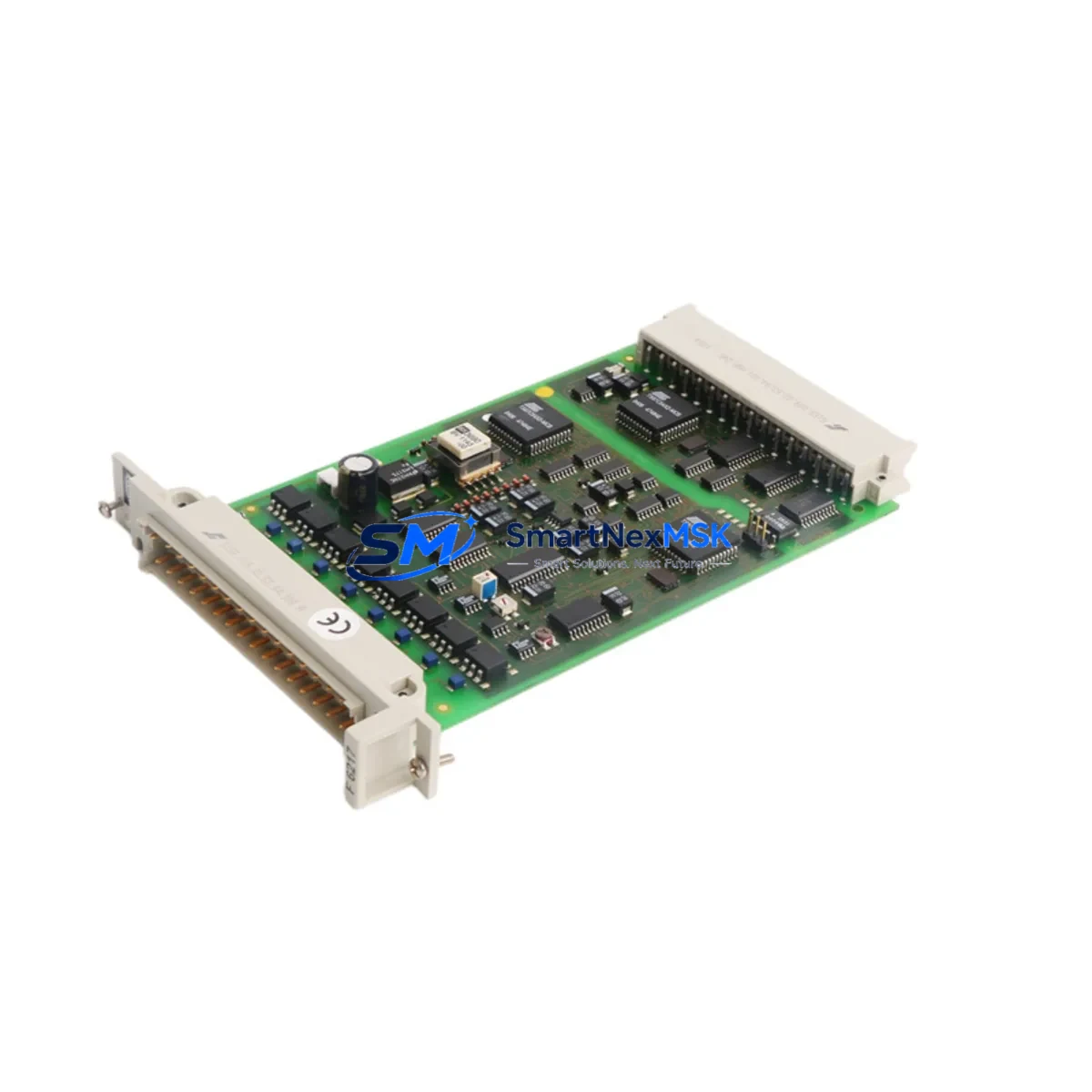

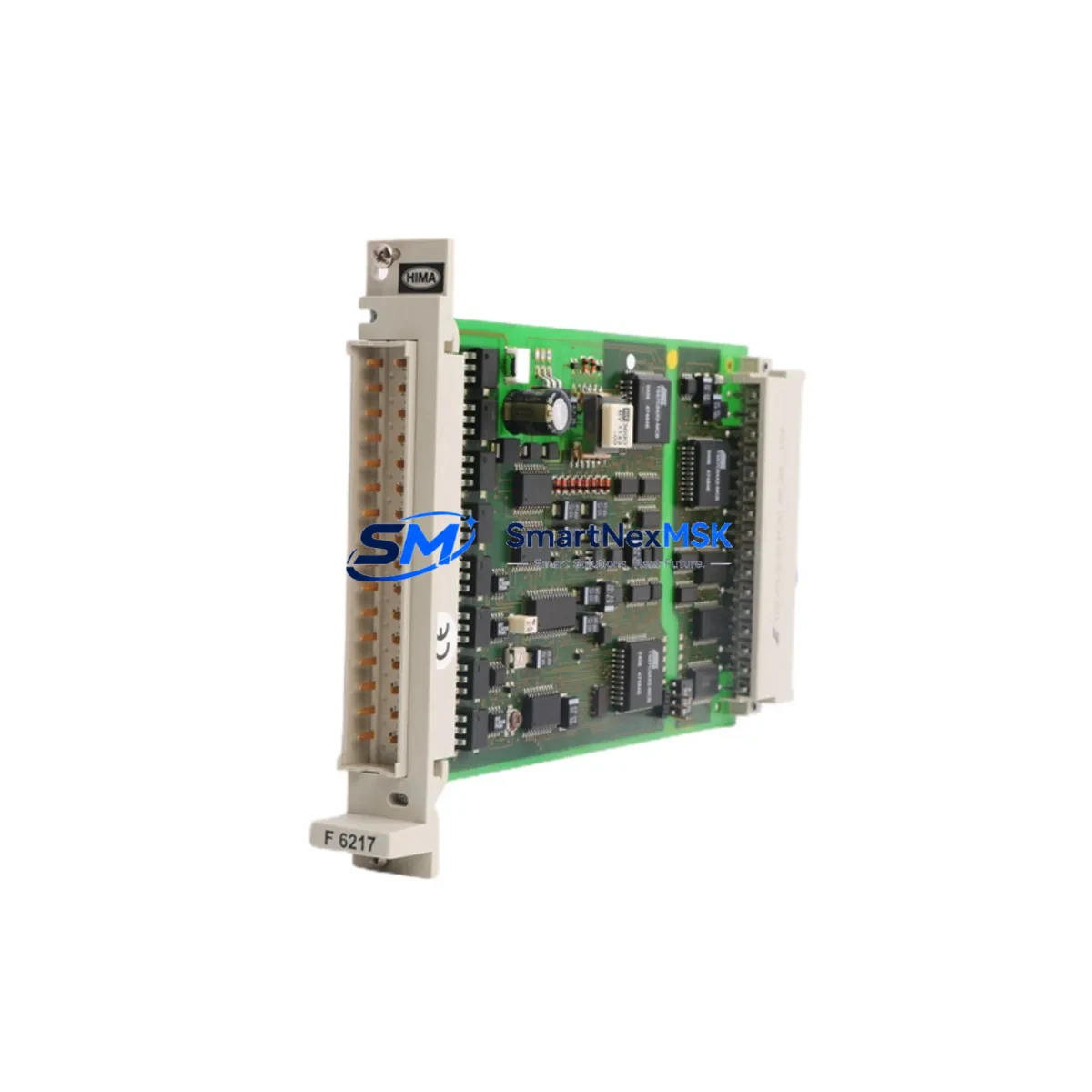

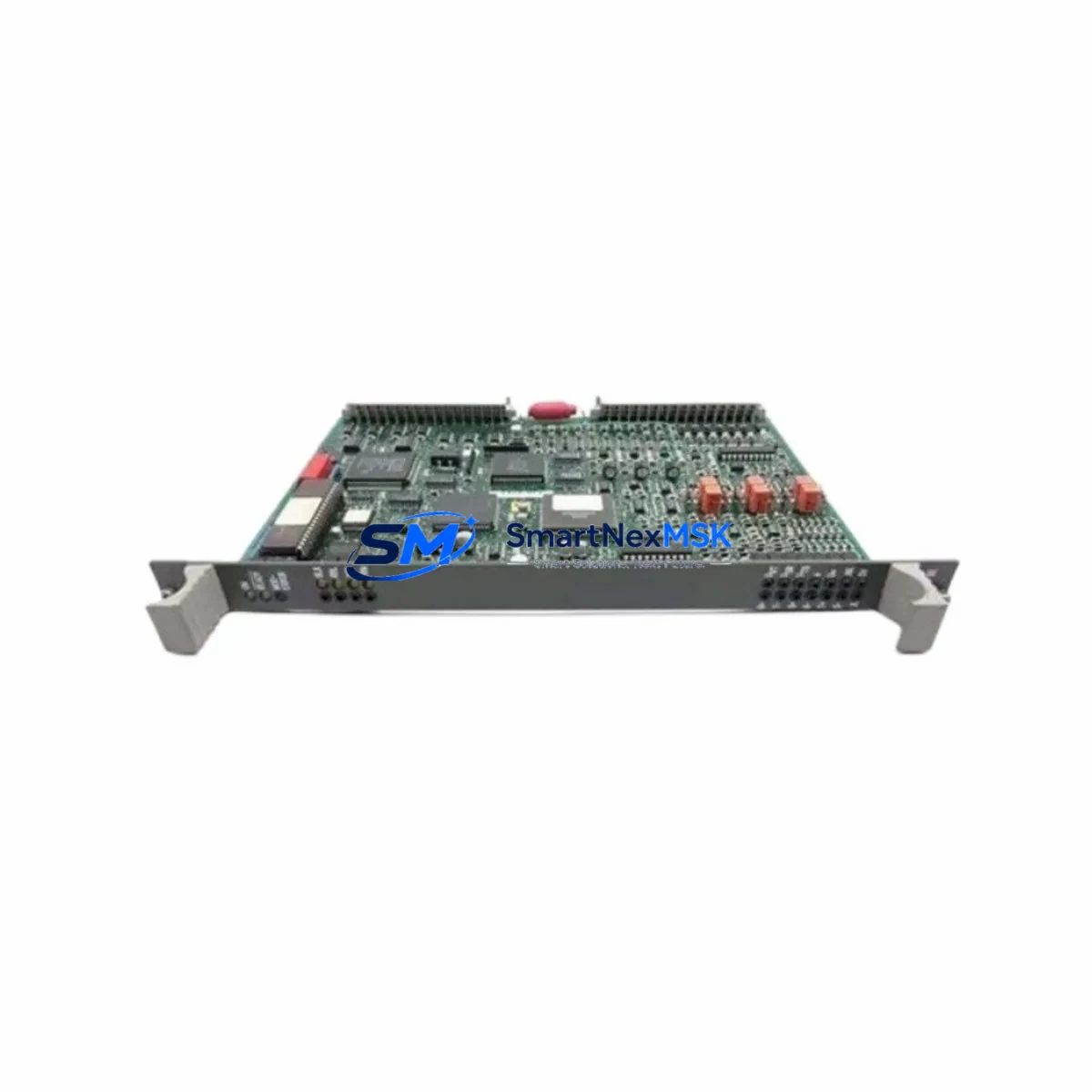

The HIMA F6217 is an 8-channel, 4–20 mA analog input module designed for functional safety applications operating at SIL 2 and SIL 3 integrity levels within the HIMatrix safety controller platform. As legacy HIMatrix installations age and original spare parts become increasingly difficult to source, the F6217 serves as the definitive retrofit-ready replacement — enabling engineers to restore full system functionality without redesigning control logic, rewiring terminal blocks, or reconfiguring HMI screens.

Whether you are managing a planned turnaround, responding to an unplanned module failure, or executing a phased control system modernization, the F6217 delivers the electrical compatibility, firmware alignment, and mechanical form factor required to minimize engineering rework and compress commissioning timelines.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful F6217 retrofit begins well before the module arrives on site. The first step is a thorough audit of the existing HIMatrix rack configuration. Engineers should document the current slot assignments for all installed modules — including the HIMA F3 DIO 20/8 01 digital I/O modules, HIMA F3 AIO 8/4 01 analog output modules, and any HIMA F3 SOE sequence-of-events modules sharing the same rack. This inventory ensures that the replacement F6217 is inserted into the correct backplane slot and that the module address in the SILworX project file matches the physical installation.

Power budget verification is a critical pre-installation step. The HIMatrix rack draws power from a dedicated HIMA F3 PS 10 01 or equivalent power supply module. Before adding or replacing modules, calculate the total current draw across all populated slots. If the existing PSU is operating near its rated capacity, a supplementary power supply or rack expansion may be required before the F6217 can be safely commissioned.

Terminal wiring for the F6217 follows the standard HIMatrix field terminal layout. In most retrofit scenarios, the existing 4–20 mA field cables — connected to transmitters such as pressure sensors, flow meters, and temperature transmitters — can be reconnected directly to the replacement module without modification. Engineers should photograph the original wiring before removal and verify loop continuity with a calibrated loop tester after reconnection. Where the original installation used HIMA terminal base assemblies or marshalling panels, the field wiring interface remains unchanged.

For systems that also incorporate HIMA F3 COM 1 01 communication modules or HIMA SafeEthernet network interfaces, the F6217 replacement does not affect the communication topology. The module communicates exclusively over the HIMatrix internal backplane bus, leaving Modbus TCP, PROFIBUS DP, or SafeEthernet links to the DCS or SCADA layer undisturbed. This is particularly important in integrated control environments where the HIMatrix safety controller interfaces with a Siemens S7-400H or ABB System 800xA distributed control system via OPC or hardwired interlock signals.

HMI screen updates are typically not required when replacing the F6217 on a like-for-like basis. Because the module occupies the same slot address and presents identical process variable tags to the SILworX project, operator displays built on HIMA SILworX visualization or third-party SCADA platforms will continue to read the correct engineering unit values without tag remapping. However, a post-commissioning functional test of all affected HMI faceplates is recommended to confirm signal scaling and alarm setpoints.

Where the retrofit scope extends beyond a single module replacement — for example, when upgrading an entire HIMatrix F3 rack to a newer HIMatrix X architecture — the F6217 may serve as an interim solution while the broader migration is planned. In such cases, it is common to simultaneously source HIMA F3 CPU 0 01 processor modules, HIMA F3 DI 16 01 digital input modules, and HIMA programming cables to support parallel testing of the new rack before cutover.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing safety-critical analog input modules in live process environments. The recommended approach for F6217 replacement is a hot-standby swap procedure executed during a scheduled maintenance window, with the process placed in a safe state and all affected safety loops bypassed in accordance with the site’s Management of Change (MOC) procedure.

Before initiating the physical swap, the SILworX project should be exported and archived as a baseline. The replacement F6217 should be bench-tested using a portable 4–20 mA loop calibrator to verify that all eight channels respond correctly across the full signal range (3.6 mA to 20.5 mA, including under-range and over-range detection). This pre-installation functional test, combined with the 12-month warranty coverage provided with every unit, ensures that a defective module is identified before it reaches the control cabinet.

During the physical replacement, the original program logic stored in the HIMatrix CPU is preserved on the processor module and is not affected by removing or inserting an analog input module. After the F6217 is seated in the backplane and field terminals are reconnected, the SILworX online diagnostic view should confirm that the module is recognized and that all channel diagnostics are clear. A partial download — limited to the modified hardware configuration — is sufficient to activate the replacement module without interrupting other running safety functions.

Post-commissioning, a loop check should be performed on each of the eight channels by injecting a known 4–20 mA signal at the field terminal and verifying the corresponding process variable reading in the SILworX diagnostic display and the SCADA historian. Once all channels are verified, the safety loop bypasses can be removed in sequence, and the process can be returned to automatic control. Total elapsed time for a single F6217 replacement, including pre-installation testing and post-commissioning loop checks, typically ranges from two to four hours for an experienced instrumentation technician.

Retrofit Support FAQ

Q1: Is the HIMA F6217 a direct drop-in replacement for discontinued HIMatrix analog input modules?
Yes. The F6217 is designed to occupy the same backplane slot, use the same terminal wiring layout, and present the same module identity to the SILworX engineering tool as the original HIMatrix analog input modules it replaces. In most cases, no changes to the SILworX project file are required beyond a hardware configuration refresh and re-download.

Q2: What commissioning steps are required after installing the F6217?
After physical installation and terminal reconnection, open the SILworX project and perform an online hardware comparison to confirm the module is recognized in the correct slot. Download the hardware configuration to the CPU, then perform a channel-by-channel loop check using a 4–20 mA calibrator. Verify that all eight channels display correct engineering unit values and that no diagnostic alarms are active before removing safety loop bypasses.

Q3: Can the F6217 be used in a HIMatrix rack that also contains digital I/O and communication modules?
Yes. The HIMatrix backplane supports mixed module configurations. The F6217 can coexist in the same rack with digital input modules, digital output modules, communication modules, and power supply modules without compatibility issues, provided the total rack power budget is not exceeded.

Q4: What does the 12-month warranty cover?
Every HIMA F6217 unit supplied by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, functional failures under normal operating conditions, and any issues identified during incoming inspection or commissioning. Each unit undergoes functional and safety testing prior to dispatch. For warranty claims or technical support, contact our team directly.
