HIMA F7546 Maintenance-Ready Spare for HIMax Automation

HIMA F7546 Maintenance-Ready Spare for HIMax Automation

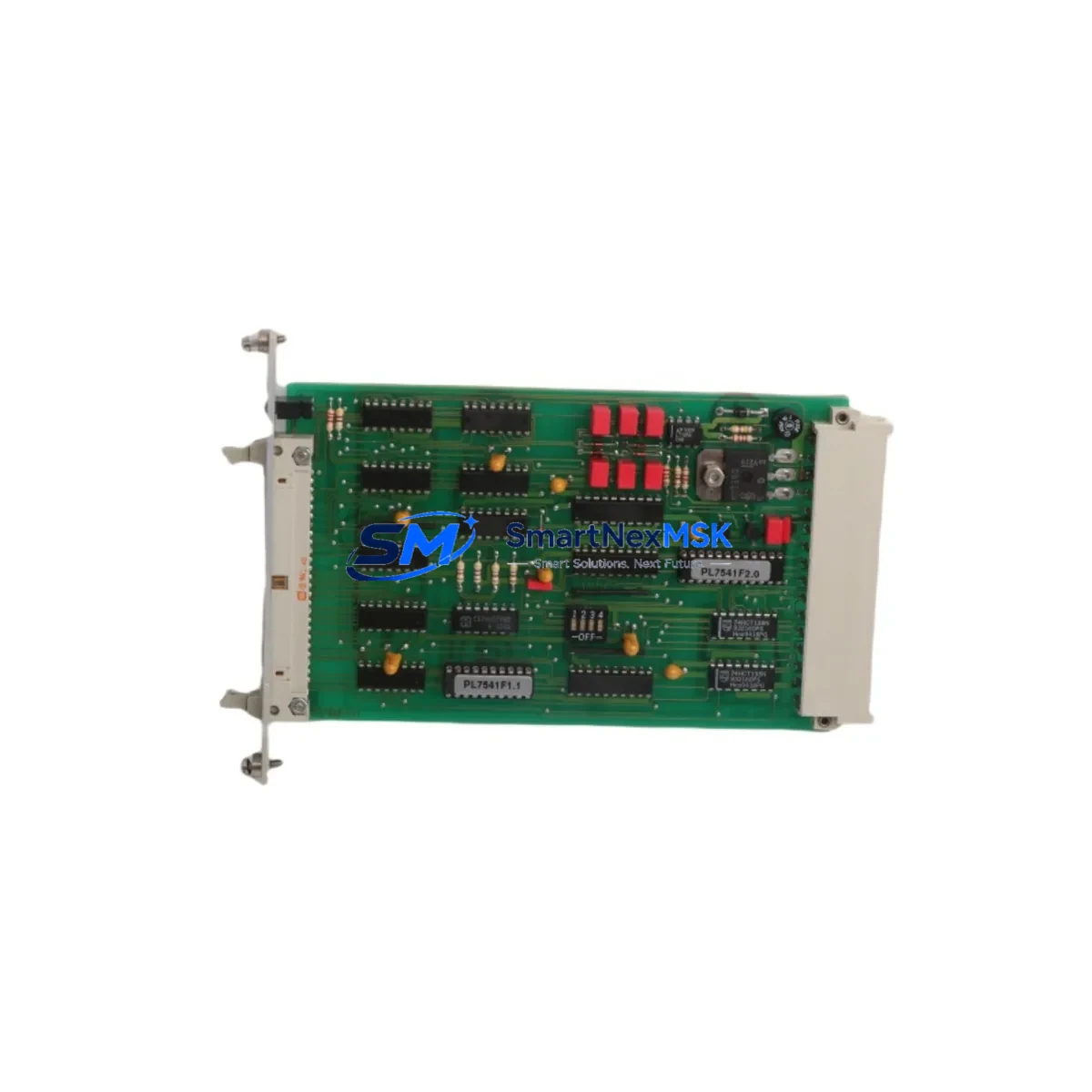

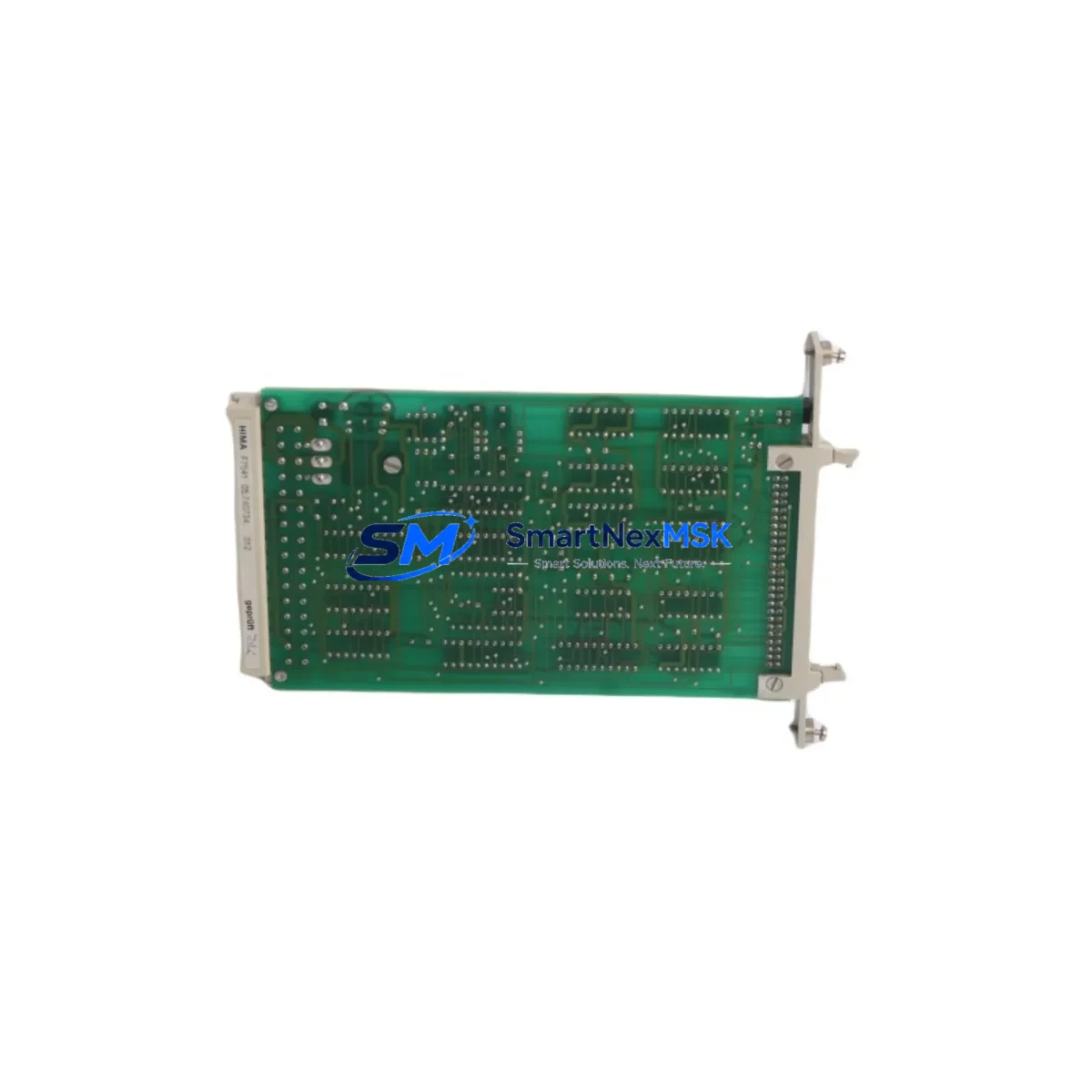

The HIMA F7546 is an original Safety I/O Bus Coupling Module designed for the HIMax safety PLC platform — one of the most widely deployed SIL 3 certified safety controllers in process automation, oil & gas, chemical, and power generation industries. When this module fails or reaches end-of-service life, the consequences extend beyond a single I/O channel: the entire safety bus segment it governs may become unavailable, triggering a process shutdown or forcing a manual bypass that introduces operational risk. Maintaining a certified spare of the F7546 in your on-site inventory is not optional for facilities running HIMax-based safety instrumented systems (SIS) — it is a fundamental element of your maintenance strategy.

This listing provides an original HIMA F7546 module, sourced from authorized supply channels, individually tested prior to shipment, and backed by a 12-month warranty. Each unit is verified for firmware compatibility and physical integrity before dispatch, ensuring that when you install it on-site, it performs to HIMA’s published specifications without requiring additional calibration or configuration beyond standard HIMax commissioning procedures.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the F7546 in a live HIMax system is rarely an isolated task. Maintenance engineers and procurement teams should treat this module replacement as an opportunity to audit the surrounding safety bus infrastructure and associated control cabinet components. During the same planned maintenance window, it is advisable to inspect the HIMA F8650E or F8652E CPU modules for firmware currency and connector wear, as these processors communicate directly with the F7546 over the internal safety bus. Any degradation in the CPU-to-coupler interface will manifest as intermittent bus faults that are difficult to diagnose under load.

The HIMA F7130 or F7131 power supply modules feeding the I/O rack should be checked for output voltage stability — an aging power supply delivering marginal voltage is a common root cause of bus coupling errors that are incorrectly attributed to the coupler module itself. Similarly, the HIMA F3330 or F3236 digital input modules downstream of the F7546 should be inspected for channel drift or contact contamination, particularly in environments with high humidity or chemical exposure.

For facilities using PROFIBUS or Modbus RTU alongside the HIMax safety bus, the HIMA F8627X communication module should be verified for correct baud rate configuration and cable termination resistance. A loose or corroded RS-485 termination resistor on the fieldbus segment can introduce noise that propagates through the bus coupler and generates spurious safety trips. Inspect Phoenix Contact or Weidmüller terminal blocks on the I/O marshalling panel for loose ferrules and oxidized contacts — these are frequently overlooked during routine inspections but are a leading cause of intermittent field signal faults.

If your facility uses a HIMA HIMatrix or HIQuad controller in parallel with the HIMax system for non-safety automation, ensure that the inter-system communication cables and optical fiber links are within their rated bend radius and free from physical damage. For HMI connectivity, verify that the HIMA ELOP II Factory engineering software can establish a clean connection to the HIMax CPU after the F7546 replacement — a failed bus coupler can sometimes corrupt the CPU’s I/O map, requiring a partial project download to restore correct channel assignments.

Finally, review your signal isolators and intrinsic safety barriers (such as those from Pepperl+Fuchs or MTL) installed between the HIMax I/O rack and field instruments. These components are often on the same maintenance cycle as the bus coupler and should be replaced proactively if they are approaching their rated service life, particularly in Zone 1 or Zone 2 hazardous area installations.

Site Replacement Workflow

When the F7546 is identified as the failed component — either through HIMA ELOP II diagnostics, LED fault indication on the module face, or bus segment isolation testing — the replacement procedure should follow these operational steps to minimize downtime and maintain system integrity:

1. Confirm compatibility before removal. Verify that the replacement F7546 carries the same hardware revision as the installed unit, or confirm with HIMA documentation that the revision is backward compatible with your HIMax rack firmware version. Mismatched hardware revisions are a common cause of post-replacement bus initialization failures.

2. Isolate the affected bus segment. In redundant HIMax configurations, the safety system can often continue operating on the redundant bus path while the faulty coupler is replaced. Confirm with your safety system engineer that the bypass is authorized and documented in your management of change (MOC) procedure before proceeding.

3. Remove and replace. Disconnect the bus coupler from the backplane using the module extraction handle. Insert the replacement F7546 firmly until the backplane connector is fully seated. Secure the module retention latch. Do not force the module — misalignment will damage the backplane connector pins.

4. Restore and verify. Power the rack segment and observe the F7546 status LEDs. A solid green RUN indicator confirms successful bus initialization. Use HIMA ELOP II to verify that all downstream I/O channels are reporting correctly and that no latent faults are present in the safety CPU’s fault log.

5. Document and update spare inventory. Record the replacement in your maintenance management system (CMMS) and immediately initiate a purchase order for a replacement spare to restore your on-site buffer stock. A single-unit spare strategy for a critical bus coupler is insufficient for facilities with high uptime requirements — a minimum of two units is recommended for HIMax systems with more than four I/O racks.

Spare Parts Support FAQ

Q1: Is this F7546 an original HIMA module or a third-party compatible replacement?
This is an original HIMA F7546 module. We do not supply counterfeit, refurbished-without-disclosure, or third-party compatible alternatives. Each unit is sourced from verified supply channels and carries the original HIMA part markings and certification labels.

Q2: How do I verify compatibility with my specific HIMax rack configuration before ordering?
The F7546 is designed for the HIMax platform. To confirm compatibility with your specific rack revision and firmware version, provide your HIMax system order number or CPU firmware version when contacting us. Our technical team will cross-reference HIMA’s compatibility matrix and confirm suitability before shipment.

Q3: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact us with your order number and a description of the fault. We will arrange return shipping and provide a replacement or refund within the agreed timeframe.

Q4: Can you supply multiple units for a planned maintenance stock program?
Yes. We support bulk procurement for MRO inventory programs. Volume pricing is available for orders of three or more units. We can also provide a certificate of conformance and pre-shipment test report for each unit upon request, which is typically required for safety-critical spare parts documentation under IEC 61511 maintenance procedures.
