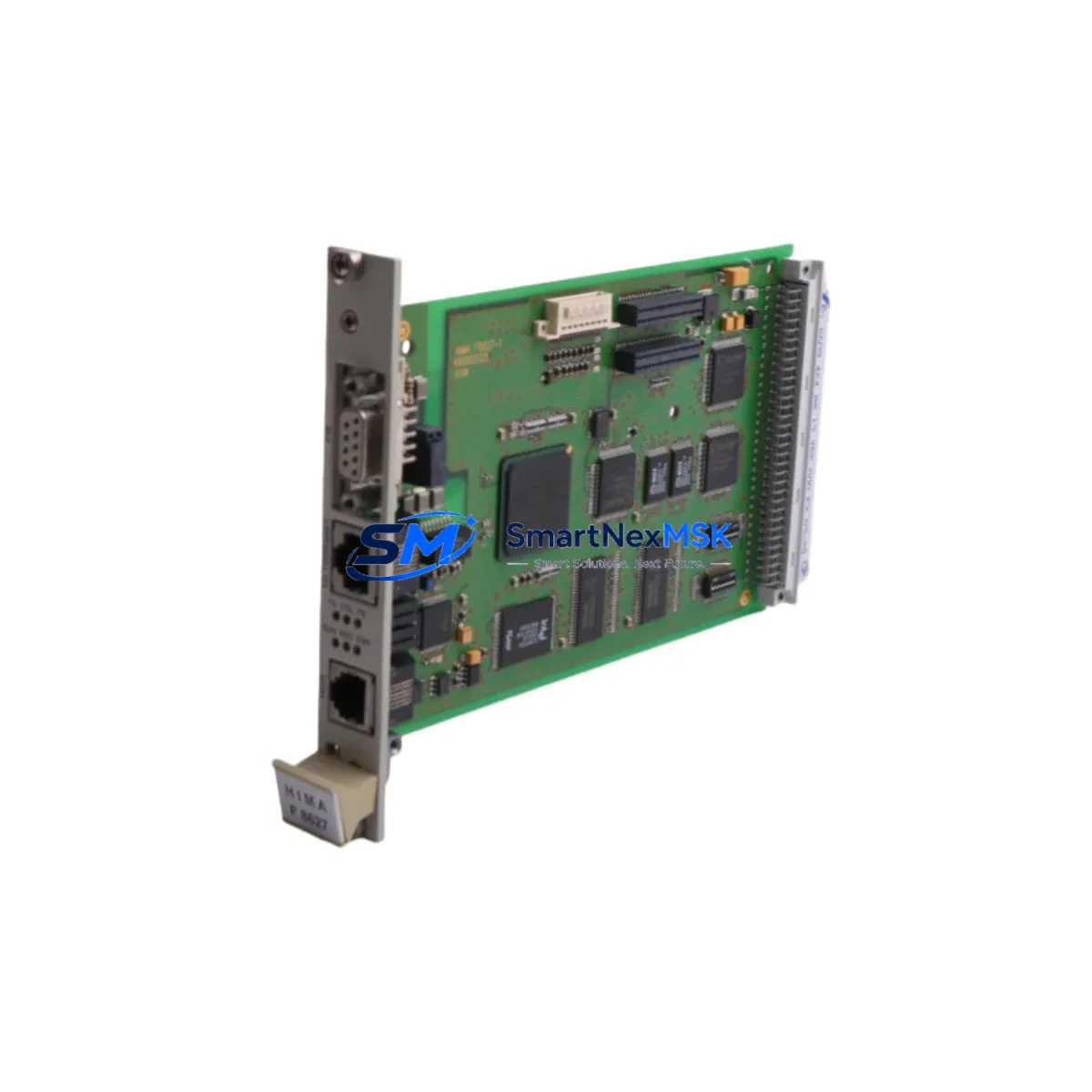

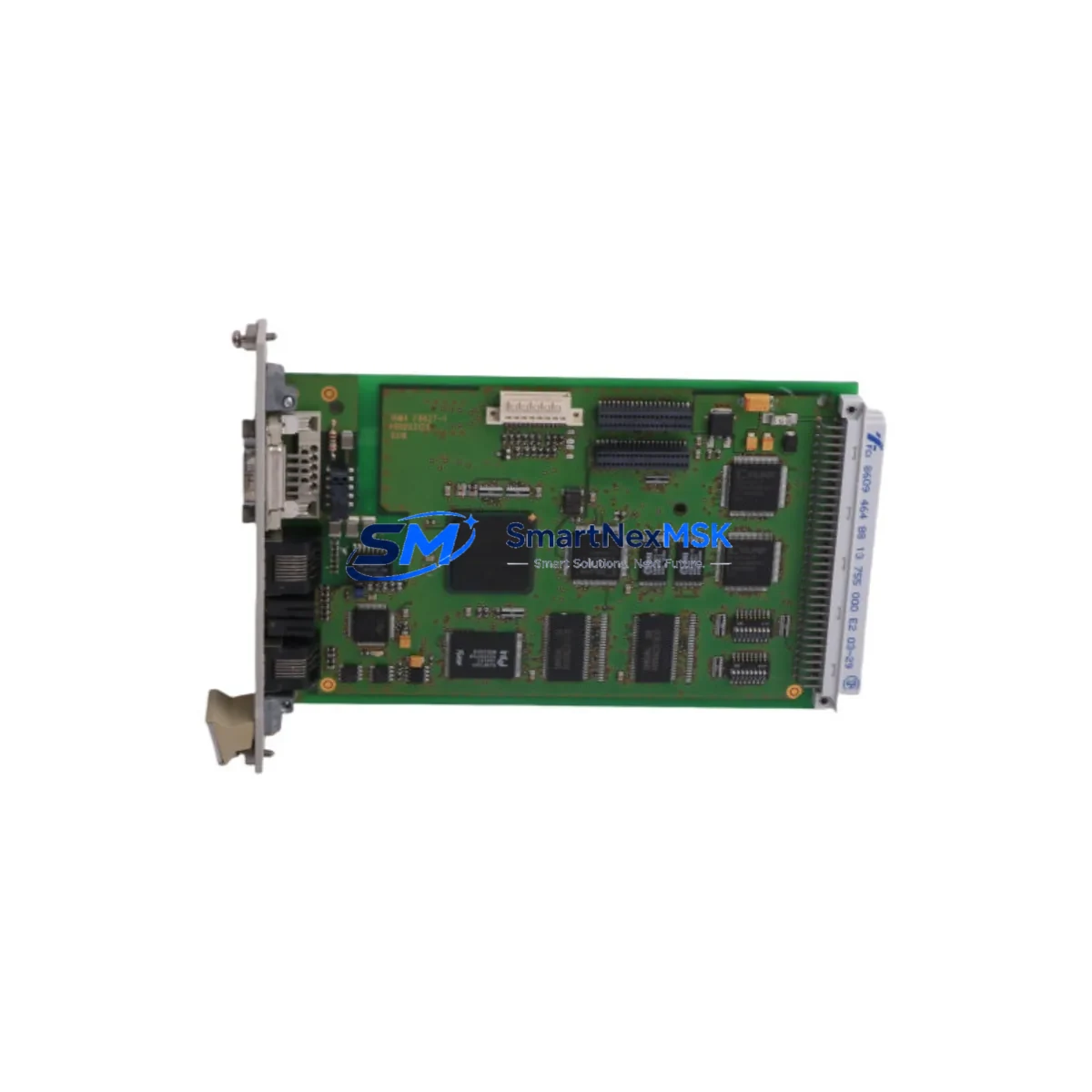

The HIMA F8627 is an original SafeEthernet communication module designed for HIMax safety PLC systems — one of the most widely deployed safety-rated control architectures in process automation, oil & gas, chemical, and power generation facilities. When this module fails or degrades, the entire safety communication backbone of the HIMax rack is at risk, making rapid, verified spare availability a critical factor in minimizing unplanned downtime and maintaining SIL-rated system integrity.

Sourced directly from authorized supply channels, each F8627 unit offered by SMARTNEXMSK undergoes pre-shipment functional verification to confirm communication link establishment, firmware compatibility, and physical connector integrity. With a 12-month warranty and documented traceability, this spare is suitable for both emergency replacement and planned maintenance stock programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing HIMax-based safety systems, the F8627 SafeEthernet module is rarely a standalone concern. A structured replacement plan should account for the full communication and power chain within the HIMax control cabinet. When scheduling a planned outage or responding to a communication fault alarm, the following components should be inspected or staged as concurrent spares:

The HIMax CPU module (e.g., F8650 or F8651) is the processing core that interfaces directly with the F8627 over the backplane. Any firmware mismatch between the CPU and the communication module can prevent SafeEthernet link establishment after replacement. Simultaneously, the HIMax power supply modules (F8621A / F8622A) should be checked for output voltage stability — a marginal power supply is a common root cause of intermittent communication faults that are incorrectly attributed to the F8627 itself.

The HIMax backplane and rack assembly should be visually inspected for oxidized connector pins or mechanical damage before seating the replacement F8627. In redundant configurations, the secondary F8627 module in the mirrored slot should also be tested, as simultaneous degradation of both communication modules is possible in high-vibration or high-humidity environments.

On the network side, the managed Ethernet switches connecting the HIMax SafeEthernet network should be verified for port configuration, VLAN settings, and cable integrity. Faulty SFP transceivers or degraded Cat6 patch cables have caused false F8627 fault diagnostics in field installations. Additionally, fiber optic media converters used in long-distance HIMax network segments should be included in the inspection checklist.

For I/O integrity, the HIMax F3 DIO modules and associated F3 AIO analog input modules connected downstream of the safety communication network should be confirmed operational after any F8627 swap, as a communication interruption may trigger latched fault states in I/O modules that require manual reset. Terminal blocks and field wiring terminations in the same cabinet zone should be torque-checked during the same maintenance window.

Where the HIMax system interfaces with a HIMA SILworX engineering workstation or a HIMA HIMatrix remote I/O station, the SafeEthernet link parameters should be re-validated post-replacement using the SILworX diagnostic tool to confirm that all safety communication paths are re-established within specification. Maintaining a documented spare parts list that includes the F8627 alongside these associated components is the most effective strategy for reducing mean time to repair (MTTR) in safety-critical plant environments.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the F8627 replacement unit firmware version matches the installed HIMax system version. Cross-reference the HIMA system documentation or contact SMARTNEXMSK for firmware compatibility guidance before proceeding.

Step 2 — Safety isolation: Follow site-specific LOTO (Lockout/Tagout) procedures. In hot-swap capable HIMax configurations, confirm with the site safety engineer whether a full system shutdown is required or if the module can be replaced under power with the redundant communication path active.

Step 3 — Module extraction: Release the F8627 module locking mechanism, extract carefully from the backplane slot, and inspect the backplane connector for damage or contamination before inserting the replacement unit.

Step 4 — Replacement and link verification: Seat the new F8627 firmly into the backplane slot. Monitor the module status LEDs and use SILworX to confirm SafeEthernet link establishment, module recognition, and absence of diagnostic fault codes.

Step 5 — Functional test and documentation: Perform a communication loop test across all SafeEthernet-connected nodes. Document the replacement in the site maintenance log, including the old module serial number, new module serial number, firmware version, and test results. Return the removed module to SMARTNEXMSK for evaluation if a warranty claim or failure analysis is required.

This workflow is designed to minimize system downtime, maintain SIL-rated system integrity, and ensure full traceability — all critical requirements for safety-instrumented system (SIS) maintenance in regulated industries.

Spare Parts Support FAQ

Q1: Is the HIMA F8627 available for immediate shipment, and what is the lead time?
In-stock units are dispatched within 3–5 business days after order confirmation. For urgent plant shutdowns or emergency replacement requirements, contact SMARTNEXMSK directly at sales@smartnexmsk.com or +86 18259474341 to confirm real-time availability and expedited shipping options.

Q2: How is compatibility with my specific HIMax system version verified before shipment?
Provide your HIMax system firmware version and rack configuration details when placing your order. SMARTNEXMSK’s technical team will cross-reference the F8627 unit’s firmware and hardware revision against your system specifications before shipment to minimize on-site compatibility risk.

Q3: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is tested before shipment. In the event of a warranty claim, contact sales@smartnexmsk.com with the order reference, site installation details, and fault description. Replacement or repair will be arranged promptly.

Q4: Can the F8627 be used as a long-term spare for aging HIMax systems that are no longer in active production?
Yes. SMARTNEXMSK specializes in sourcing and supplying original and refurbished-to-spec spare parts for legacy and end-of-life industrial automation systems. The F8627 is available to support HIMax system life extension programs, allowing facilities to defer costly full-system upgrades while maintaining safety compliance and operational continuity.
