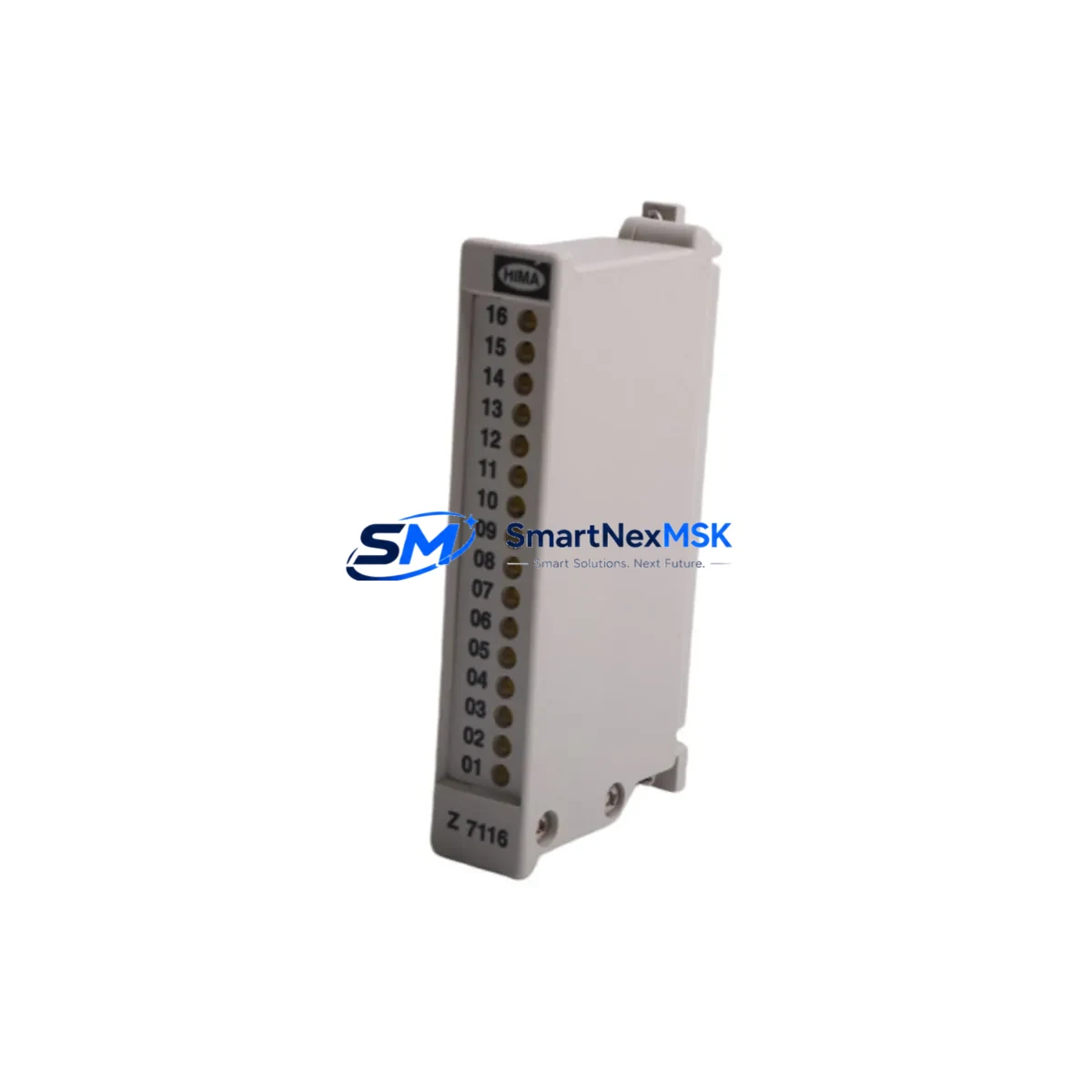

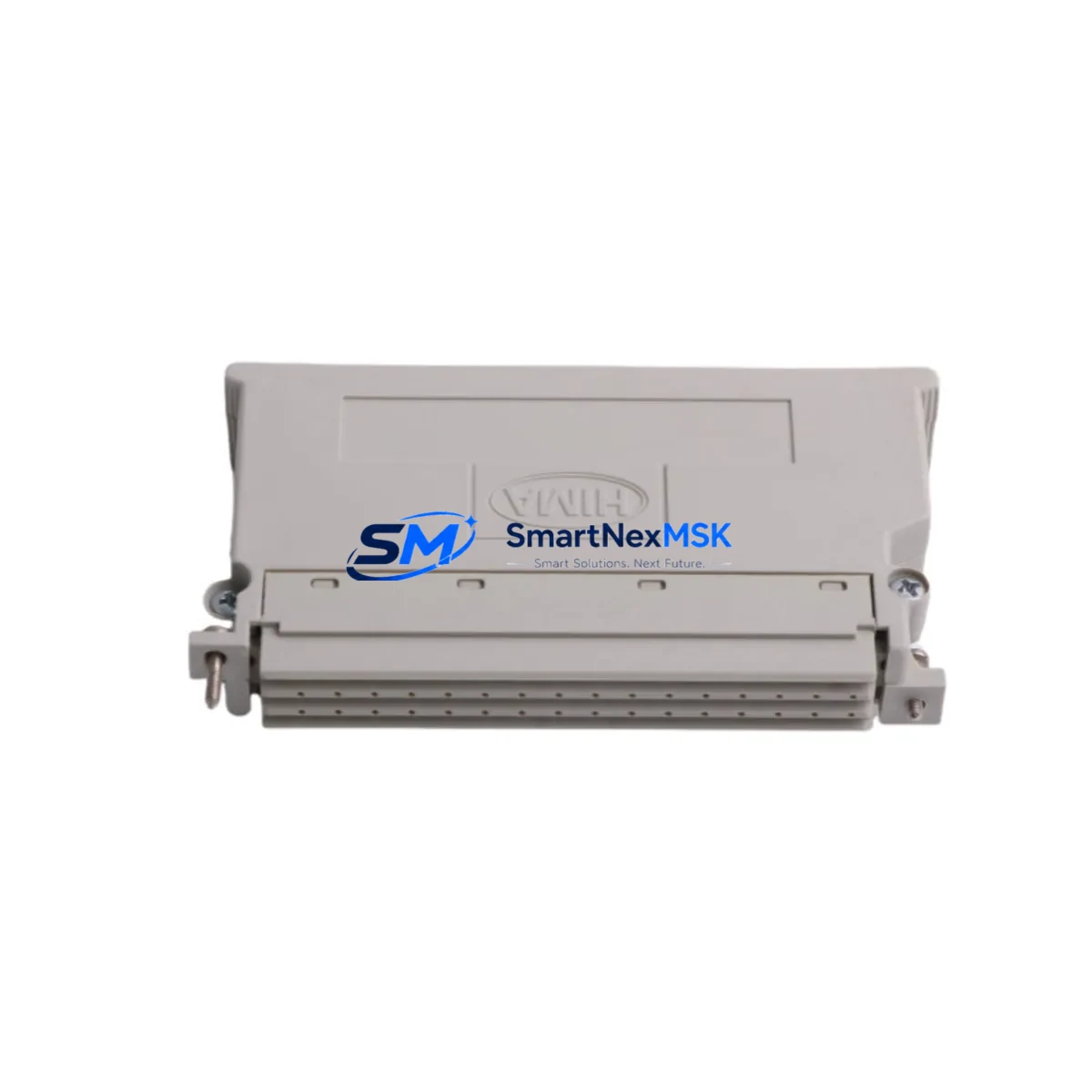

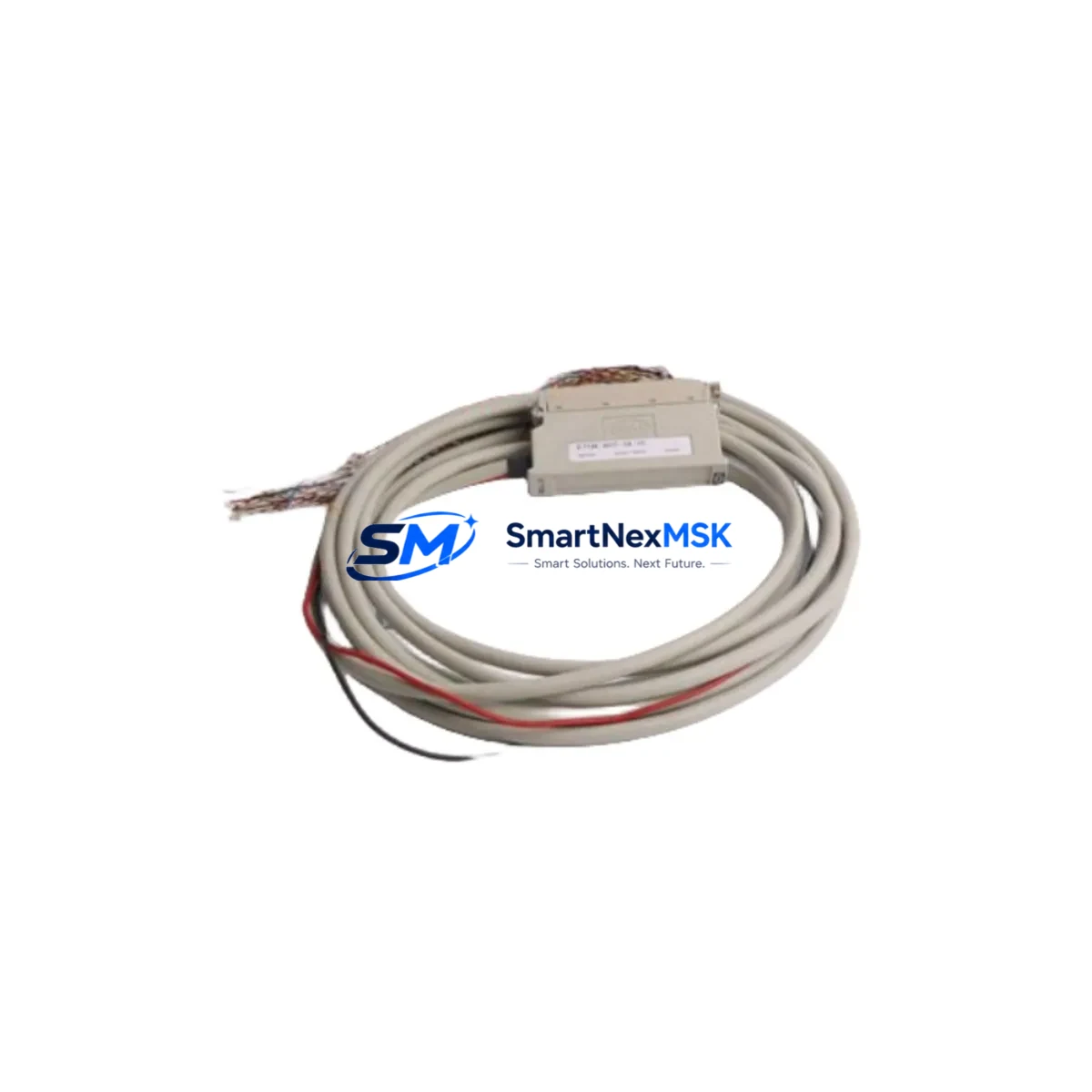

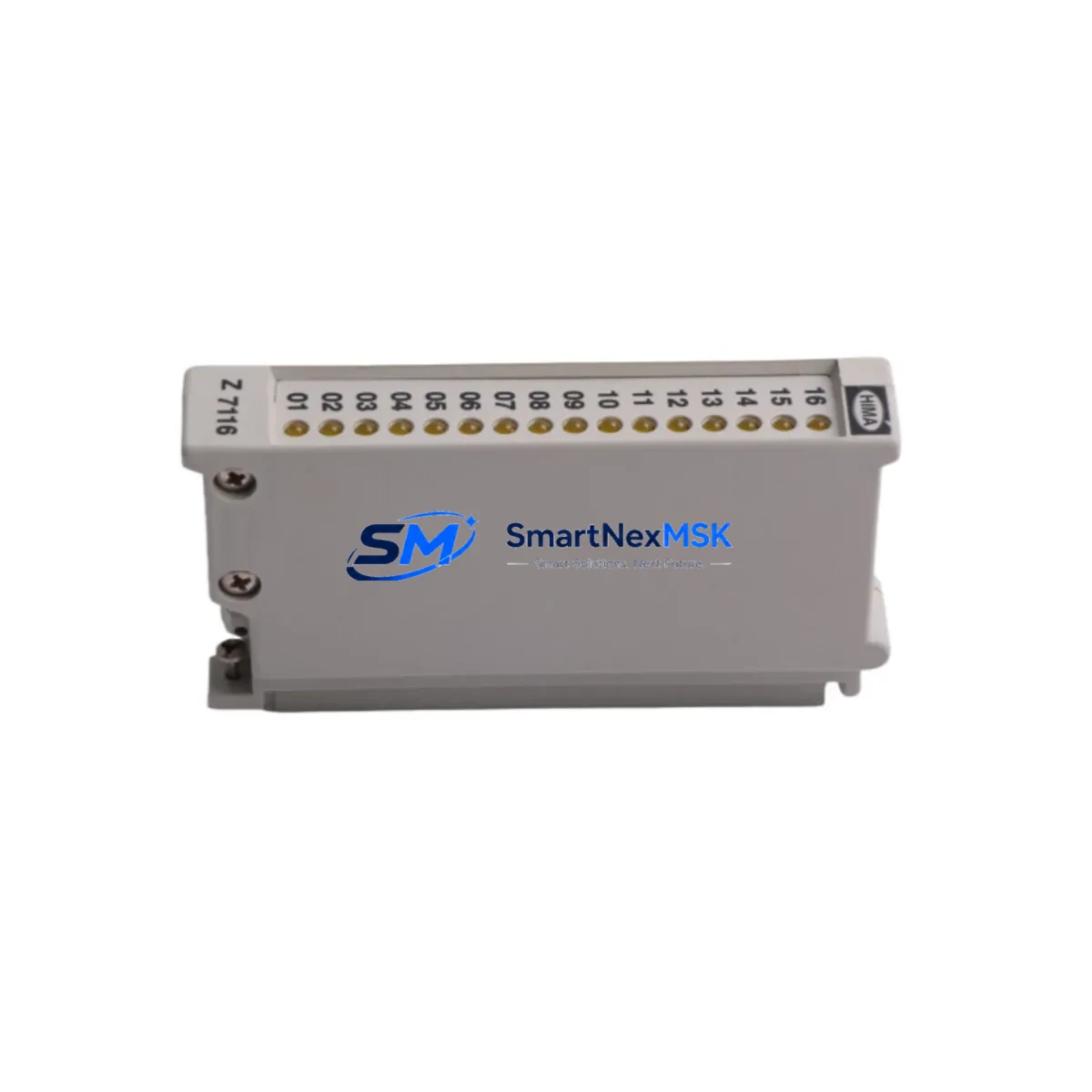

HIMA Z7116 Safety-Enhanced Field Wiring Connector

HIMA Z7116 Safety-Enhanced Field Wiring Connector: Reliable Control in Harsh Industrial Sites

The HIMA Z7116 is a ruggedized field wiring connector engineered specifically for safety instrumented systems (SIS) operating in demanding industrial environments. Designed to interface seamlessly with HIMA HIMax and HIMatrix safety controllers, the Z7116 provides a mechanically robust, electrically stable termination point that is critical to maintaining the integrity of safety loops under continuous, high-load production conditions.

In industries where control interruption is not an option — petrochemical processing, power generation, mining extraction, water treatment, metallurgical smelting, and port logistics — the quality of every field connection directly determines system availability. The Z7116 addresses this reality with a shielded, EMI-resistant housing that suppresses electromagnetic interference from variable frequency drives, high-current motor starters, and adjacent power distribution equipment. Its surge-protected contact design guards against transient voltage spikes that can propagate through field cabling and cause module mis-operation or communication anomalies in the safety bus.

Signal drift is one of the most insidious failure modes in safety-critical control architectures. Loose or corroded terminations introduce resistance variations that distort analog input readings, triggering nuisance trips or — more dangerously — masking genuine process deviations. The Z7116’s gold-plated contact pins and vibration-resistant locking mechanism eliminate this risk, ensuring that signals from field transmitters, pressure switches, and emergency shutdown valves arrive at the HIMA F3 DIO or F3 AIO I/O modules with full fidelity across the entire operating temperature range.

Safety Reliability Table

Control Cabinet Protection Strategy

A safety control cabinet is only as reliable as its weakest interconnection. When deploying the HIMA Z7116 in a SIL-rated control enclosure, it is standard practice to pair it with complementary components that collectively eliminate single points of failure across the power, signal, and communication layers.

On the power supply side, the HIMA Z7116 connector is typically installed alongside redundant 24 VDC power modules such as the HIMA HIMax PS01 power supply unit, which provides isolated, regulated DC power to the I/O backplane. Upstream, a Phoenix Contact QUINT-PS or equivalent DIN-rail power supply with SFB (Selective Fuse Breaking) technology ensures that a short circuit on one branch does not collapse the entire cabinet bus — a critical safeguard in continuous process plants.

For signal conditioning and loop protection, the Z7116 is frequently used in conjunction with HIMA F3 DIO 20/8 01 digital I/O modules and F3 AIO 8/4 01 analog I/O modules, which handle the SIL-rated acquisition of field signals from pressure transmitters, temperature sensors, and final control elements. Surge protection barriers such as the MTL 5000 series Zener barriers or Pepperl+Fuchs KFD2 isolators are commonly installed in series with field cables to clamp transient energy before it reaches the Z7116 contacts and the downstream I/O module inputs.

Communication integrity is maintained through the HIMA HINET safety network, where the HIMax CPU modules — such as the HIMA HIMax X-CPU 01 — exchange safety-relevant data over redundant fiber or copper Ethernet links. Any degradation in field wiring termination quality, including connector contact resistance drift, can introduce latency or checksum errors in the safety bus protocol. The Z7116’s stable contact geometry prevents this class of communication anomaly.

For applications requiring intrinsic safety in Zone 1 or Zone 2 hazardous areas, the Z7116 is used at the safe-area termination point, paired with certified Ex-rated field junction boxes and HIMA HIMatrix F35 controllers configured for IS loop monitoring. The complete assembly — connector, barrier, cable, and controller — forms a validated, traceable safety loop that satisfies functional safety audit requirements under IEC 61511.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In high-pressure reactor control and emergency shutdown (ESD) systems, the Z7116 terminates field cables from pressure safety valves (PSVs), high-high level switches, and flame detectors into the HIMax safety controller. Reliable termination is essential to prevent spurious trips that cost hundreds of thousands of dollars per hour in lost production, and equally to ensure genuine hazardous conditions are detected without delay.

Power Generation: Turbine protection systems and boiler safety interlocks rely on low-resistance, vibration-stable connections to transmit trip signals within the required response time. The Z7116’s locking mechanism maintains contact integrity even under the mechanical vibration generated by large rotating machinery, ensuring that overspeed or over-temperature trips execute within the SIL-defined response time.

Mining & Mineral Processing: Conveyor belt safety systems, crusher interlock circuits, and ventilation control panels in underground or open-cut mining operations are subject to extreme dust, humidity, and vibration. The Z7116’s robust housing and sealed contact design maintain signal integrity in these conditions, reducing unplanned downtime caused by wiring faults.

Water & Wastewater Treatment: Pump protection, chemical dosing interlocks, and overflow prevention systems in water treatment facilities require continuous, unattended operation. The Z7116 supports long-term reliability in these 24/7 environments, where maintenance access is infrequent and connector failure can result in regulatory non-compliance or environmental incidents.

Metallurgy & Steel Production: Electric arc furnace control, ladle transfer interlocks, and rolling mill safety systems generate intense electromagnetic fields. The Z7116’s EMI-shielded design ensures that safety signals are not corrupted by the high-frequency interference characteristic of these environments, maintaining the integrity of the safety instrumented function (SIF).

Port & Bulk Material Handling: Ship loader and stacker-reclaimer control systems require reliable field connections across long cable runs exposed to salt air, temperature cycling, and mechanical shock. The Z7116 provides the corrosion-resistant, mechanically stable termination needed for dependable operation in coastal industrial environments.

Safety and Quality FAQ

Q1: What warranty does the HIMA Z7116 carry, and what does it cover?
The Z7116 is supplied with a 12-month warranty covering manufacturing defects, contact failure, and functional non-conformance under normal operating conditions. Warranty claims are processed with priority to minimize downtime impact on safety-critical installations. Replacement units are dispatched from in-stock inventory to support rapid field restoration.

Q2: What pre-shipment testing is performed on each Z7116 unit?
Every Z7116 undergoes a full pre-shipment inspection protocol including contact continuity verification, insulation resistance measurement, mechanical latch function test, and visual inspection for housing integrity. Test records are retained and available upon request for traceability purposes in safety system documentation packages.

Q3: Is the Z7116 compatible with both HIMax and HIMatrix controller families?
Yes. The Z7116 is designed as a field wiring accessory compatible with the HIMA HIMax and HIMatrix controller platforms, including the HIMatrix F35 and F60 series. It is also suitable for use with other HIMA I/O modules that share the same connector footprint. Compatibility with specific module variants should be confirmed against the HIMA system documentation for the target installation.

Q4: Can long-term supply of the Z7116 be guaranteed for ongoing maintenance and spare parts programs?
Yes. We maintain dedicated stock of the Z7116 to support spare parts programs, planned maintenance shutdowns, and emergency replacement requirements. For large-volume or scheduled procurement, framework agreements are available to guarantee allocation and pricing stability. Contact our sales team to discuss your site’s long-term spare parts strategy.
