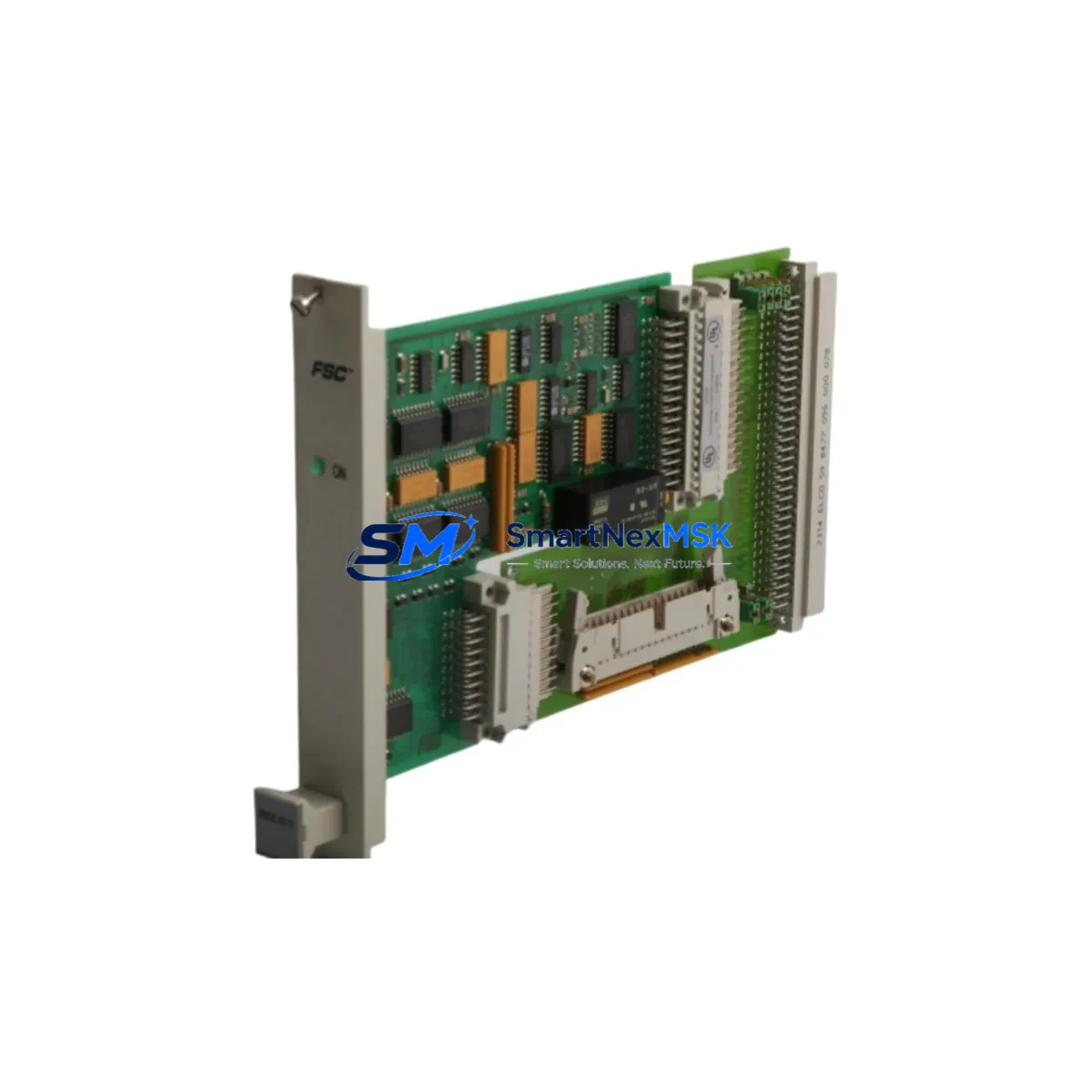

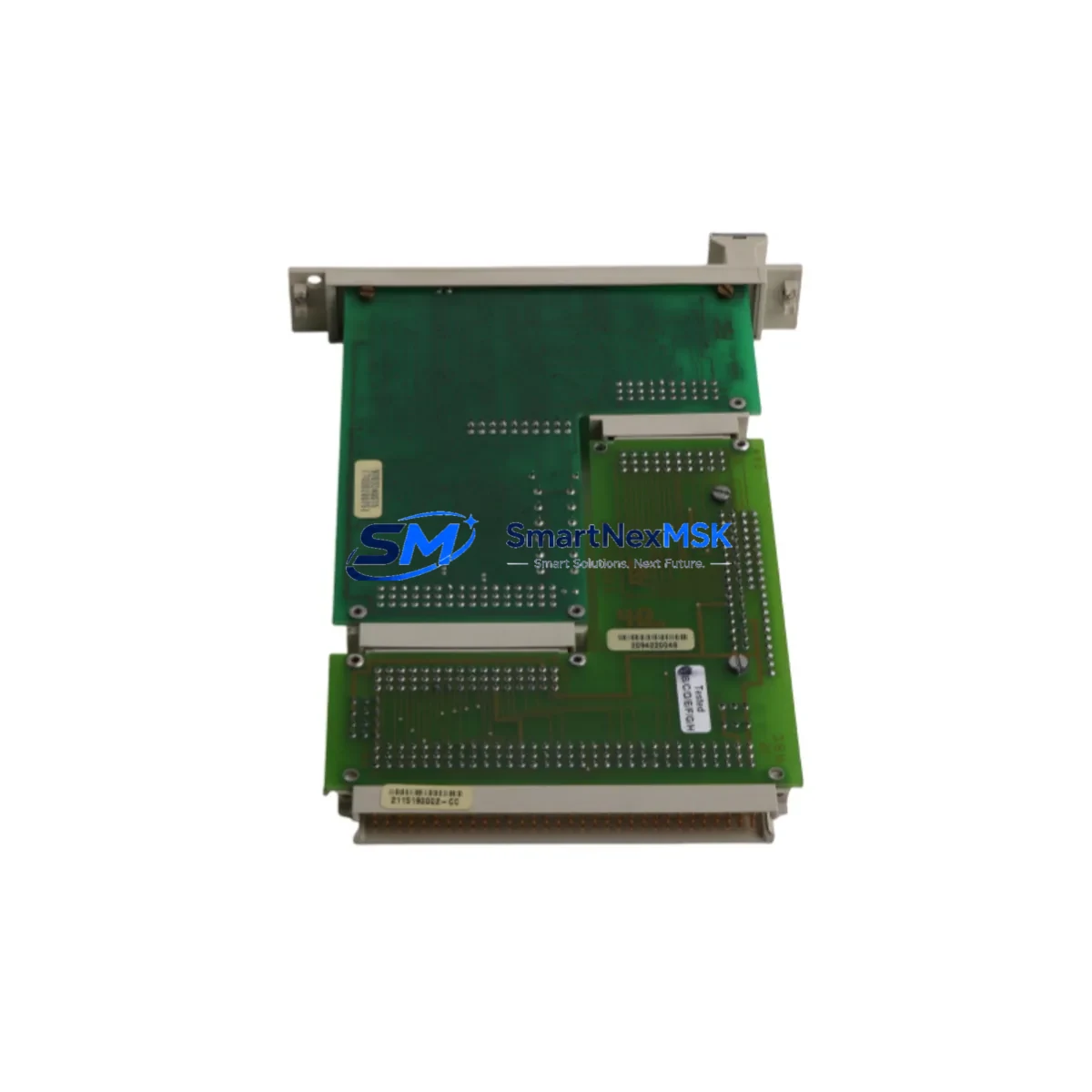

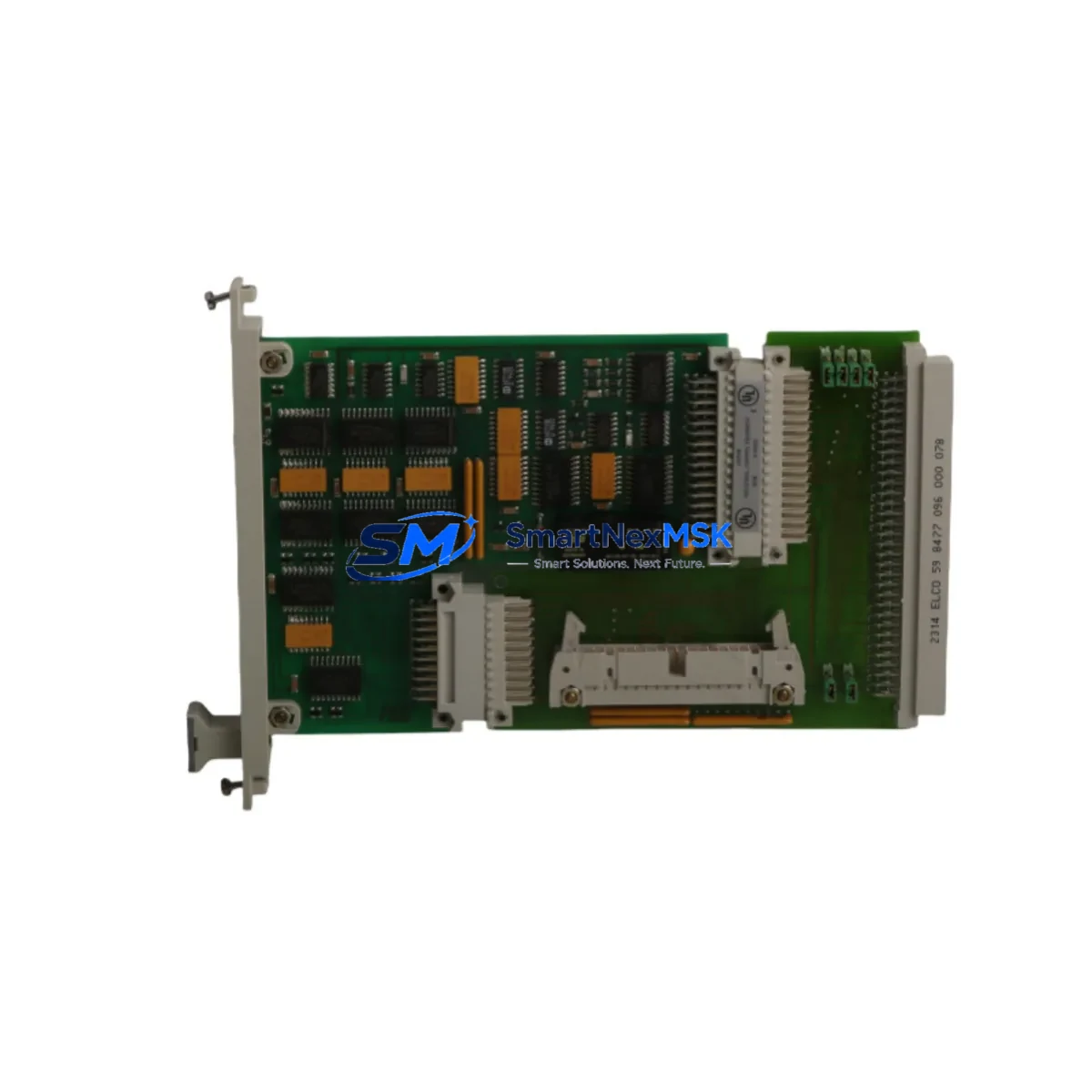

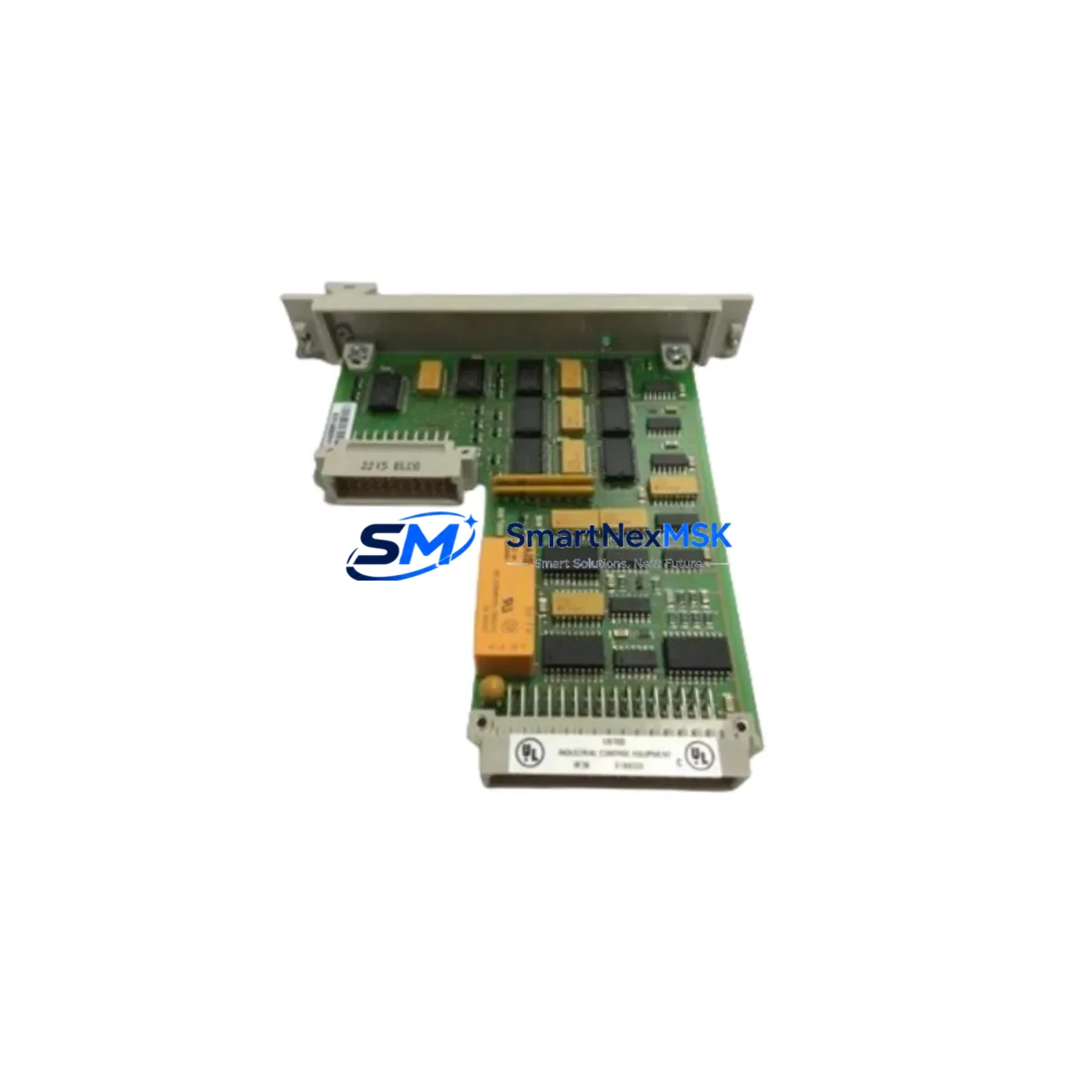

Honeywell 10001/R/I Maintenance-Ready Spare for TDC 3000 Automation
The Honeywell 10001/R/I is an original vertical bus driver module engineered for the TDC 3000 and TPS (TotalPlant Solution) distributed control system platforms. As a critical backplane communication component, this module manages the high-speed data transfer between the Universal Control Network (UCN) and the Local Control Network (LCN), making it a foundational element in continuous process control environments including refining, petrochemical, power generation, and pulp and paper operations. When this module fails or degrades, the consequences extend beyond a single loop — entire control cabinets can lose communication integrity, triggering unplanned shutdowns and costly production losses.
Sourced as an original Honeywell spare, each 10001/R/I unit is individually inspected, function-tested, and shipped with a 12-month warranty. Our inventory is maintained specifically to support maintenance engineers and procurement teams who require fast, reliable access to legacy DCS components without the lead times associated with OEM channels. Whether you are executing a planned turnaround, responding to an emergency fault, or building a strategic spare parts buffer, the 10001/R/I is available for immediate dispatch.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number / SKU | 10001/R/I |
| Manufacturer | Honeywell Process Solutions |
| Series / Platform | TDC 3000 / TPS (TotalPlant Solution) |
| Module Function | Vertical Bus Driver — LCN/UCN Backplane Communication |
| Product Type | DCS Bus Driver Module |
| Compatibility | TDC 3000, TPS, HPM, AM, NIM, LM cabinets |
| Installation | Vertical card cage slot, standard TDC 3000 backplane |
| Operating Environment | Industrial control room / DCS cabinet; 0–60°C, controlled humidity |
| Origin | Original Honeywell manufacture |
| Condition | Original spare, function-tested prior to shipment |
| Warranty | 12 months from date of shipment |
| Typical Application | Refining, petrochemical, power generation, pulp & paper, chemical processing |
| Maintenance Recommendation | Replace at first sign of intermittent LCN communication faults or bus error alarms; inspect adjacent backplane connectors and power rails during replacement |
Maintenance Planning for Continuous Operation
Replacing the 10001/R/I bus driver module is rarely an isolated task. Experienced maintenance engineers treat this event as an opportunity to audit the surrounding control infrastructure and prevent secondary failures. During a planned or emergency replacement, the following components and assemblies should be inspected or tested concurrently:
Begin with the LCN power supply module (such as the Honeywell 51401288-100 or equivalent cabinet power unit) — bus driver failures are frequently preceded by marginal DC rail voltages that stress the backplane logic. Verify output voltage stability under load before reinstalling the new 10001/R/I. Next, inspect the backplane connector pins and card cage slot for oxidation, bent contacts, or contamination; a degraded connector will shorten the service life of any replacement module.
If the TDC 3000 cabinet houses a High-Performance Process Manager (HPM) or an Advanced Multifunction Controller (AMC), confirm that the controller’s I/O link is re-established cleanly after the bus driver swap. Simultaneously, check the status of associated I/O Link Interface Modules (ILM) and any Field Termination Assemblies (FTA) connected downstream — these components share the same communication path and can mask latent faults if not verified independently.
For cabinets running Network Interface Modules (NIM) or Local Control Network (LCN) nodes, validate node addressing and communication health via the Honeywell Universal Station (US) or GUS (Global User Station) HMI after replacement. Any residual LCN error logs should be cleared and monitored for recurrence over the first 24 hours of operation. If the system includes a Data Hiway Gateway or legacy Data Acquisition Module (DAM), confirm that historian data flow resumes without gaps.
On the signal side, inspect 24 VDC field power distribution terminals and any signal isolators or galvanic barriers in the associated I/O loops. Bus communication faults can induce transient voltage spikes that degrade isolator performance over time. Replacing the bus driver without auditing these components leaves the system vulnerable to repeat failures within months. Finally, verify that all cabinet cooling fans are operational and that thermal management within the card cage meets Honeywell’s environmental specifications — elevated temperatures are a leading cause of premature bus driver module failure in aging TDC 3000 installations.
Site Replacement Workflow
The 10001/R/I is a direct plug-in replacement for the original Honeywell vertical bus driver position in TDC 3000 and TPS card cages. No firmware programming or hardware configuration is required prior to installation — the module is slot-addressed by the backplane. Follow this sequence to minimize downtime:
1. Pre-replacement verification: Confirm the fault is isolated to the bus driver by reviewing LCN diagnostic alarms at the operator station. Document the current slot position and cabinet address. Notify the control room of the planned maintenance window.
2. Safe removal: With the cabinet energized (hot-swap capability depends on system configuration — consult your site safety procedure), extract the faulty 10001/R/I by releasing the card ejector levers. Inspect the ejected module for visible burn marks, swollen capacitors, or connector damage to confirm the failure mode.
3. Installation: Insert the replacement 10001/R/I firmly into the same slot, ensuring full backplane connector engagement. Secure the ejector levers. The module will self-initialize within the TDC 3000 system scan cycle.
4. Post-installation validation: Monitor LCN communication status at the HMI for a minimum of 15 minutes. Confirm all associated HPM, NIM, and I/O modules return to normal communication state. Clear any residual fault logs and document the replacement in the site maintenance record.
5. Spare parts replenishment: After consuming a critical spare, initiate a replenishment order immediately. For aging TDC 3000 systems, maintaining a minimum of one additional 10001/R/I in the site spare parts store is strongly recommended to protect against future unplanned outages.
Spare Parts Support FAQ
Q1: Is the 10001/R/I compatible with both TDC 3000 and TPS systems?
Yes. The 10001/R/I vertical bus driver module is compatible with the full TDC 3000 platform family, including TPS (TotalPlant Solution) installations. It operates within the standard LCN card cage architecture common to both generations. If you are uncertain about compatibility with a specific cabinet revision, please contact our technical team with your cabinet model and firmware version.
Q2: What testing is performed before shipment?
Every 10001/R/I unit undergoes functional verification prior to dispatch, including backplane connector integrity checks and communication logic testing. Units that do not meet performance benchmarks are quarantined and not offered for sale. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.
Q3: How quickly can the 10001/R/I be shipped, and what are the lead times?
In-stock units are available for same-day or next-business-day dispatch. We maintain dedicated inventory of critical TDC 3000 spare modules to support emergency maintenance scenarios. International shipments are handled with full export documentation. Contact us directly for urgent requirements and we will confirm availability and shipping timeline within hours.
Q4: What is the recommended spare parts strategy for aging TDC 3000 systems?
For TDC 3000 systems beyond 15 years of service, we recommend maintaining a minimum two-unit buffer of critical bus driver modules such as the 10001/R/I, alongside spares for associated power supply modules, NIM cards, and HPM I/O link interfaces. A proactive spare parts audit conducted annually — cross-referenced against your site’s maintenance history and Honeywell’s end-of-life component advisories — significantly reduces the risk of extended unplanned downtime caused by obsolete module shortages.
