Honeywell 10024/H/F Retrofit-Ready Comm Module TDC 3000

Honeywell 10024/H/F Retrofit-Ready Communication Module for TDC 3000 Control Systems

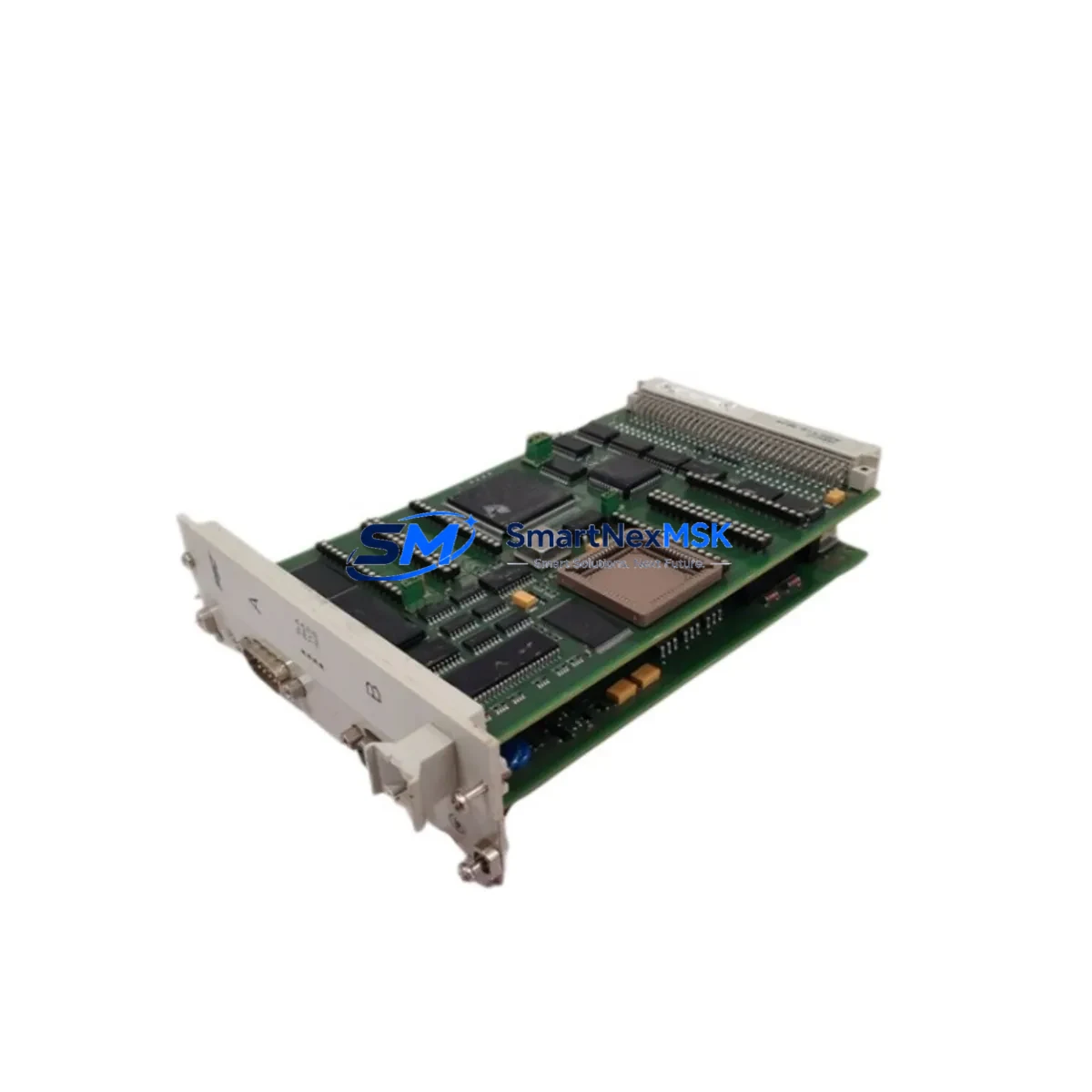

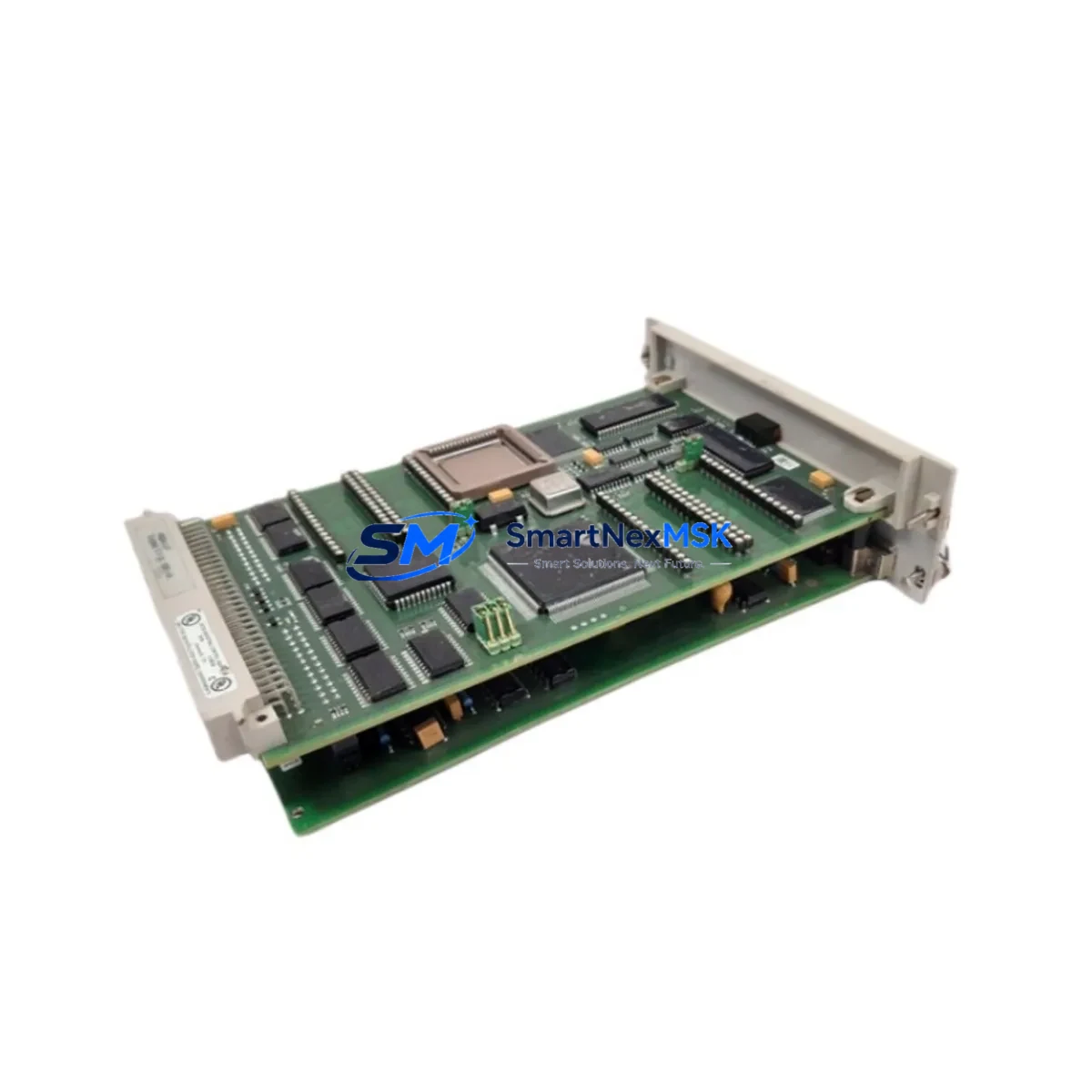

The Honeywell 10024/H/F is a high-reliability DCS communication module engineered for seamless integration into legacy TDC 3000 distributed control system architectures. As aging TDC 3000 installations approach end-of-support milestones, plant engineers and automation integrators increasingly rely on verified retrofit-ready replacements like the 10024/H/F to extend operational life, eliminate unplanned downtime, and defer full platform migration costs. This module serves as a direct functional replacement for discontinued communication cards within the TDC 3000 family, supporting the Local Control Network (LCN) and Highway infrastructure that underpins thousands of active process control installations worldwide.

Whether you are managing a refinery DCS upgrade, a chemical plant control cabinet overhaul, or a phased migration from TDC 3000 to Experion PKS, the 10024/H/F provides the communication backbone continuity your project demands. It is compatible with standard TDC 3000 card file backplanes and integrates directly with the Universal Control Network (UCN) gateway architecture, allowing engineers to maintain existing I/O wiring, preserve ladder logic and control strategies, and avoid costly reprogramming of upstream HMI displays and operator consoles.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the Honeywell 10024/H/F into an active TDC 3000 system begins well before the module arrives on-site. Engineers should audit the existing card file configuration, documenting the slot assignments of adjacent modules such as the Honeywell AM (Application Module), Honeywell HM (History Module), and any installed Honeywell NIM (Network Interface Module) units that bridge the LCN to field device networks. Understanding the full card file population — including power supply modules, redundant communication cards, and any installed Honeywell PM (Process Manager) controllers — is essential to predicting the impact of a single card swap on overall system stability.

Terminal wiring on the TDC 3000 backplane is typically fixed and does not require re-termination when replacing a communication module of the same form factor. However, engineers should verify that the existing cable harness connecting the card file to the LCN highway box is undamaged and that the coaxial or fiber LCN cable terminations are within specification. If the installation includes a Honeywell LCN Extender or a redundant highway configuration, both highway connections should be tested for signal integrity before the new 10024/H/F is powered on.

For sites migrating from TDC 3000 toward Experion PKS or Experion HS, the 10024/H/F can serve as a bridge-phase component, maintaining LCN communication continuity while upstream Experion C300 controllers or Experion ACE (Application Control Environment) nodes are staged for cutover. This phased approach allows engineering teams to validate new control logic in parallel with live production, significantly reducing the risk window associated with a hard cutover. During this phase, the Honeywell FTE (Fault Tolerant Ethernet) switch infrastructure and any installed Honeywell FTEB (FTE Bridge) modules should be pre-configured and tested offline before integration into the live network.

I/O expansion considerations are equally important. If the retrofit scope includes adding new field instruments or expanding analog I/O capacity, engineers should assess whether existing Honeywell PM I/O Link modules and associated I/O termination assemblies have available capacity, or whether additional card file slots and a supplementary power supply module will be required. Addressing these capacity questions before the maintenance window prevents scope creep and unplanned downtime extensions.

Downtime Control During System Migration

Minimizing downtime during a TDC 3000 communication module replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, the engineering team should perform a full backup of the TDC 3000 database, including all control strategies, tuning parameters, alarm configurations, and HMI display definitions stored on the History Module. This backup ensures that if the replacement module requires a node re-initialization, the control strategy can be reloaded without manual re-entry.

During the swap, the recommended sequence is to place the affected LCN node in a controlled offline state using the TDC 3000 system console, physically remove the failed or end-of-life communication card, install the 10024/H/F in the same slot, verify the module address matches the original node configuration, and restore power to the card file. The system console should then be used to monitor the node’s LCN re-registration process, confirming that the module appears on the network and that all associated process points return to scan before the maintenance window is closed.

For critical process units where even brief communication interruptions are unacceptable, a hot-standby strategy using a pre-configured spare card file with the 10024/H/F already installed and addressed can reduce the physical swap time to under five minutes. This approach is particularly effective in refinery or chemical plant environments where the cost of an unplanned process upset far exceeds the cost of maintaining a pre-staged spare. All units supplied by SMARTNEXMSK are pre-tested prior to shipment and covered by a 12-month warranty, providing additional assurance that the replacement module will perform as expected from the moment it is powered on.

Retrofit Support FAQ

Q1: Is the Honeywell 10024/H/F a direct drop-in replacement for my existing TDC 3000 communication card?
In the vast majority of TDC 3000 installations, yes. The 10024/H/F is designed to occupy the same card file slot and interface with the same backplane connectors as the original communication module. Before installation, confirm the slot type, LCN node address, and power rail voltage match your existing configuration. No firmware modification is typically required for a standard replacement.

Q2: What wiring changes are needed when installing the 10024/H/F?
For a like-for-like communication module replacement, no field wiring changes are required. The module interfaces with the TDC 3000 backplane via the card file edge connector. LCN highway connections are made at the highway box, not at the module itself. Verify that existing LCN cable terminations and highway tap connections are in good condition before powering on the new module.

Q3: How do I verify compatibility with my existing TDC 3000 system revision?
Compatibility should be verified against your TDC 3000 system revision level and the card file hardware revision. Consult your TDC 3000 system documentation or contact our technical team with your system revision number and existing module part number. We will confirm compatibility before shipment. All modules are tested against known-good reference systems prior to dispatch.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It includes free replacement or repair of the module if it fails to perform its specified communication functions. The warranty does not cover damage resulting from incorrect installation, overvoltage conditions, or physical mishandling. Our team provides pre-shipment functional testing documentation upon request.
