Honeywell 2MLB-M06A-CC Maintenance-Ready Spare HC900: Spare Replacement & Industrial Downtime Risk Control

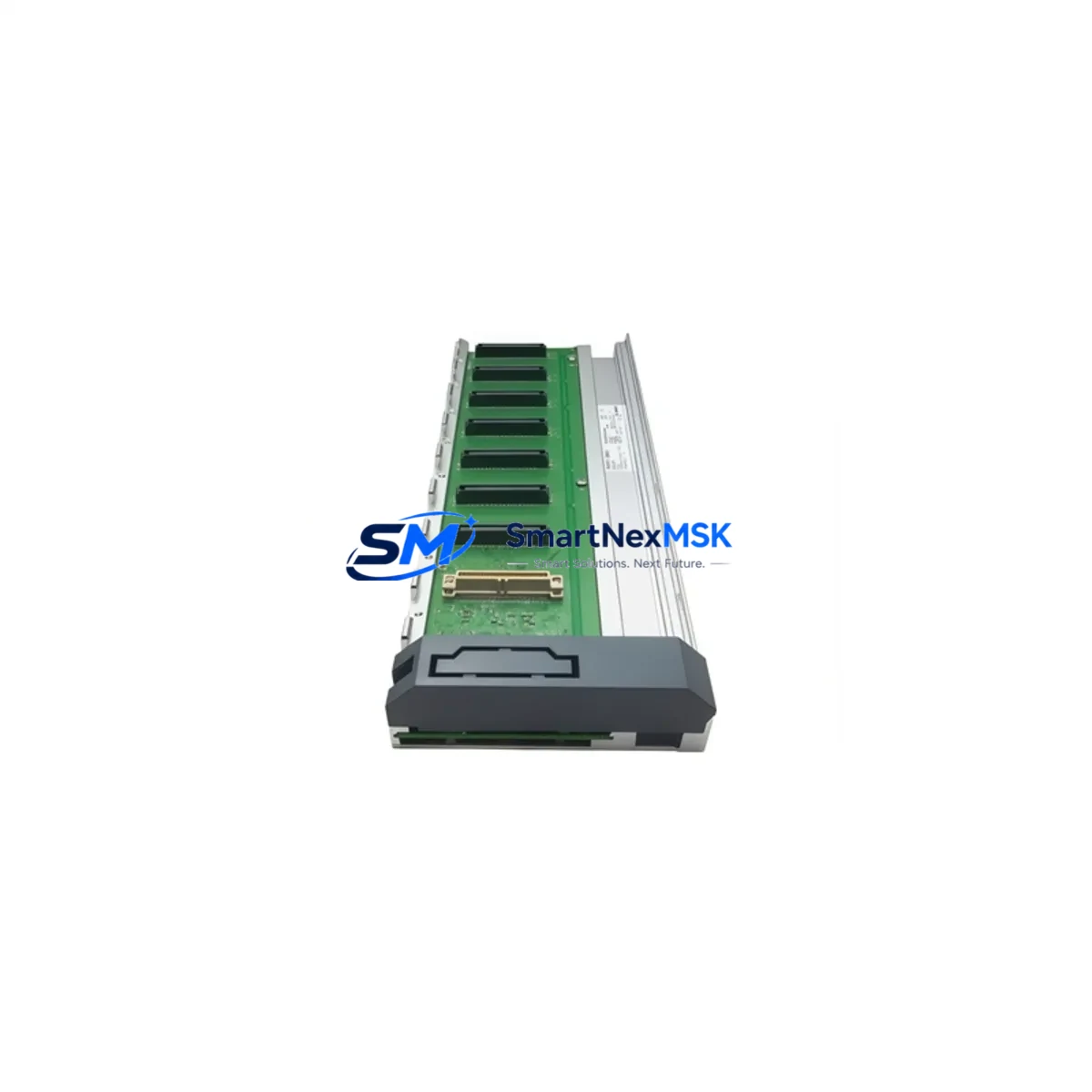

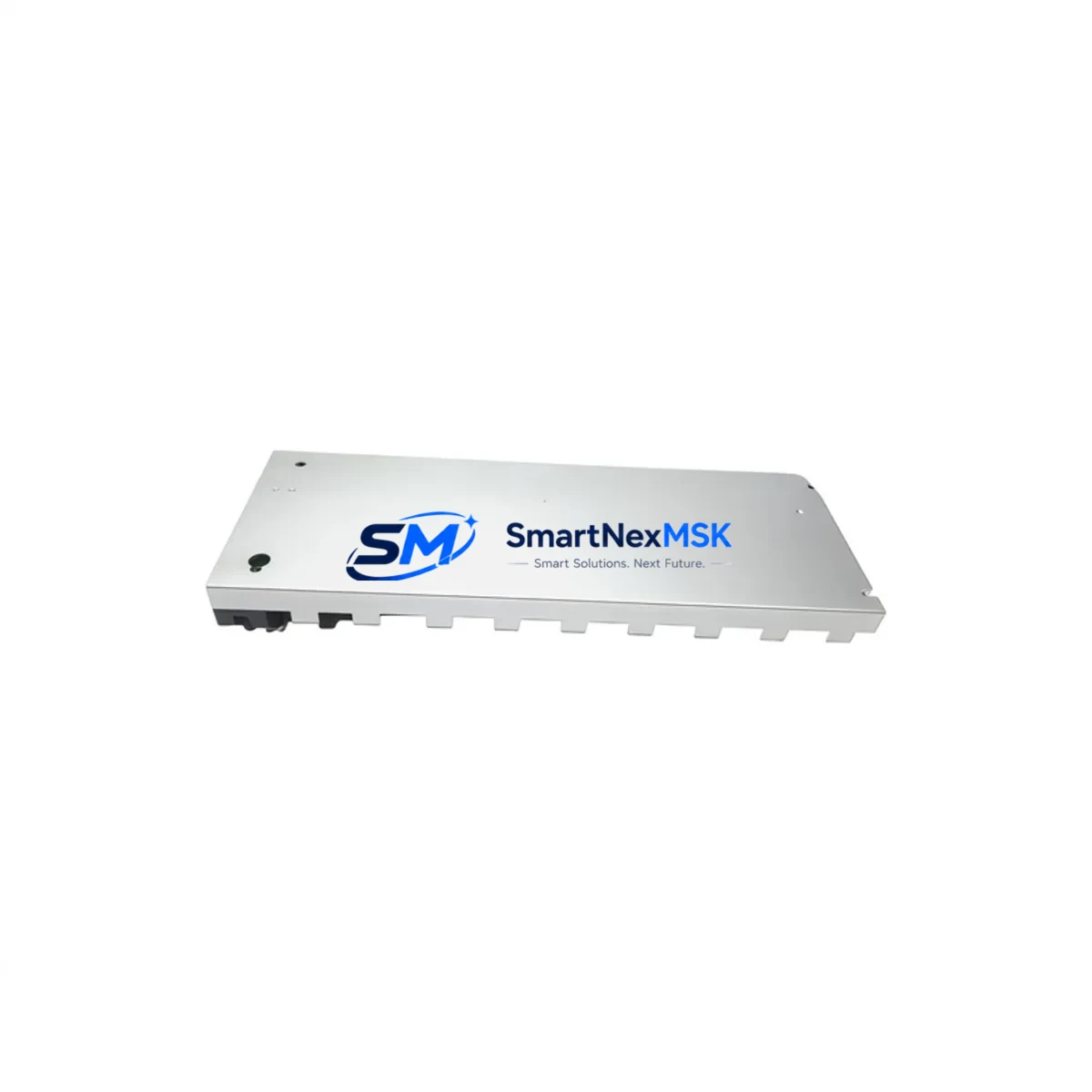

The Honeywell 2MLB-M06A-CC is a 6-Slot Main Base Rack designed for the HC900 Hybrid Controller platform — one of Honeywell’s most widely deployed process control systems in refining, chemical, power, and utilities industries. When this base rack fails or reaches end-of-service life, the entire HC900 controller chassis becomes inoperable, making rapid spare availability a critical factor in minimizing unplanned downtime. Sourced as an original Honeywell component, this unit ships fully tested and is backed by a 12-month warranty, ensuring your maintenance team can restore control system operation with confidence.
For maintenance engineers managing aging HC900 installations, the 2MLB-M06A-CC is the structural backbone of the controller assembly. It houses the CPU module, power supply module, and up to six I/O or communication modules in a single integrated chassis. A failure at the base rack level — whether caused by backplane connector wear, power distribution faults, or physical damage — cannot be resolved by module-level replacement alone. Stocking this spare as part of your critical spares inventory is a recognized best practice for any site running HC900-based control loops.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 2MLB-M06A-CC |
| Brand | Honeywell |
| Series / Platform | HC900 Hybrid Controller |
| Module Type | 6-Slot Main Base Rack |
| Slot Capacity | 6 I/O / Communication Module Slots |
| Backplane Bus | HC900 Proprietary Backplane |
| Power Input | Via HC900 Power Supply Module (e.g. 900P01-0101) |
| Compatible CPU | HC900 CPU Modules (C30, C50, C70, C75) |
| Mounting | DIN Rail / Panel Mount |
| Operating Temperature | 0°C to 60°C |
| Relative Humidity | 5% to 95% non-condensing |
| Origin | USA |
| Condition | Original Spare / Surplus New |
| Warranty | 12 Months |
| Pre-shipment Testing | Functional verification performed before dispatch |
| Application Environment | Process control, utilities, refining, chemical plants |
| Maintenance Recommendation | Inspect backplane connectors and slot contacts annually; replace if oxidation or mechanical wear is detected |
Maintenance Planning for Continuous Operation
When a maintenance or procurement engineer evaluates the 2MLB-M06A-CC for replacement, the base rack is rarely the only component requiring attention. A thorough site inspection and spare parts review should encompass the full HC900 controller assembly and associated electrical infrastructure.
The HC900 Power Supply Module (900P01-0101) feeds the backplane directly — any degradation in output voltage will stress the base rack and connected modules simultaneously. It should be inspected or replaced in parallel. Similarly, the HC900 CPU module (C50 or C70 variant depending on your application) should be verified for firmware currency and memory integrity during any base rack replacement event.
On the I/O side, HC900 Analog Input modules and Digital Output modules seated in the rack should be individually tested after reinstallation to confirm signal integrity across all channels. Loose or corroded backplane connectors are a common root cause of intermittent I/O faults that are often misdiagnosed as module failures. HC900 Communication modules — including Ethernet and serial variants — should also be reseated and link-tested after any base rack swap.
Beyond the HC900 chassis itself, the surrounding control cabinet infrastructure warrants inspection. Terminal blocks and wiring harnesses connected to I/O modules should be checked for insulation degradation and terminal torque. 24VDC power distribution fuses and circuit breakers feeding the controller panel should be verified for correct rating and condition. If the HC900 system interfaces with a Honeywell HMI or operator station, communication link continuity should be confirmed post-replacement to avoid alarm suppression or display faults.
For sites using signal isolators or loop-powered transmitters on analog input channels, recalibration after a base rack replacement is recommended to rule out ground loop interference introduced during the maintenance window. Surge protection devices on I/O field wiring should also be inspected, as a backplane fault event may indicate a prior transient overvoltage condition that could have damaged upstream protection components.
Stocking the 2MLB-M06A-CC alongside a curated set of HC900 module spares — power supply, CPU, representative I/O modules, and communication cards — constitutes a complete critical spares kit for HC900-based control systems and is the recommended approach for sites with long lead times or remote locations.
Site Replacement Workflow
Step 1 — Pre-replacement preparation: Download and archive the current HC900 configuration using Honeywell’s HC Designer software before any hardware change. Confirm the replacement 2MLB-M06A-CC matches the slot count and revision level of the installed unit.
Step 2 — Safe de-energization: Follow site LOTO (Lockout/Tagout) procedures. Remove the power supply module first, then extract all I/O and communication modules in sequence, labeling each slot position for accurate reinstallation.
Step 3 — Base rack removal and installation: Disconnect all field wiring terminations from I/O modules prior to rack removal. Install the replacement 2MLB-M06A-CC, ensuring DIN rail or panel mounting is secure and backplane connectors are fully seated.
Step 4 — Module reinstallation and power-up: Reinstall modules in their original slot positions. Restore power and observe HC900 diagnostic LEDs for fault indication. Use HC Designer to verify configuration upload and confirm all I/O channels are communicating correctly.
Step 5 — Functional verification: Perform a loop check on critical analog and digital I/O channels. Confirm HMI displays are updating correctly and no communication alarms are active before returning the system to automatic control.
This workflow is applicable whether replacing a failed unit under emergency conditions or performing a planned swap during a scheduled maintenance window. The 2MLB-M06A-CC’s form-factor compatibility with all HC900 CPU and I/O modules means no firmware changes or configuration modifications are required — reducing replacement time and minimizing the risk of configuration errors during restoration.
Spare Parts Support FAQ
Q1: Is the 2MLB-M06A-CC compatible with all HC900 CPU and I/O module variants?
Yes. The 2MLB-M06A-CC 6-Slot Main Base Rack is compatible with the full range of HC900 CPU modules (C30, C50, C70, C75) and all standard HC900 I/O and communication modules. No hardware or firmware modification is required for direct replacement of an existing installed unit.
Q2: What is the warranty coverage and what does pre-shipment testing include?
All units are covered by a 12-month warranty from the date of shipment. Pre-shipment testing includes backplane continuity verification, slot connector inspection, and functional power-up testing where applicable. Units that do not pass inspection are not dispatched.
Q3: How should the 2MLB-M06A-CC be stored as a long-term spare?
Store in original anti-static packaging in a dry, temperature-controlled environment (10°C to 40°C, <70% RH non-condensing). Avoid stacking heavy items on the unit. Inspect annually for connector oxidation and re-bag with fresh desiccant if stored beyond 12 months. Long-term storage does not void the warranty period, which begins at shipment.
Q4: Can this unit replace an older or discontinued HC900 base rack revision?
In most cases, yes. Honeywell has maintained backward compatibility across HC900 base rack revisions. However, it is recommended to confirm the slot count and physical mounting configuration match your installed system before ordering. Our technical team can assist with compatibility verification based on your existing part number and system revision.
