Honeywell 2MLF-DV8A Spare for TDC 3000 Automation

Honeywell 2MLF-DV8A Spare for TDC 3000 Automation: Spare Parts Replacement & Industrial Downtime Risk Control

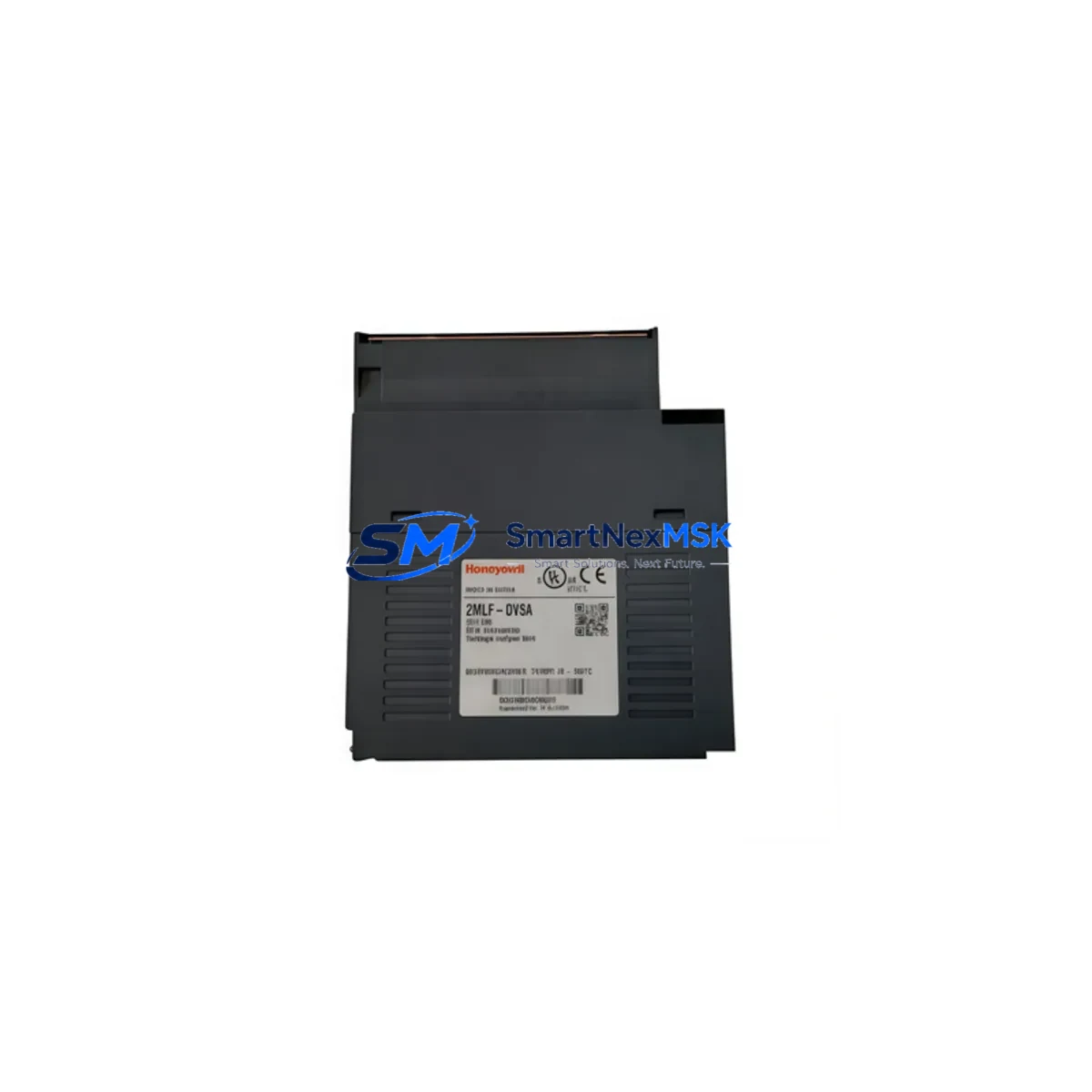

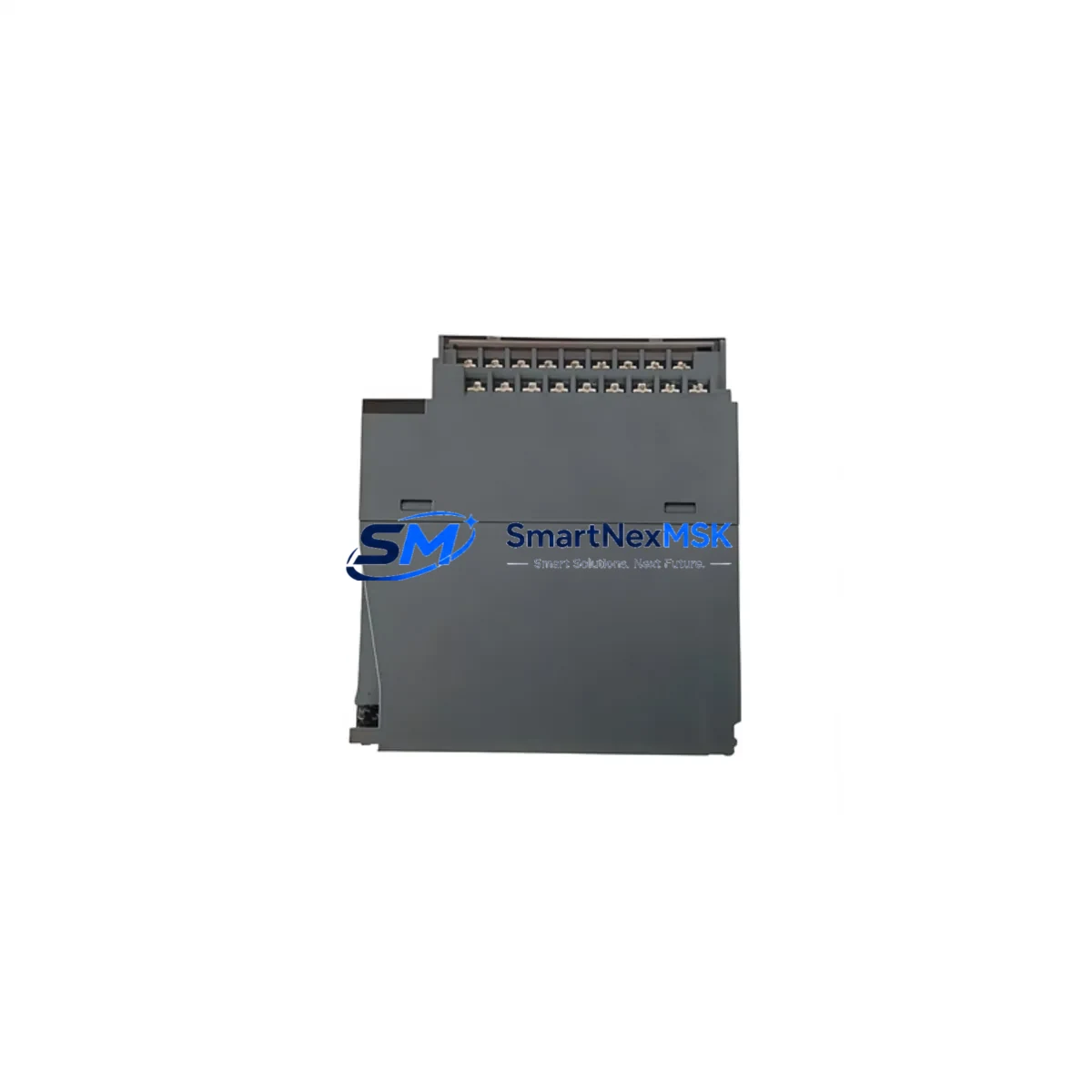

The Honeywell 2MLF-DV8A is an 8-channel analog voltage output module engineered for the TDC 3000 / TPS Distributed Control System (DCS) platform. As a maintenance-ready original spare, this module is critical for facilities that depend on continuous process control in refining, petrochemical, power generation, and advanced manufacturing environments. Sourced from verified supply channels, each unit undergoes functional testing prior to shipment and is backed by a 12-month warranty.

For maintenance engineers managing aging TDC 3000 or TPS control architectures, securing a qualified replacement for the 2MLF-DV8A is not merely a procurement task — it is a core element of downtime prevention strategy. Analog output modules of this type directly govern final control elements such as control valves, variable-speed drives, and positioners. A failed or degraded module can cascade into process upsets, unplanned shutdowns, and costly production losses. Holding a tested, ready-to-install spare on the shelf is the most reliable mitigation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 2MLF-DV8A analog output module is flagged for replacement during a planned turnaround or emergency callout, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A thorough inspection of the surrounding control loop is essential to prevent repeat failures and ensure a clean return to service.

Begin by verifying the IOP backplane slot integrity — worn or oxidized card-edge connectors are a common source of intermittent signal faults that are often misattributed to the output module itself. Inspect the 24 VDC field power supply feeding the IOP rack; a sagging or noisy supply rail can corrupt analog output accuracy across all channels. If the system uses a Honeywell PM I/O Link or equivalent communication bus, confirm that the link controller card (such as the IOP Link Interface Module) is functioning within specification before commissioning the replacement 2MLF-DV8A.

On the field wiring side, check the marshalling cabinet terminal blocks and associated signal cables for insulation degradation, moisture ingress, or loose terminations — particularly in high-vibration or high-humidity plant environments. Analog voltage output loops are sensitive to ground loops; verify that signal isolators or galvanic isolation barriers are intact and correctly configured for each channel. Where the 2MLF-DV8A drives a current-to-pneumatic (I/P) converter or a smart valve positioner, confirm that the positioner’s input impedance is within the module’s rated load range.

For facilities running mixed TDC 3000 and TPS architectures, it is advisable to simultaneously audit adjacent modules in the same IOP rack — including analog input modules (such as the 2MLF-AC8A or equivalent AI cards), digital output modules, and any redundancy switch modules that may share the same backplane power domain. Relay output cards and HLAI (High-Level Analog Input) modules in the same control loop should also be inspected for contact wear or calibration drift.

Procurement engineers should note that the 2MLF-DV8A is a long-lifecycle component in an established DCS platform. Maintaining a minimum stock of one to two tested spares per critical process unit — alongside spares for the IOP power supply module, UCN (Universal Control Network) interface cards, and AM (Application Module) processor boards — is a recognized best practice for TDC 3000 lifecycle extension programs. Pairing this spare with a documented spare parts register and a defined mean-time-to-replace (MTTR) target ensures that your maintenance team can execute a controlled swap within a single shift window.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a valid work permit and place the affected control loop in manual mode at the operator station. Confirm that all downstream final control elements are in a safe, fail-safe position before proceeding.

Step 2 — Module Extraction: Power down the IOP slot if the system design requires it (refer to the TDC 3000 maintenance manual for hot-swap capability by firmware revision). Carefully extract the 2MLF-DV8A using the card ejector levers to avoid backplane connector damage.

Step 3 — Visual & Connector Inspection: Inspect the vacated backplane slot for bent pins, debris, or corrosion. Clean with appropriate contact cleaner if required. Inspect the replacement module’s card-edge connector before insertion.

Step 4 — Module Installation: Seat the replacement 2MLF-DV8A firmly into the slot until the ejector levers click into the locked position. Restore slot power and confirm that the module’s status LED indicates normal operation.

Step 5 — Loop Verification: From the operator station or engineering workstation, perform a channel-by-channel output verification. Command each channel to 0%, 50%, and 100% of span and confirm that the field device responds correctly. Document the as-found and as-left readings.

Step 6 — Return to Automatic: Once all channels are verified, transfer the control loop back to automatic mode. Monitor the process variable for at least one full control cycle before closing the work permit.

This workflow is applicable whether replacing a failed module on an emergency basis or executing a proactive swap during a scheduled outage. The 2MLF-DV8A’s direct form-fit-function compatibility with the TDC 3000 IOP rack eliminates the need for any firmware reconfiguration or database changes in most standard installations, significantly reducing the risk of commissioning errors and minimizing total downtime.

Spare Parts Support FAQ

Q1: Is the 2MLF-DV8A compatible with both TDC 3000 and TPS DCS platforms?
Yes. The 2MLF-DV8A is designed for the Honeywell TDC 3000 IOP (Input/Output Processor) architecture, which is also the hardware foundation of the TPS (TotalPlant Solution) system. The module is slot-compatible with standard IOP racks used across both platform generations. Always verify the backplane revision and firmware level of your specific installation against the module’s compatibility matrix in the Honeywell TDC 3000 hardware documentation before installation.

Q2: How is each unit tested before shipment?
Every 2MLF-DV8A unit is subjected to a functional output test covering all 8 analog voltage output channels prior to packaging. Test results confirm that each channel produces the correct output signal across the full 0–10 V DC range. Units that do not pass the full functional test are not offered for sale. A test report is available upon request for critical applications.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside the module’s rated environmental parameters. In the event of a warranty claim, contact our technical support team with the order reference and a description of the observed fault for rapid resolution.

Q4: How should I manage long-term spare parts inventory for TDC 3000 systems?
For TDC 3000 systems approaching or beyond their original design life, a structured spare parts strategy is essential. We recommend classifying the 2MLF-DV8A as a critical-tier spare and maintaining at least one tested unit per process unit or control cabinet cluster. Combine this with a periodic audit of your IOP rack population — including power supply modules, communication interface cards, and analog input modules — to identify aging components before they cause unplanned outages. Our team can assist with multi-SKU spare parts planning and long-term supply agreements to support your system lifecycle extension program.
