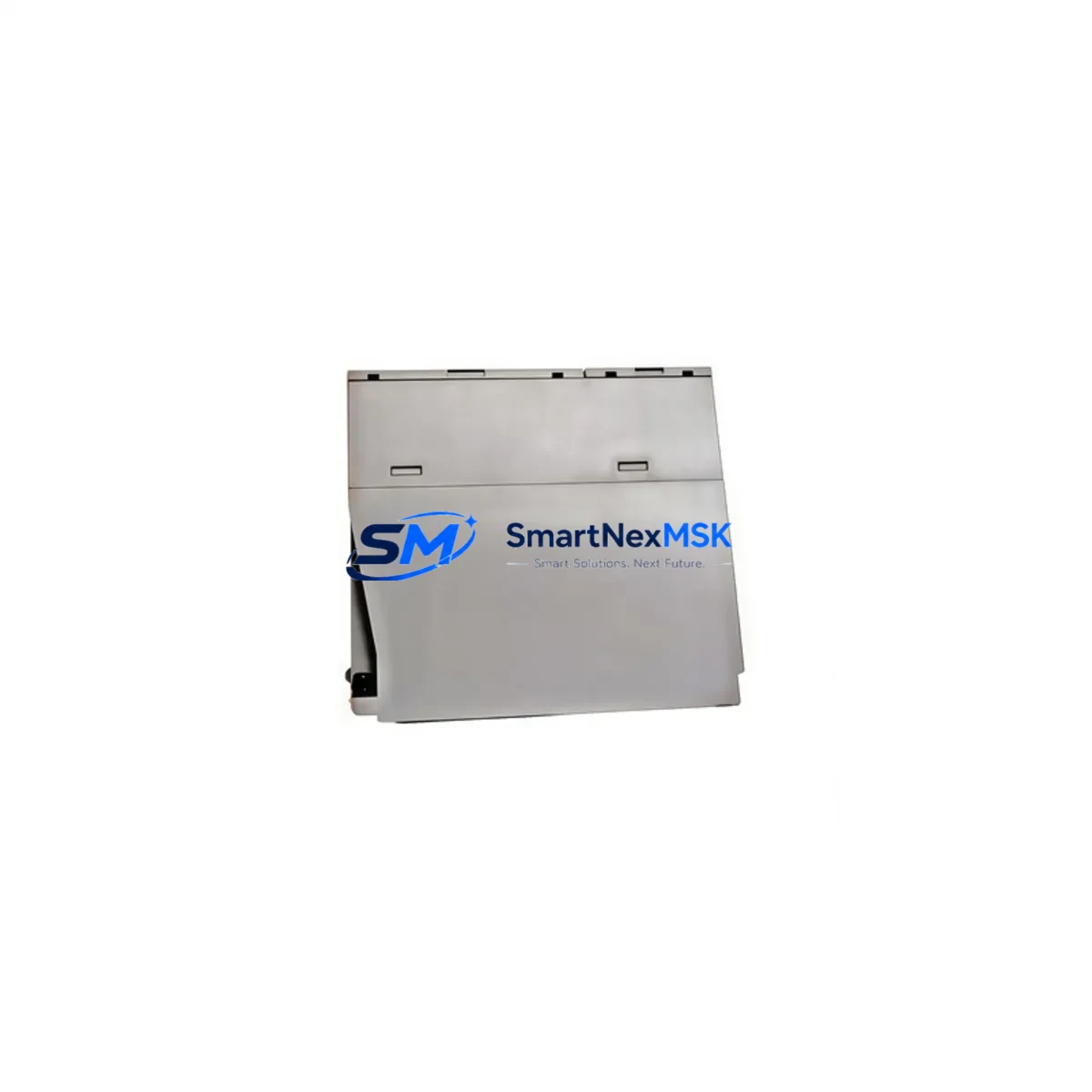

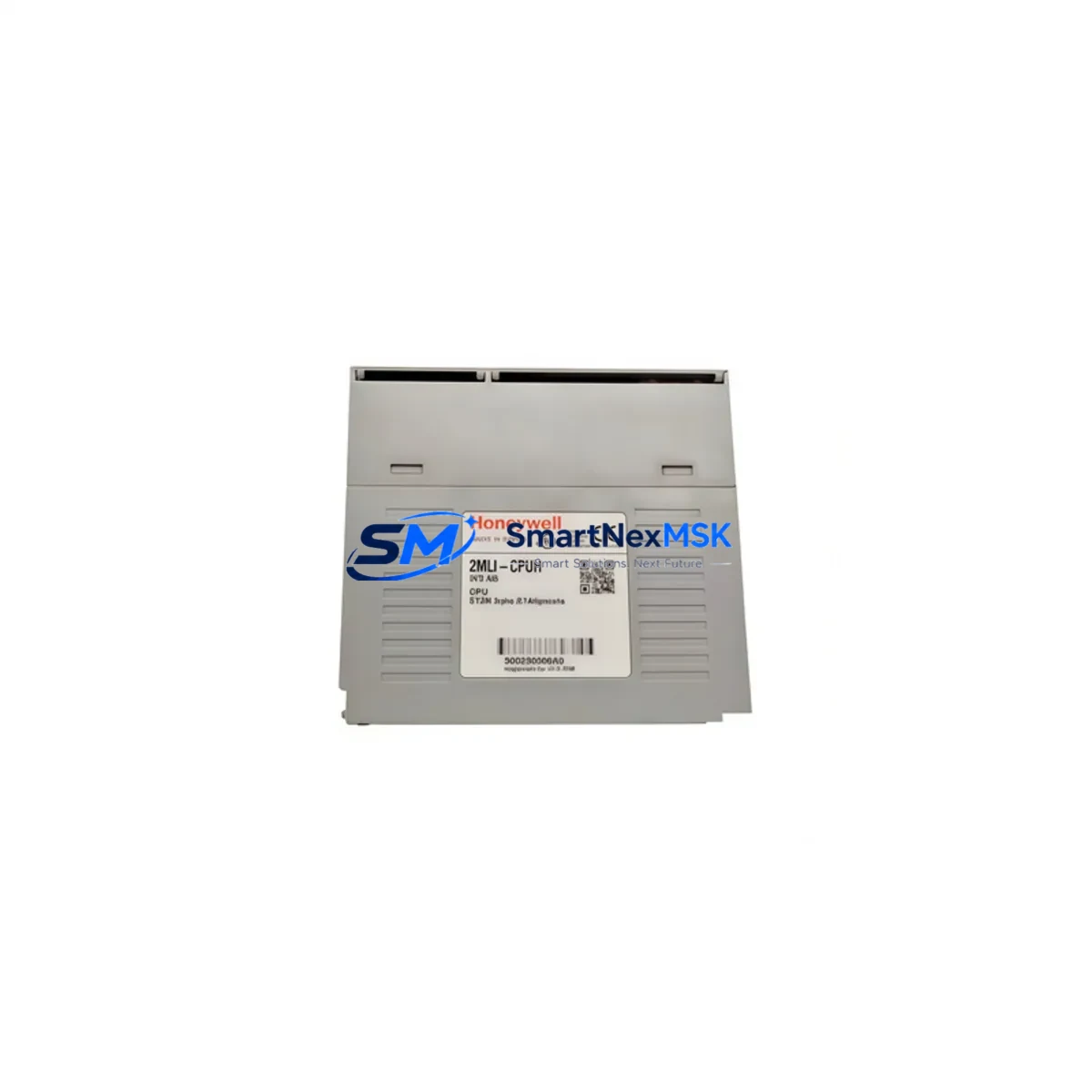

Honeywell 2MLI-CPUH-CC Maintenance-Ready Spare for Safety Manager

Honeywell 2MLI-CPUH-CC Maintenance-Ready Spare for Safety Manager Automation

The Honeywell 2MLI-CPUH-CC is the central processing unit of the Honeywell Safety Manager system — a SIL 3-certified safety PLC platform widely deployed in oil & gas, petrochemical, power generation, and chemical processing facilities. Holding a maintenance-ready spare of the 2MLI-CPUH-CC is a fundamental requirement for any site operating a Safety Instrumented System (SIS) under IEC 61511 or IEC 61508 compliance frameworks. Unplanned CPU failure without an on-hand replacement can result in extended process shutdowns, emergency bypass operations, and significant safety risk exposure. This listing provides an original, tested, and warranty-backed 2MLI-CPUH-CC module ready for immediate deployment.

For maintenance engineers and spare parts procurement teams, the 2MLI-CPUH-CC represents the highest-criticality component in the Safety Manager chassis. Unlike standard DCS or PLC CPUs, a safety CPU must be replaced with an identical, certified module — no functional substitution is permissible without full re-validation. Sourcing a genuine Honeywell 2MLI-CPUH-CC from a verified industrial spare parts supplier ensures that your replacement module carries the correct firmware baseline, hardware revision, and SIL certification documentation required for site acceptance testing and regulatory audit.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 2MLI-CPUH-CC replacement is scheduled or triggered by a fault condition, a disciplined maintenance engineer will treat the CPU swap as an opportunity to inspect the entire Safety Manager chassis and associated control cabinet. The following components should be evaluated concurrently to avoid repeat shutdowns and to maximize the value of each planned maintenance window.

Begin with the 2MLI-PSUH-CC power supply module — the CPU and power supply share the same chassis backplane, and a degraded power supply is a common root cause of intermittent CPU faults. Verify output voltage stability and check for capacitor aging indicators. Next, inspect the 2MLI-IOMH-CC I/O modules installed in adjacent chassis slots; loose field wiring terminations or corroded terminal blocks on the I/O side can generate spurious diagnostics that are incorrectly attributed to CPU failure.

For systems using redundant CPU configurations, the 2MLI-CPUH-CC standby module should be tested independently to confirm that hot-standby switchover functions correctly after the primary CPU is replaced. Communication health should be verified across the Fault Tolerant Ethernet (FTE) network — check both FTE switch ports and the associated Ethernet cables connecting the Safety Manager to the Experion PKS or third-party DCS host. If the site uses Modbus RTU or HART pass-through for field device communication, confirm that the serial communication daughter card seated in the CPU module is undamaged and properly connected.

Relay output modules such as the 2MLI-DORM-CC digital output relay module should be exercised through a full trip-and-reset cycle during the maintenance window. Relay contact wear is a silent failure mode in SIS applications where the output is rarely actuated under normal operating conditions. Terminal blocks and Phoenix Contact or Weidmüller-style DIN rail terminal strips used for field signal marshalling should be torque-checked and inspected for discoloration indicating thermal stress.

If the Safety Manager communicates with a Honeywell FSC (Fail Safe Controller) or interfaces with third-party safety systems via hardwired I/O, verify that all inter-system wiring is intact and that signal isolators — such as MTL or Pepperl+Fuchs Zener barriers and galvanic isolators — are within their rated service life. Finally, confirm that the Safety Manager engineering workstation running SM Engineering Tools has a current, validated project backup, and that the replacement CPU is loaded with the correct application program version before returning the system to service.

Site Replacement Workflow

Replacing the 2MLI-CPUH-CC follows a structured procedure to minimize downtime and maintain SIS integrity. Before any physical intervention, obtain a Management of Change (MOC) approval and confirm that the process unit is in a safe state or that appropriate bypasses are in place per your site’s Safety Management System.

Step 1 — Backup & Documentation: Export the current Safety Manager application program, configuration, and diagnostic logs from the SM Engineering Tools workstation. Record the current firmware version displayed on the CPU front panel LEDs or via the diagnostic interface.

Step 2 — Chassis Isolation: For non-redundant CPU systems, initiate a controlled shutdown of the safety function. For redundant systems, force a manual switchover to the standby CPU and confirm stable operation before removing the faulted primary module.

Step 3 — Module Exchange: Remove the faulted 2MLI-CPUH-CC by releasing the front-panel locking levers and sliding the module from the chassis backplane. Insert the replacement 2MLI-CPUH-CC, ensuring full backplane connector engagement. The module is keyed to prevent incorrect slot installation.

Step 4 — Program Load & Verification: Download the validated application program to the replacement CPU via the SM Engineering Tools workstation. Confirm that the program CRC matches the approved baseline. Perform a full I/O checkout and safety function proof test as required by your site’s SIS maintenance procedure.

Step 5 — Return to Service: Remove bypasses in the correct sequence, confirm all safety functions are active, and update the maintenance record with the replacement module serial number, date, and technician sign-off.

This workflow is compatible with both single-CPU and redundant CPU Safety Manager configurations and supports a controlled replacement that avoids unplanned process trips.

Spare Parts Support FAQ

Q: Is the 2MLI-CPUH-CC still available as a new or refurbished spare?
A: Yes. While Honeywell has transitioned newer installations to the Safety Manager SC platform, the 2MLI-CPUH-CC remains available as an original spare through authorized industrial distributors and specialist spare parts suppliers. We maintain stock specifically to support legacy Safety Manager installations that are not yet scheduled for migration.

Q: How do I verify compatibility before installation?
A: Confirm the chassis model (Safety Manager standard or extended chassis), the existing CPU hardware revision, and the SM Engineering Tools software version in use at your site. The 2MLI-CPUH-CC is compatible across the Safety Manager product family, but firmware version alignment between the replacement CPU and the existing standby CPU (in redundant configurations) must be verified prior to installation.

Q: What pre-shipment testing is performed on this module?
A: Each 2MLI-CPUH-CC unit undergoes power-on functional verification, backplane communication check, and LED diagnostic confirmation before shipment. A test report is available upon request. Modules are packed in anti-static ESD-safe packaging with foam cushioning to prevent transit damage.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, we provide advance replacement to minimize your site downtime, subject to verification of the fault condition.
